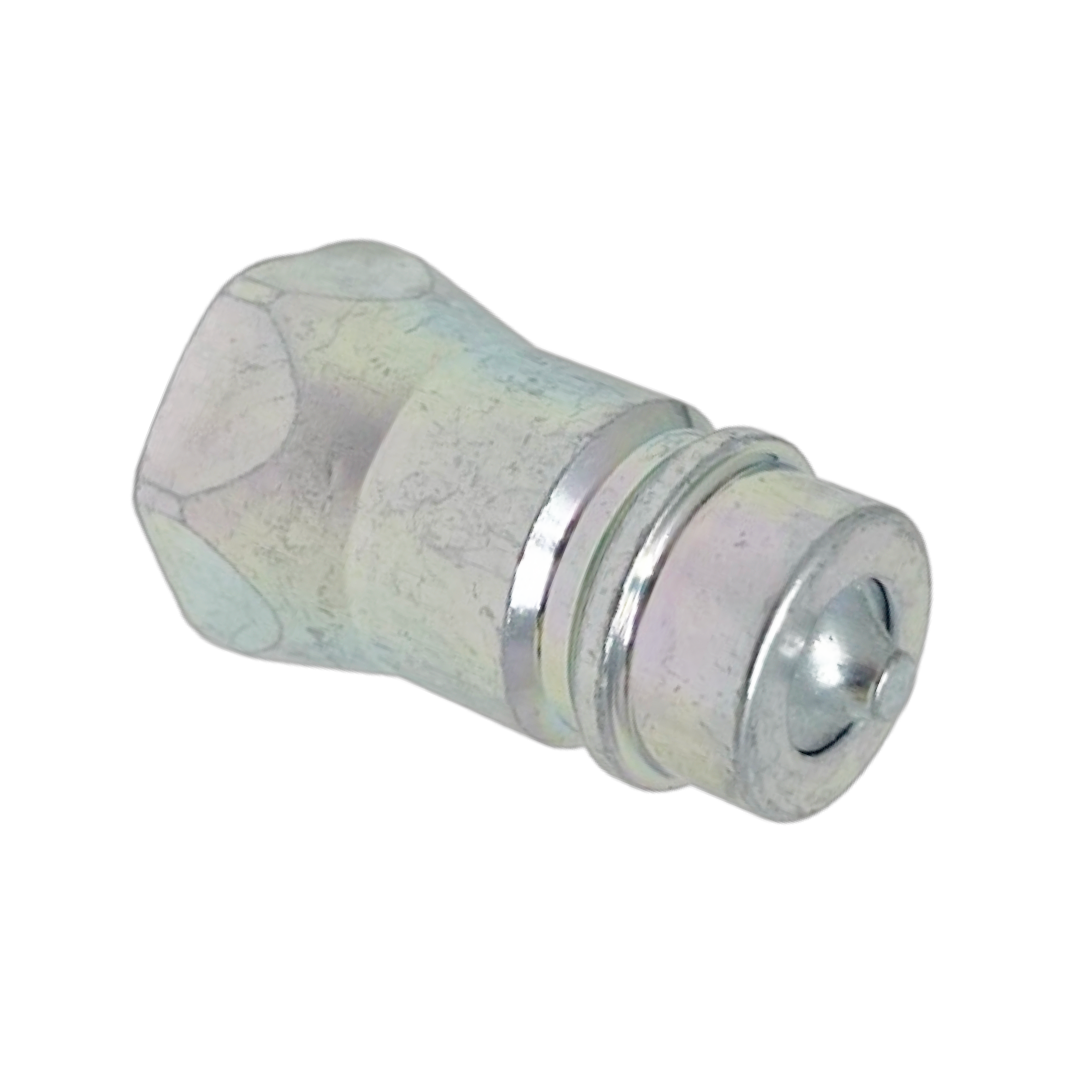

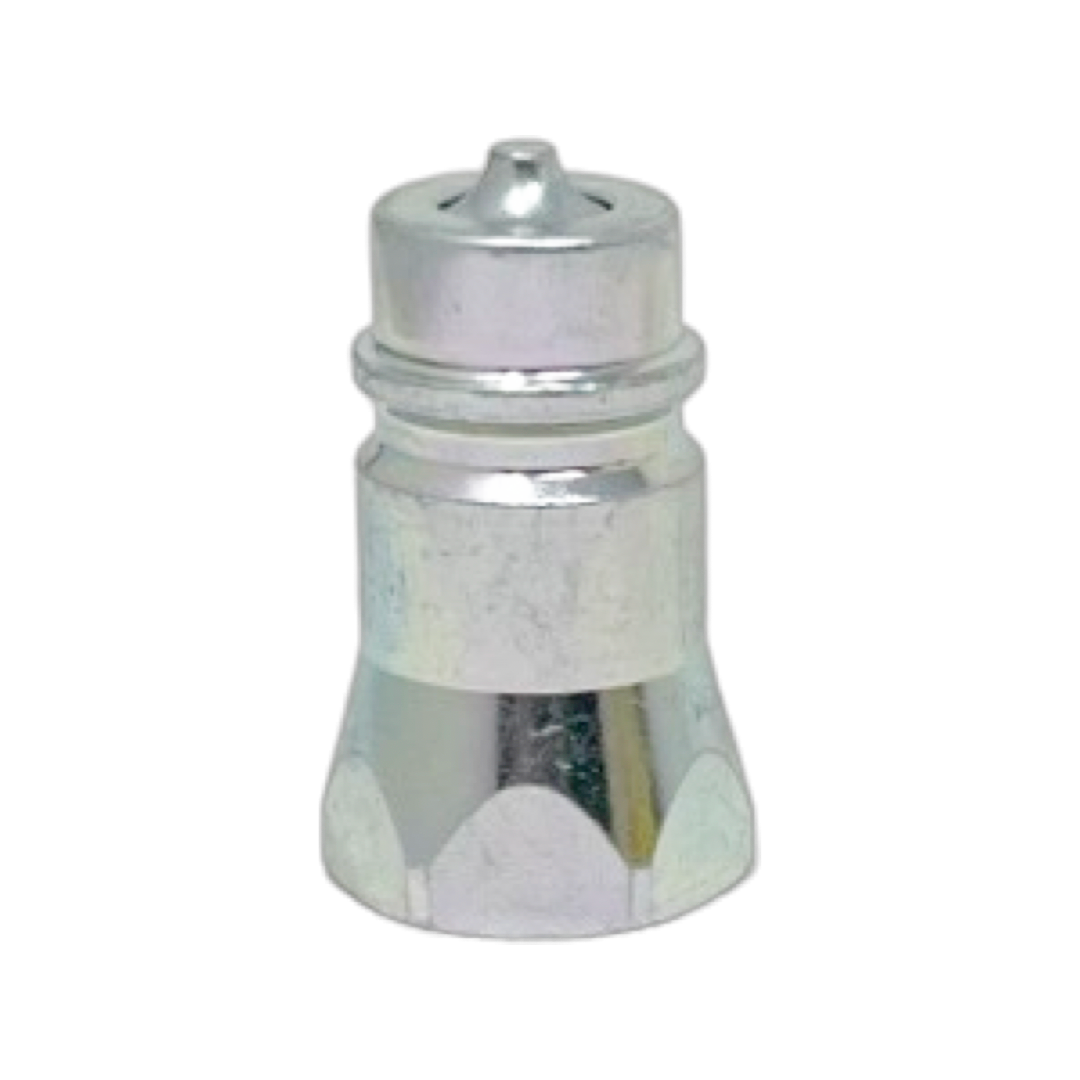

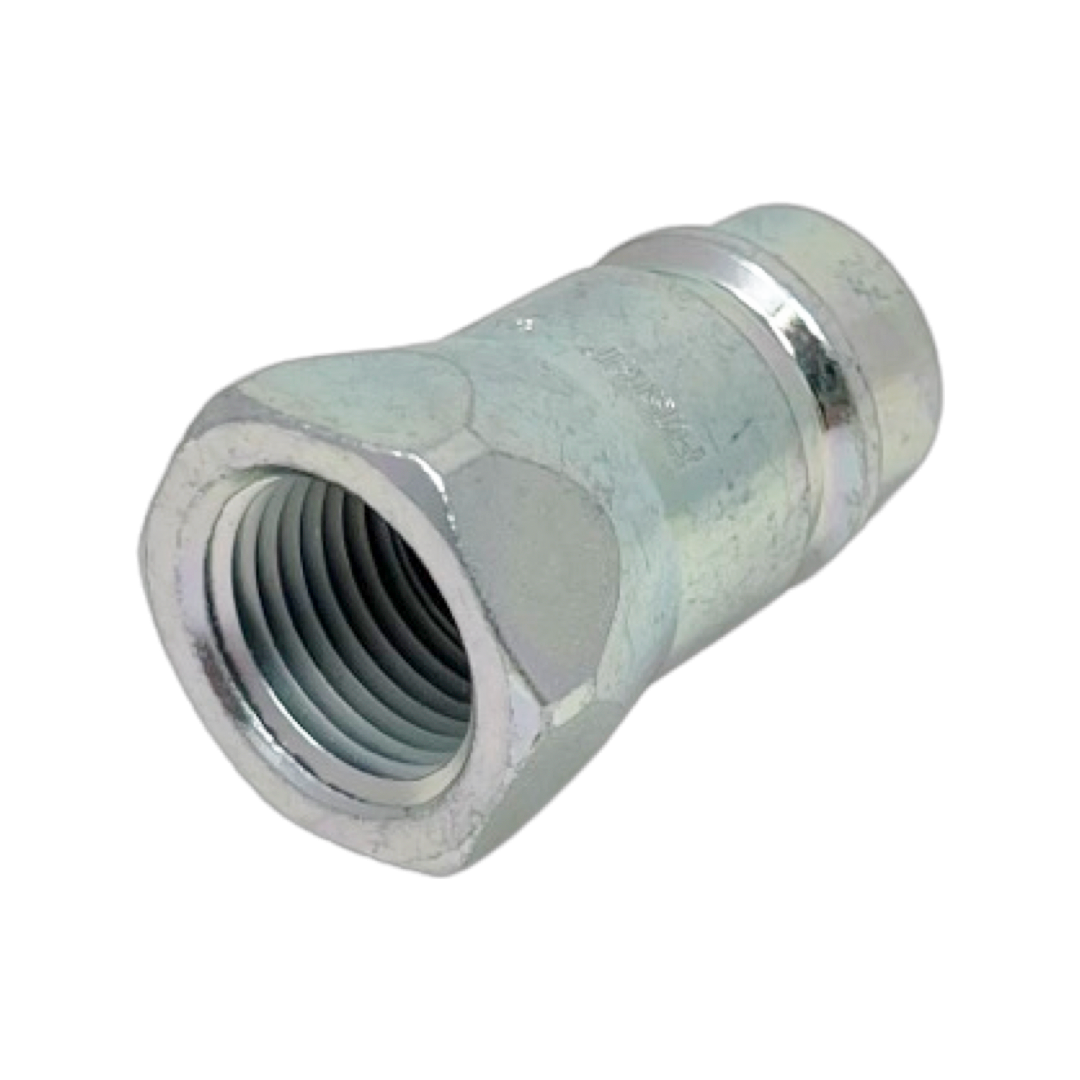

2NV 12-58SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.625 (5/8") ORB Connection, 3625psi MAWP, 15.85 GPM, ISO 7241 Part A Interchange, Sleeve Retraction Style, Connection Under Pressure Not Allowed
Roll over image to zoom in Click on image to zoom
2NV 12-58SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.625 (5/8") ORB Connection, 3625psi MAWP, 15.85 GPM, ISO 7241 Part A Interchange, Sleeve Retraction Style, Connection Under Pressure Not Allowed2NV 12-58SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.625 (5/8") ORB Connection, 3625psi MAWP, 15.85 GPM, ISO 7241 Part A Interchange, Sleeve Retraction Style, Connection Under Pressure Not Allowed2NV 12-58SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.625 (5/8") ORB Connection, 3625psi MAWP, 15.85 GPM, ISO 7241 Part A Interchange, Sleeve Retraction Style, Connection Under Pressure Not Allowed2NV 12-58SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.625 (5/8") ORB Connection, 3625psi MAWP, 15.85 GPM, ISO 7241 Part A Interchange, Sleeve Retraction Style, Connection Under Pressure Not Allowed

2NV 12-58SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.625 (5/8") ORB Connection, 3625psi MAWP, 15.85 GPM, ISO 7241 Part A Interchange, Sleeve Retraction Style, Connection Under Pressure Not Allowed

FasterSKU: 2NV 12-58SAE M
1-2 Weeks
Price:
$10.48

Product Details

Data Sheet Click here to download
Usually Ships Within 1-2 Weeks
Factory Location Maumee, Ohio
Port Size 0.625 (5/8") ORB
Type Sleeve Retraction
End Connections Connect Under Pressure Not Allowed
Pressure Rating 3625
Series Series: 2NV
Operating Force 18 lb
Country of Manufacture Country of Manufacture: Italy
Height 1.18
Length 2.07
Width 1.18
Weight 0.22
Side 1 Gender Male
Side 1 Size 0.5 (1/2")

Description

Standard coupling for agriculture application, with poppet valve and shielded valve-guide to prevent accidental disconnections caused by sudden backflow. ISO 7241 part A interchange.
