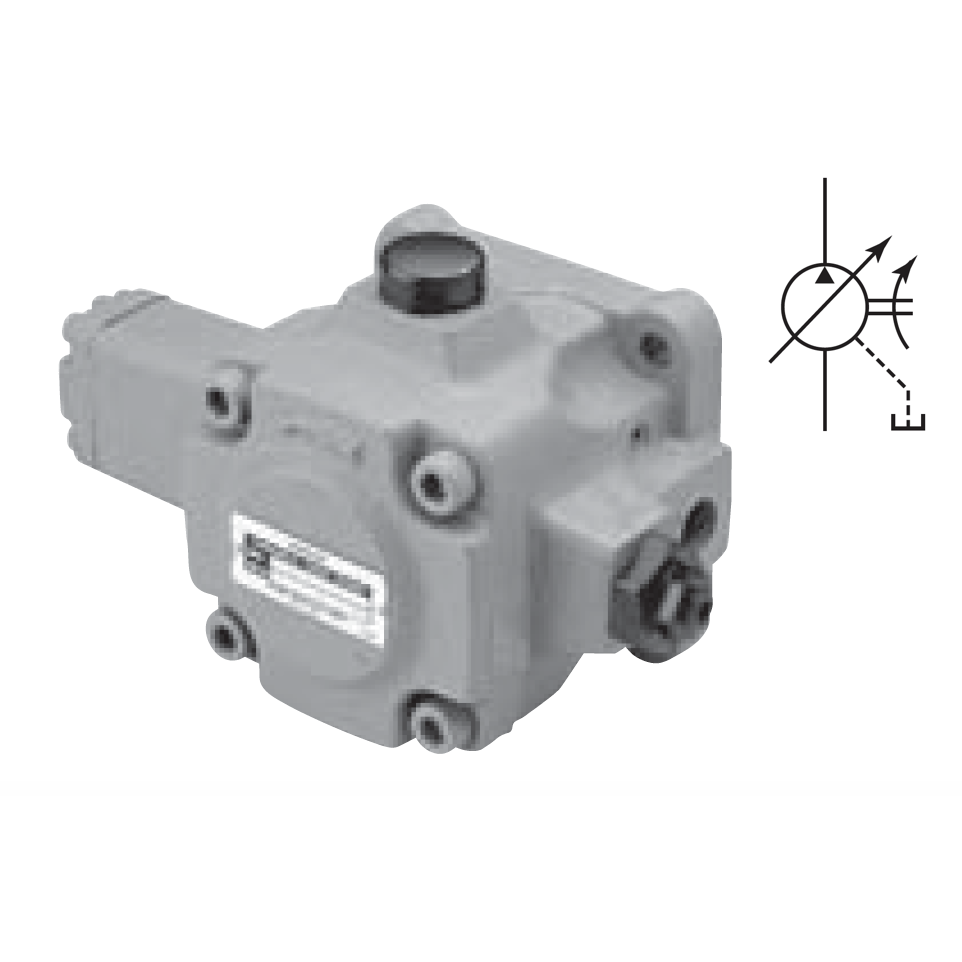

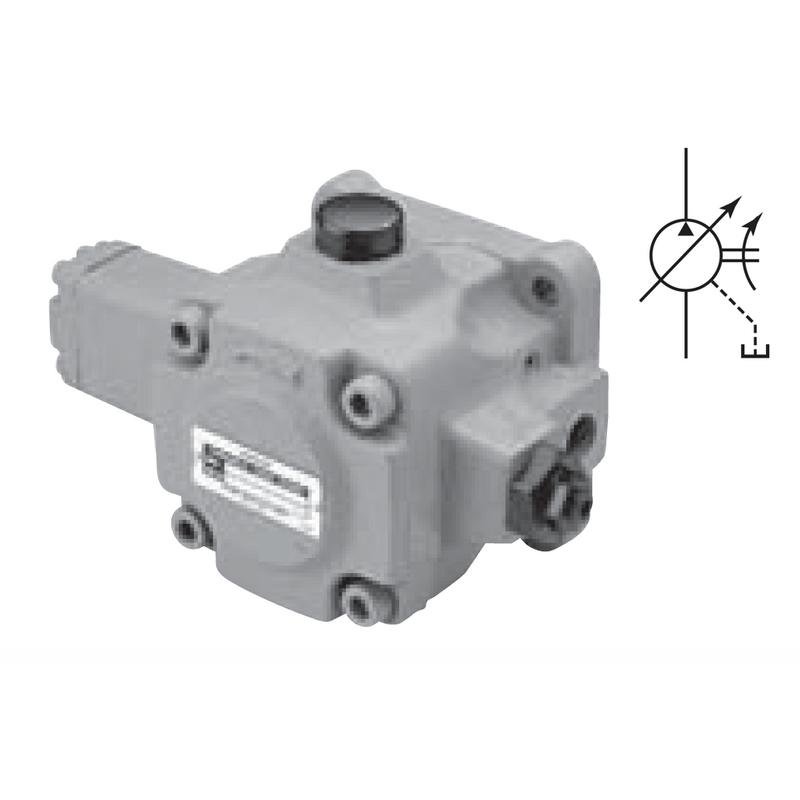

VDR-11B-1A1-1A1-U-13 : Nachi Variable Double Vane Pump, Special Flange, 3/4" Bore x 3/16" Key, 14cc, 6.6GPM, 145 to 290psi Vent Side, 13.88cc, 6.6GPM, 145 to 290psi Shaft Side
Roll over image to zoom in Click on image to zoom
VDR-11B-1A1-1A1-U-13 : Nachi Variable Double Vane Pump, Special Flange, 3/4" Bore x 3/16" Key, 14cc, 6.6GPM, 145 to 290psi Vent Side, 13.88cc, 6.6GPM, 145 to 290psi Shaft Side

VDR-11B-1A1-1A1-U-13 : Nachi Variable Double Vane Pump, Special Flange, 3/4" Bore x 3/16" Key, 14cc, 6.6GPM, 145 to 290psi Vent Side, 13.88cc, 6.6GPM, 145 to 290psi Shaft Side

Save $647.01
NachiSKU: VDR-11B-1A1-1A1-U-13
4-6 Weeks
0
Price:
$2,387.99 $3,035.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Stock 0
Factory Location Greenwood, Indiana
Shaft Size 3/4" Bore x 3/16" Key
Shaft Type Keyed
Rotation Clockwise
Max Speed 1800
Inlet Port 1/2" NPT
Outlet Port 3/8" NPT
Mount Special Flange
Drain Port 1/4" NPT
Port Orientation Side Ported
Country of Manufacture Japan
Height 5.22
Length 8.74
Width 8.92
Weight 37

Description

The Nachi VDR vane pump offers stable, highly efficient operation up to 2030psi. A biased piston that minimizes ring vibration and leak-free pressure balance construction enables highly efficient high pressure operation. This pump offers silent operation, even in the highest pressure range, as well as reduced power loss. The tough and rugged construction of this pump is made possible by Nachi's long history of quality pump designs.
