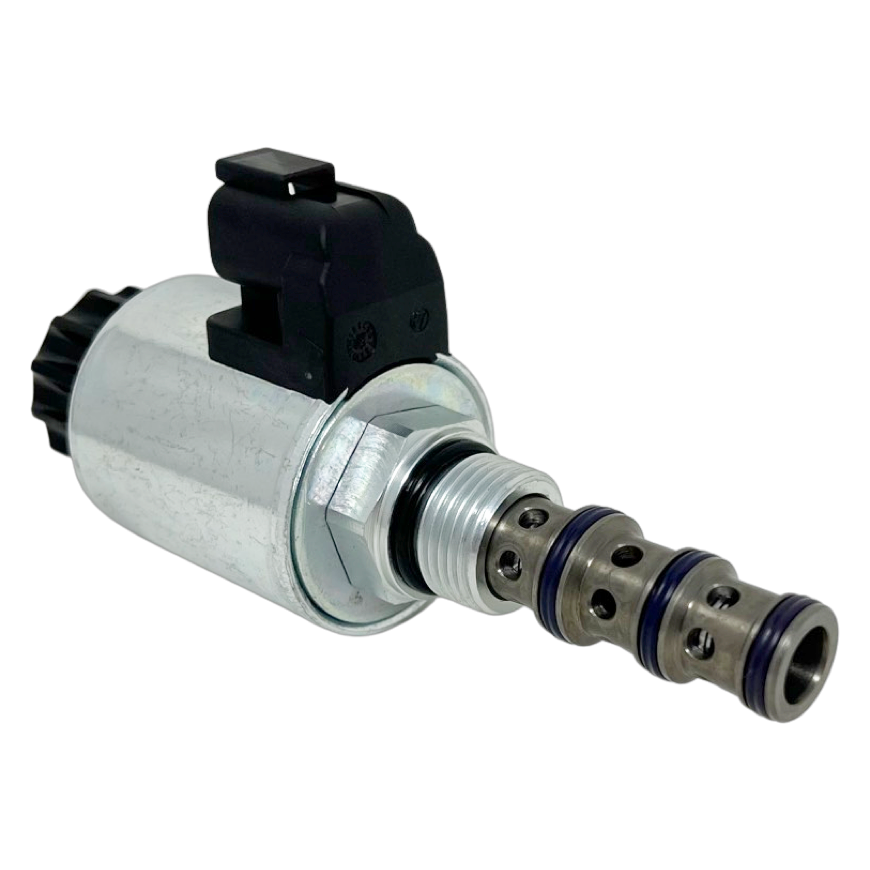

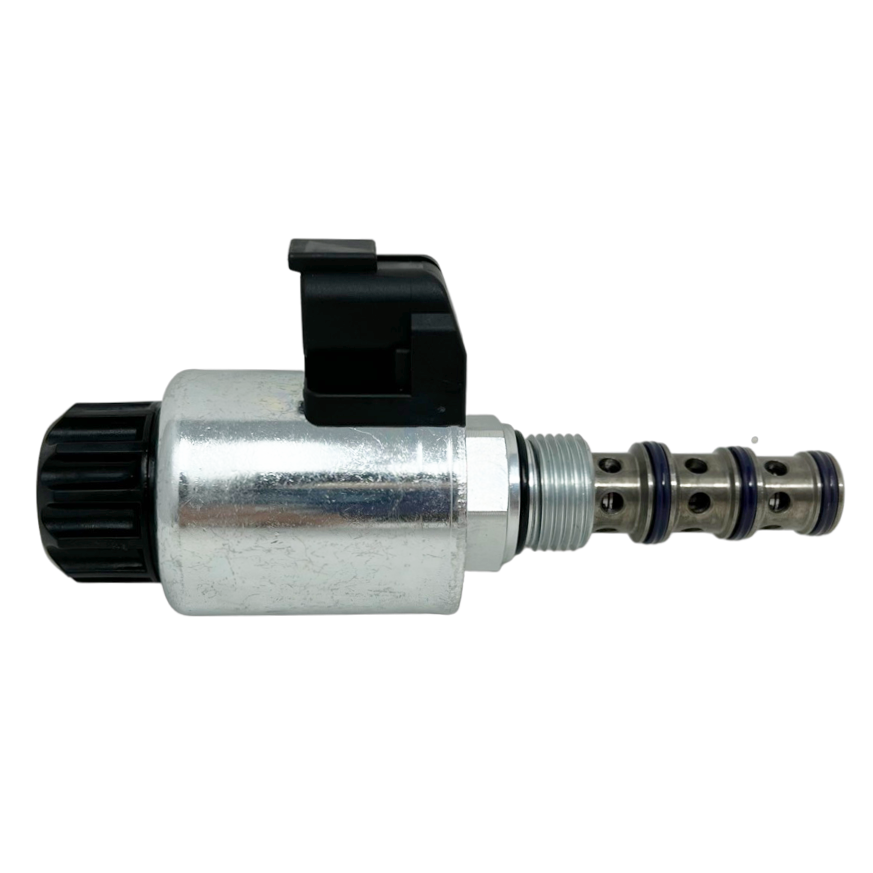

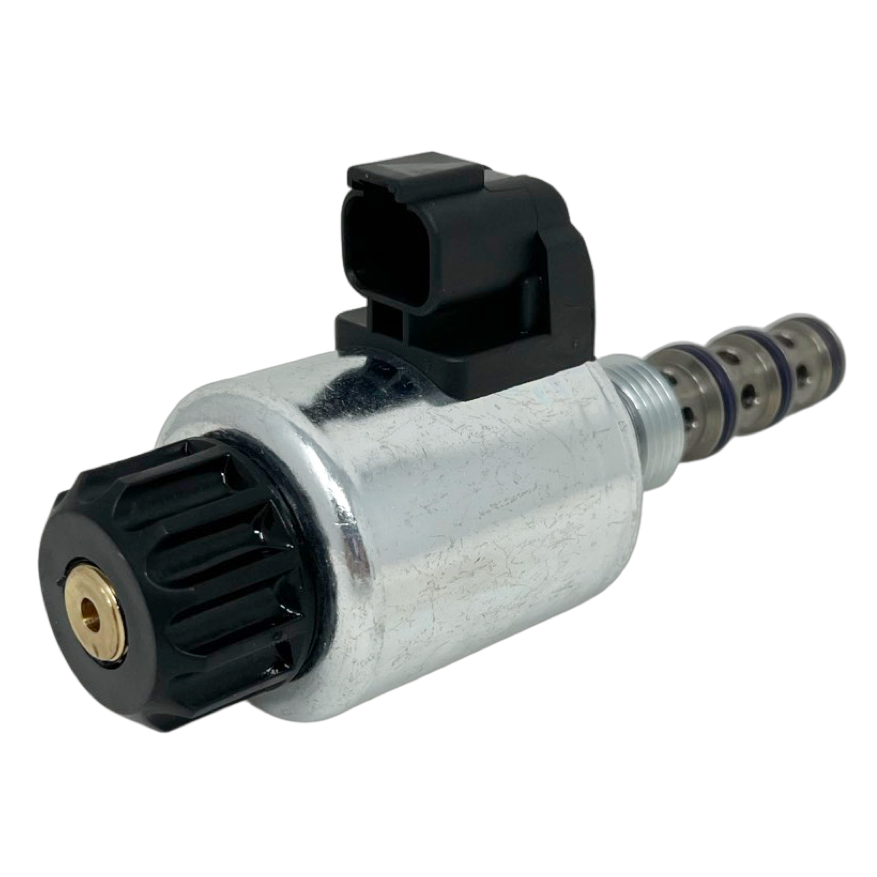

SD2E-B4/H2X21A-12DT : Argo DCV, 16GPM, 5100psi, 2P4W, C-10-2, 12 VDC Deutsch, Port 3 to 4, Port 2 to 1 Neutral
$196.03$113.18 - C22B-01200E12A-4.41NA : Argo Valve Coil, 12VDC, Deutsch (DT04-2P) Connector Type $30.02
- SB-B4-0104ST : Argo Inline Body, C-10-4 #8 SAE (1/2), 6091psi Rated, Steel, No Gauge Port $86.61
Total Price:
$312.67
$229.81
Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Bowling Green, Ohio |
| Solid Model | Click here to download |
| Valve Type | Cartridge |
| Flow Rating | 16 |
| Pressure Rating | 5100 |
| Actuation Type | Solenoid Operated |
| Spool Configuration | Port 3 to 4, Port 2 to 1 Neutral, 2X21 |
| Cartridge Cavity | C-10-2 |
| Positions | 2-Position |
| Way | 4-Way |
| Coil Selection | 12 VDC Deutsch |
| Coil Model Code | C22B-01200E12A-4.41NA |
| Country of Manufacture | Czech Republic |
| Height | 1 |
| Length | 5.07 |
| Width | 1 |
| Weight | 1 |
Description
The Argo-Hytos 4-Way, 2-Position, bi-directional, solenoid operated, direct-acting cartridge valve is made with hardened precision parts, and is used to direct flow to actuators. Coil interchangeability between all SD*A cartridges.
