Spares and Related Parts
Total Price:
$126.53
$126.13

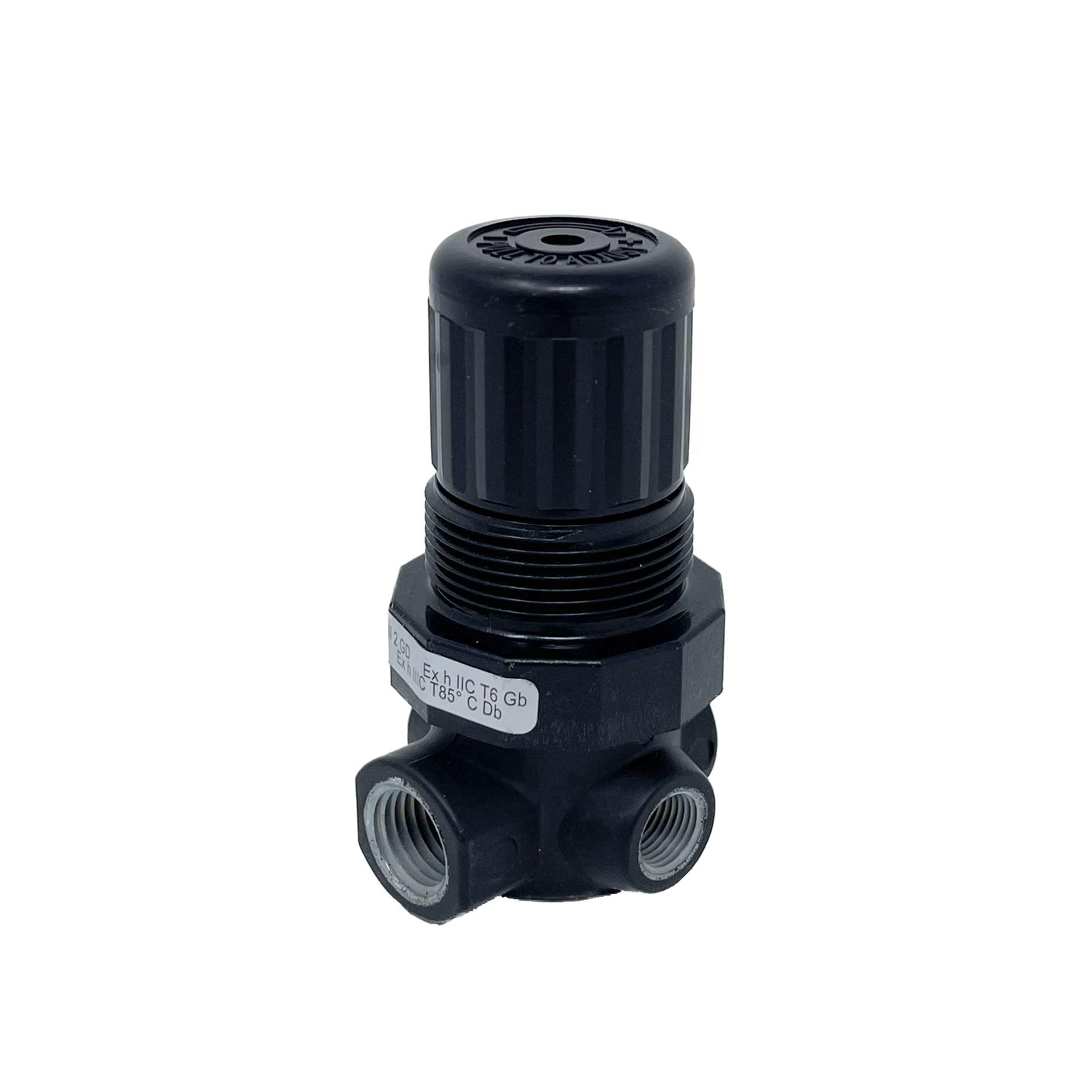

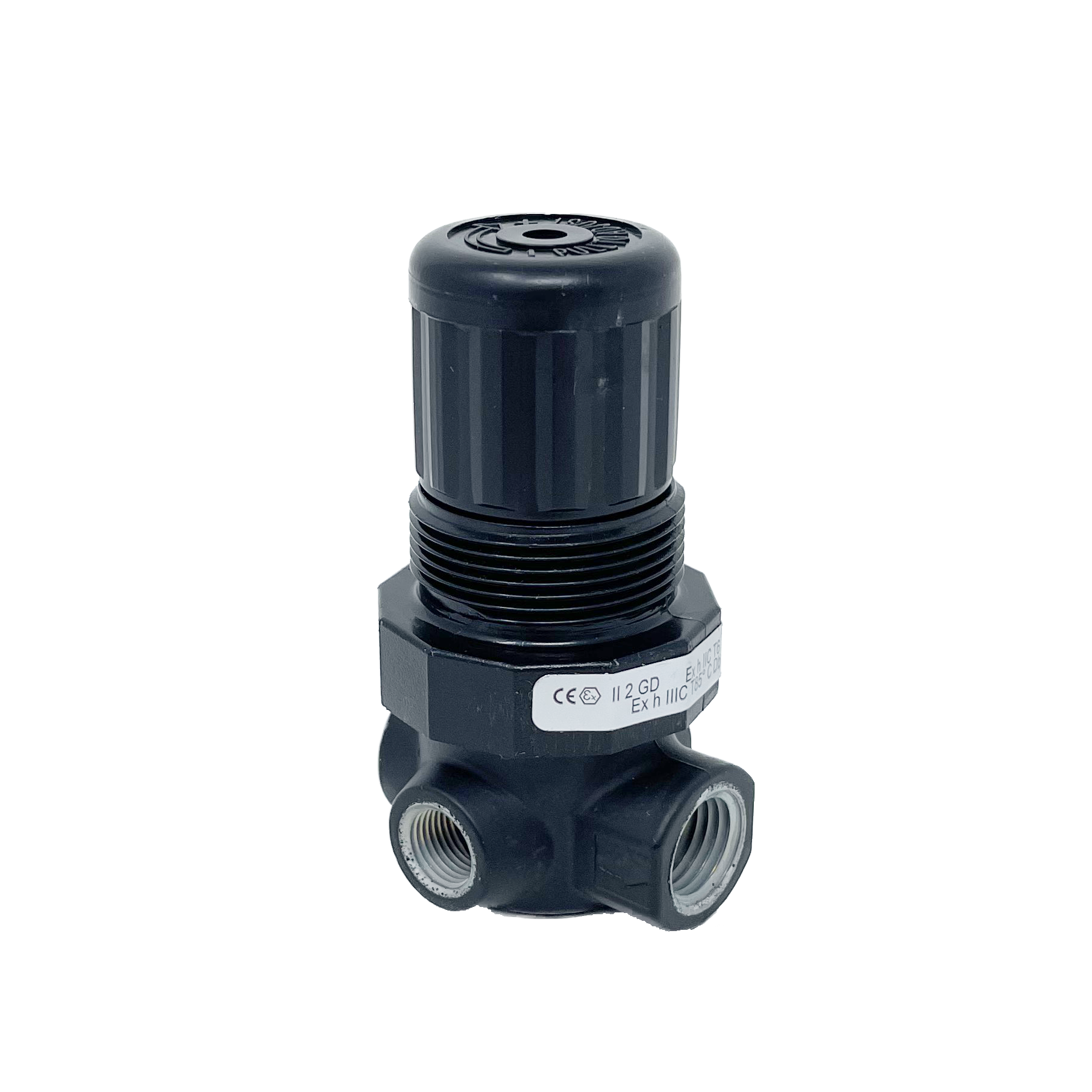

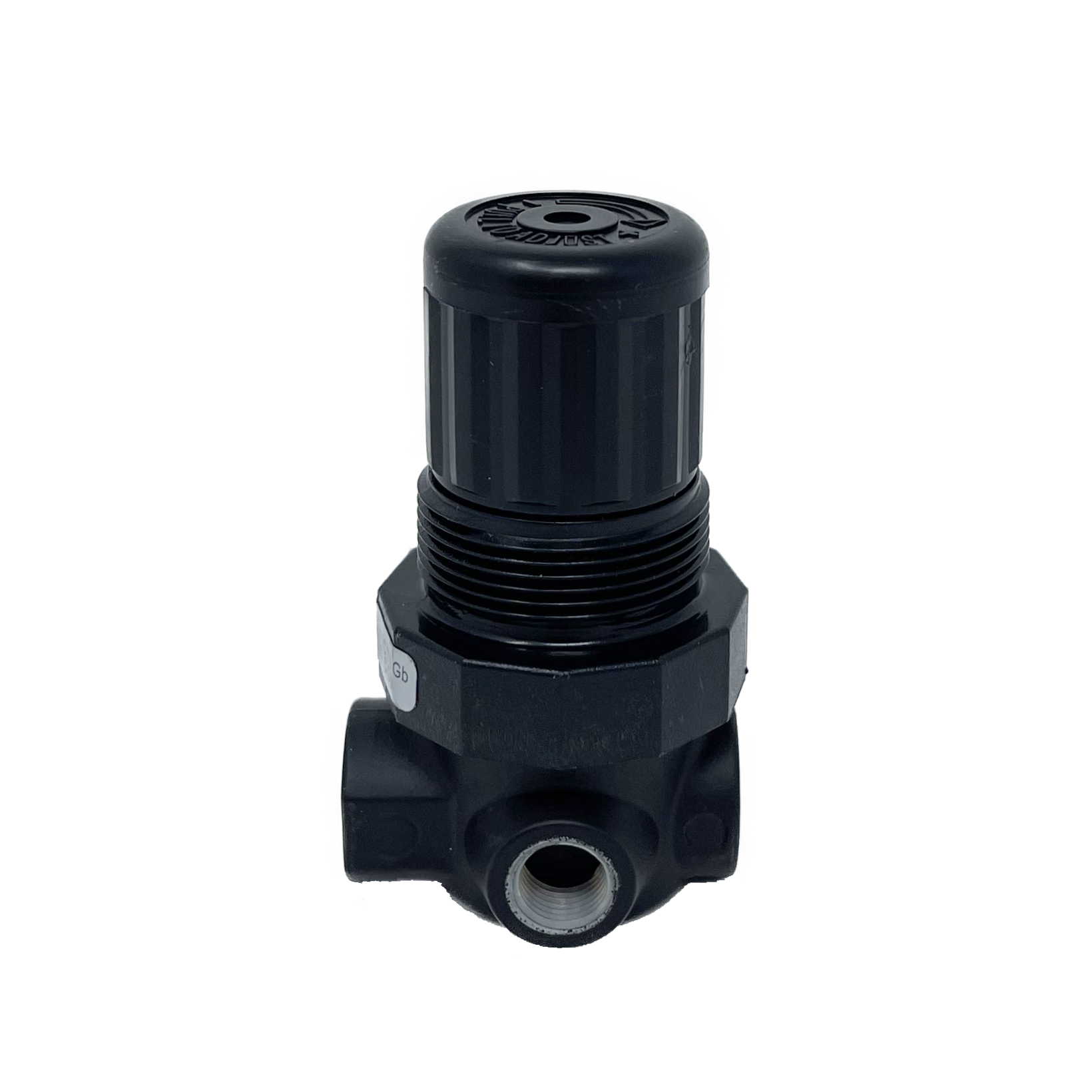

- This product: R07-100-RNKA : Norgren R07 Series Mini regulator, 1/8" NPT, Relieving, No Gauge, 5 to 100psi Range $40.29
- 18-025-003 : Norgren 07 Series Neck Mounting Bracket $14.31
-
2962-89 : Norgren Panel Nut for 07 Series (Plastic)
$7.59$7.19 - 2962-04 : Norgren Panel Nut for 07 Series (Metal) $6.70
- 3407-02 : Norgren R07 Service kits, Relieving Version $25.69
- 3407-22 : Norgren R07 Service kits $31.95
Total Price:
$126.53
$126.13
Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 5-7 Days |
| Factory Stock | 486 |
| Factory Location | Louisville, Kentucky |
| Solid Model | |
| Service Manual | Click here to download |
| Port Size | 1/8" PTF |
| Pressure Rating | 290 |
| Operating Temp Range | -29 to 149 F |
| Gauge Connection | No Gauge |
| Body Material | Zinc |
| Seal Material | Nitrile rubber |
| Relief Option | Relieving |
| Outlet Pressure Range | 5 to 100psi |
| Bonnet | Acetal resin |
| Flow Scfm | 14 |
| Materials Of Construction | Zinc Body, Acetal Bonnet, Acetal Knob, Acetal Valve Seat, Nitrile Elastomers, Brass and Nitrile Valve |
| Service Parts | 3407-02 Relieving Service Kit, 3407-01 Non-Relieving Service Kit |
| Regulator Series | R07 |
| Regulator Type | General Purpose |
| Country of Manufacture | United Kingdom |
| Height | 3.5 |
| Length | 2.91 |
| Width | 1.63 |
| Weight | 0.31 |
Description
Norgren R07 Series Filters are Miniature General Purpose Regulators. Miniature design allows for compact installations. Full flow gauge ports. Low torque, non-rising adjusting knob. Snap action knob locks pressure setting when pushed in. Can be disassembled without the use of tools or removal from the air line
| Product SKU | Port Size & Type | Flow SCFM | Relief Option | Gauge Option | Outlet Pressure Range | Lead Time | Price |
|---|---|---|---|---|---|---|---|
| R07-100-NGKA | 1/8" PTF | 14 | Non-Relieving | With Gauge | 5 to 100psi | 24 Days | $64.01 |
| R07-100-NNAA | 1/8" PTF | 14 | Non-Relieving | No Gauge | 1 to 10psi | 24 Days | $40.29 |
| R07-100-NNEA | 1/8" PTF | 14 | Non-Relieving | No Gauge | 5 to 50psi | 24 Days | $40.29 |
| R07-100-NNKA | 1/8" PTF | 14 | Non-Relieving | No Gauge | 5 to 100psi | 5-7 Days | $40.29 |
| R07-100-RGAA | 1/8" PTF | 14 | Relieving | With Gauge | 1 to 10psi | 24 Days | $64.01 |
| R07-100-RGEA | 1/8" PTF | 14 | Relieving | With Gauge | 5 to 50psi | Same Day | $60.16 |
| R07-100-RGKA | 1/8" PTF | 14 | Relieving | With Gauge | 5 to 100psi | 5-7 Days | $64.01 |
| R07-100-RGLA | 1/8" PTF | 14 | Relieving | With Gauge | 5 to 125psi | 5-7 Days | $60.16 |
| R07-100-RNAA | 1/8" PTF | 14 | Relieving | No Gauge | 1 to 10psi | 5-7 Days | $40.29 |
| R07-100-RNEA | 1/8" PTF | 14 | Relieving | No Gauge | 5 to 50psi | 5-7 Days | $40.29 |
| R07-100-RNKA | 1/8" PTF | 14 | Relieving | No Gauge | 5 to 100psi | 5-7 Days | $40.29 |
| R07-100-RNLA | 1/8" PTF | 14 | Relieving | No Gauge | 5 to 125psi | 5-7 Days | $40.29 |
| R07-200-NNAA | 1/4" PTF | 15 | Non-Relieving | No Gauge | 1 to 10psi | 5-7 Days | $36.26 |
| R07-200-NNEA | 1/4" PTF | 15 | Non-Relieving | No Gauge | 5 to 50psi | 5-7 Days | $40.29 |
| R07-200-NNKA | 1/4" PTF | 15 | Non-Relieving | No Gauge | 5 to 100psi | 24 Days | $40.29 |
| R07-200-NNLA | 1/4" PTF | 15 | Non-Relieving | No Gauge | 5 to 125psi | 24 Days | $35.45 |
| R07-200-RGKA | 1/4" PTF | 15 | Relieving | With Gauge | 5 to 100psi | Same Day | $64.01 |
| R07-200-RGAA | 1/4" PTF | 15 | Relieving | With Gauge | 1 to 10psi | 5-7 Days | $60.16 |
| R07-200-RGEA | 1/4" PTF | 15 | Relieving | With Gauge | 5 to 50psi | 5-7 Days | $64.01 |
| R07-200-RGKA | 1/4" PTF | 15 | Relieving | With Gauge | 5 to 100psi | Same Day | $64.01 |
| R07-200-RGLA | 1/4" PTF | 15 | Relieving | With Gauge | 5 to 125psi | Same Day | $64.01 |
| R07-200-RNAA | 1/4" PTF | 15 | Relieving | No Gauge | 1 to 10psi | 5-7 Days | $40.29 |
| R07-200-RNLA | 1/4" PTF | 15 | Relieving | No Gauge | 5 to 125psi | 5-7 Days | $40.29 |
| R07-200-NNKG | 1/4" ISO G | 15 | Relieving | No Gauge | 5 to 100psi | 24 Days | $51.52 |
| R07-200-RNEA | 1/4" PTF | 15 | Relieving | No Gauge | 5 to 50psi | 5-7 Days | $40.29 |
| R07-200-RNKA | 1/4" PTF | 15 | Relieving | No Gauge | 5 to 100psi | 5-7 Days | $40.29 |
