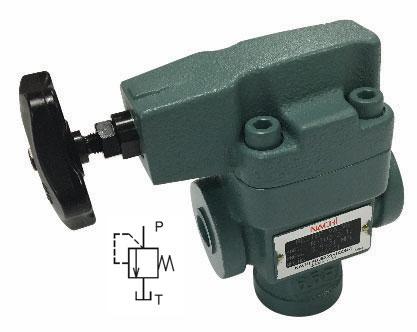

R-T10-3-E20 : Nachi Inline Balanced Piston Relief Valve, 100 GPM Rated, 3045psi Rated, Direct-Acting, 500 to 3000psi Adjustable Range, 1.25" NPT, Hand Screw Adjustment
Roll over image to zoom in Click on image to zoom
R-T10-3-E20 : Nachi Inline Balanced Piston Relief Valve, 100 GPM Rated, 3045psi Rated, Direct-Acting, 500 to 3000psi Adjustable Range, 1.25" NPT, Hand Screw Adjustment

R-T10-3-E20 : Nachi Inline Balanced Piston Relief Valve, 100 GPM Rated, 3045psi Rated, Direct-Acting, 500 to 3000psi Adjustable Range, 1.25" NPT, Hand Screw Adjustment

Save $108.01
NachiSKU: R-T10-3-E20
Same Day
1
250
03.42.E.105A
Price:
$344.99 $453.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Stock 250
Factory Location Greenwood, Indiana
Connection Size 1.25"
Adjustment Type Hand Screw Adjustment
Flow Rating 100
Pressure Rating 3045
Pressure Range 500 to 3000psi

Description

Nachi Inline Balanced Piston Relief Valve, 100 GPM Rated, 3045psi Rated, Direct-Acting, 500 to 3000psi Adjustable Range, Hand Screw Adjustment.

The Nachi balanced piston inline relif valve is ideal for optimal pressure control in a hydraulic circuit for use as a safety valve. A Vent port enables remote control of pressure and use of an unloading circuit, and flows are available up to 100GPM
