Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Grand Rapids, Michigan |
| Port Size | 7/16-20 (-04) ORB Load Sense & Control Line |
| Shaft Size | 7/8" Bore x 1/4" Key |
| Shaft Type | Keyed |
| Port Location | Side Ported |
| O Ring Seals | Nitrile Seals with Viton Shaft Seals |
| Pressure Rating | 4640 |
| Rotation | Clockwise |
| Displacement | 28 |
| Gpm At 1800 Rpm | 8.39 |
| Max Speed | 3000 |
| Inlet Port | 1.25" Code 61 |
| Outlet Port | 0.75" Code 61 |
| Pump Control | Load Sense + Pressure Cut-Off (With LS Bleed Blocked) |
| Circuit Type | Open Circuit |
| Drain Port | 3/4-16 (-08) ORB |
| Series | K3VL28 |
| Country of Manufacture | Japan |
| Height | 5 |
| Length | 9.639999999999999 |
| Width | 5 |
| Weight | 44 |
Description

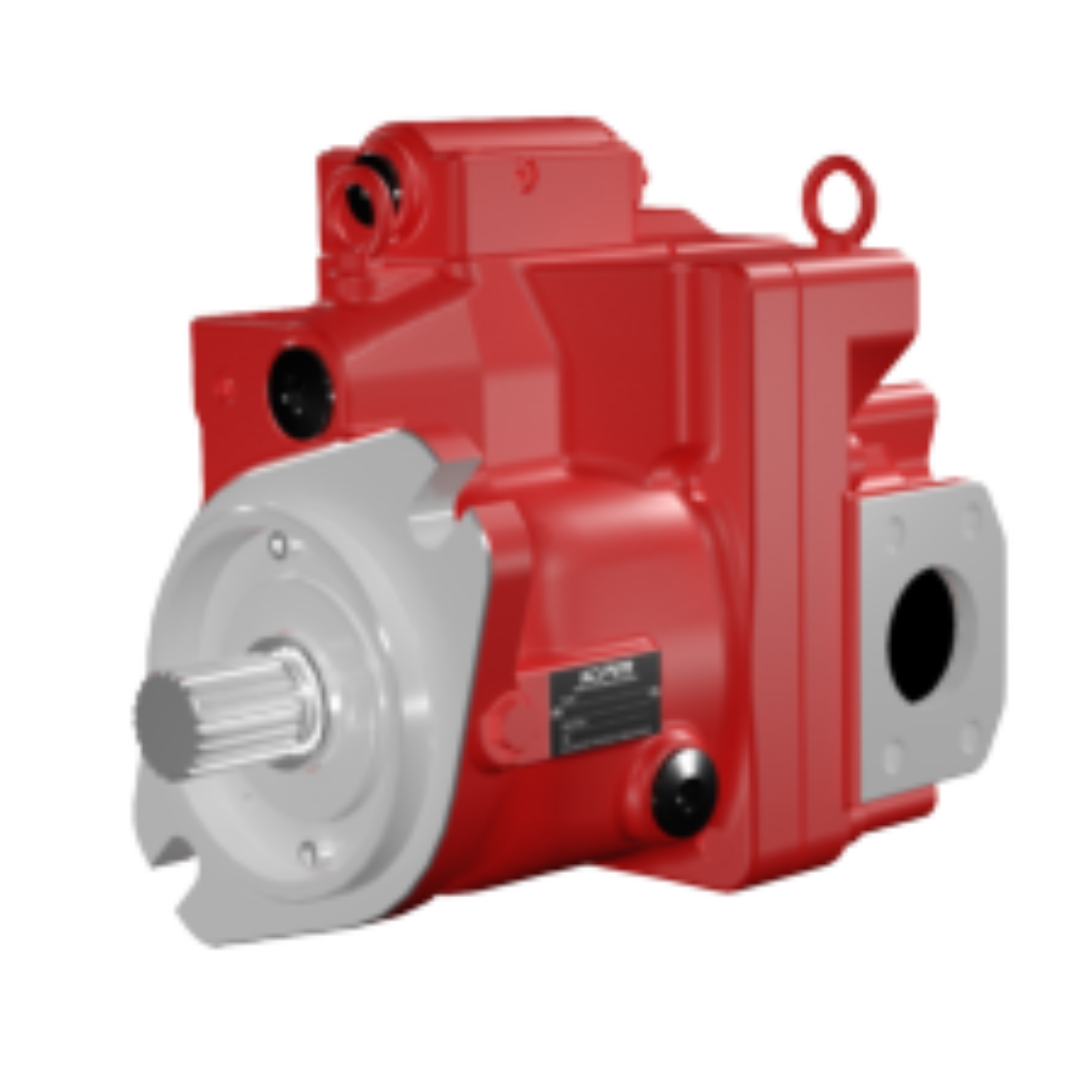

The Kawasaki K3VL28 Piston Pump is a high-performance, variable displacement hydraulic pump designed for demanding mobile, industrial, and marine applications. With a 28cc displacement, it delivers a continuous pressure rating of 4640 psi and features a self-priming speed of up to 3000 RPM. This medium to high-pressure pump is equipped with advanced options such as load sensing, torque limiting, and electronic displacement control for precise and efficient operation. The K3VL28 is an open-circuit, axial piston pump known for its durability and flexibility, providing reliable hydraulic performance in a wide range of applications. Ideal for systems requiring adjustable flow rates, the K3VL28 ensures optimal functionality under various load conditions.
