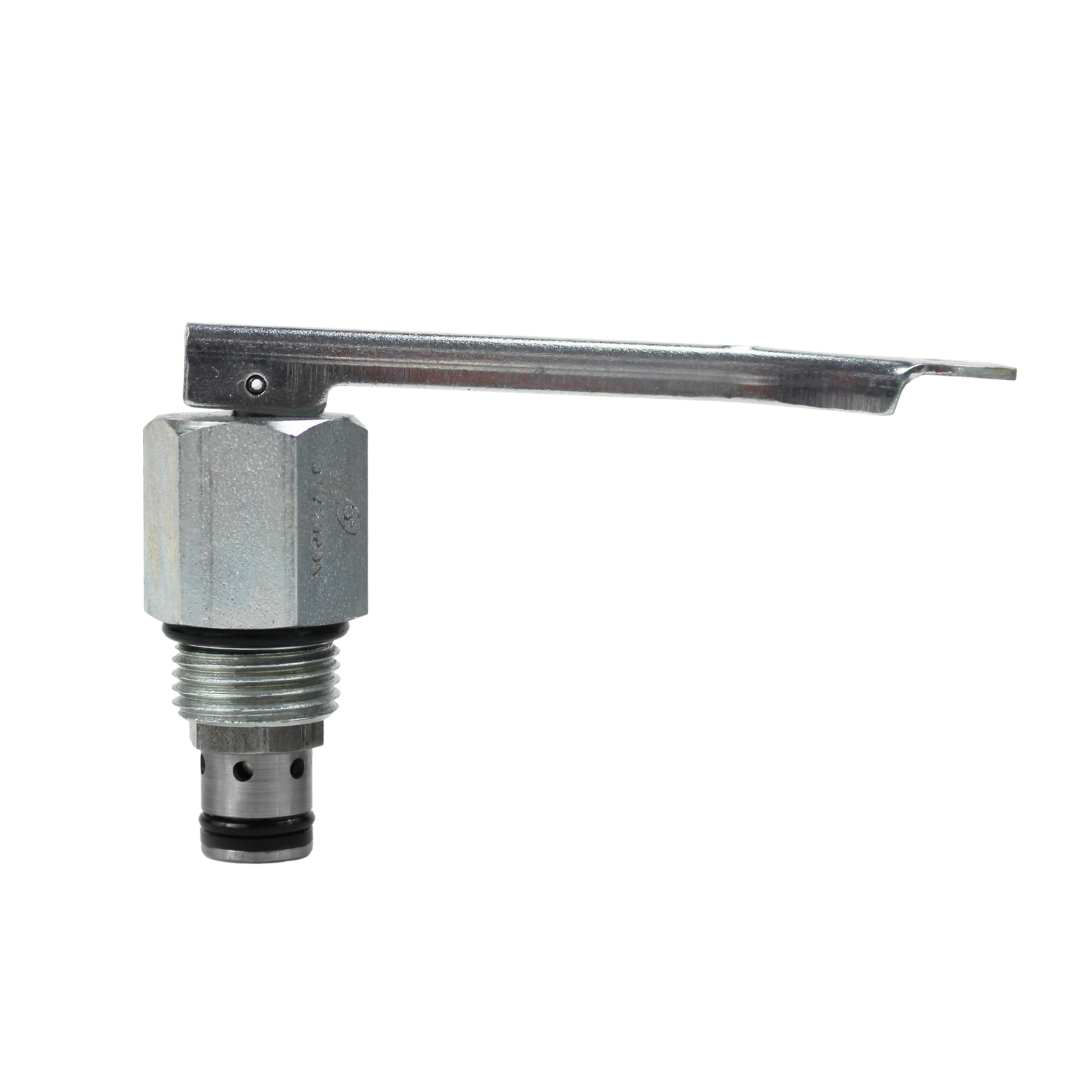

DTV2-080-N : Deltrol Directional, 2-Way, 2-Position, Normally Closed, Toggle Operated, C-8-2 Cavity, Cannot Overcenter Detent Open, 3000psi, 6GPM
Roll over image to zoom in Click on image to zoom
DTV2-080-N : Deltrol Directional, 2-Way, 2-Position, Normally Closed, Toggle Operated, C-8-2 Cavity, Cannot Overcenter Detent Open, 3000psi, 6GPMDTV2-080-N : Deltrol Directional, 2-Way, 2-Position, Normally Closed, Toggle Operated, C-8-2 Cavity, Cannot Overcenter Detent Open, 3000psi, 6GPMDTV2-080-N : Deltrol Directional, 2-Way, 2-Position, Normally Closed, Toggle Operated, C-8-2 Cavity, Cannot Overcenter Detent Open, 3000psi, 6GPMDTV2-080-N : Deltrol Directional, 2-Way, 2-Position, Normally Closed, Toggle Operated, C-8-2 Cavity, Cannot Overcenter Detent Open, 3000psi, 6GPMDTV2-080-N : Deltrol Directional, 2-Way, 2-Position, Normally Closed, Toggle Operated, C-8-2 Cavity, Cannot Overcenter Detent Open, 3000psi, 6GPM

DTV2-080-N : Deltrol Directional, 2-Way, 2-Position, Normally Closed, Toggle Operated, C-8-2 Cavity, Cannot Overcenter Detent Open, 3000psi, 6GPM

Deltrol Fluid ProductsSKU: 10179-07
1-3 Days
Price:
$38.39

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Manual-Operated
Flow Rating 6.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DTV2

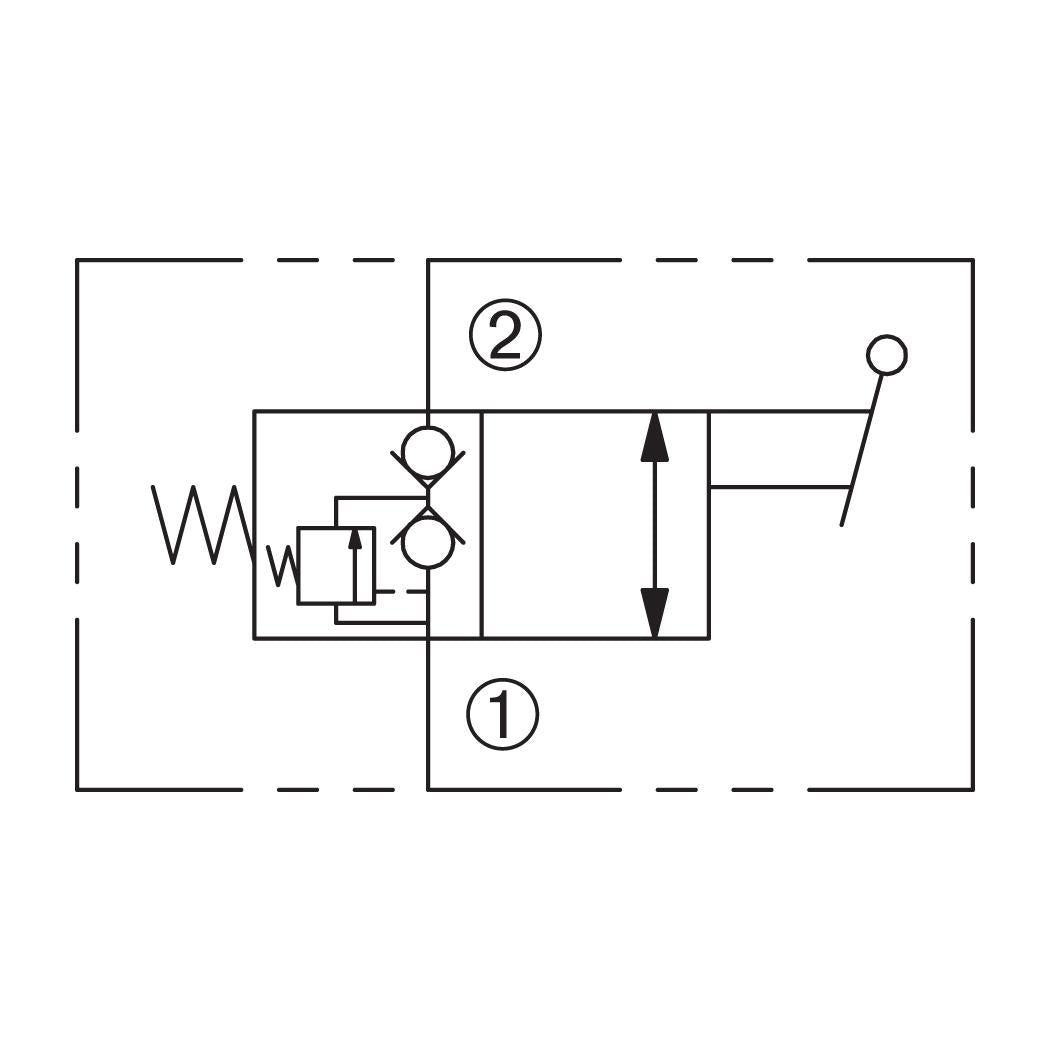

Spool Configuration Blocked flow from 1 to 2 , Spring Return
Cartridge Cavity C-8-2
Coil Selection No Coil, Manual Lever
Country of Manufacture United States/Vietnam

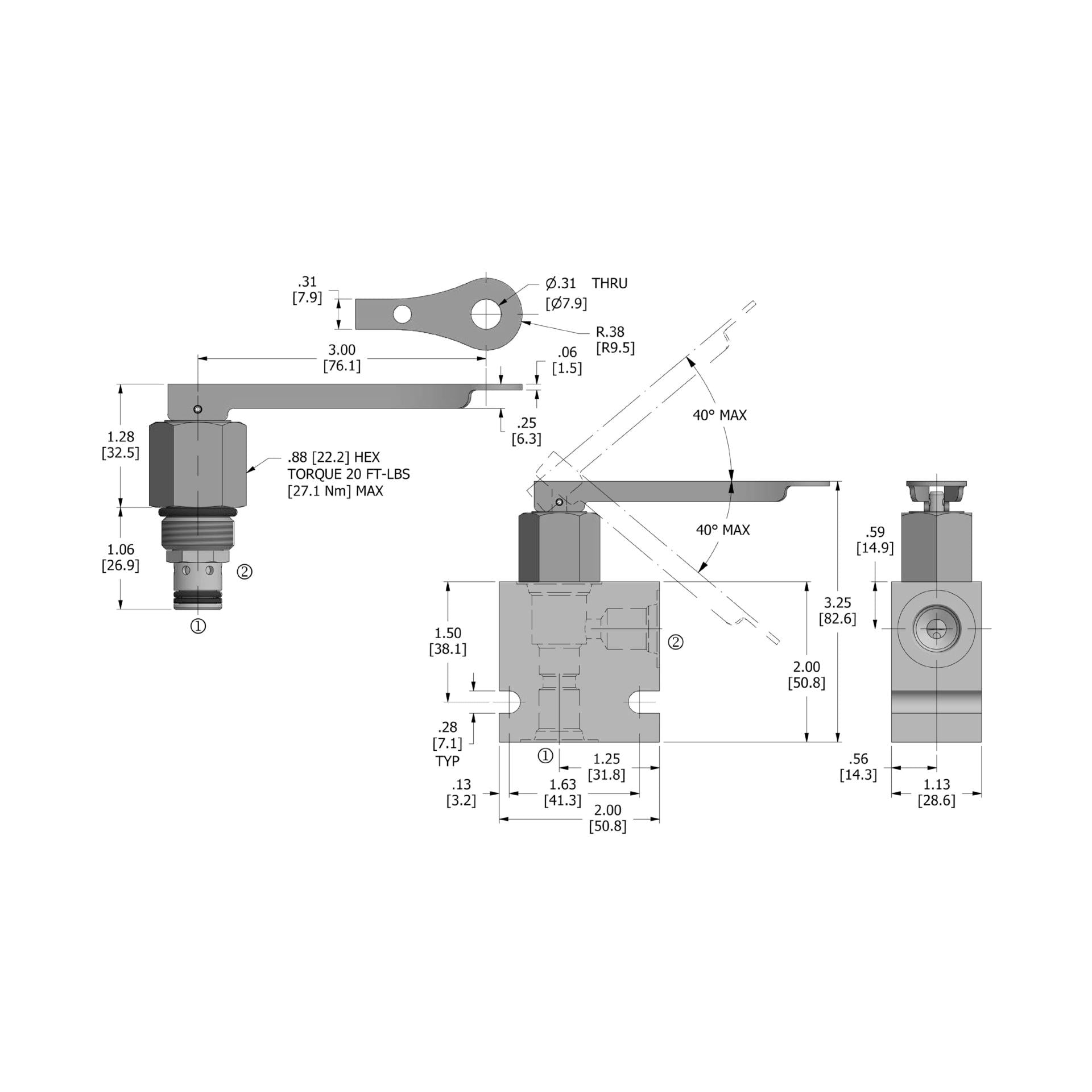

Height 1
Length 2.34
Width 4
Weight 2

Description

The Deltrol Fluid Products DTV-080 is a toggle-operated, two-way, two-position cartridge valve designed for reliable load holding. In its default position, the valve blocks flow between ports 1 and 2. When the toggle handle is actuated, it allows fluid to flow between these ports, overcoming a spring force of 450 PSI (31 Bar). The DTV-080 supports both push and pull activation of the toggle but does not feature over-center detents for added safety. With a maximum pressure of 3000 PSI and a flow rate up to 6 GPM, this valve is built from durable anodized aluminum, ensuring long-term performance in hydraulic systems using mineral-based fluids.
