DSV2-080-4NC-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Closed Spool, C-8-4 Cavity, 3000psi, 3GPM
Roll over image to zoom in Click on image to zoom
DSV2-080-4NC-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Closed Spool, C-8-4 Cavity, 3000psi, 3GPMDSV2-080-4NC-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Closed Spool, C-8-4 Cavity, 3000psi, 3GPMDSV2-080-4NC-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Closed Spool, C-8-4 Cavity, 3000psi, 3GPMDSV2-080-4NC-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Closed Spool, C-8-4 Cavity, 3000psi, 3GPMDSV2-080-4NC-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Closed Spool, C-8-4 Cavity, 3000psi, 3GPM

DSV2-080-4NC-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Closed Spool, C-8-4 Cavity, 3000psi, 3GPM

Deltrol Fluid ProductsSKU: 10176-75
4-6 Weeks
Price:
$53.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Solenoid
Style Spool
Flow Rating 3.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DSV
Cartridge Cavity C-8-4
Positions 2-Position
Way 4-Way
Country of Manufacture United States/Vietnam

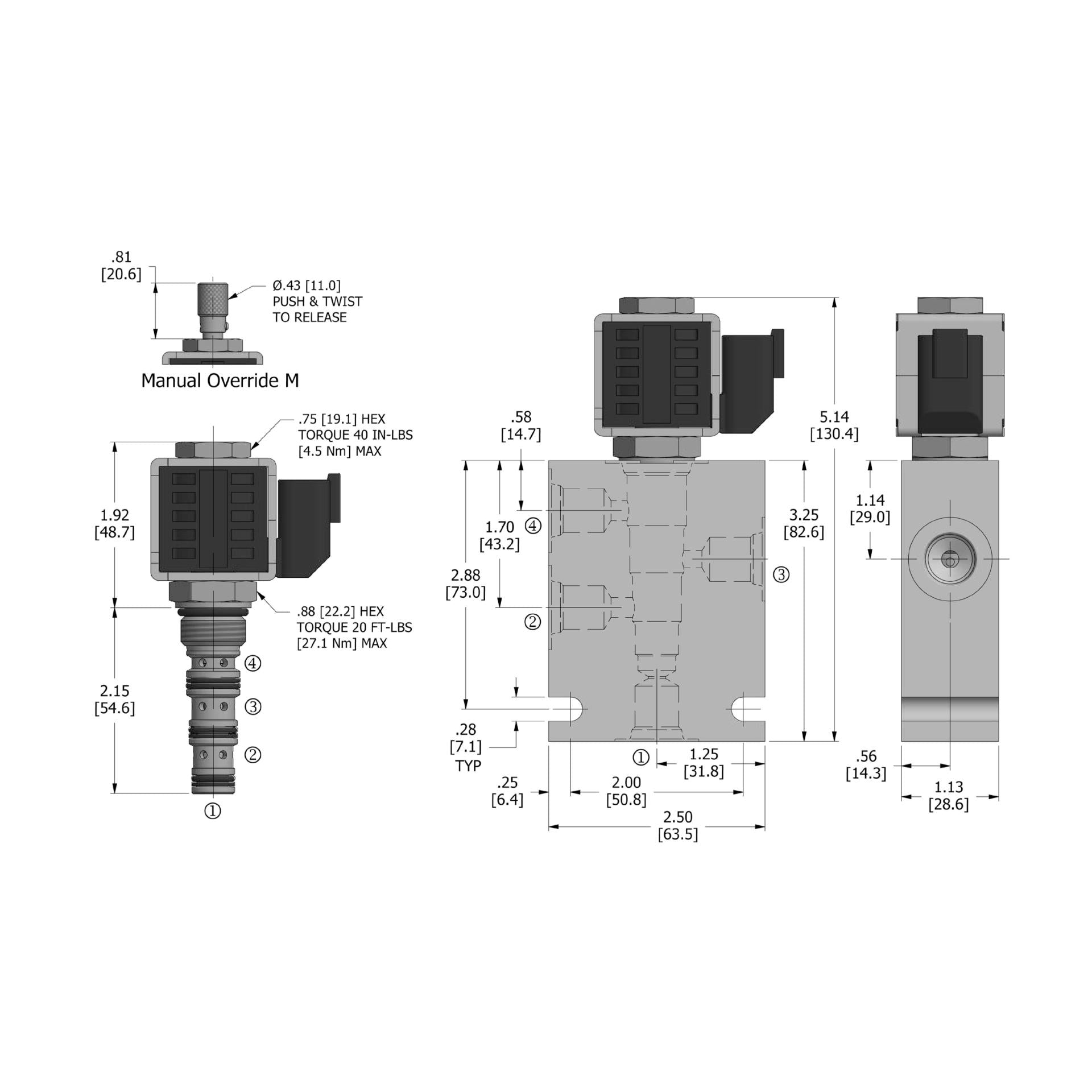

Height 2
Length 4.07
Width 2
Weight 2

Description

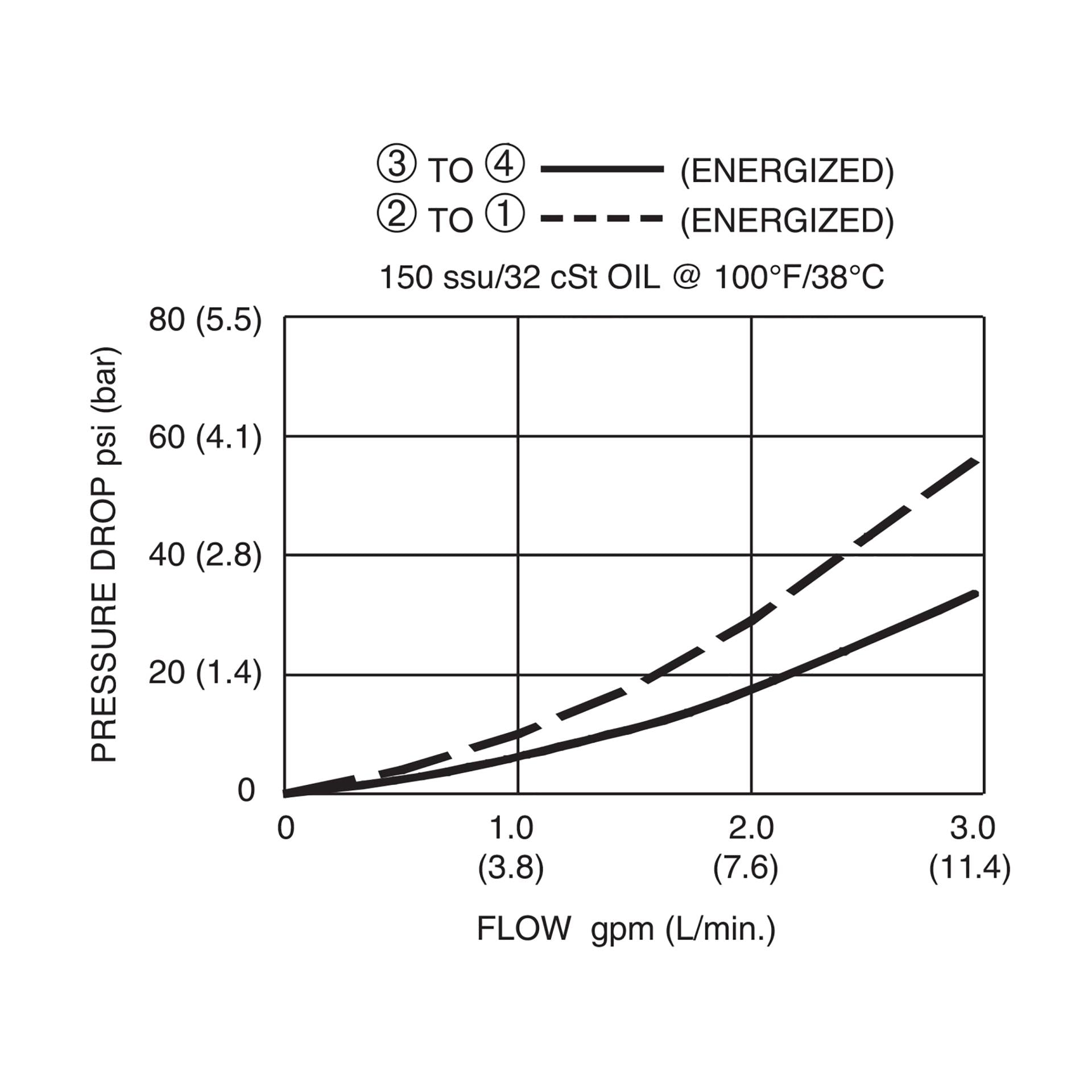

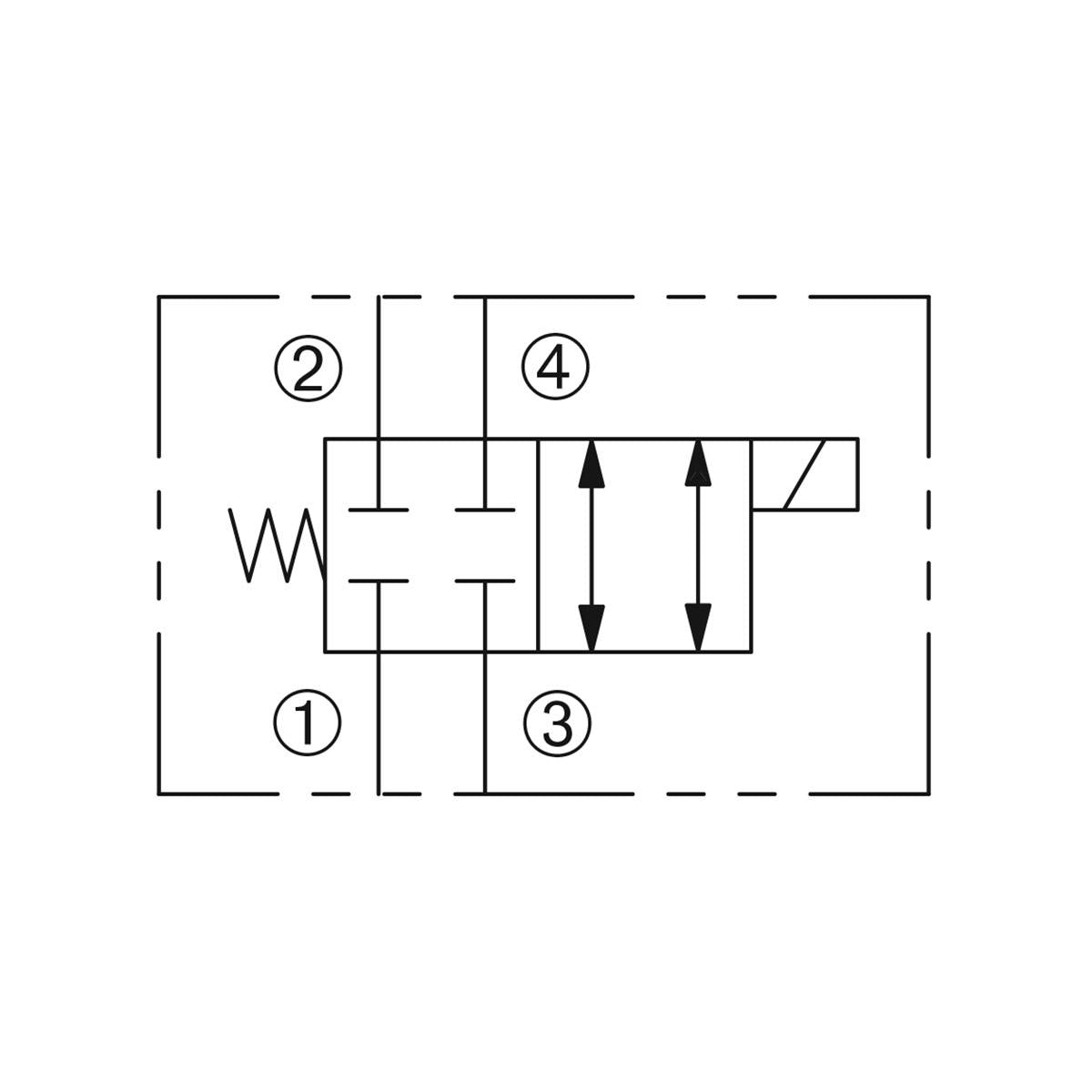

The Deltrol Fluid Products DSV2-080-4NC Solenoid Directional Four-Way, Two-Position, Normally-Closed Spool Cartridge Valve is a versatile hydraulic control valve designed for managing the flow in systems with double-acting cylinders or motors. By default, all ports are closed, blocking fluid flow. When activated, the valve shifts to allow fluid to flow between ports 3 to 4 and 2 to 1. It features a manual override for manual operation, with durable construction for high-pressure applications up to 3000 psi and a flow capacity of 3 gpm. Ideal for precise control, this valve supports various coil voltages and is built to handle a wide temperature range.
