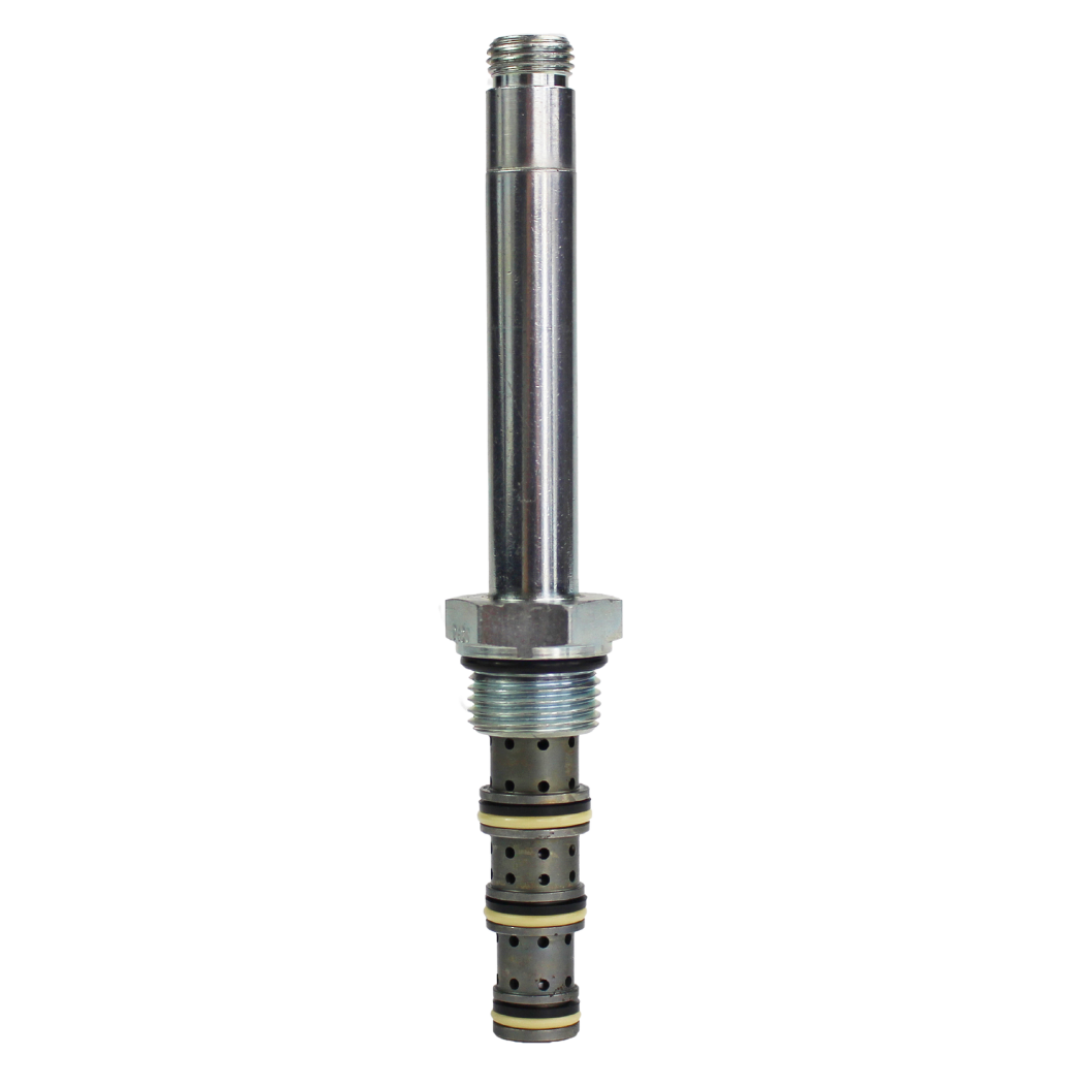

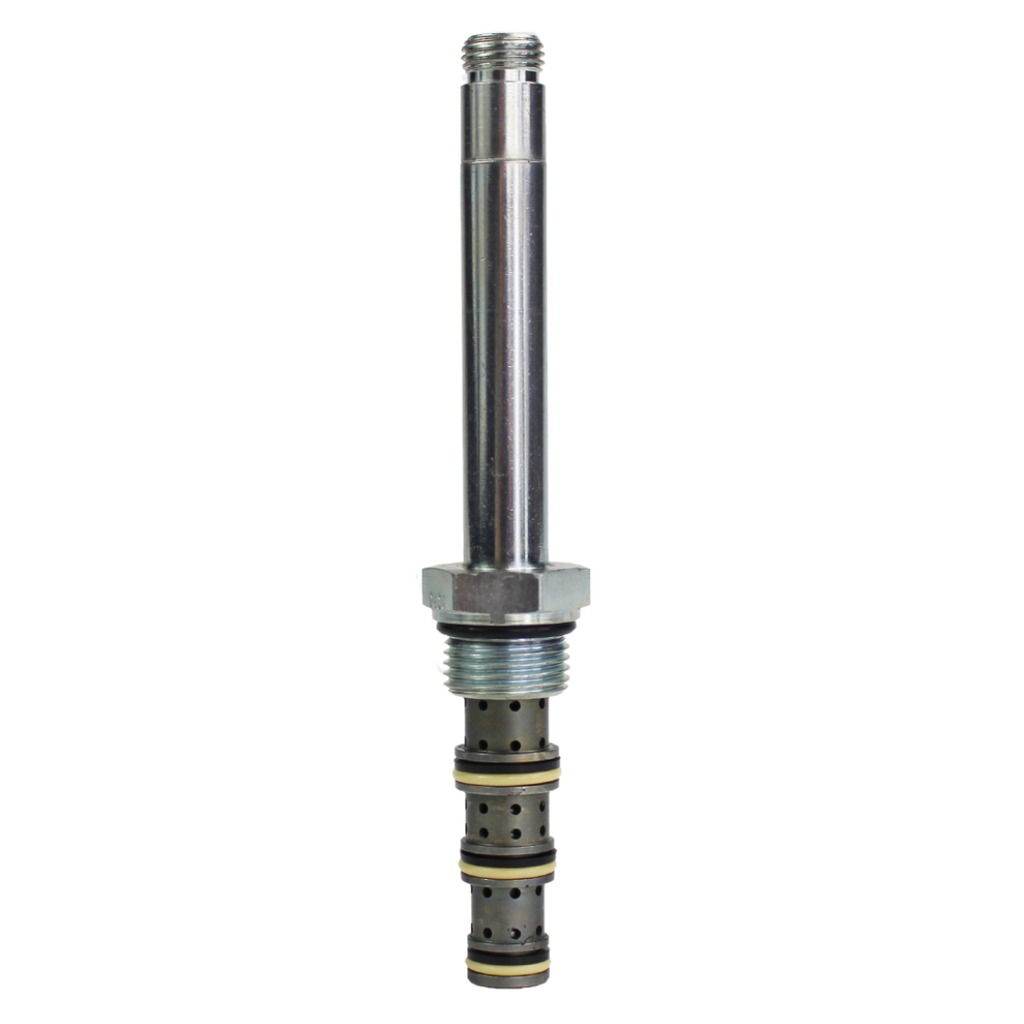

DSV-080-34O-N : Deltrol Solenoid Valve, 4-Way, 3-Position, Open Center Spool, C-8-4 Cavity, 3000psi, 1.5GPM
Roll over image to zoom in Click on image to zoom
DSV-080-34O-N : Deltrol Solenoid Valve, 4-Way, 3-Position, Open Center Spool, C-8-4 Cavity, 3000psi, 1.5GPMDSV-080-34O-N : Deltrol Solenoid Valve, 4-Way, 3-Position, Open Center Spool, C-8-4 Cavity, 3000psi, 1.5GPMDSV-080-34O-N : Deltrol Solenoid Valve, 4-Way, 3-Position, Open Center Spool, C-8-4 Cavity, 3000psi, 1.5GPMDSV-080-34O-N : Deltrol Solenoid Valve, 4-Way, 3-Position, Open Center Spool, C-8-4 Cavity, 3000psi, 1.5GPMDSV-080-34O-N : Deltrol Solenoid Valve, 4-Way, 3-Position, Open Center Spool, C-8-4 Cavity, 3000psi, 1.5GPM

DSV-080-34O-N : Deltrol Solenoid Valve, 4-Way, 3-Position, Open Center Spool, C-8-4 Cavity, 3000psi, 1.5GPM

Deltrol Fluid ProductsSKU: 10187-35
4-6 Weeks
Price:
$82.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Solenoid
Style Spool
Flow Rating 1.5
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DSV
Cartridge Cavity C-8-4
Positions 3-Position
Way 4-Way
Country of Manufacture United States/Vietnam
Height 2
Length 5.53
Width 2
Weight 2

Description

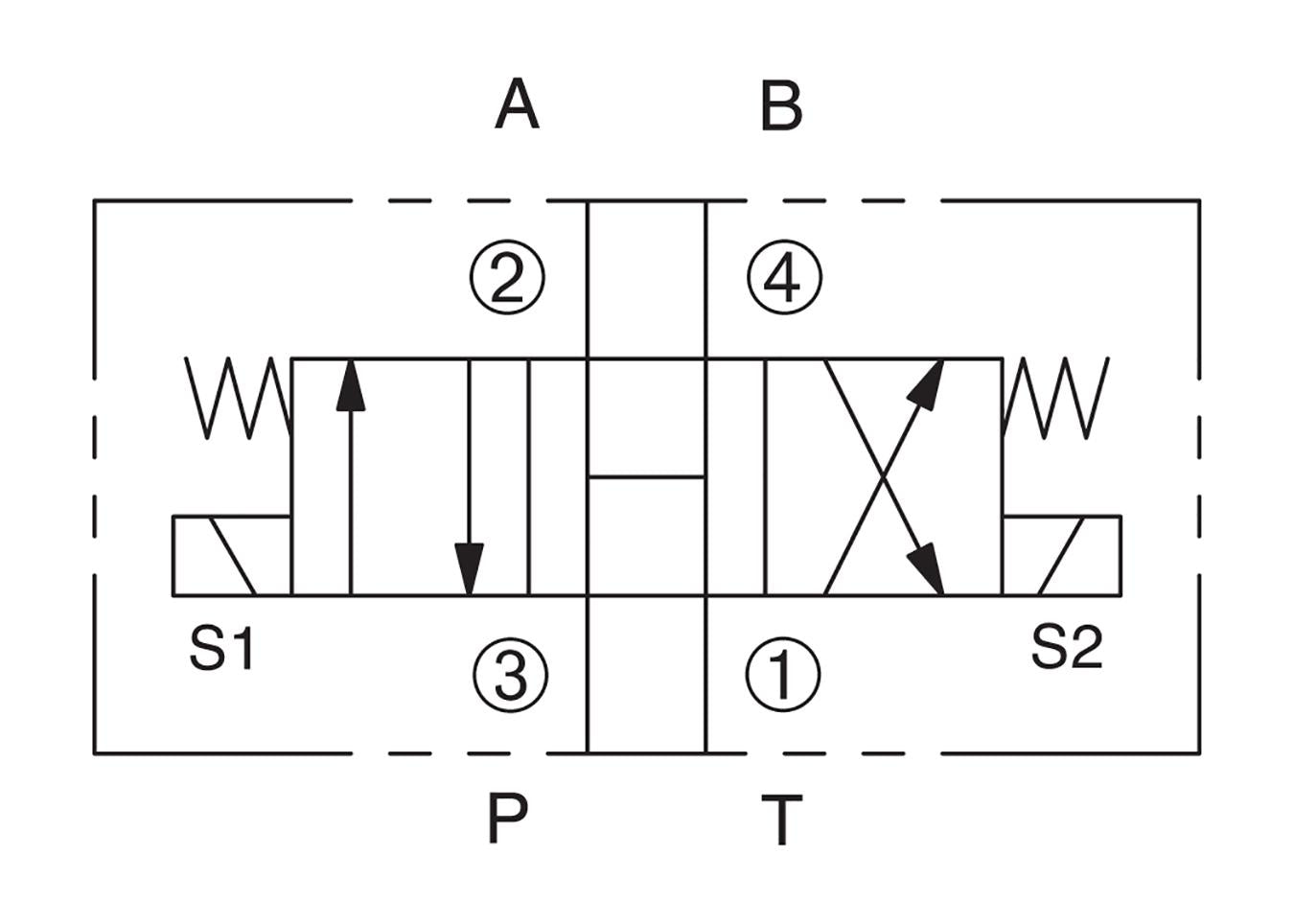

The Deltrol Fluid Products DSV-080-34O Solenoid Directional Four-Way, Three-Position, Open Center Spool Cartridge Valve is a versatile hydraulic control valve with a three-position, four-way design. In its default, de-energized state, it allows flow between all ports, enabling free movement. When the upper solenoid (S1) is activated, it directs flow between ports 3 and 2, and 4 and 1. When the lower solenoid (S2) is engaged, it shifts flow between ports 3 and 4, and 2 and 1. The valve also features a manual override with a knurled knob to switch between functions S1 and S2. With a flow rate of 1.5 gpm and a maximum pressure of 3000 psi, this valve is built for durability and reliable performance in hydraulic systems.
