Product Details
Data Sheet | |
---|---|
Usually Ships Within | 1-3 Days |
Factory Location | Bellwood, Illinois |
Solid Model | |
Valve Type | Flow Regulator |
Adjustment Type | Knob Adjustment |
Style | Spool |
Flow Rating | 10.0 |
Pressure Rating | 3000 |
Operating Temp Range | -30 to +250F |
Seal Material | NBR |
Series | DFRA |
Cartridge Cavity | C-10-2 |
Country of Manufacture | United States/Vietnam |
Height | 2 |
Length | 2.9 |
Width | 2 |
Weight | 2 |
Description

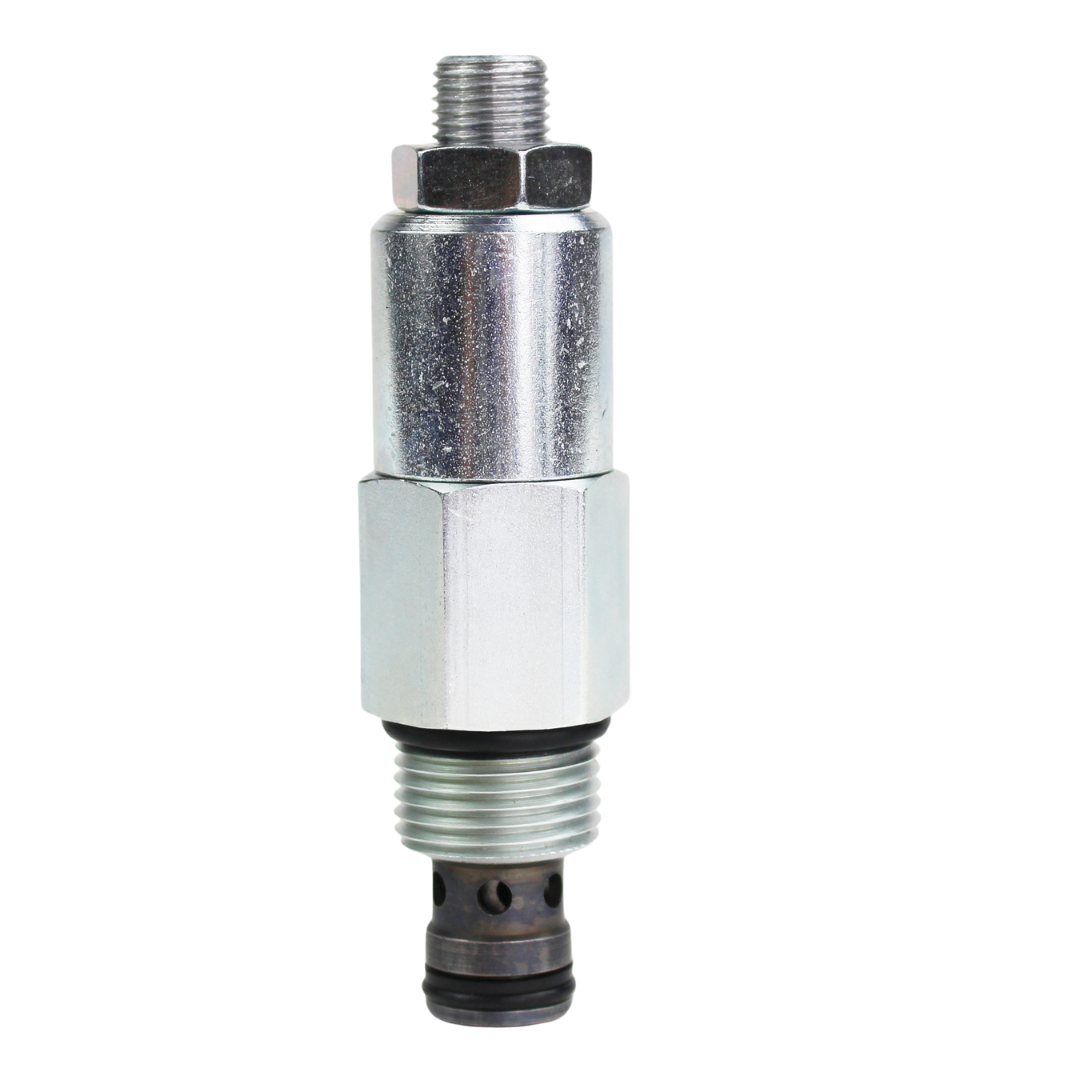

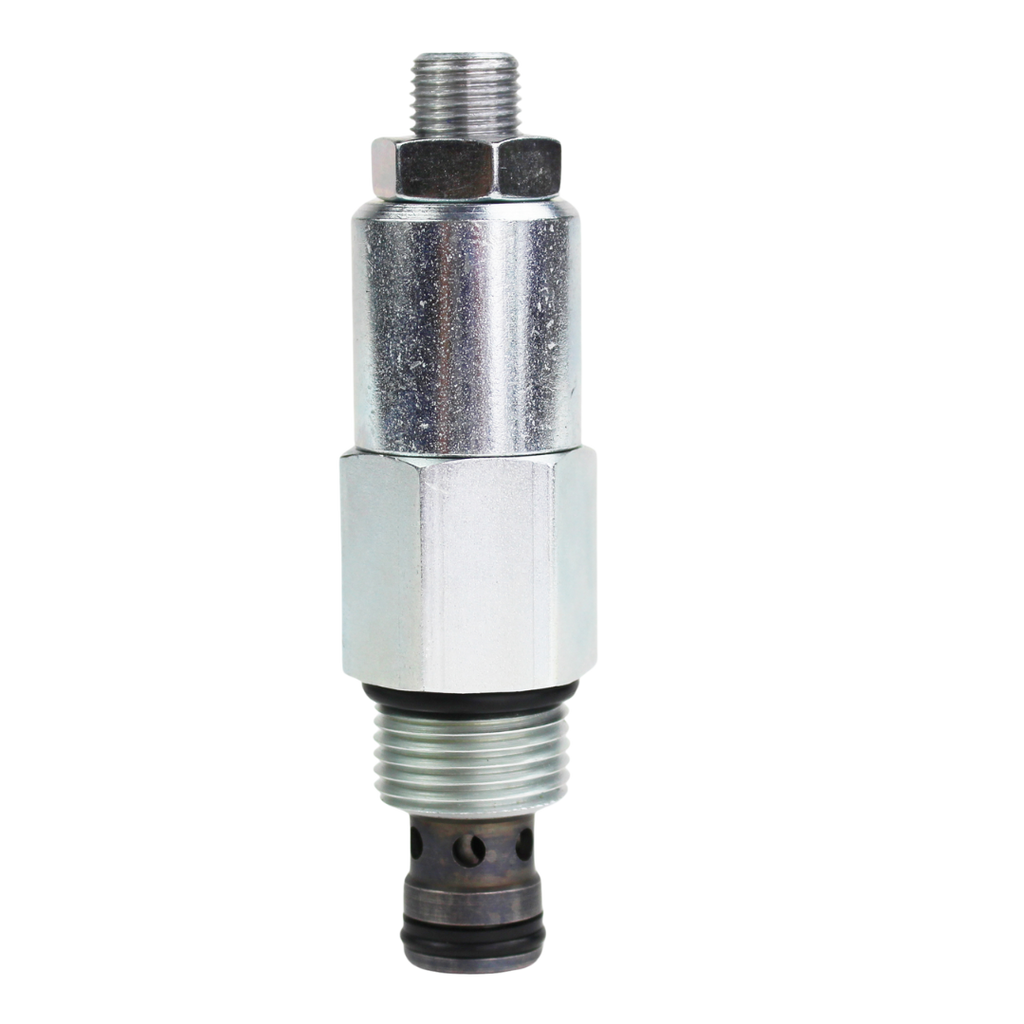

The Deltrol Fluid Products DFRA-100-2 Flow Regulator is an adjustable cartridge valve designed to provide precise flow control in a variety of applications. It maintains a consistent flow rate, ranging from 1 to 10 gpm, regardless of downstream pressure changes. The valve features a pressure-compensated design that ensures accurate flow by adjusting the spool in response to pressure differentials, with the ability to modify the flow up to 50% below its maximum setting. It operates at up to 3000 psi and supports temperatures from -30°F to +250°F. The DFRA-100-2 is ideal for applications requiring reliable and adjustable flow regulation and is built from durable anodized aluminum for long-lasting performance.
