DFRA-100-2-N-H : Deltrol Flow Regulator, Restrictive, Pressure Compensated, Adjustable, C-10-2, Hidden Adjustment, 3000psi, 10GPM
Roll over image to zoom in Click on image to zoom
DFRA-100-2-N-H : Deltrol Flow Regulator, Restrictive, Pressure Compensated, Adjustable, C-10-2, Hidden Adjustment, 3000psi, 10GPMDFRA-100-2-N-H : Deltrol Flow Regulator, Restrictive, Pressure Compensated, Adjustable, C-10-2, Hidden Adjustment, 3000psi, 10GPMDFRA-100-2-N-H : Deltrol Flow Regulator, Restrictive, Pressure Compensated, Adjustable, C-10-2, Hidden Adjustment, 3000psi, 10GPMDFRA-100-2-N-H : Deltrol Flow Regulator, Restrictive, Pressure Compensated, Adjustable, C-10-2, Hidden Adjustment, 3000psi, 10GPMDFRA-100-2-N-H : Deltrol Flow Regulator, Restrictive, Pressure Compensated, Adjustable, C-10-2, Hidden Adjustment, 3000psi, 10GPM

DFRA-100-2-N-H : Deltrol Flow Regulator, Restrictive, Pressure Compensated, Adjustable, C-10-2, Hidden Adjustment, 3000psi, 10GPM

Deltrol Fluid ProductsSKU: 10176-46
1-3 Days
Price:
$59.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Flow Regulator
Adjustment Type Hidden Adjustment
Style Spool
Flow Rating 10.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DFRA
Cartridge Cavity C-10-2
Country of Manufacture United States/Vietnam
Height 1
Length 2.34
Width 1
Weight 2

Description

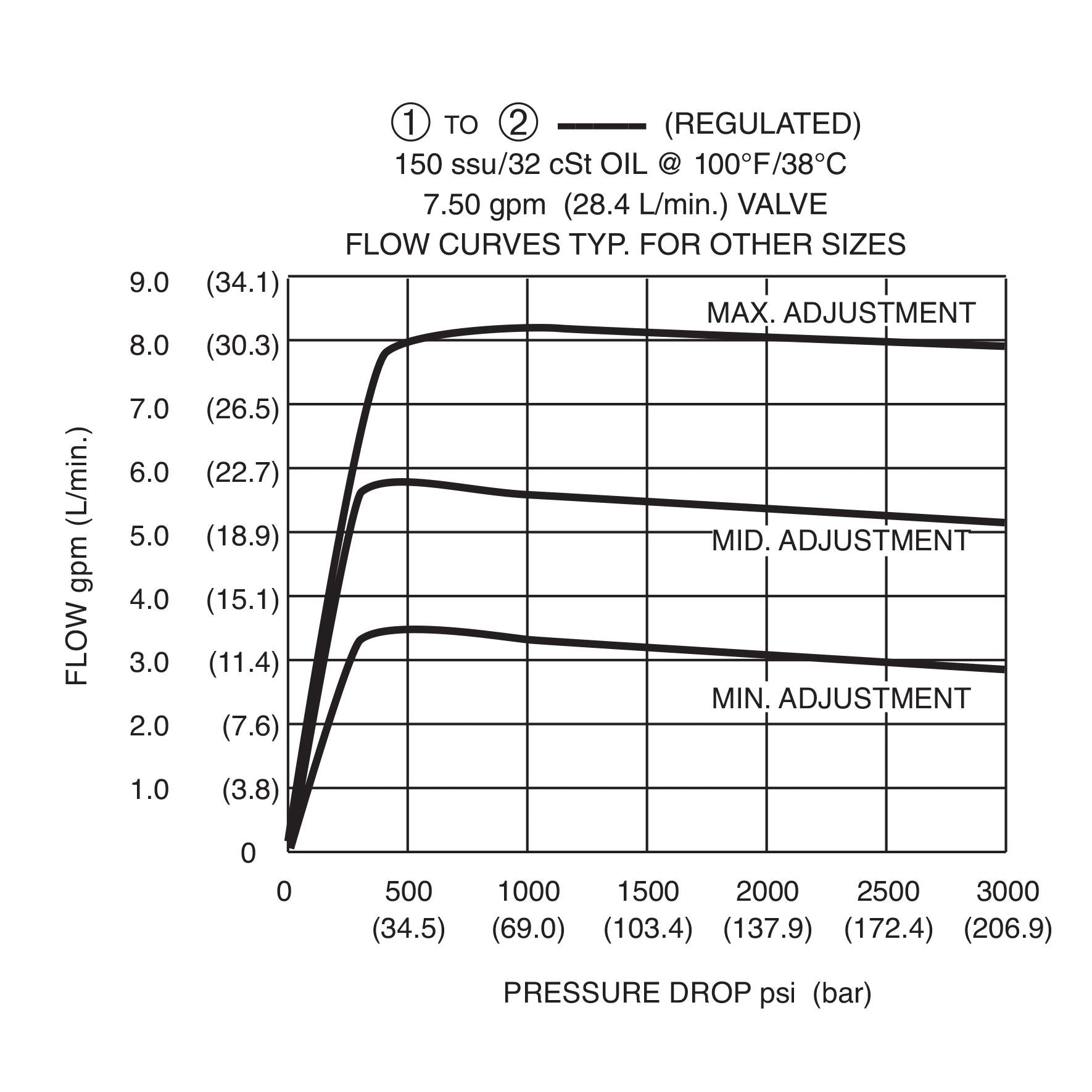

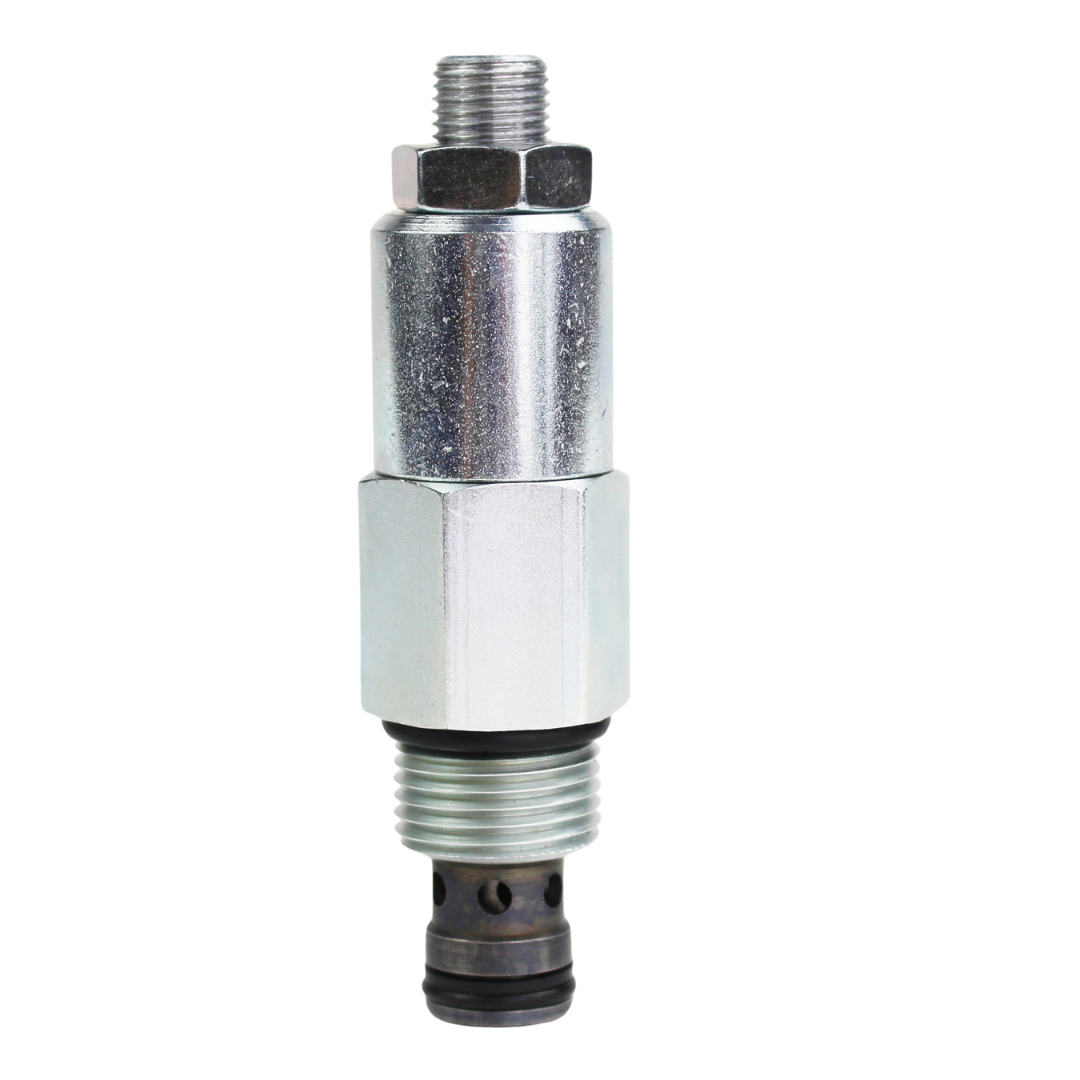

The Deltrol Fluid Products DFRA-100-2 Flow Regulator is an adjustable cartridge valve designed to provide precise flow control in a variety of applications. It maintains a consistent flow rate, ranging from 1 to 10 gpm, regardless of downstream pressure changes. The valve features a pressure-compensated design that ensures accurate flow by adjusting the spool in response to pressure differentials, with the ability to modify the flow up to 50% below its maximum setting. It operates at up to 3000 psi and supports temperatures from -30°F to +250°F. The DFRA-100-2 is ideal for applications requiring reliable and adjustable flow regulation and is built from durable anodized aluminum for long-lasting performance.
