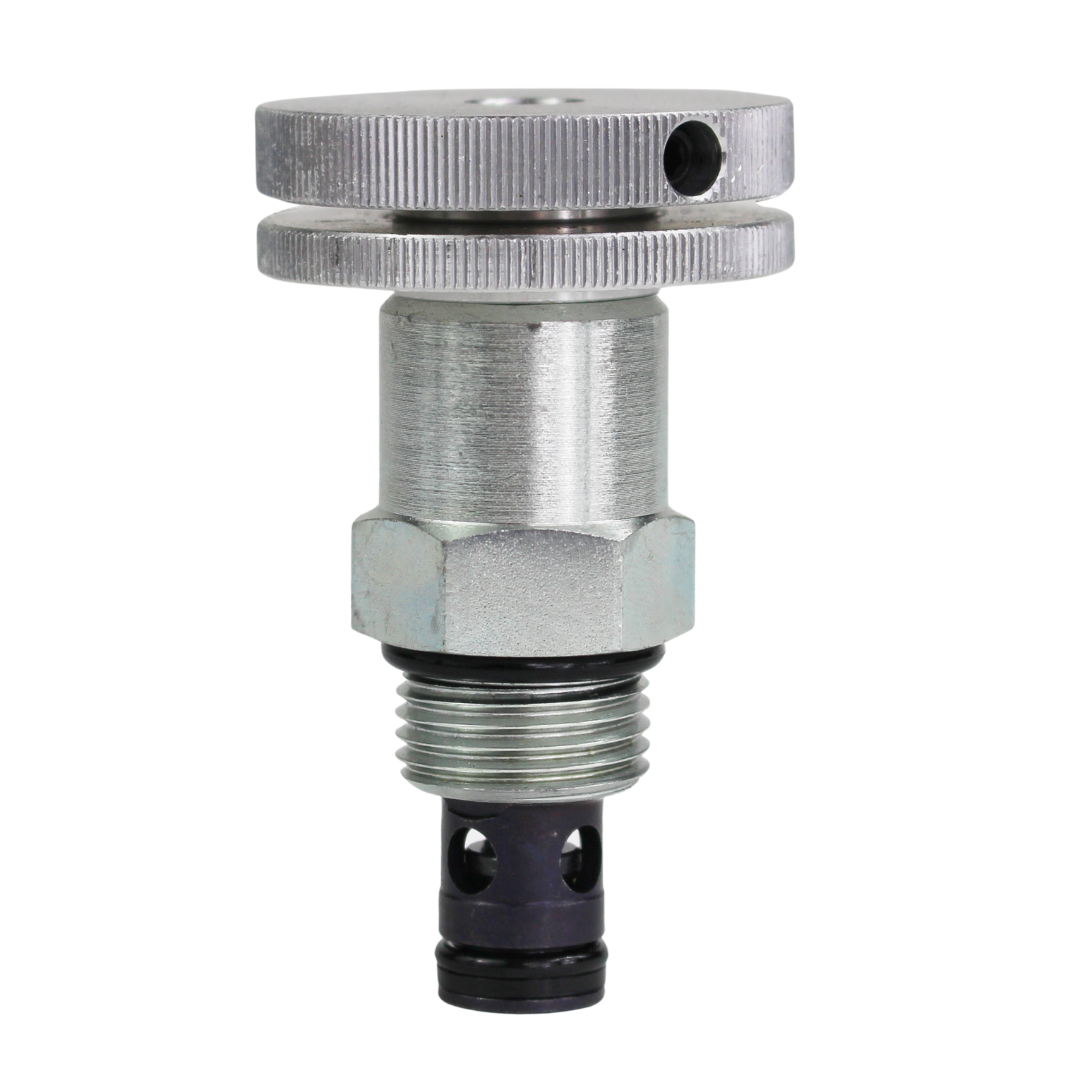

DFC-080-N : Deltrol Flow Control, Free Reverse Flow, Adjustable, C-8-2 Cavity, 3000psi, 10GPM

1-3 Days

Price:
Sale price$69.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Needle
Adjustment Type Knob Adjustment
Flow Rating 10.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DFC
Cartridge Cavity C-8-2
Country of Manufacture United States/Vietnam
Height 2
Length 4.39
Width 2
Weight 2

Description

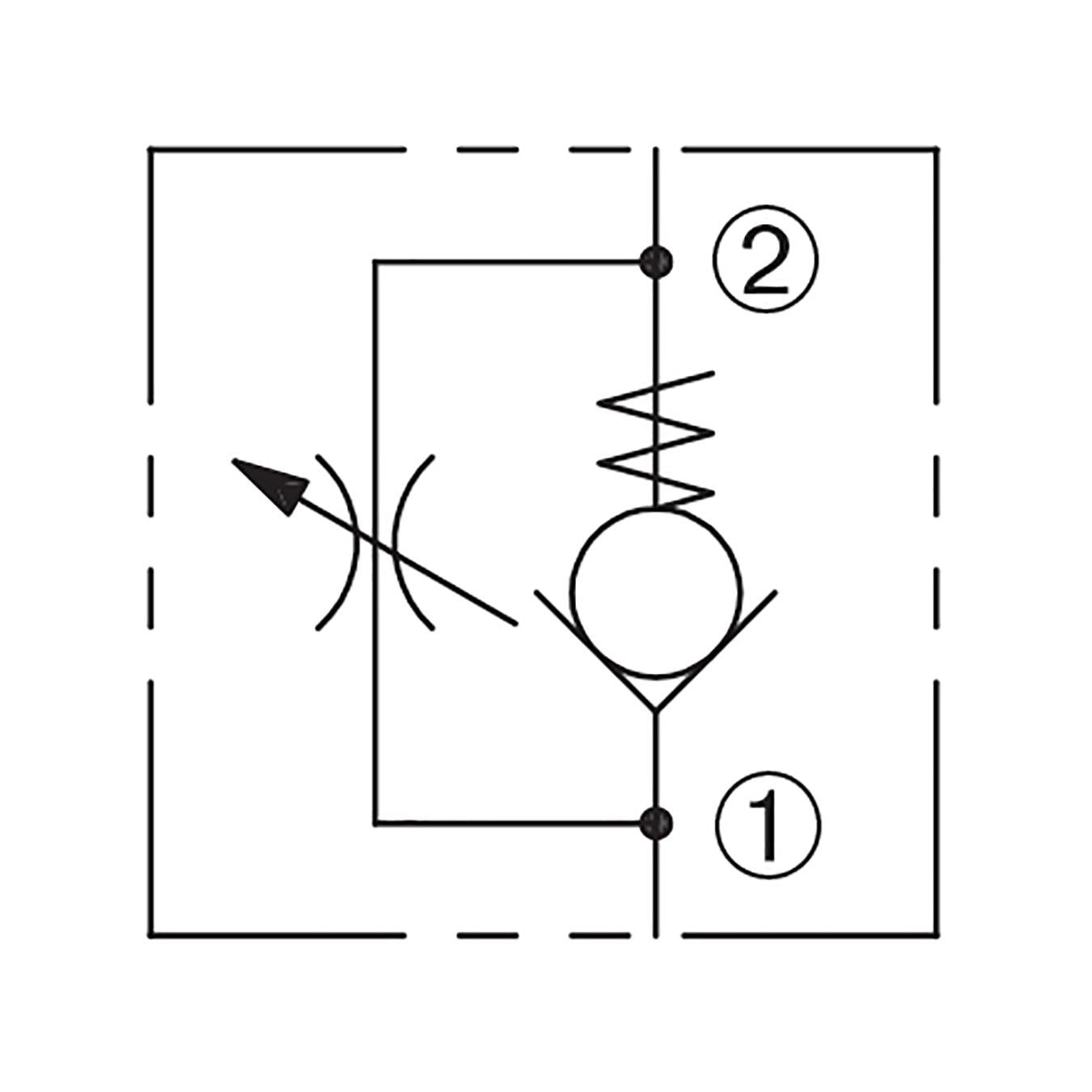

The Deltrol Fluid Products DFC-080 Adjustable Flow Control with Free Reverse Flow Valve is a versatile cartridge valve designed to regulate flow in one direction while allowing unrestricted flow in the opposite direction. It features an adjustable needle that varies flow restriction from port 2 to port 1, while port 1 to port 2 remains free-flowing. This valve supports a maximum operating pressure of 3000 psi and handles flow rates up to 10 gpm. With its hardened poppet and seat, aluminum knob, and full range of adjustments, it ensures durability and precise control. Ideal for use with mineral-based fluids, it operates efficiently within a temperature range of -30°F to +250°F.
