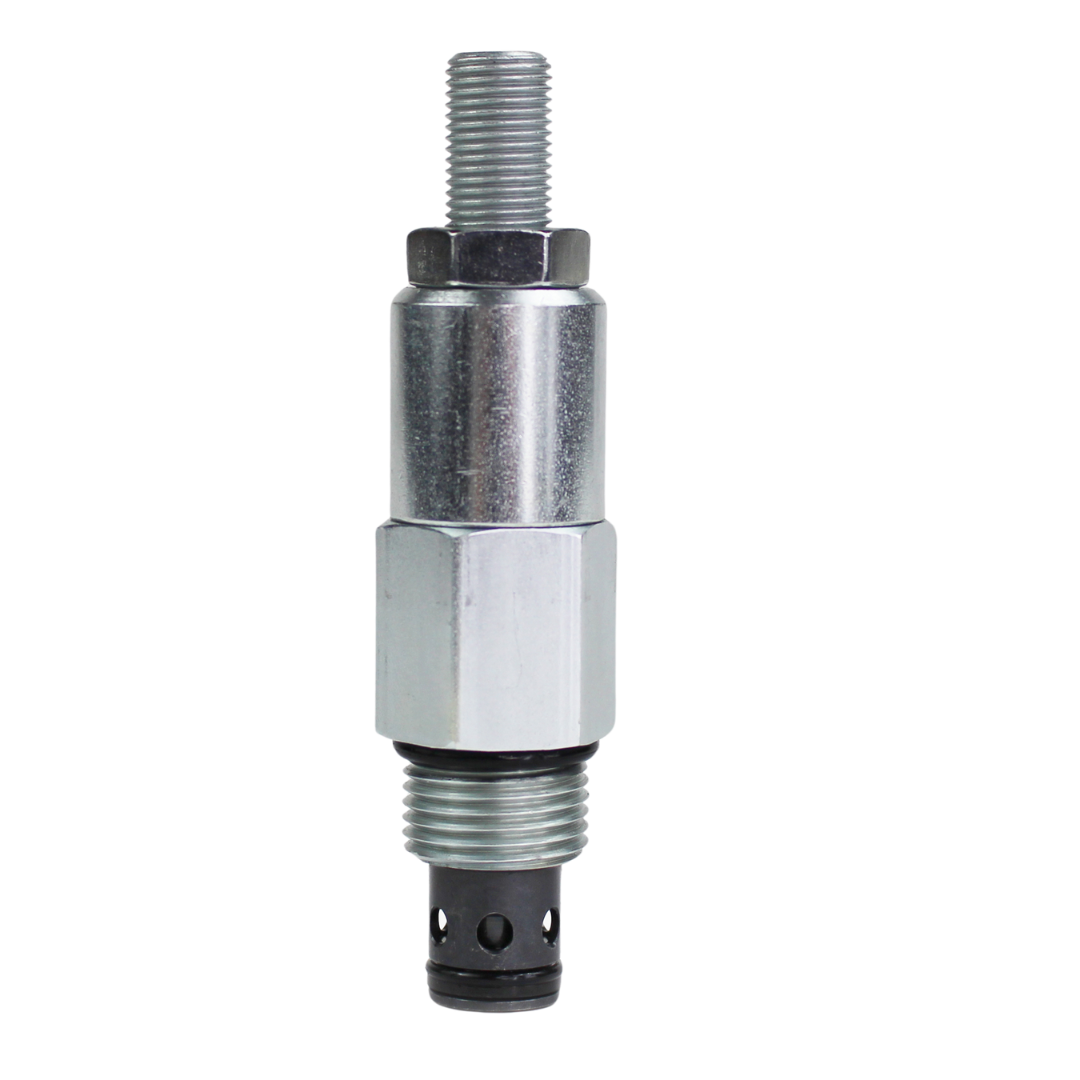

DDRV-100-N-H : Deltrol Relief, Direct-Acting, Differential Area, Adjustable, Poppet, C-10-2, Hidden Adjustment, 3600psi, 20GPM
Roll over image to zoom in Click on image to zoom
DDRV-100-N-H : Deltrol Relief, Direct-Acting, Differential Area, Adjustable, Poppet, C-10-2, Hidden Adjustment, 3600psi, 20GPMDDRV-100-N-H : Deltrol Relief, Direct-Acting, Differential Area, Adjustable, Poppet, C-10-2, Hidden Adjustment, 3600psi, 20GPMDDRV-100-N-H : Deltrol Relief, Direct-Acting, Differential Area, Adjustable, Poppet, C-10-2, Hidden Adjustment, 3600psi, 20GPMDDRV-100-N-H : Deltrol Relief, Direct-Acting, Differential Area, Adjustable, Poppet, C-10-2, Hidden Adjustment, 3600psi, 20GPMDDRV-100-N-H : Deltrol Relief, Direct-Acting, Differential Area, Adjustable, Poppet, C-10-2, Hidden Adjustment, 3600psi, 20GPM

DDRV-100-N-H : Deltrol Relief, Direct-Acting, Differential Area, Adjustable, Poppet, C-10-2, Hidden Adjustment, 3600psi, 20GPM

Deltrol Fluid ProductsSKU: 10145-25
4-6 Weeks
Price:
$64.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Operation Relieving
Valve Type Relief
Adjustment Type Hidden Adjustment
Style Poppet
Flow Rating 20
Pressure Rating 3600
Operating Temp Range -30 to +250F
Seal Material NBR
Outlet Pressure Range 100-3600
Pressure Range 100-3600
Series DDRV
Cartridge Cavity C-10-2
Country of Manufacture United States/Vietnam

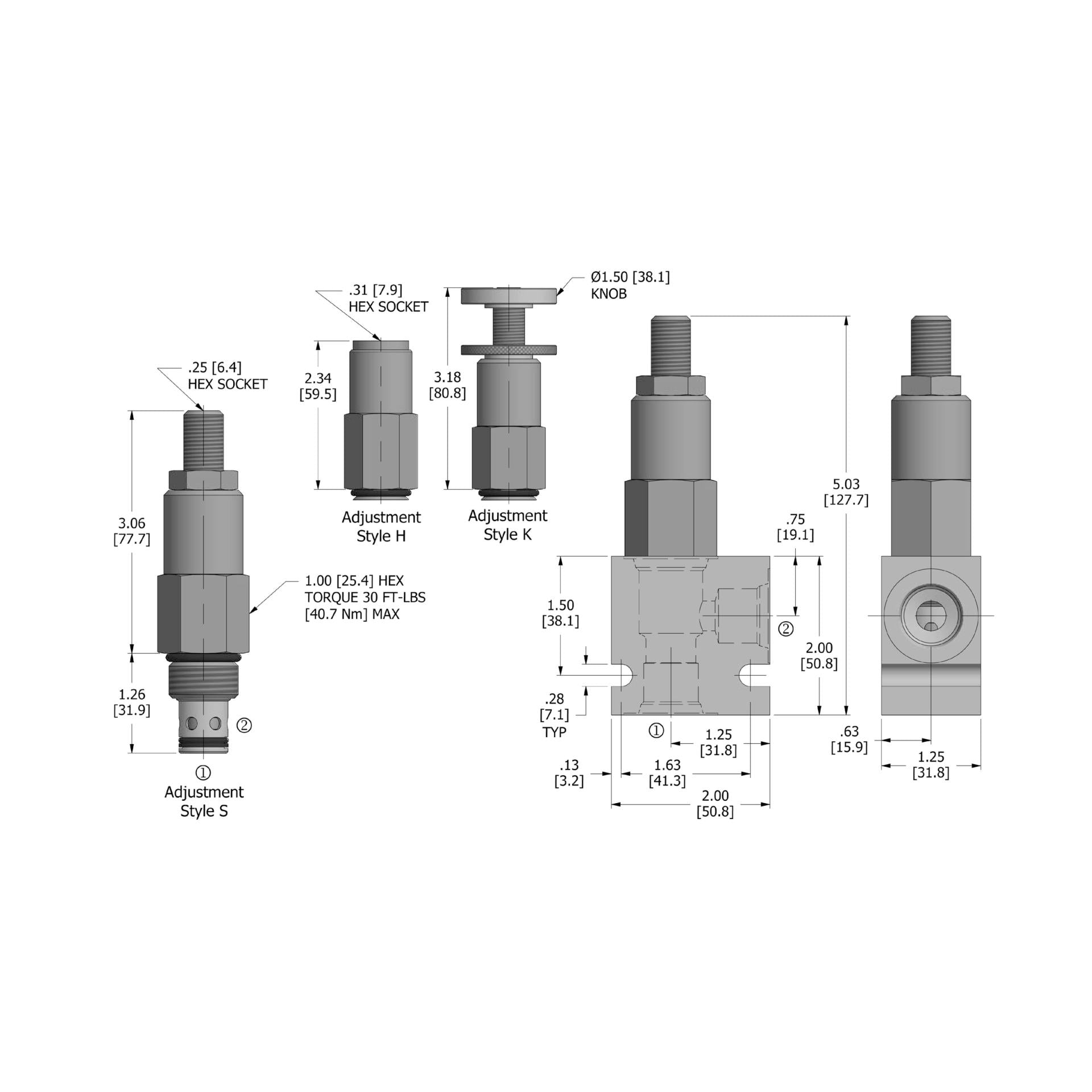

Height 1.5
Length 2.34
Width 1.5
Weight 2

Description

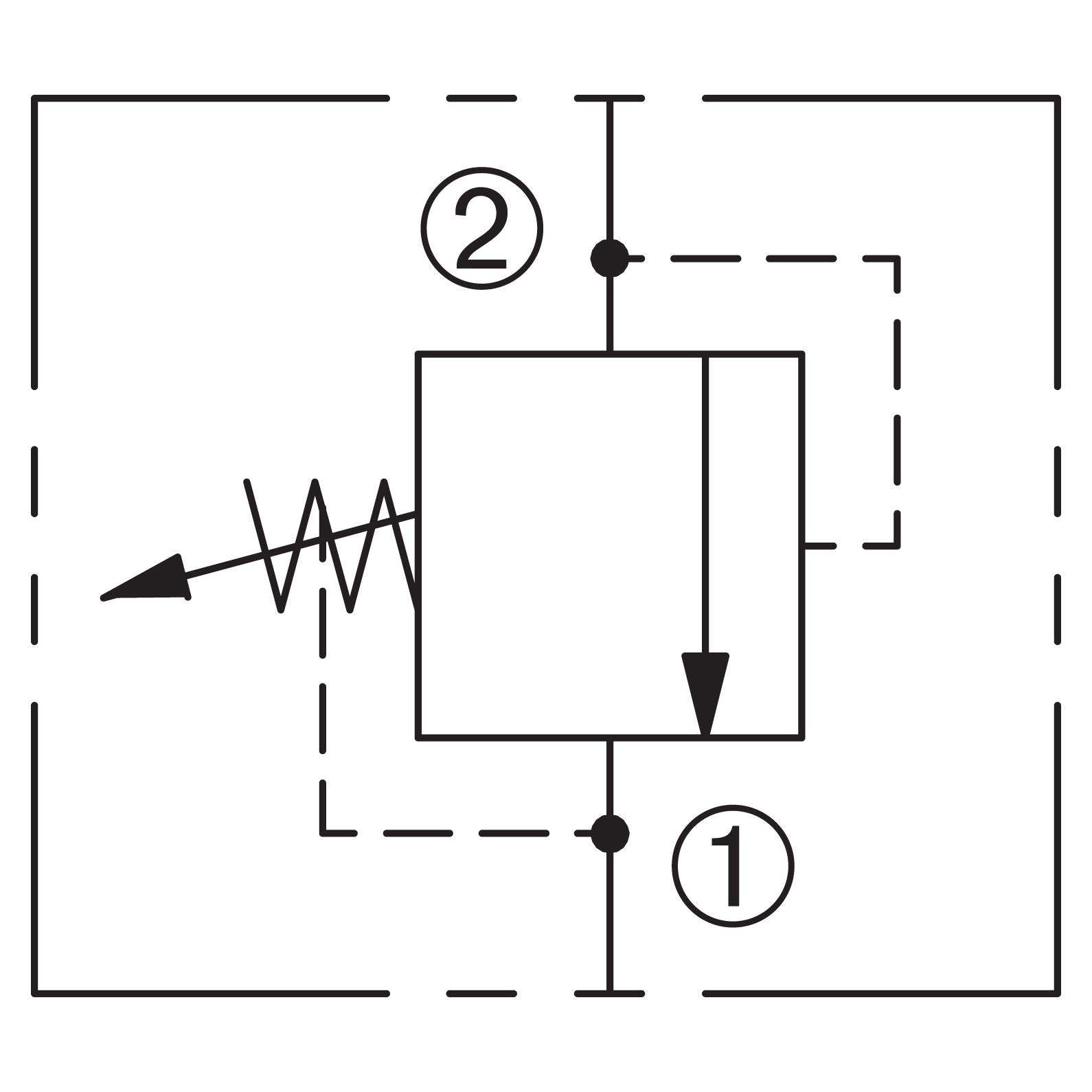

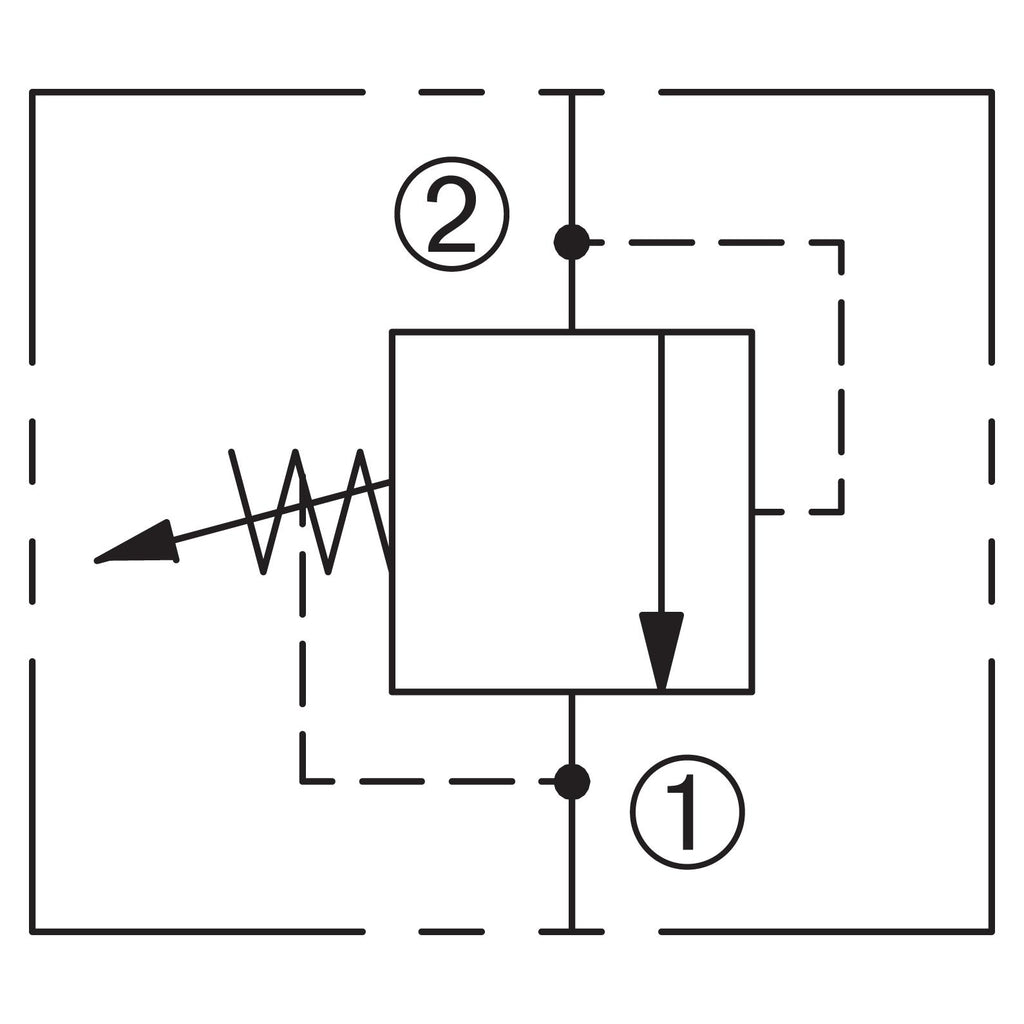

The Deltrol Fluid Products DDRV-100 Direct-Acting, Differential Area, Adjustable, Poppet Relief Valve is a robust, adjustable valve designed to control pressure in hydraulic systems. It blocks flow from port 2 to port 1 until a preset pressure is reached, then opens to allow flow and protect the system from overpressure. The valve offers rapid response, minimal pressure rise, and durability with a hardened poppet and seat. It features options for tamper-resistant adjustments and operates reliably at pressures up to 3600 PSI with a maximum flow rate of 20 GPM. Constructed from anodized aluminum, it performs effectively across a wide temperature range.
