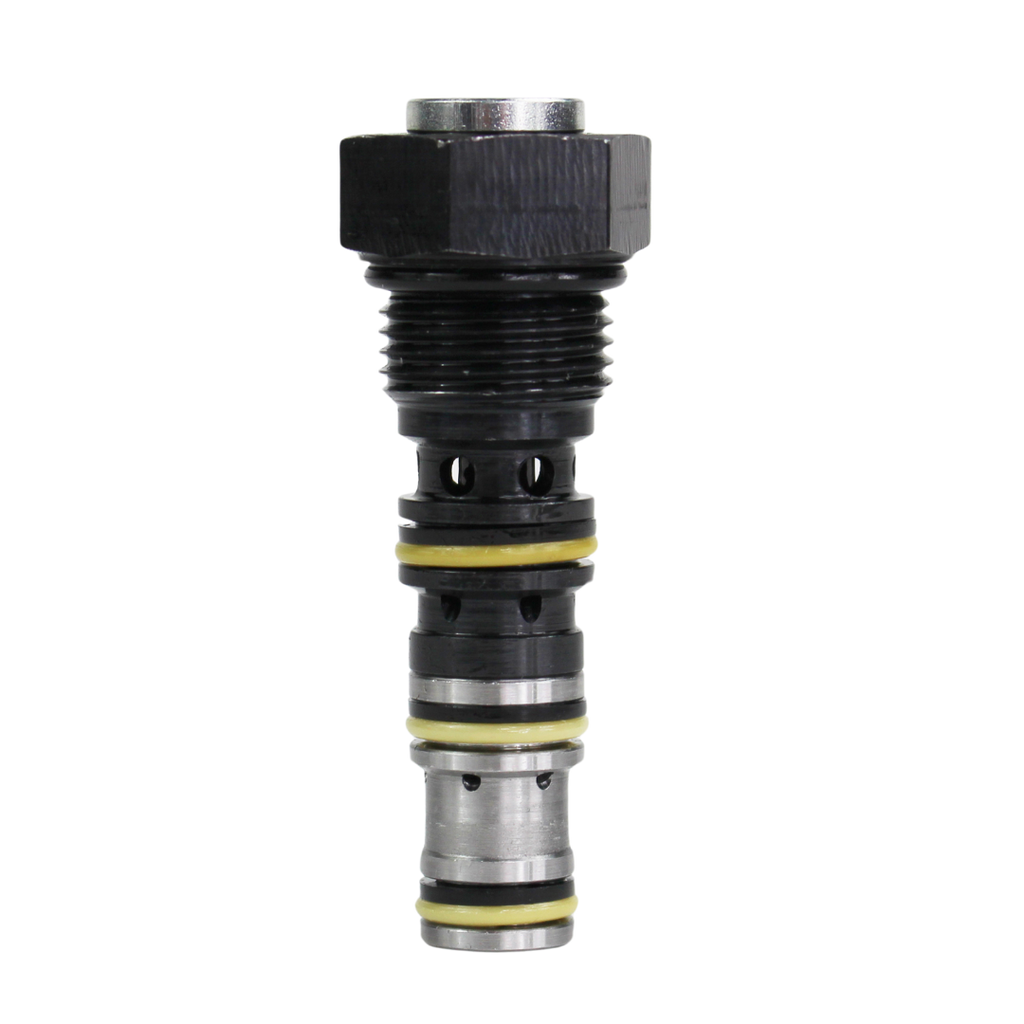

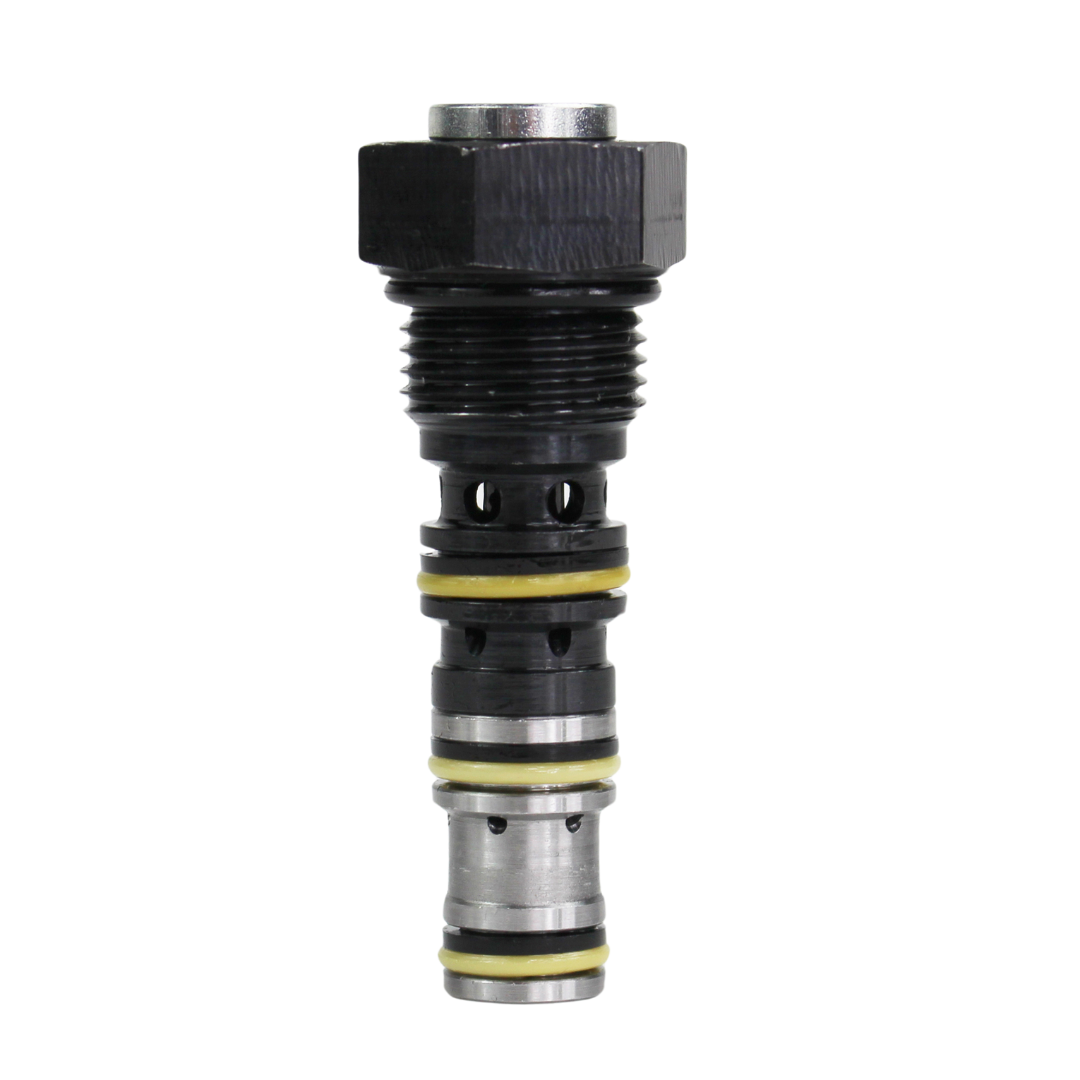

DDPC-080-P-N : Deltrol Motion Control Check Valve, Dual Pilot-To-Open, C-8-3 Cavity, 3000psi, 2GPM, 25psi Cracking Pressure
Roll over image to zoom in Click on image to zoom
DDPC-080-P-N : Deltrol Motion Control Check Valve, Dual Pilot-To-Open, C-8-3 Cavity, 3000psi, 2GPM, 25psi Cracking PressureDDPC-080-P-N : Deltrol Motion Control Check Valve, Dual Pilot-To-Open, C-8-3 Cavity, 3000psi, 2GPM, 25psi Cracking PressureDDPC-080-P-N : Deltrol Motion Control Check Valve, Dual Pilot-To-Open, C-8-3 Cavity, 3000psi, 2GPM, 25psi Cracking PressureDDPC-080-P-N : Deltrol Motion Control Check Valve, Dual Pilot-To-Open, C-8-3 Cavity, 3000psi, 2GPM, 25psi Cracking PressureDDPC-080-P-N : Deltrol Motion Control Check Valve, Dual Pilot-To-Open, C-8-3 Cavity, 3000psi, 2GPM, 25psi Cracking Pressure

DDPC-080-P-N : Deltrol Motion Control Check Valve, Dual Pilot-To-Open, C-8-3 Cavity, 3000psi, 2GPM, 25psi Cracking Pressure

Deltrol Fluid ProductsSKU: 10239-29
1-3 Days
Price:
$74.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Check
Style Poppet
Flow Rating 2.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Cracking Pressure 25 psi
Series DDPC
Check Valve Type Dual Pilot-to-Open
Cartridge Cavity C-8-4
Country of Manufacture United States/Vietnam
Height 2
Length 3
Width 2
Weight 2

Description

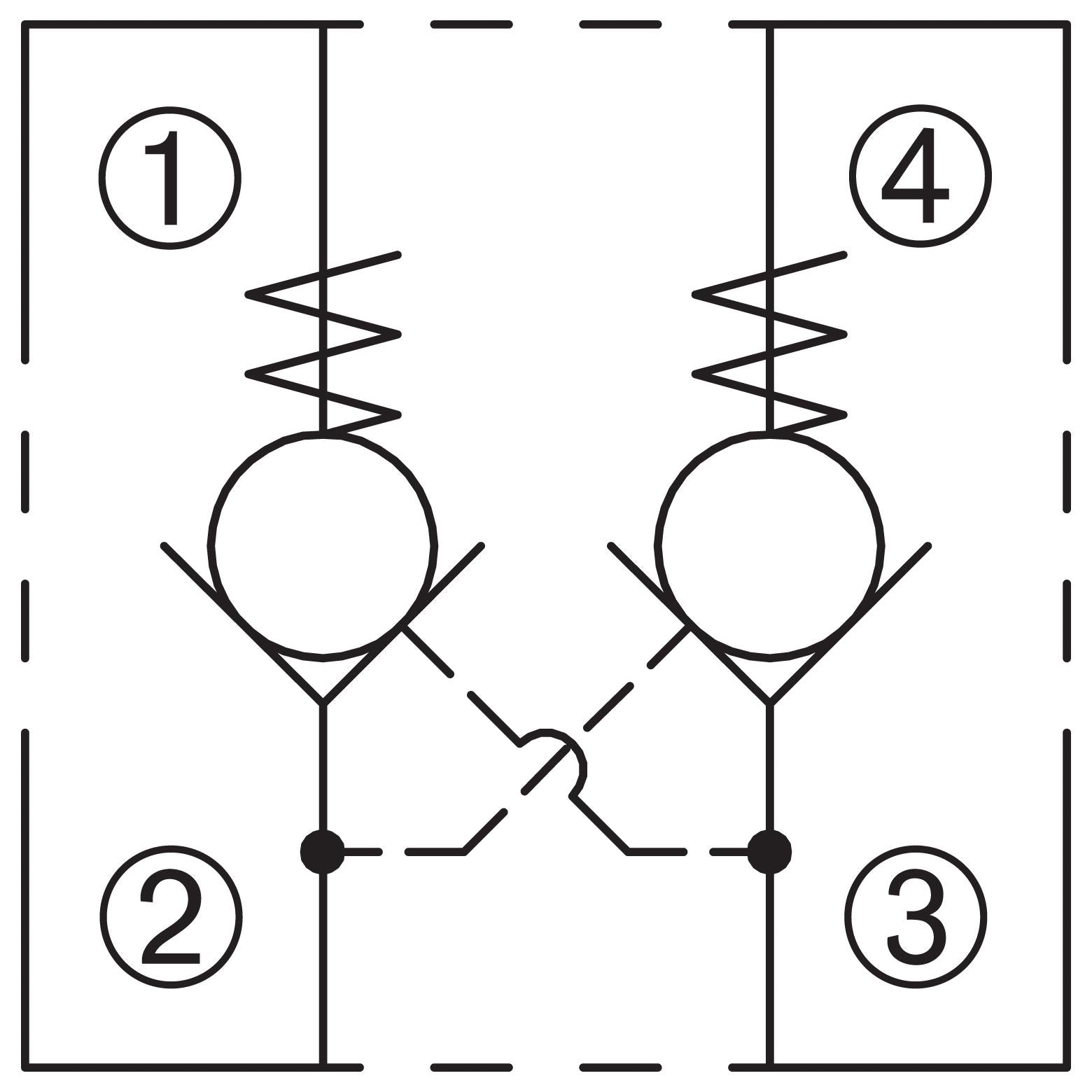

The Deltrol Fluid Products DDPC-080-P Motion Control Dual Pilot-to-Open Check Valve is a versatile cartridge valve that allows free flow in one direction and blocks it in the opposite direction, with reverse flow achievable through pilot pressure. It features two pilot-controlled ports: pressure at port 2 or 3 will lift the poppet, enabling flow between port 4 and 3 or 1 and 2, respectively. This valve is commonly used for load-holding or blocking in hydraulic systems, providing reliable operation with a 3:1 pilot piston-to-poppet seat ratio. With its hardened poppet and seat for durability, it operates efficiently up to 4000 psi and is designed for industry-standard cavities.
