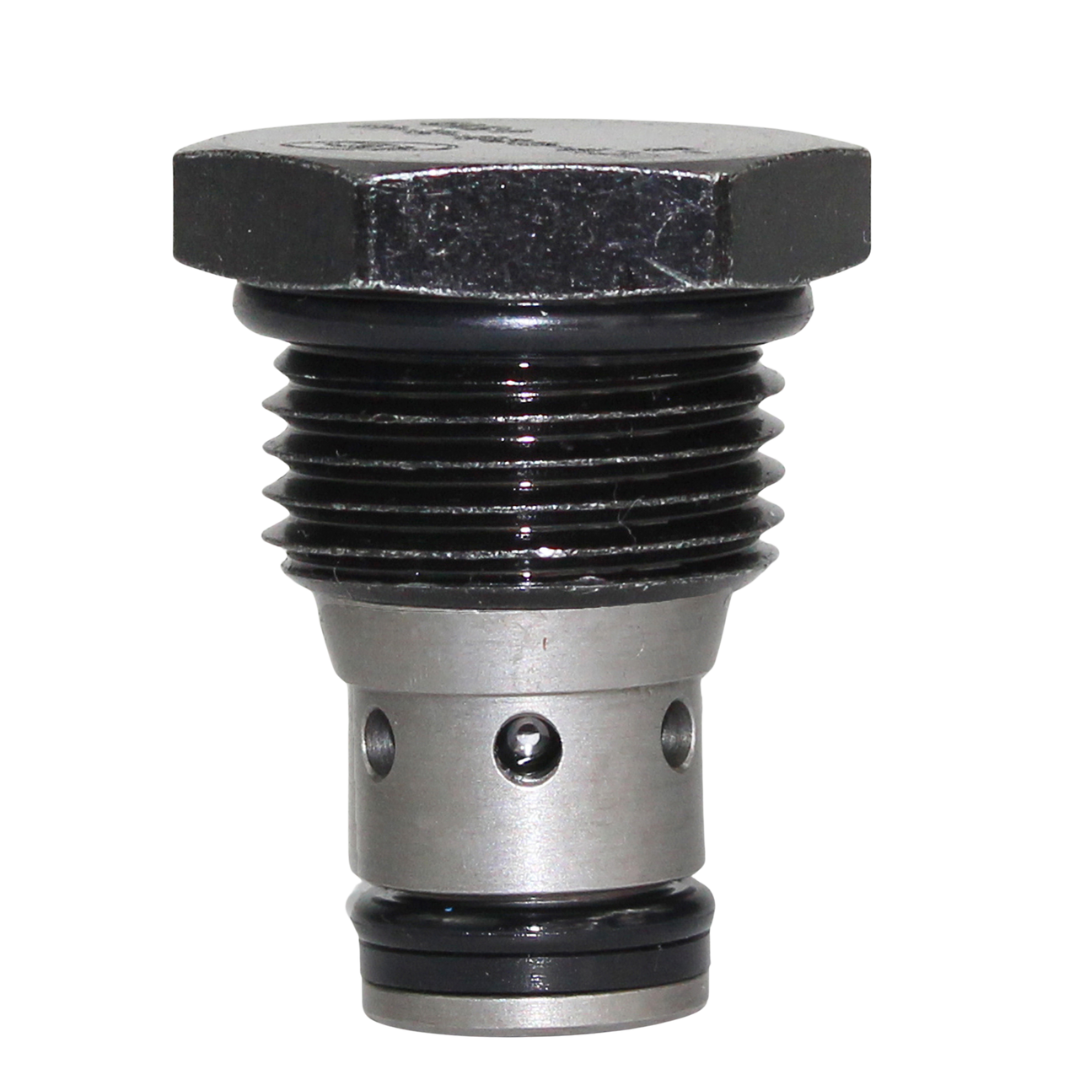

DCV-080-B-N : Deltrol Direct-Acting Check Valve, C-8-2 Cavity, 3000psi, 5GPM, 2-25psi Cracking Pressure
Roll over image to zoom in Click on image to zoom
DCV-080-B-N : Deltrol Direct-Acting Check Valve, C-8-2 Cavity, 3000psi, 5GPM, 2-25psi Cracking PressureDCV-080-B-N : Deltrol Direct-Acting Check Valve, C-8-2 Cavity, 3000psi, 5GPM, 2-25psi Cracking PressureDCV-080-B-N : Deltrol Direct-Acting Check Valve, C-8-2 Cavity, 3000psi, 5GPM, 2-25psi Cracking PressureDCV-080-B-N : Deltrol Direct-Acting Check Valve, C-8-2 Cavity, 3000psi, 5GPM, 2-25psi Cracking PressureDCV-080-B-N : Deltrol Direct-Acting Check Valve, C-8-2 Cavity, 3000psi, 5GPM, 2-25psi Cracking Pressure

DCV-080-B-N : Deltrol Direct-Acting Check Valve, C-8-2 Cavity, 3000psi, 5GPM, 2-25psi Cracking Pressure

Deltrol Fluid ProductsSKU: 10129-82
4-6 Weeks
03.12.N.105A
Price:
$17.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Check
Style Ball
Flow Rating 5.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Cracking Pressure 2-25 psi
Series DCV
Check Valve Type Standard Chrome Alloy Ball
Cartridge Cavity C-8-2
Country of Manufacture United States/Vietnam

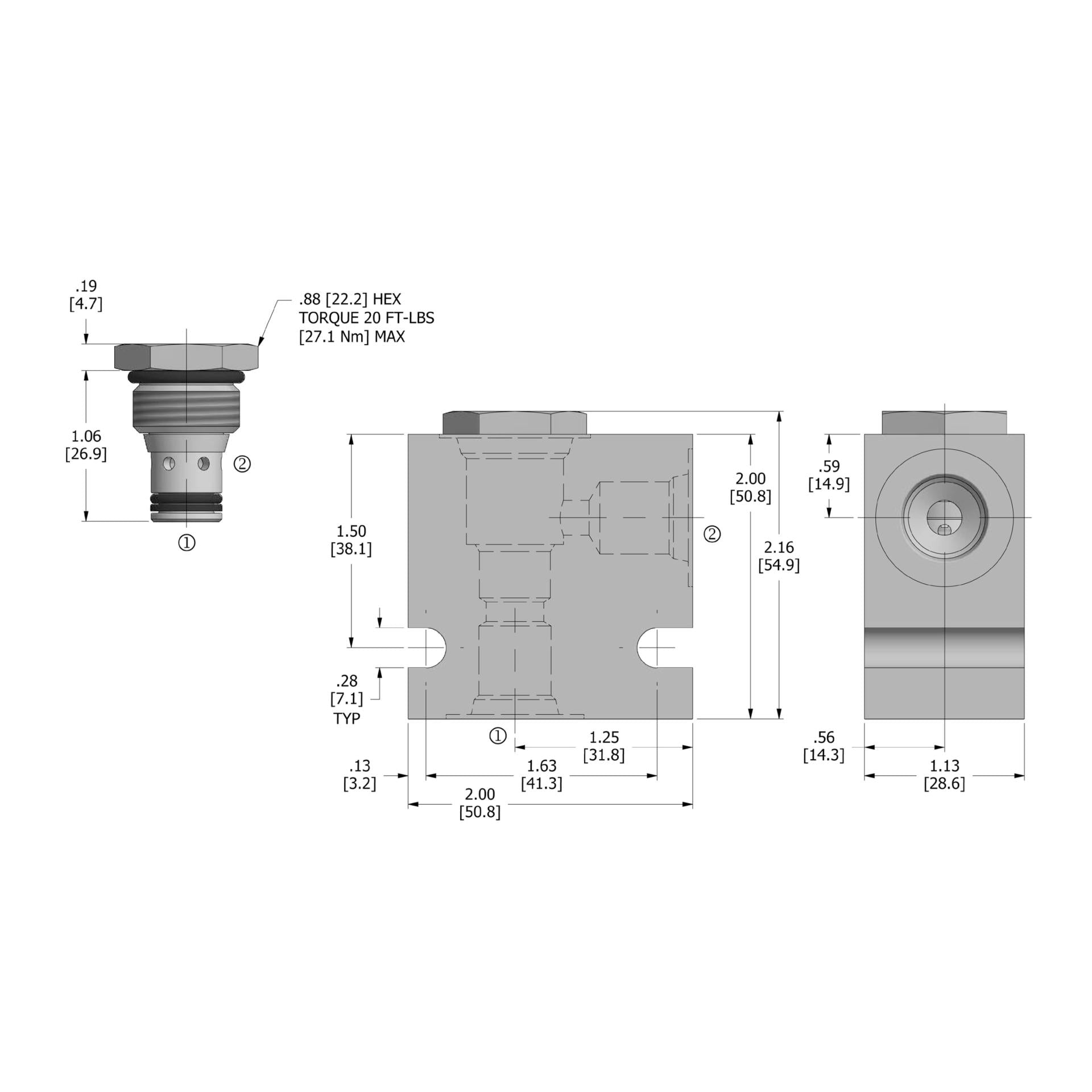

Height 2
Length 1.5
Width 2
Weight 2

Description

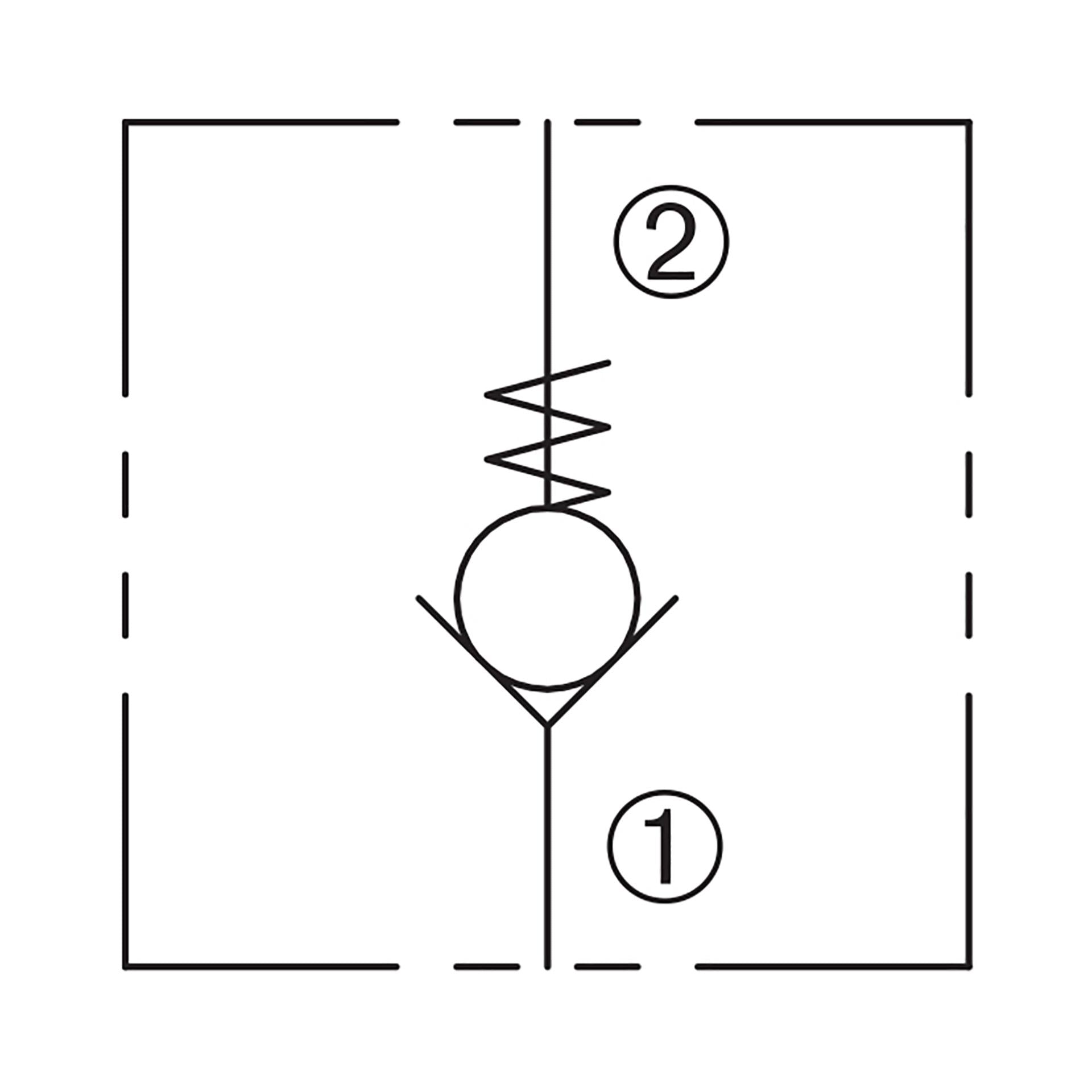

The Deltrol Fluid Products DCV-080-B Direct Acting Check Valve is a versatile cartridge valve designed to control the direction of hydraulic flow. It allows free flow from port 1 to port 2 while blocking flow from port 2 to port 1. This is achieved by using a spring-loaded ball that blocks reverse flow. With a maximum pressure rating of 3000 psi and flow capacity of up to 5 gpm, this valve is ideal for load-holding and blocking applications. The valve features a hardened seat and chrome alloy ball for durability, minimal leakage, and is built to fit industry-standard cavities.
