Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 45-Degree |
| Fitting Style | Rigid |
| Series | A-FAE4 |
| Country of Manufacture | Italy |
| Height | 0.83 |
| Length | 5.43 |
| Width | 0.83 |
| Weight | 0.45 |
| Side 1 Size | 5/8 (-10) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1 1/16-14 (-12) |
| Side 2 Type | SAE 45 |
Description

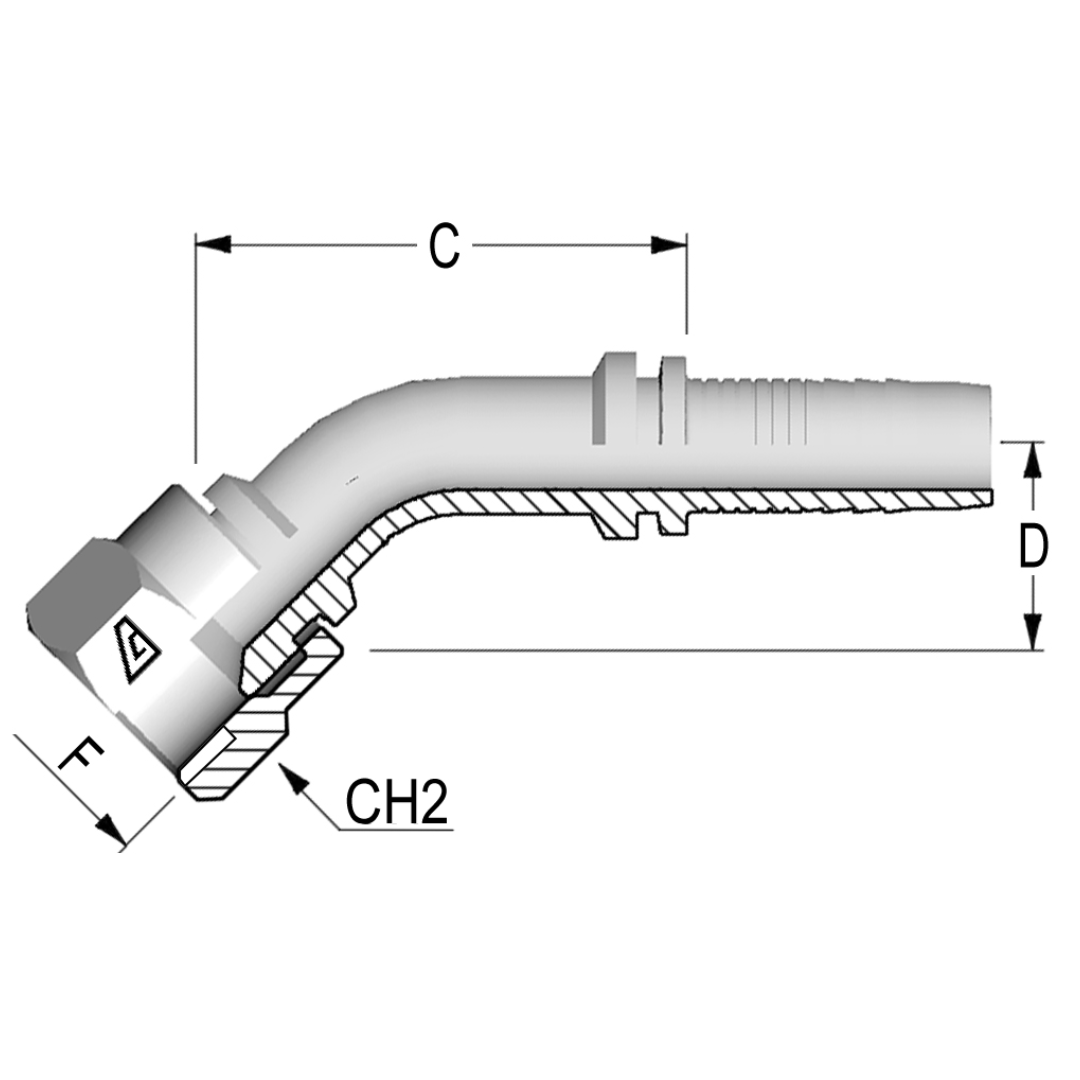

The Alfagomma A-FAE4 Two-Piece Fittings are 45-degree, carbon steel fittings designed to connect wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses ranging from ³⁄₁₆" to 2" in diameter. These fittings use a two-piece insert, which includes a ferrule—a metal or plastic component that compresses the hose tightly onto the fitting to create a secure, leak-proof connection. The difference between two-piece and one-piece fittings is that two-piece fittings consist of separate parts (the ferrule and fitting body), providing flexibility for installation and easier replacement, while one-piece fittings are pre-assembled, allowing for quicker installation. The A-FAE4 fitting features a 45° female SAE 45° seat, ensuring a strong and reliable connection in high-pressure fluid systems. This fitting is ideal for use with Alfabiotech 3000 (1 ¼" and 1 ½") and Alfabiotech 4000 (³⁄₈" to 1 ¼") hoses, as well as smaller ID spiral wire reinforced hoses, offering long-lasting, secure hose connections for demanding industrial applications.
