Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Tee |
| Pressure Rating | 5000 |
| Series | 6804-NWO-FG |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 1-1/16-12 (-12) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 3/4-16 (-08) |
| Side 2 Type | ORB |
| Side 3 Gender | MALE |
| Side 3 Size | 1-1/16-12 (-12) |
| Side 3 Type | JIC |
Description

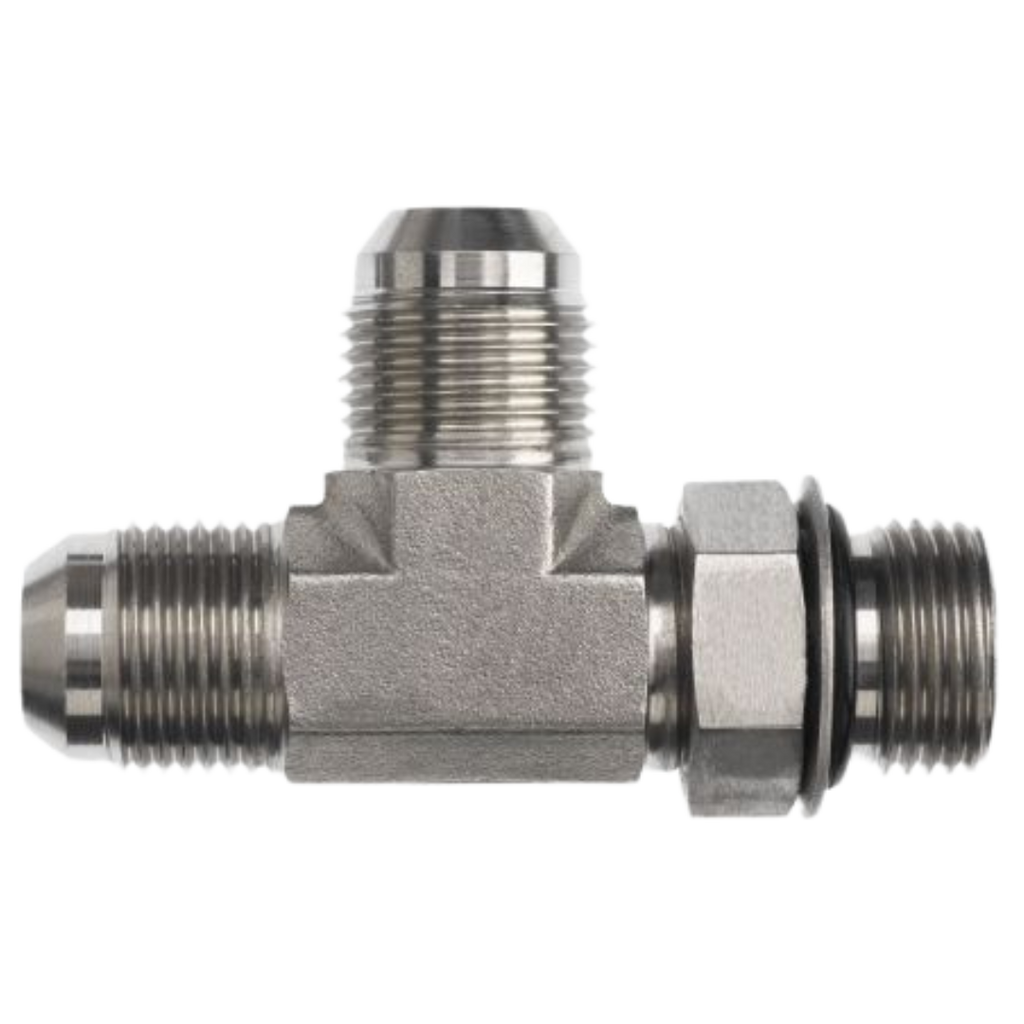

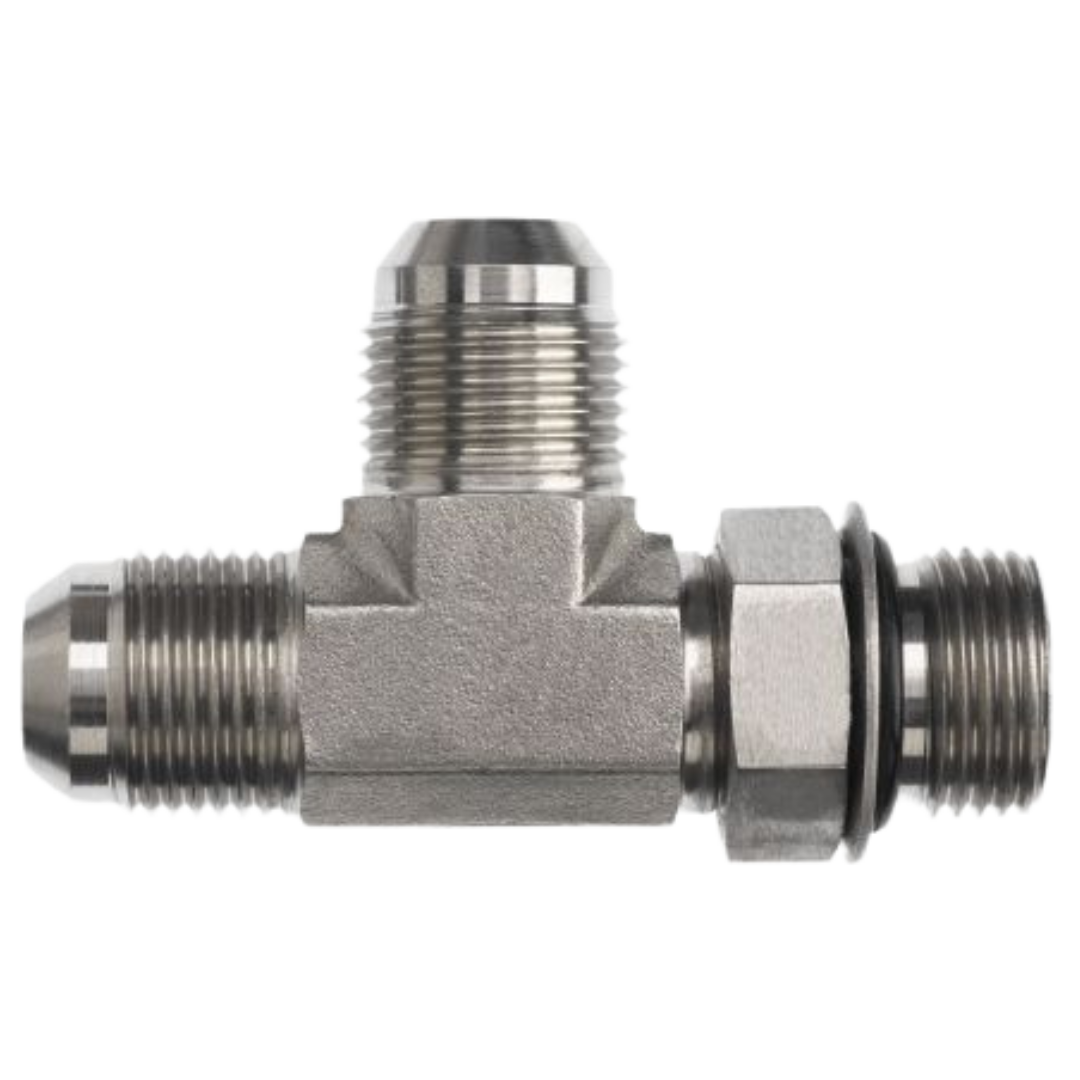

The Series 6804-NWO Run Tee Male JIC x Male Adjustable ORB x Male JIC adapters are high-quality carbon steel fittings designed to provide secure, leak-free connections in hydraulic and fluid power systems. These run tee adapters feature a three-way design, ideal for routing fluid flow through a primary line while also creating a branch. The adapter includes two male JIC (Joint Industry Council) connections, each using a 37° tapered seat for a reliable, mechanical seal, while the third end features a male adjustable ORB (O-Ring Boss) connection. The adjustable ORB connection ensures a flexible, leak-proof seal via an O-ring, allowing for easy alignment and adjustment during installation. Made from durable carbon steel, the Series 6804-NWO adapters offer excellent strength, corrosion resistance, and long-lasting performance, making them ideal for high-pressure fluid systems and industrial applications that require flexible, efficient, and reliable connections in demanding environments.
