Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Cross |
| Pressure Rating | 4000 |
| Series | 5655-FG |

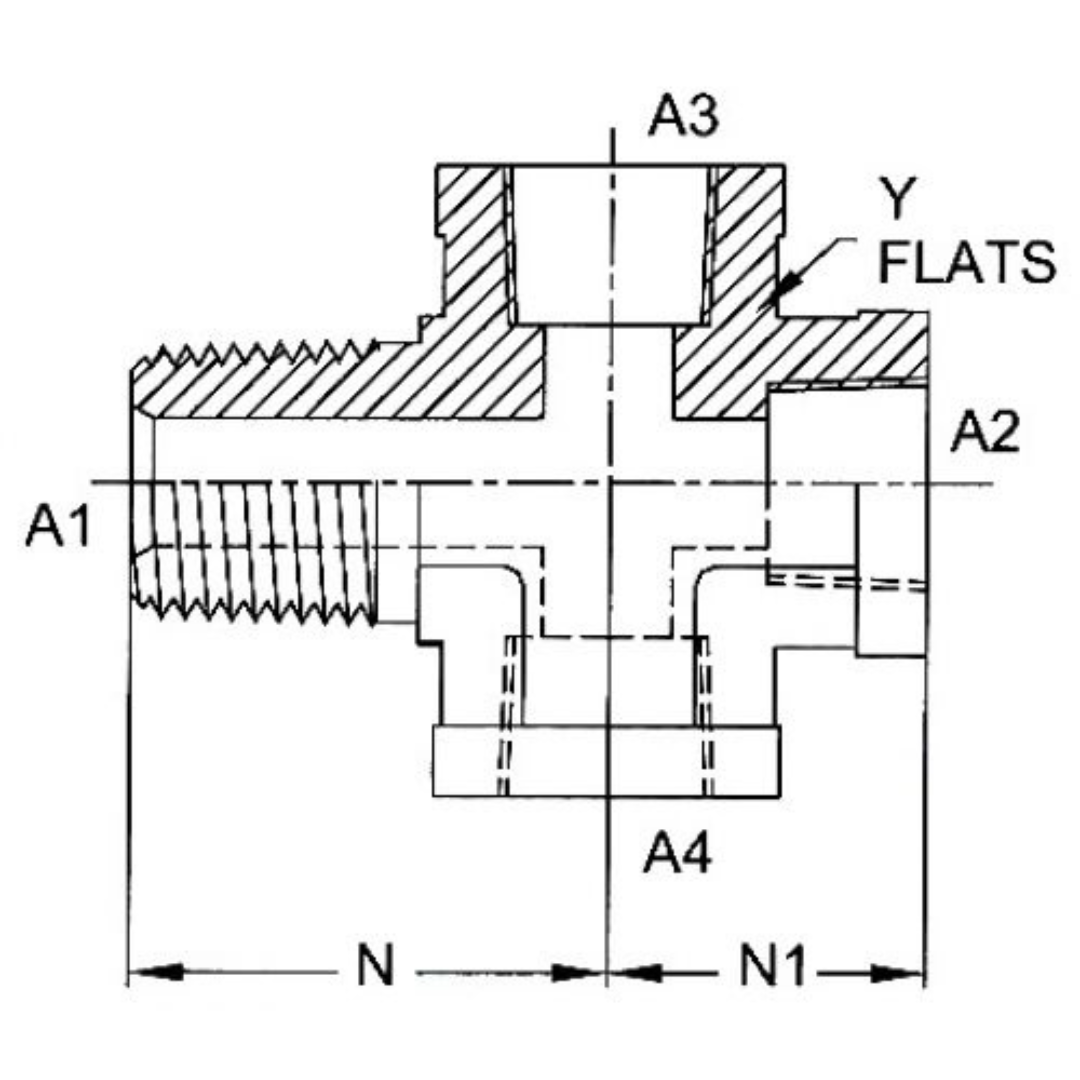

| Special Dims | Y Flats 1.312, A1 Drill 0.719, N Length 1.59, N1 Length 1.36 |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 3/4-14 (-12) |
| Side 1 Type | NPT |
| Side 2 Gender | FEMALE |
| Side 2 Size | 3/4-14 (-12) |
| Side 2 Type | NPT |
| Side 3 Gender | FEMALE |
| Side 3 Size | 3/4-14 (-12) |
| Side 3 Type | NPT |
| Side 4 Gender | FEMALE |
| Side 4 Size | 3/4-14 (-12) |
| Side 4 Type | NPT |
Description

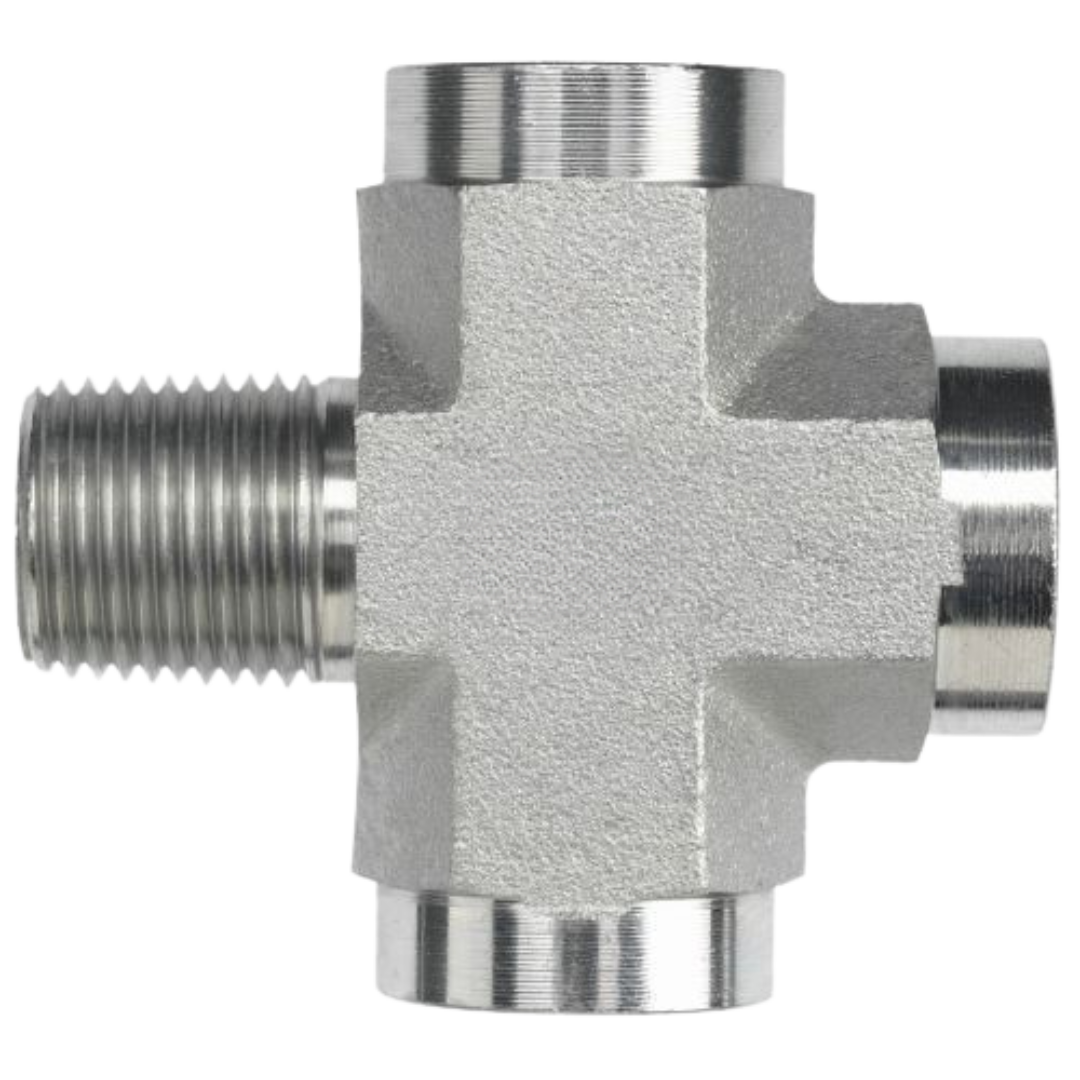

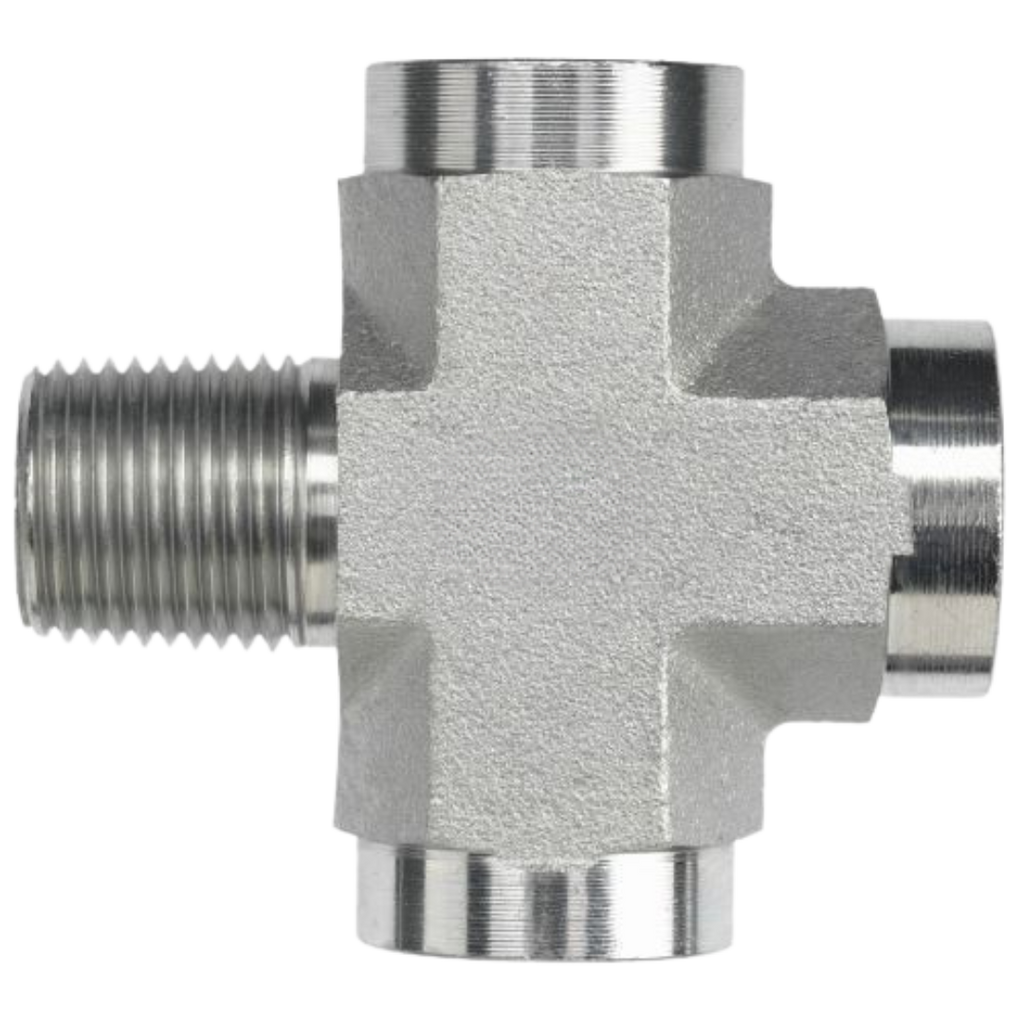

The Series 5655 Cross Male NPT x Female NPT x Female NPT x Female NPT adapters are reliable carbon steel fittings designed to provide secure and efficient fluid routing in hydraulic and fluid power systems. These cross adapters feature one male NPT (National Pipe Tapered) connection and three female NPT connections arranged in a cross configuration, allowing for the distribution of fluid to multiple components. The male NPT connection uses tapered threads that form a metal-to-metal seal, while the female NPT connections also utilize tapered threads for a secure, leak-free connection. Constructed from carbon steel, these adapters offer exceptional strength and durability, making them ideal for high-pressure applications. The Series 5655 adapters provide a flexible, dependable solution for fluid transfer, ensuring long-lasting performance and reliable fluid routing in demanding industrial environments.
