Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Tee |
| Pressure Rating | 3000 |
| Series | 2608-FG |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 1-5/16-12 (-16) |
| Side 1 Type | JIC |
| Side 2 Gender | FEMALE |
| Side 2 Size | 1-11-1/2 (-16) |
| Side 2 Type | NPT |
| Side 3 Gender | MALE |
| Side 3 Size | 1-11-1/2 (-16) |
| Side 3 Type | NPT |
Description

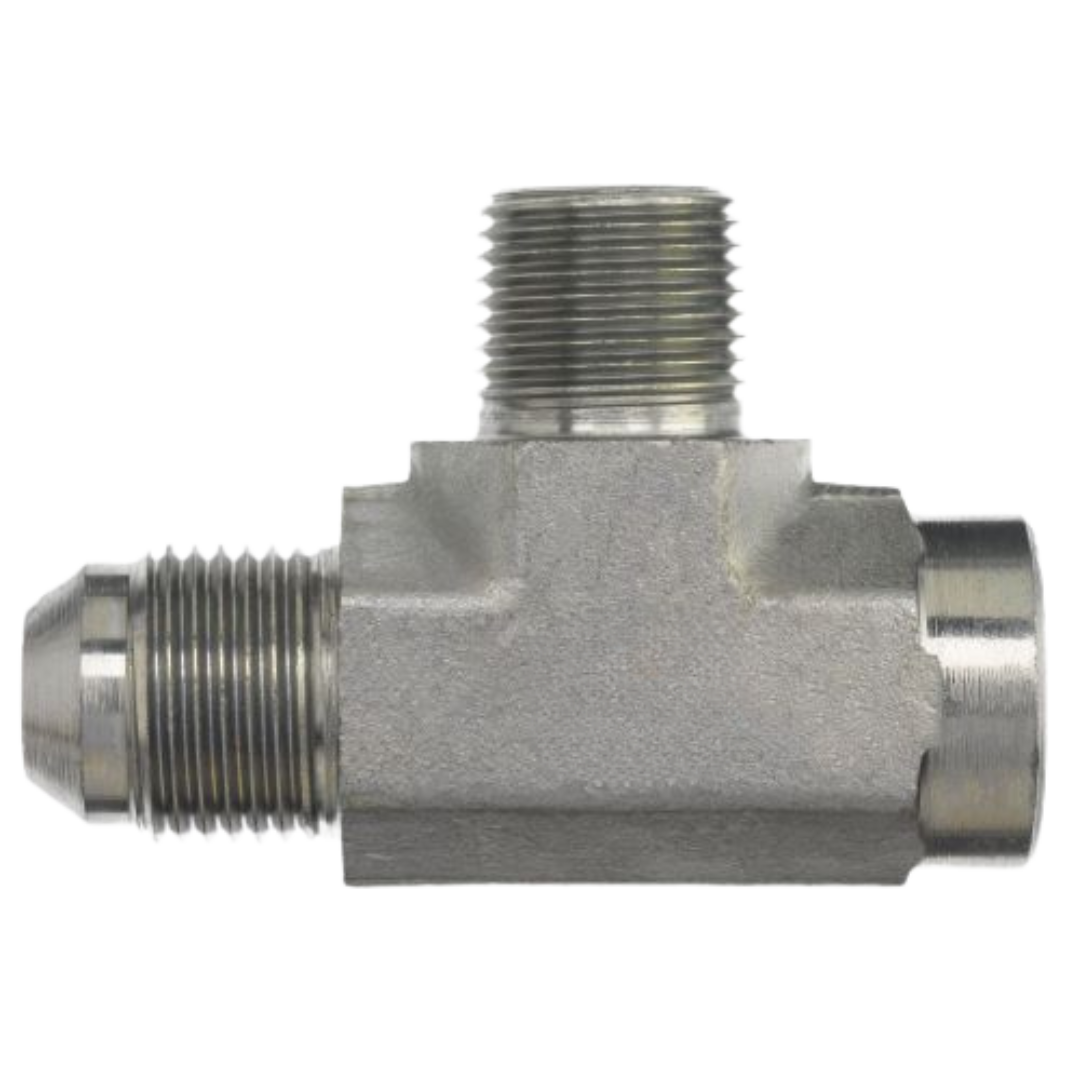

The Series 2608 Tee Male JIC x Female NPT x Male NPT adapters are durable carbon steel fittings designed to provide secure, leak-free connections in fluid power systems. Featuring a three-way tee design, these adapters are ideal for efficiently splitting or combining fluid flow within a system. One end has a male JIC (Joint Industry Council) connection, using a 37° tapered seat to create a reliable, mechanical seal, while the other two ends feature female NPT (National Pipe Tapered) and male NPT connections, which rely on thread deformation to create a tight, leak-proof seal. Made from strong carbon steel, the Series 2608 adapters offer excellent corrosion resistance, strength, and long-lasting performance, making them perfect for high-pressure fluid systems and industrial applications that require flexible, efficient, and dependable connections. These adapters are ideal for systems that demand reliable fluid transfer and secure connections in challenging environments.
