Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Stainless Steel |
| Shape | Tee |
| Pressure Rating | 7200 |
| Series | 2605-FG |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 3/4-16 (-08) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 1/2-14 (-08) |
| Side 2 Type | NPT |
| Side 3 Gender | MALE |
| Side 3 Size | 3/4-16 (-08) |
| Side 3 Type | JIC |
Description

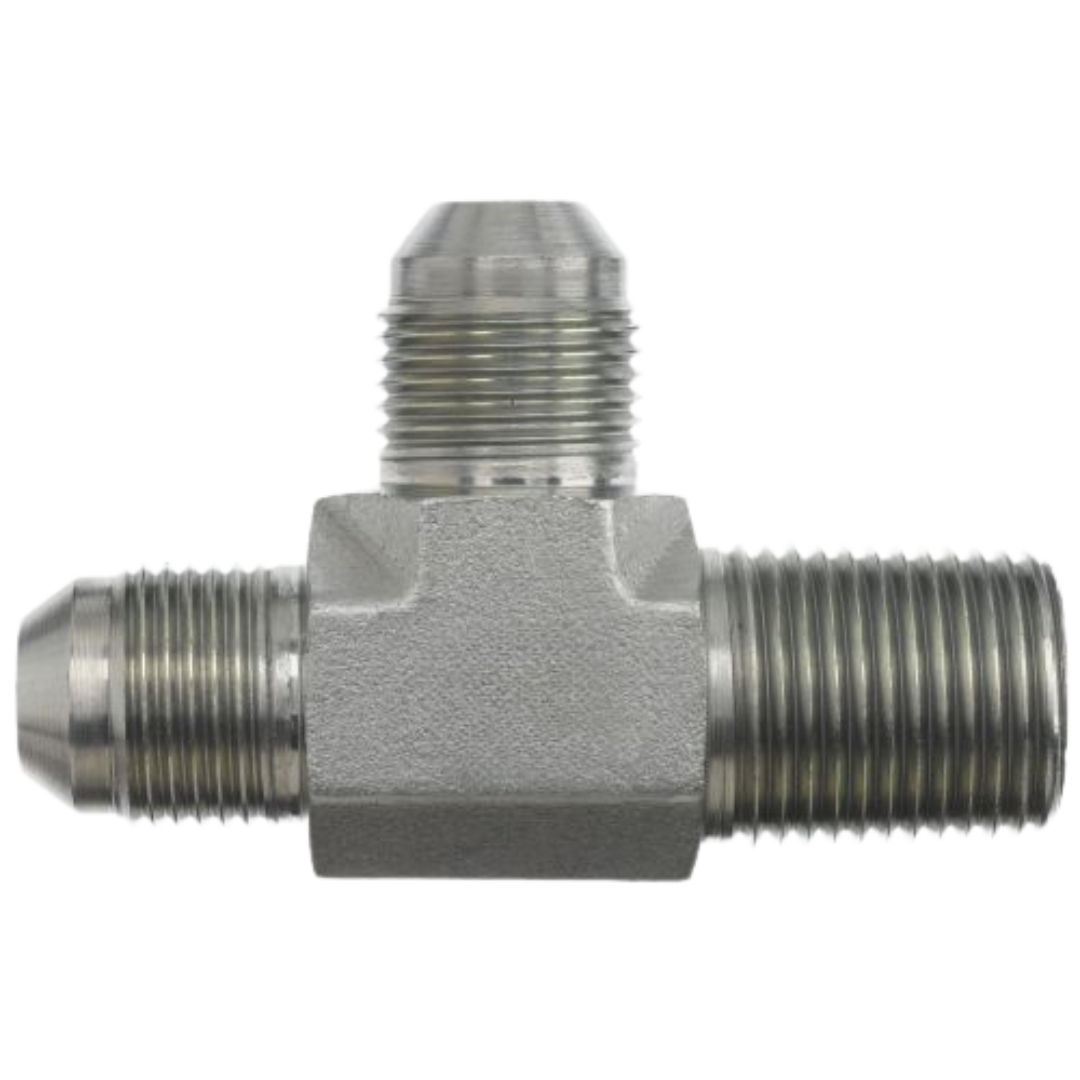

The Series 2605-SS Tee Male JIC x Male NPT x Male JIC adapters are high-quality stainless steel fittings designed to provide secure, leak-free connections in hydraulic and fluid power systems. Featuring a three-way tee design, these adapters are ideal for efficiently splitting or combining fluid flow within a system. One end is equipped with a male JIC (Joint Industry Council) connection, which uses a 37° tapered seat to create a reliable, mechanical seal, while the other two ends feature male NPT (National Pipe Tapered) connections that ensure a tight, leak-proof seal through thread deformation. Made from durable stainless steel, the Series 2605-SS adapters offer superior corrosion resistance, strength, and long-lasting performance, making them perfect for high-pressure fluid systems and industrial applications that require flexible, reliable, and efficient connections. These adapters are ideal for systems that demand dependable, secure fluid transfer in harsh or corrosive environments.
