Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Stainless Steel |
| Shape | 45-Degree |

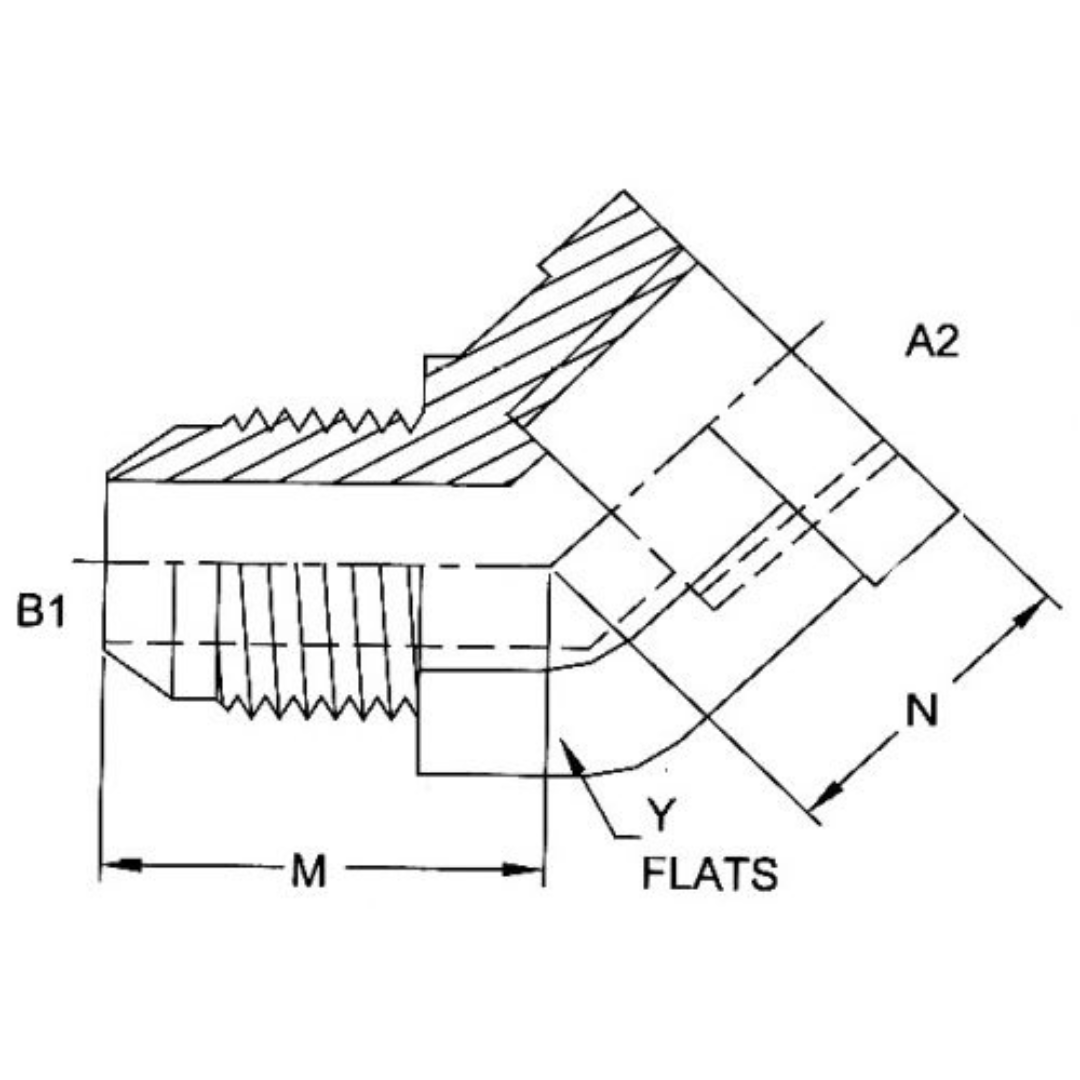

| Special Dims | Y Flats 1.312, B1 Drill 0.609, A2 NPTF 3/4-14, A2 NPSM , M Length 1.42, M1 Length , B1 SAE 37 1-1/16-12, N Length 1.00 |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 1-1/16-12 (-12) |
| Side 1 Type | JIC |
| Side 2 Gender | FEMALE |
| Side 2 Size | 3/4-14 (-12) |
| Side 2 Type | NPT |
Description

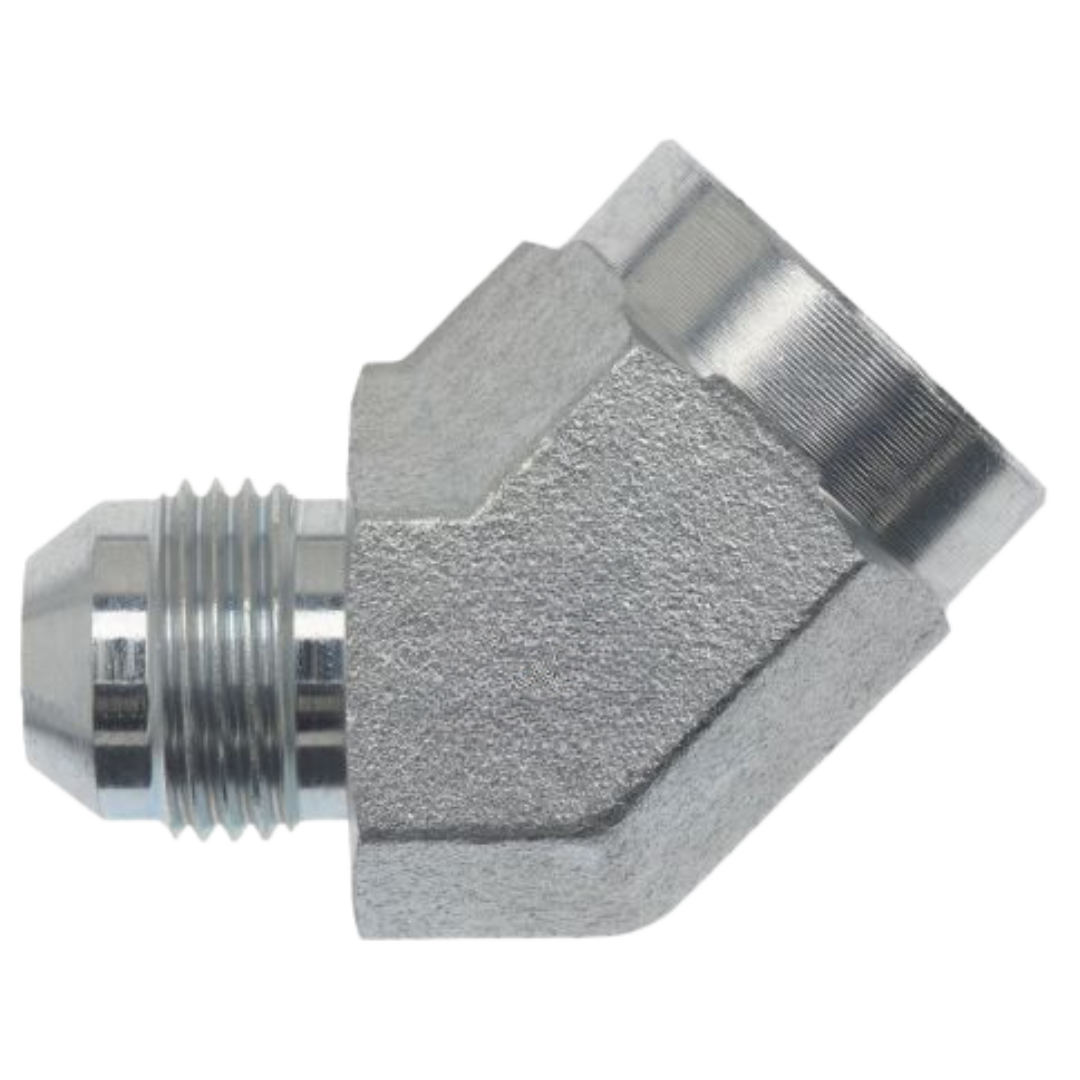

The Series 2505-SS 45-Degree MJIC x Female NPT Rigid adapters, crafted from high-quality stainless steel, are crucial components for fluid power systems, particularly in high-pressure applications. These adapters feature male and female JIC (Joint Industry Council SAE J514) connections, identified by their 37° tapered seats, which create a secure mechanical seal when the male flared seat contacts the female coned seat. The female NPT (National Pipe Tapered) thread provides a reliable connection for fluid and gas transfer, ensuring a leak-proof seal due to its tapered design. Care should be taken to avoid mixing SAE 37° and SAE 45° fittings, as their different seat angles could cause leakage. The stainless steel construction offers durability and strength for demanding applications.
