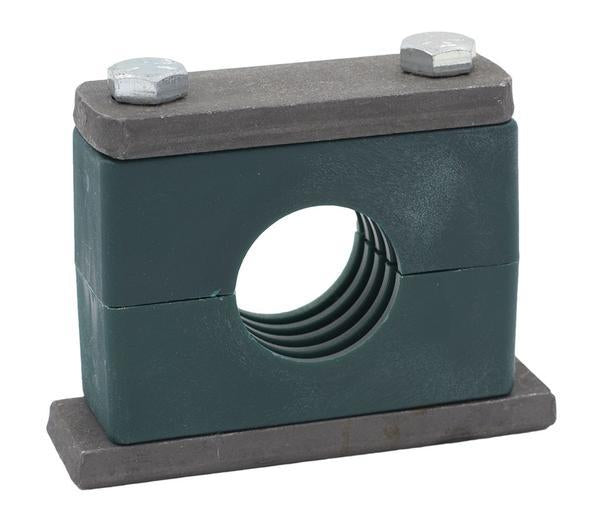

SPAL-4022-PP-H-DPAL-AS-U-W15 : Stauff Clamp, Single Weld Plate, Heavy, 0.875 inch (22mm) OD, for 7/8" Tube, Green PP Insert, Smooth Interior, Carbon Steel

StauffSKU: 6100082786
4-6 Weeks

Price:
Sale price$9.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Waldwick, New Jersey
Outside Diameter 0.875 inch (22mm)
Hardware Material Carbon Steel
Clamp Style Heavy Single Weld Plate
Clamp Type Tube Clamp
Clamp Group Size Stauff Group 4S (DIN 2)
Nominal Tube Size 7/8 inch Tube
Country of Manufacture Germany
Height 1.89
Length 2.76
Width 1.2

Description

Globally, Stauff clamps represent quick and easy pipe and hose installations, as well as a clean system layout. The vibration and noise reducing features provide and important contribution to environmental protection. Pipe is typically called out by inner diameter size and tube is typically measured by outer diameter size, so be sure to verify the OD of your pipe or tube prior to ordering. The Outside Diameter is the the size of the hole in the insert that your clamp will come with. The Nominal pipe/tube size is the size of pipe or tube that will fit that particular clamp. If you're not sure which size you need, please give us a call and we will be happy to help.
Product SKU Clamp Type Outside Diameter Nominal Tube Size Clamp Group Size Hardware Material Insert Texture Lead Time Price
SPAL-10203-PP-DPAL-AS-U-W15 Tube Clamp 8 inch (203mm) 8 inch Tube Stauff Group 10S (DIN 8) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $389.99
6100082653 Tube Clamp 0.25 inch (6.4mm) 1/4 inch Tube Stauff Group 3S (DIN 1) Carbon Steel Profiled Interior with Tension Clearance Same Day $7.99
6100082656 Tube Clamp 0.25 inch (6.4mm) 1/4 inch Tube Stauff Group 3S (DIN 1) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $68.99
6100082665 Tube Clamp 0.375 inch (9.5mm) 3/8 inch Tube Stauff Group 3S (DIN 1) Carbon Steel Profiled Interior with Tension Clearance Same Day $7.99
6100082668 Tube Clamp 0.375 inch (9.5mm) 3/8 inch Tube Stauff Group 3S (DIN 1) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $68.99
6100100866 Tube Clamp 0.375 inch (9.5mm) 3/8 inch Tube Stauff Group 3S (DIN 1) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $14.99
6100082683 Tube Clamp 0.5 inch (12.7mm) 1/2 inch Tube Stauff Group 3S (DIN 1) Carbon Steel Profiled Interior with Tension Clearance Same Day $7.99
6100082689 Tube Clamp 0.5 inch (12.7mm) 1/2 inch Tube Stauff Group 3S (DIN 1) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $68.99
6100100873 Tube Clamp 0.5 inch (12.7mm) 1/2 inch Tube Stauff Group 3S (DIN 1) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $14.99
SPAL-3012.7-PP-H-DPAL-AS-U-W5 Tube Clamp 0.5 inch (12.7mm) 1/2 inch Tube Stauff Group 3S (DIN 1) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $66.99
6100082706 Tube Clamp 0.625 inch (16mm) 5/8 inch Tube Stauff Group 3S (DIN 1) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $7.99
6100082708 Tube Clamp 0.625 inch (16mm) 5/8 inch Tube Stauff Group 3S (DIN 1) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $68.99
6100082743 Tube Clamp 0.75 inch (19mm) 3/4 inch Tube Stauff Group 4S (DIN 2) Carbon Steel Profiled Interior with Tension Clearance Same Day $8.99
6100082748 Tube Clamp 0.75 inch (19mm) 3/4 inch Tube Stauff Group 4S (DIN 2) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $75.99
6100100902 Tube Clamp 0.75 inch (19mm) 3/4 inch Tube Stauff Group 4S (DIN 2) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $15.99
SPAL-4019-PP-H-DPAL-AS-U-W5 Tube Clamp 0.75 inch (19mm) 3/4 inch Tube Stauff Group 4S (DIN 2) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $72.99
6100082782 Tube Clamp 0.875 inch (22mm) 7/8 inch Tube Stauff Group 4S (DIN 2) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $8.99
SPAL-4022-PP-DPAL-AS-U-W5 Tube Clamp 0.875 inch (22mm) 7/8 inch Tube Stauff Group 4S (DIN 2) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $66.99
6100082786 Tube Clamp 0.875 inch (22mm) 7/8 inch Tube Stauff Group 4S (DIN 2) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $9.99
SPAL-4022-PP-H-DPAL-AS-U-W5 Tube Clamp 0.875 inch (22mm) 7/8 inch Tube Stauff Group 4S (DIN 2) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $67.99
6100082801 Tube Clamp 1 inch (25.4mm) 1 inch Tube Stauff Group 4S (DIN 2) Carbon Steel Profiled Interior with Tension Clearance Same Day $8.99
6100082805 Tube Clamp 1 inch (25.4mm) 1 inch Tube Stauff Group 4S (DIN 2) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $75.99
6100094266 Tube Clamp 1 inch (25.4mm) 1 inch Tube Stauff Group 4S (DIN 2) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $9.99
SPAL-4025.4-PP-H-DPAL-AS-U-W5 Tube Clamp 1 inch (25.4mm) 1 inch Tube Stauff Group 4S (DIN 2) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $72.99
6100082873 Tube Clamp 1.25 inch (32mm) 1.25 inch Tube Stauff Group 5S (DIN 3) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $10.99
6100082875 Tube Clamp 1.25 inch (32mm) 1.25 inch Tube Stauff Group 5S (DIN 3) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $82.99
6100082876 Tube Clamp 1.25 inch (32mm) 1.25 inch Tube Stauff Group 5S (DIN 3) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $10.99
6100082925 Tube Clamp 1.5 inch (38mm) 1.5 inch Tube Stauff Group 5S (DIN 3) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $10.99
6100094285 Tube Clamp 1.5 inch (38mm) 1.5 inch Tube Stauff Group 5S (DIN 3) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $82.99
6100082930 Tube Clamp 1.5 inch (38mm) 1.5 inch Tube Stauff Group 5S (DIN 3) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $10.99
6100082981 Tube Clamp 1.75 inch (45.5mm) 1.75 inch Tube Stauff Group 6S (DIN 4) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $21.99
SPAL-6044.5-PP-DPAL-AS-U-W5 Tube Clamp 1.75 inch (45.5mm) 1.75 inch Tube Stauff Group 6S (DIN 4) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $137.99
6100100987 Tube Clamp 1.75 inch (45.5mm) 1.75 inch Tube Stauff Group 6S (DIN 4) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $32.99
SPAL-6044.5-PP-H-DPAL-AS-U-W5 Tube Clamp 1.75 inch (45.5mm) 1.75 inch Tube Stauff Group 6S (DIN 4) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $147.99
6100083028 Tube Clamp 2 inch (50.8mm) 2 inch Tube Stauff Group 6S (DIN 4) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $21.99
6100094311 Tube Clamp 2 inch (50.8mm) 2 inch Tube Stauff Group 6S (DIN 4) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $157.99
6100083033 Tube Clamp 2 inch (50.8mm) 2 inch Tube Stauff Group 6S (DIN 4) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $32.99
SPAL-6050.8-PP-H-DPAL-AS-U-W5 Tube Clamp 2 inch (50.8mm) 2 inch Tube Stauff Group 6S (DIN 4) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $138.99
6100083086 Tube Clamp 2.5 inch (63.5mm) 2.5 inch Tube Stauff Group 6S (DIN 4) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $21.99
6100101023 Tube Clamp 2.5 inch (63.5mm) 2.5 inch Tube Stauff Group 6S (DIN 4) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $157.99
6100094319 Tube Clamp 2.5 inch (63.5mm) 2.5 inch Tube Stauff Group 6S (DIN 4) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $32.99
SPAL-6063.5-PP-H-DPAL-AS-U-W5 Tube Clamp 2.5 inch (63.5mm) 2.5 inch Tube Stauff Group 6S (DIN 4) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $147.99
6100083100 Tube Clamp 2.75 inch (70mm) 2.75 inch Tube Stauff Group 6S (DIN 4) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $21.99
6100141246 Tube Clamp 2.75 inch (70mm) 2.75 inch Tube Stauff Group 6S (DIN 4) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $30.99
SPAL-6070-PP-H-DPAL-AS-U-W5 Tube Clamp 2.75 inch (70mm) 2.75 inch Tube Stauff Group 6S (DIN 4) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $147.99
SPAL-8102-PP-DPAL-AS-U-W15 Tube Clamp 4 inch (102mm) 4 inch Tube Stauff Group 8S (DIN 6) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $91.99
6100059704 Tube Clamp 4 inch (102mm) 4 inch Tube Stauff Group 8S (DIN 6) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $762.99
SPAL-8127-PP-DPAL-AS-U-W15 Tube Clamp 5 inch (127mm) 5 inch Tube Stauff Group 8S (DIN 6) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $91.99
SPAL-8127-PP-DPAL-AS-U-W5 Tube Clamp 5 inch (127mm) 5 inch Tube Stauff Group 8S (DIN 6) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $668.99
SPAL-9127-PP-DPAL-AS-U-W15 Tube Clamp 5 inch (127mm) 5 inch Tube Stauff Group 9S (DIN 7) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $136.99
