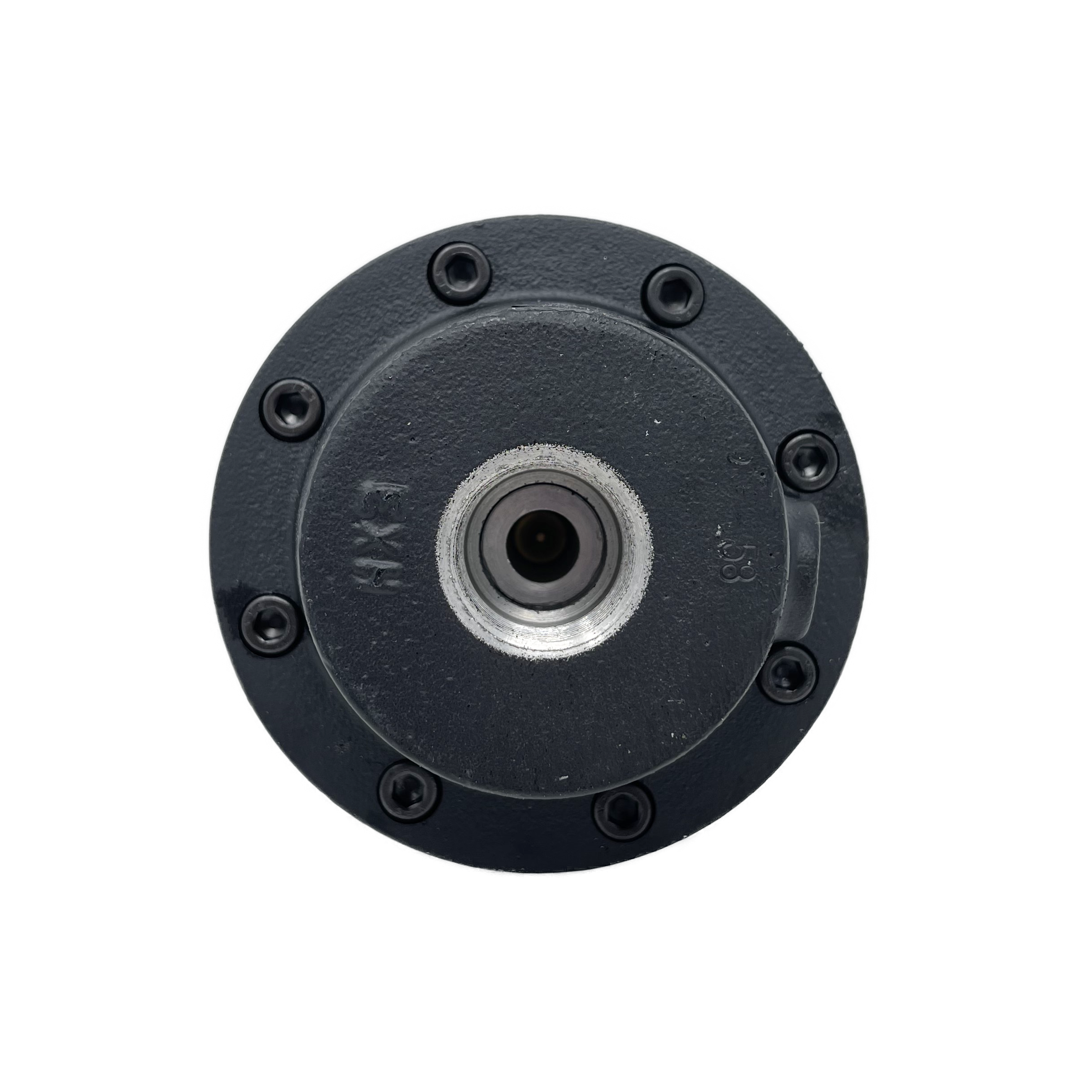

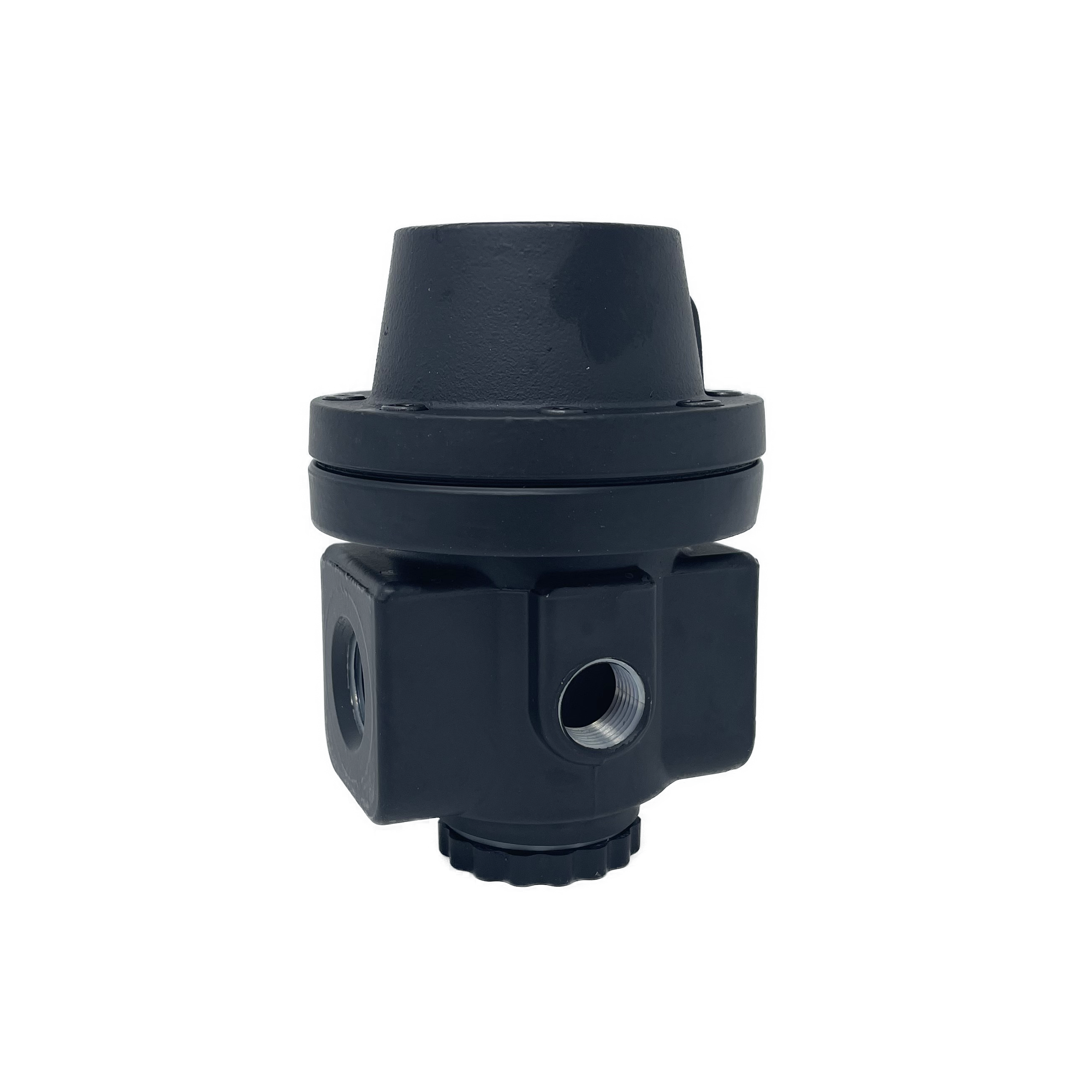

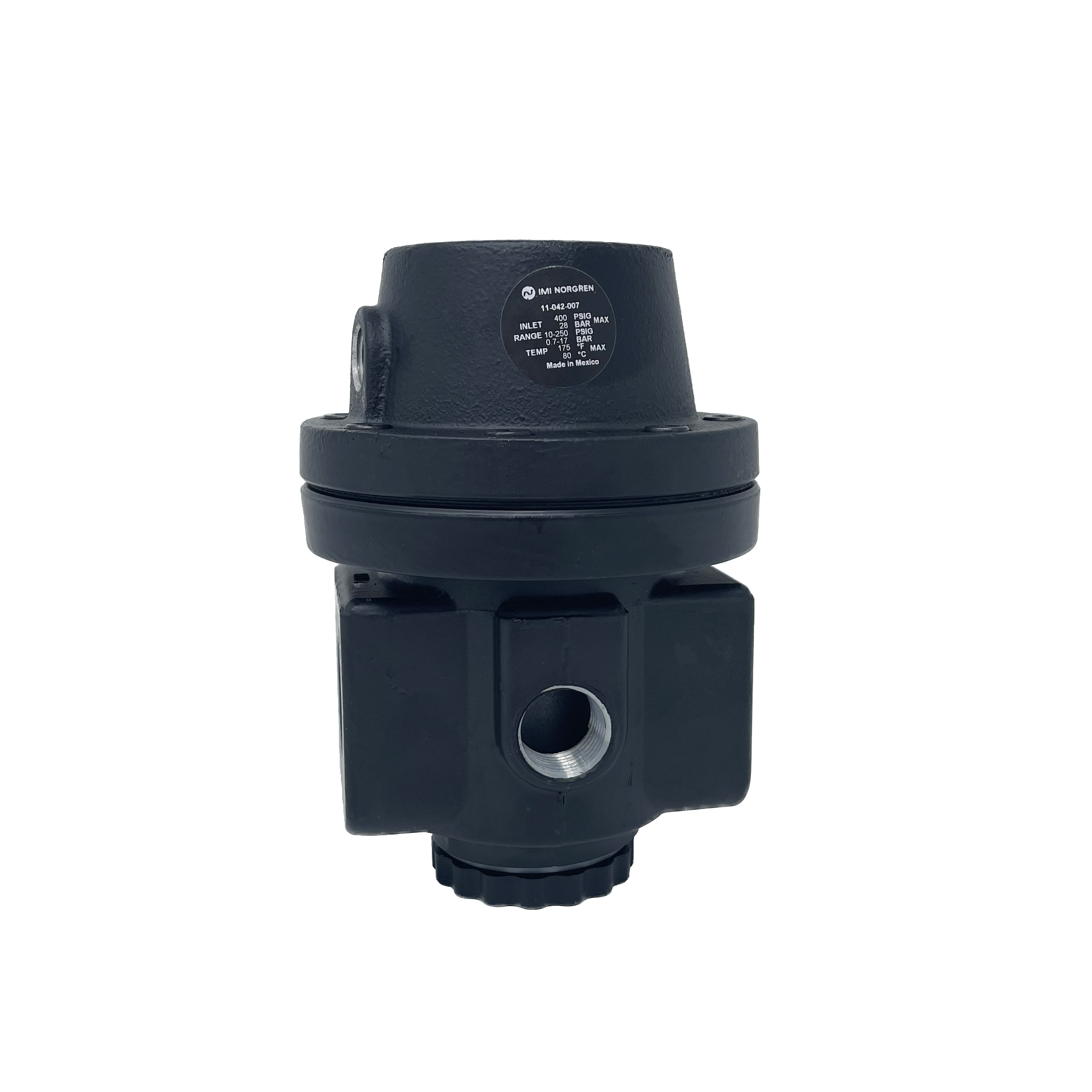

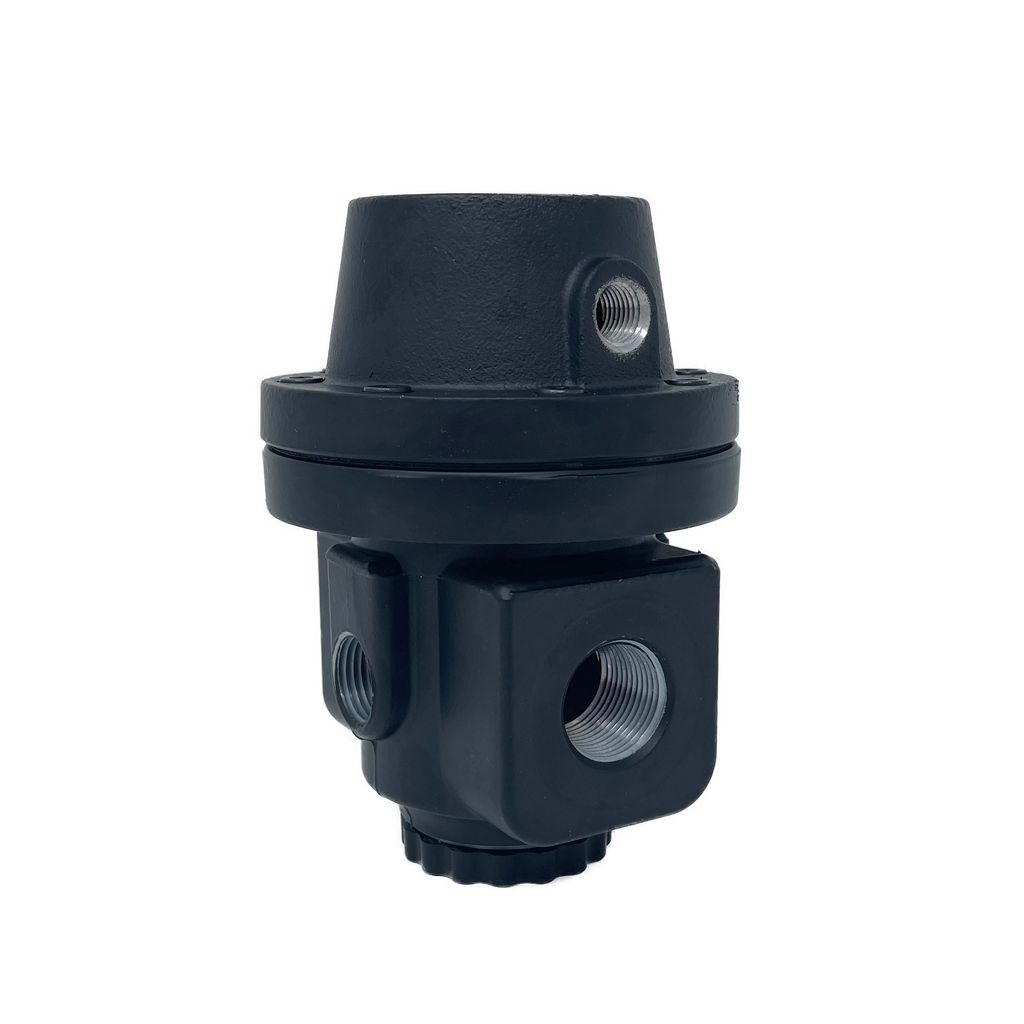

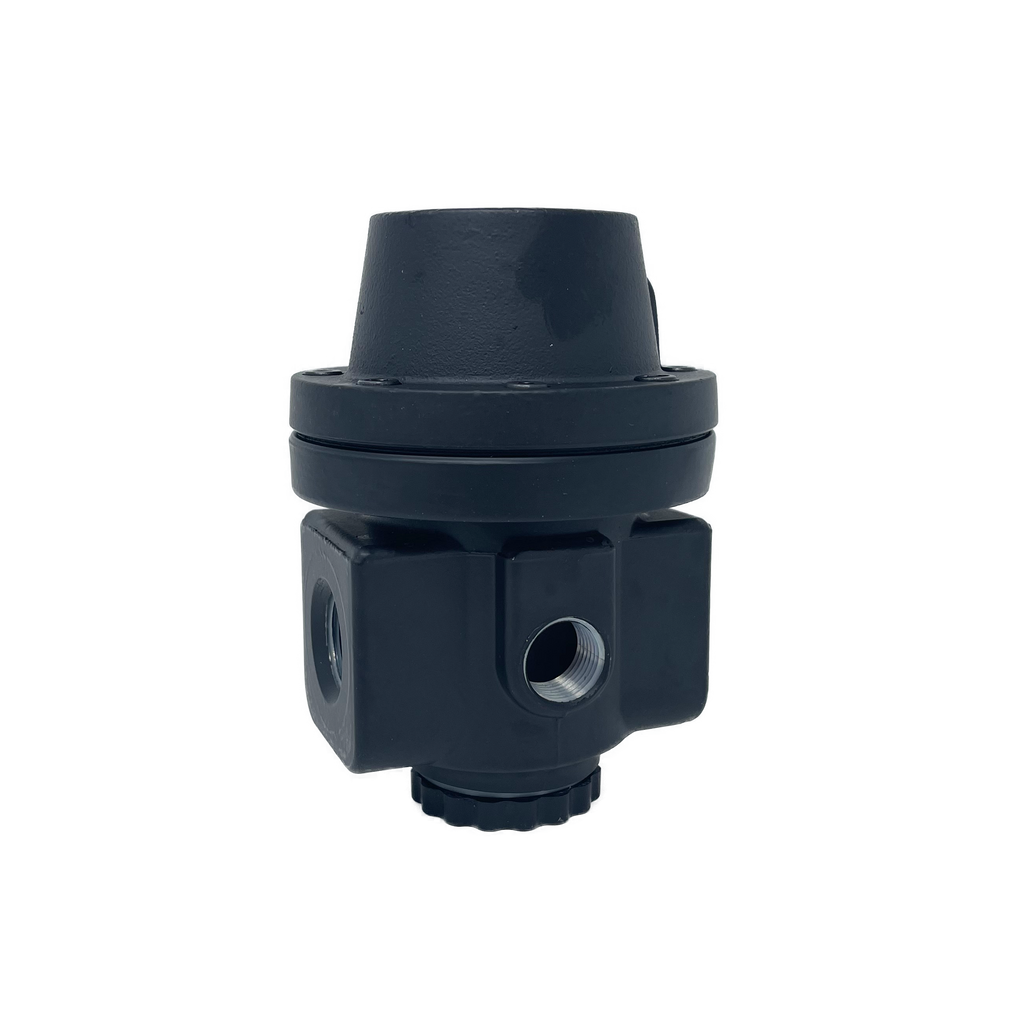

11-042-013 : Norgren 11-042 Series, pilot operated regulator, relieving, 1/2 NPT ports

NorgrenSKU: 11-042-013
25 Days

Price:
Sale price$1,186.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 25 Days
Factory Location Louisville, Kentucky
Service Manual Click here to download
Port Size 1/2" PTF
Pressure Rating 400
Operating Temp Range 0 to 175 F
Gauge Connection No Gauge
Body Material Zinc
Seal Material Nitrile rubber
Relief Option Relieving
Outlet Pressure Range 10 to 400psi
Bonnet Aluminum
Flow Scfm 120
Materials Of Construction Zinc Body, Aluminum Bonnet, Acetal Bottom Plug, Brass Valve, Nitrile Elastomers
Service Parts 4158-01 Service Kit Service Kit
Regulator Series 11-042
Regulator Type Pilot Operated
Country of Manufacture United Kingdom
Height 2.71
Length 5.07
Width 2.71
Weight 2.6

Description

Norgren's 11-042 and 11-008 Pilot Operated Regulators are designed for systems that require pressure regulation at an inaccessible location. A pilot regulator (ordered separately) controls the outlet pressure of the pilot operated regulator. Can be installed at any point in the compressed air system without regard to accessibility. Can be used with conventional or feedback pilot regulator. Feedback pilot regulator senses downstream pressure and automatically adjusts pilot operated regulator outlet pressure.

Product SKU Port Size & Type Flow SCFM Relief Option Gauge Option Outlet Pressure Range Lead Time Price
11-042-001 1/4" NPT 120 Relieving No Gauge 10 to 400psi 25 Days $2,042.99
11-042-002 3/8" NPT 120 Relieving No Gauge 10 to 400psi 25 Days $1,484.99
11-042-003 1/2" PTF 120 Relieving No Gauge 10 to 400psi 25 Days $1,141.99
11-042-007 3/4" PTF 300 Relieving No Gauge 10 to 400psi 5-7 Days $1,421.99
11-042-008 1" PTF 300 Relieving No Gauge 10 to 400psi 25 Days $1,421.99
11-042-009 1-1/4" PTF 300 Relieving No Gauge 10 to 400psi 25 Days $1,435.99
11-042-012 1-1/4" PTF 300 Relieving No Gauge 10 to 400psi 25 Days $2,659.99
11-042-013 1/2" PTF 120 Relieving No Gauge 10 to 400psi 25 Days $1,186.99
11-042-014 1" PTF 300 Relieving No Gauge 10 to 400psi 5-7 Days $1,487.99
