Product Details
Data Sheet | |
---|---|
Usually Ships Within | 25 Days |
Factory Location | Louisville, Kentucky |
Service Manual | Click here to download |
Port Size | 1" PTF |
Pressure Rating | 400 |
Operating Temp Range | 0 to 175 F |
Gauge Connection | No Gauge |
Body Material | Zinc |
Seal Material | Nitrile rubber |
Relief Option | Relieving |
Outlet Pressure Range | 10 to 400psi |
Bonnet | Aluminum |
Flow Scfm | 300 |
Materials Of Construction | Zinc Body, Aluminum Bonnet, Acetal Bottom Plug, Brass Valve, Nitrile Elastomers |
Service Parts | 4158-02 Service Kit Service Kit |
Regulator Series | 11-042 |
Regulator Type | Pilot Operated |
Country of Manufacture | United Kingdom |
Height | 3.65 |
Length | 5.97 |
Width | 3.65 |
Weight | 4.6 |
Description

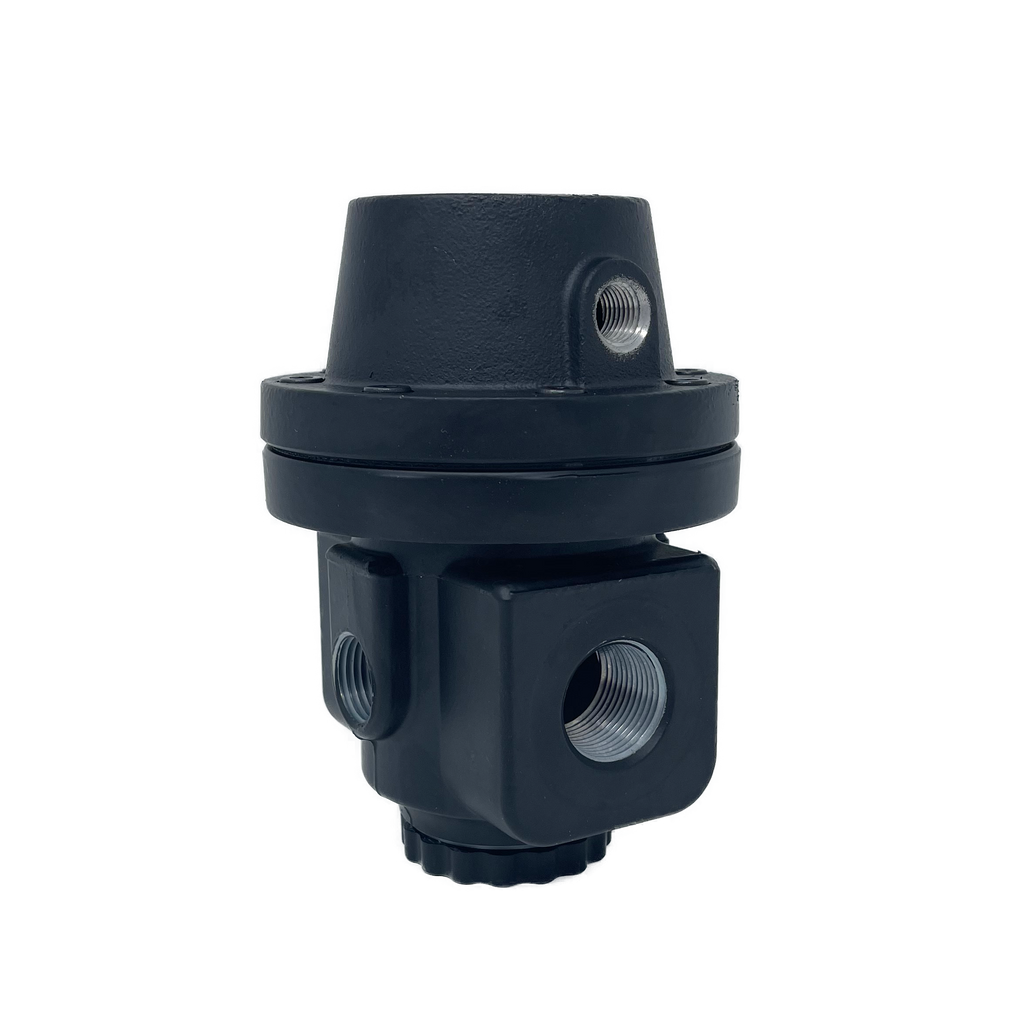

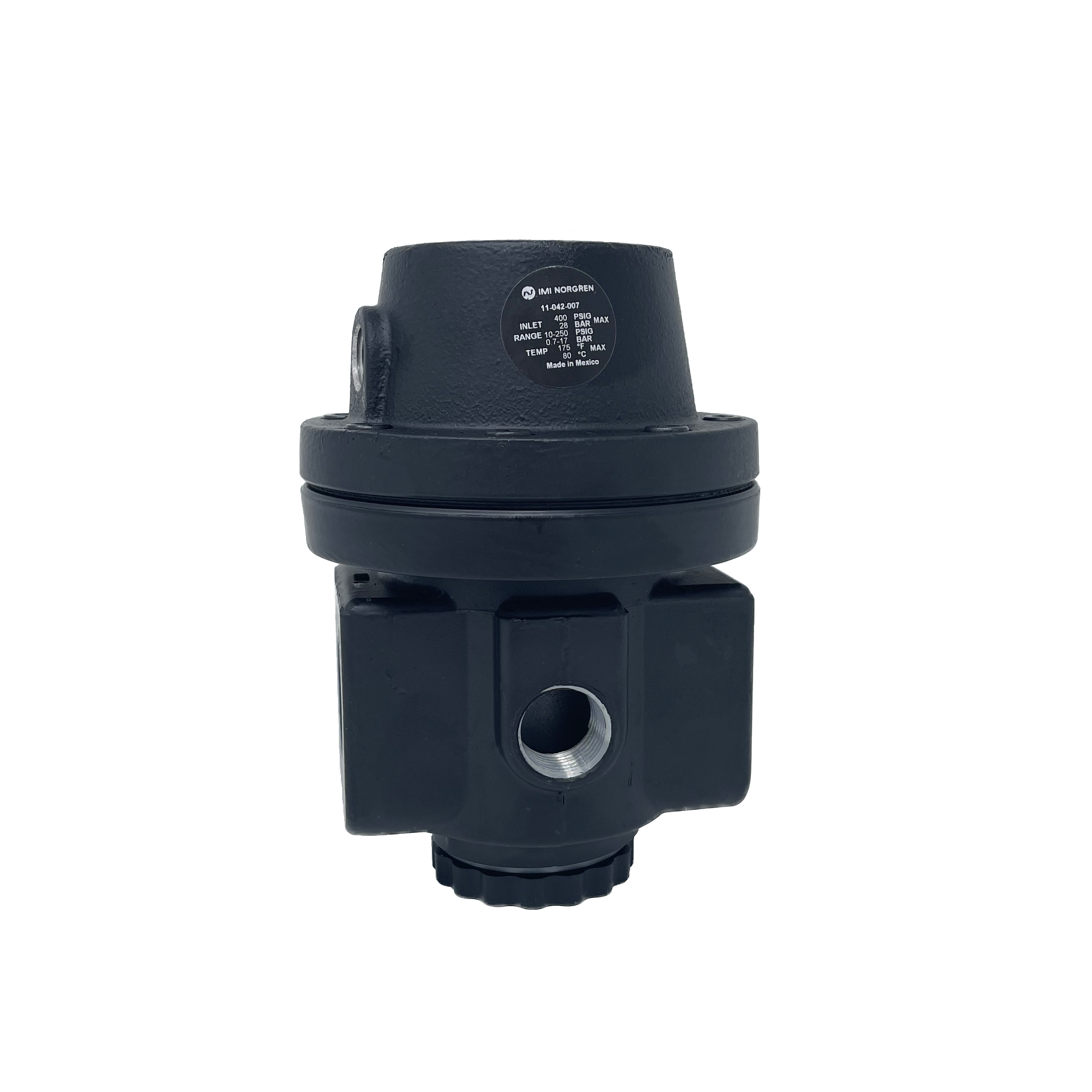

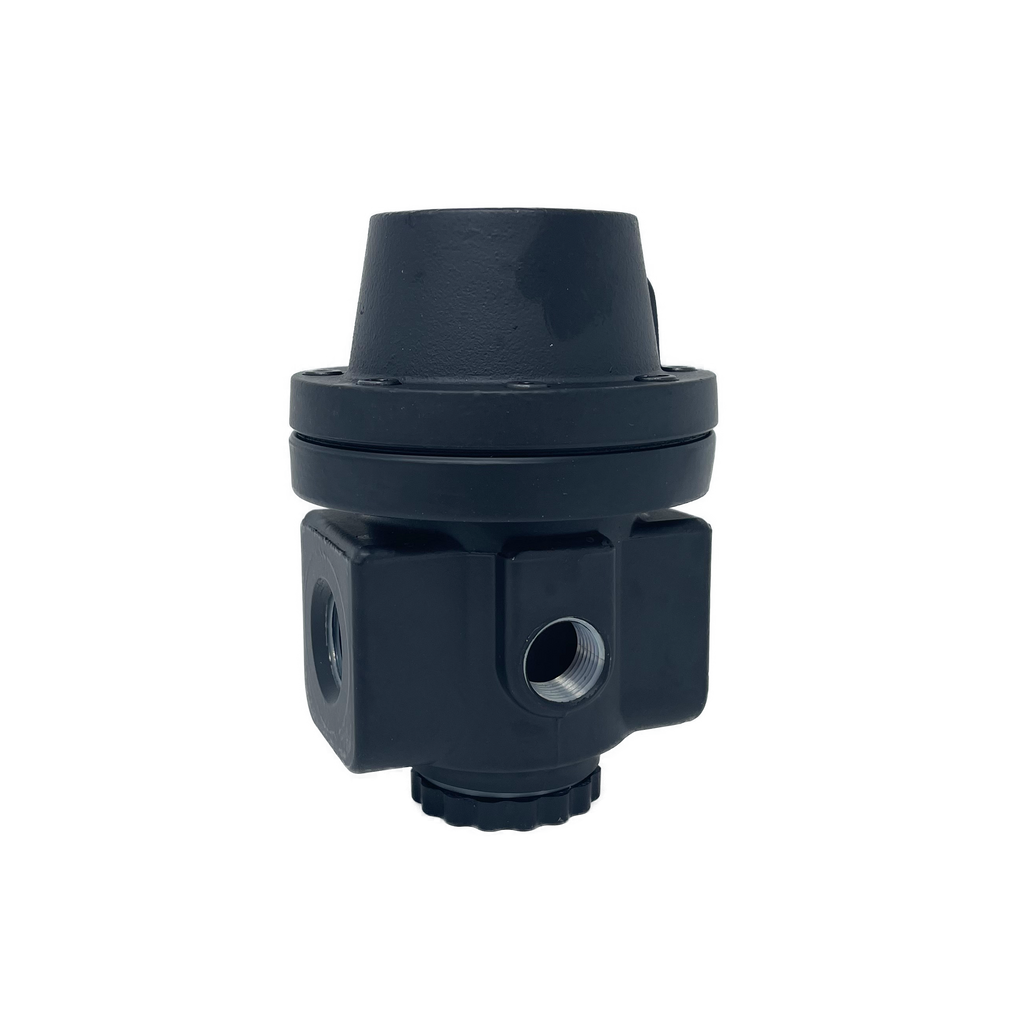

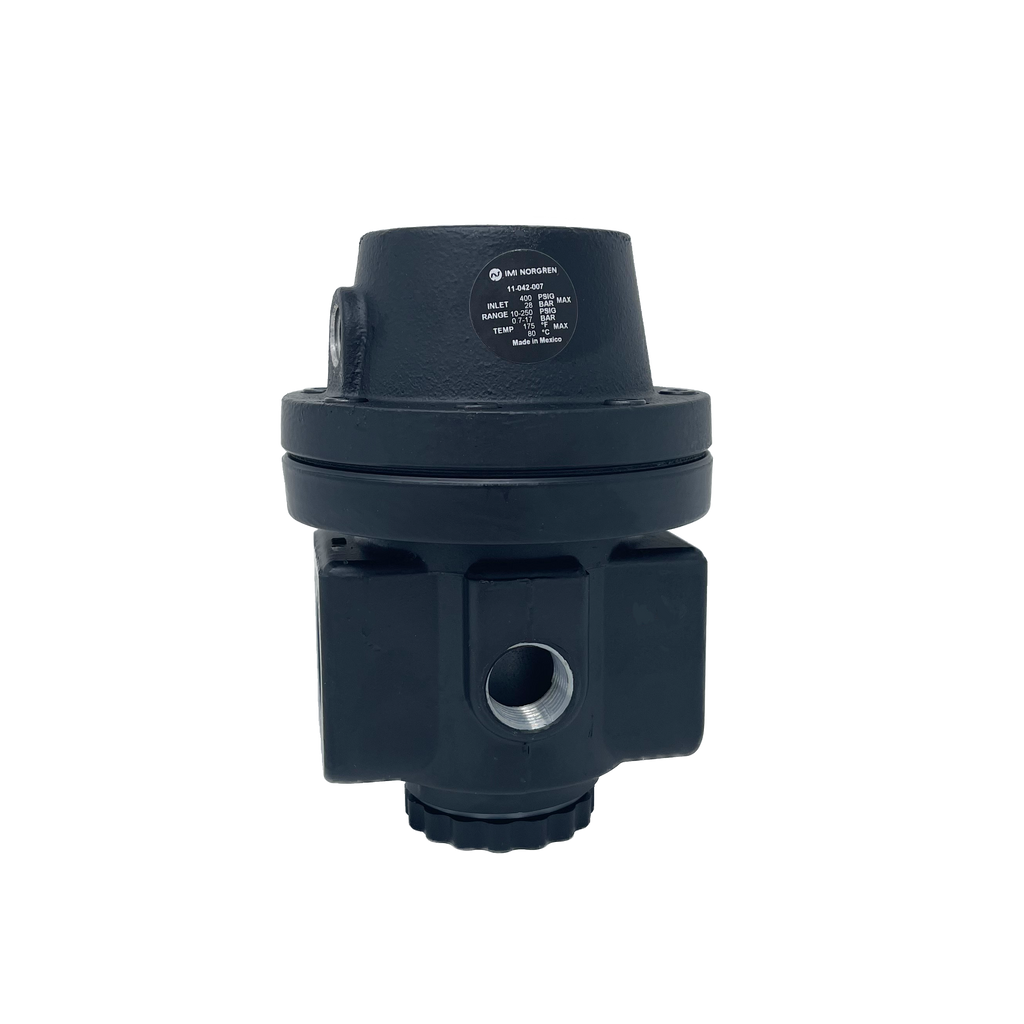

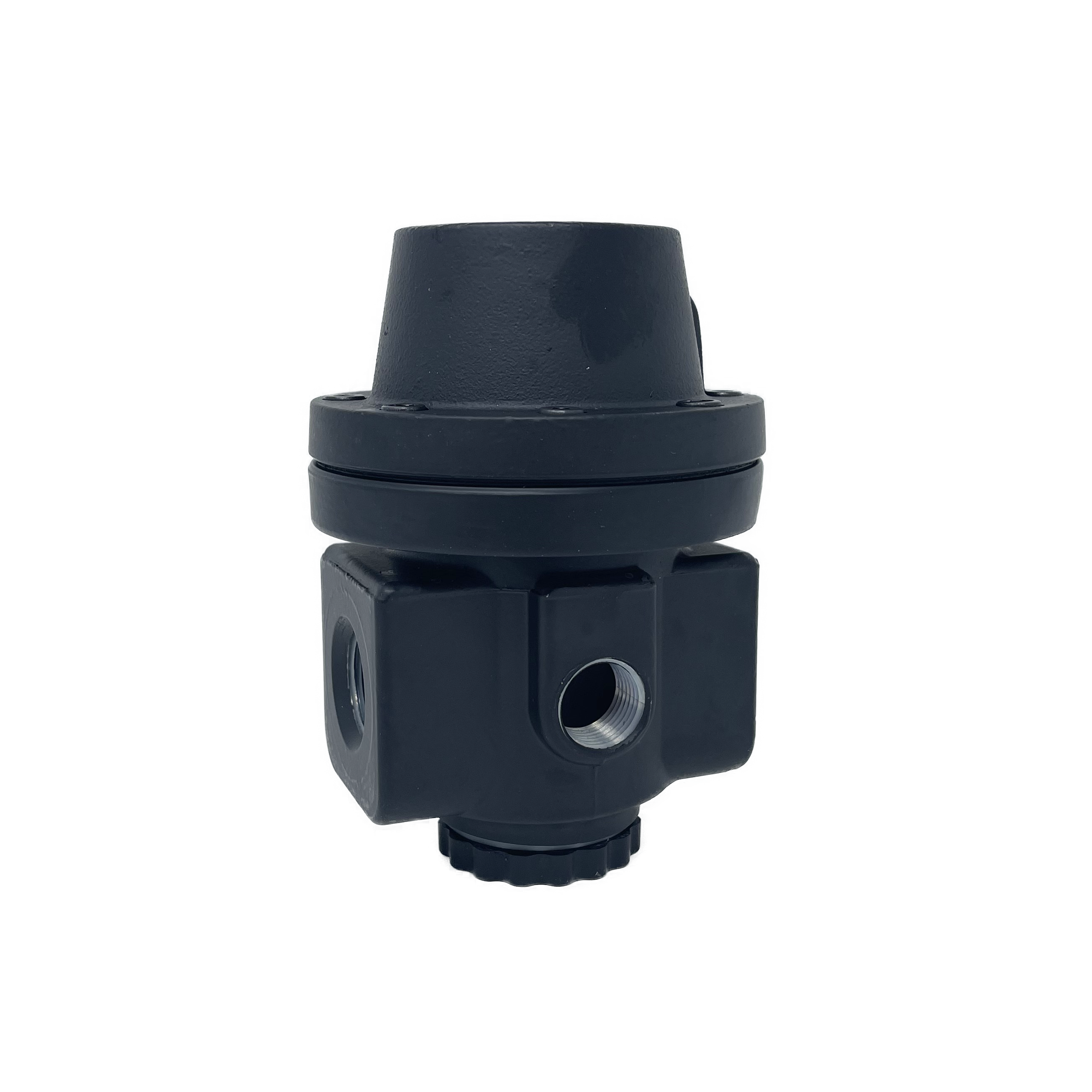

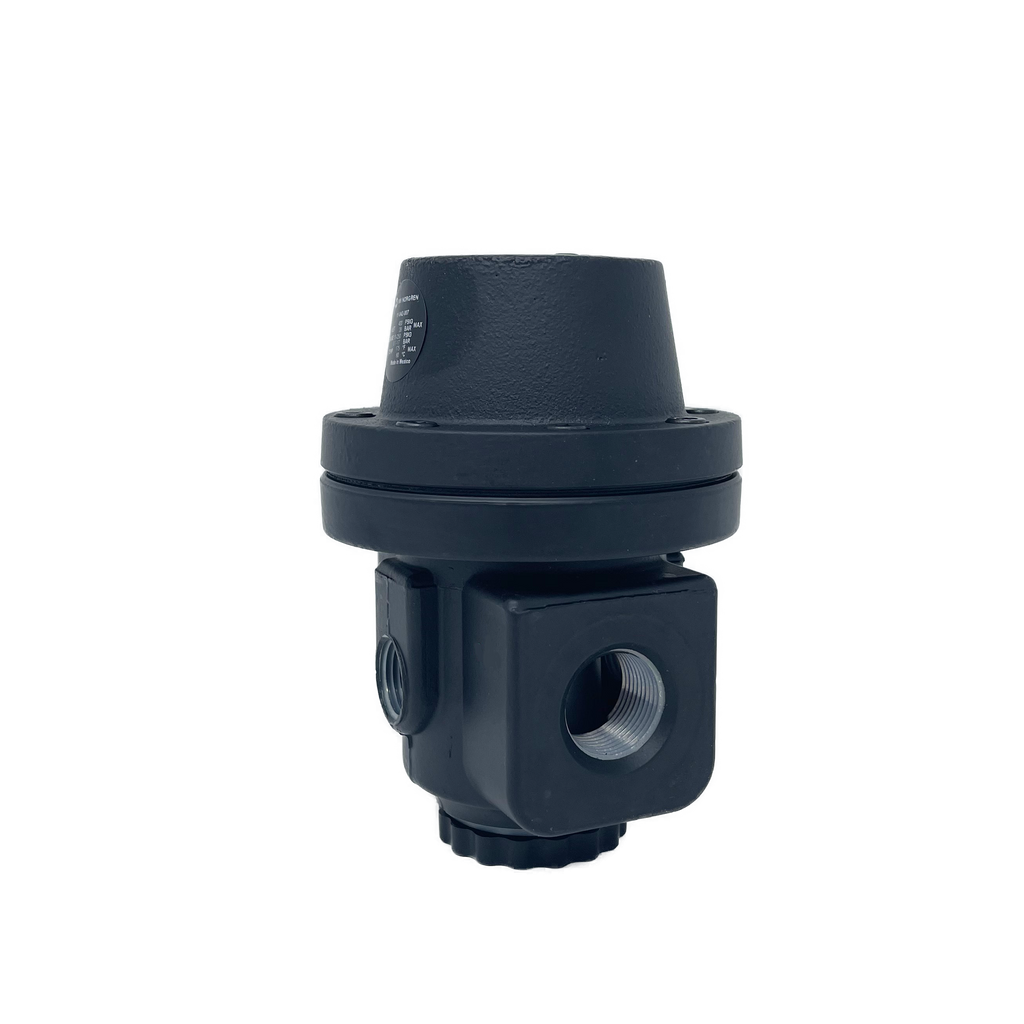

Norgren's 11-042 and 11-008 Pilot Operated Regulators are designed for systems that require pressure regulation at an inaccessible location. A pilot regulator (ordered separately) controls the outlet pressure of the pilot operated regulator. Can be installed at any point in the compressed air system without regard to accessibility. Can be used with conventional or feedback pilot regulator. Feedback pilot regulator senses downstream pressure and automatically adjusts pilot operated regulator outlet pressure.
Product SKU | Port Size & Type | Flow SCFM | Relief Option | Gauge Option | Outlet Pressure Range | Lead Time | Price |
---|---|---|---|---|---|---|---|
11-042-001 | 1/4" NPT | 120 | Relieving | No Gauge | 10 to 400psi | 25 Days | $2,042.99 |
11-042-002 | 3/8" NPT | 120 | Relieving | No Gauge | 10 to 400psi | 25 Days | $1,484.99 |
11-042-003 | 1/2" PTF | 120 | Relieving | No Gauge | 10 to 400psi | 25 Days | $1,141.99 |
11-042-007 | 3/4" PTF | 300 | Relieving | No Gauge | 10 to 400psi | 5-7 Days | $1,421.99 |
11-042-008 | 1" PTF | 300 | Relieving | No Gauge | 10 to 400psi | 25 Days | $1,421.99 |
11-042-009 | 1-1/4" PTF | 300 | Relieving | No Gauge | 10 to 400psi | 25 Days | $1,435.99 |
11-042-012 | 1-1/4" PTF | 300 | Relieving | No Gauge | 10 to 400psi | 25 Days | $2,659.99 |
11-042-013 | 1/2" PTF | 120 | Relieving | No Gauge | 10 to 400psi | 25 Days | $1,186.99 |
11-042-014 | 1" PTF | 300 | Relieving | No Gauge | 10 to 400psi | 5-7 Days | $1,487.99 |
