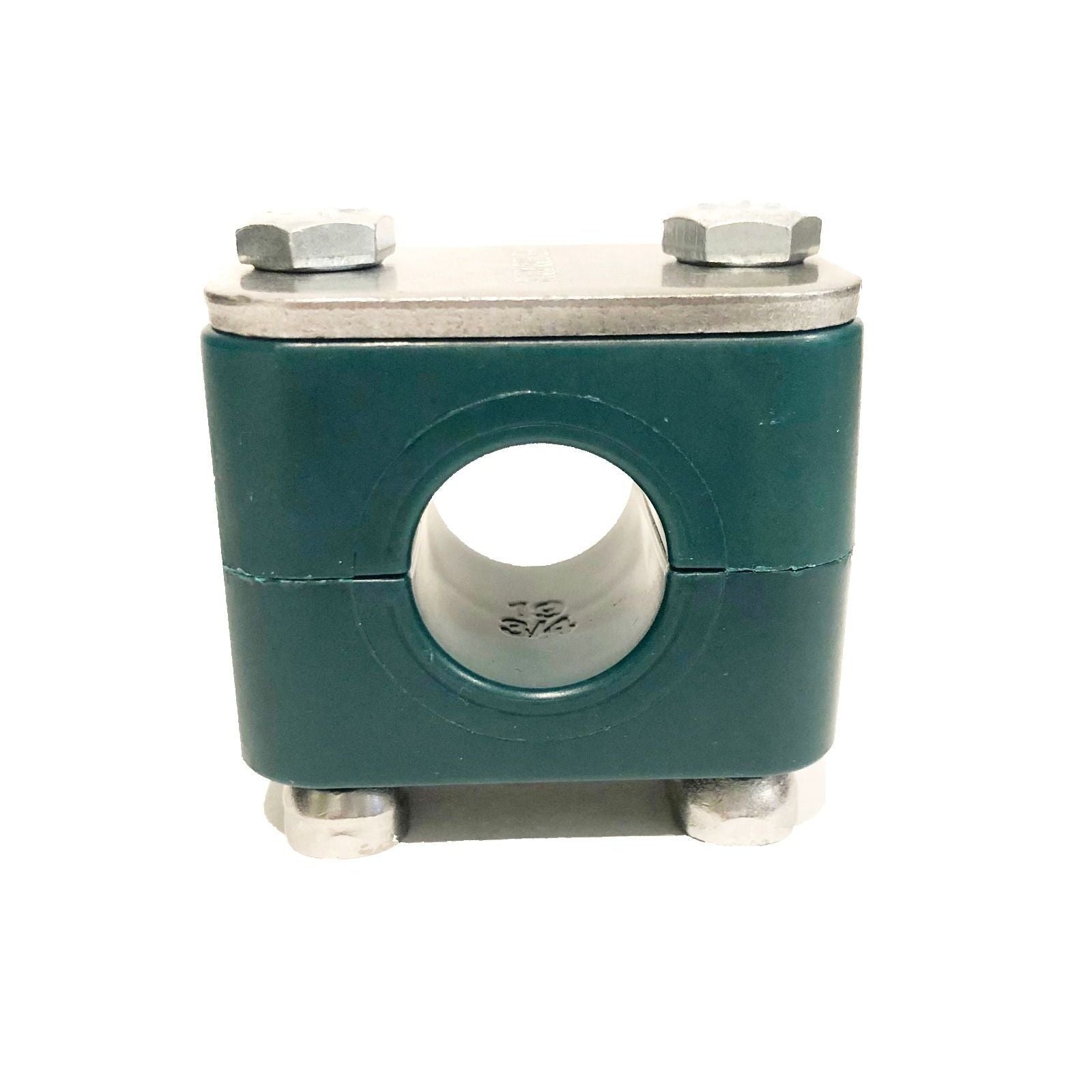

SM-213.5-PP-HDP-AS-U-W3 : Stauff Clamp, Rail Mount, 0.53" (13.5mm) OD, for 1/4" Pipe, Green PP Insert, Smooth Interior, Carbon Steel

StauffSKU: 6100114298
Same Day
12

Price:
Sale price$5.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within Same Day
Factory Location Waldwick, New Jersey
Nominal Pipe Size 1/4 inch Pipe
Outside Diameter 0.53" (13.5mm)
Hardware Material Carbon Steel
Clamp Style Standard Rail Mount
Clamp Type Pipe Clamp
Clamp Group Size Stauff Group 2 (DIN 2)
Country of Manufacture Germany
Height 1.3
Length 1.65
Width 1.18
Weight 0.5

Description

Globally, Stauff clamps represent quick and easy pipe and hose installations, as well as a clean system layout. The vibration and noise reducing features provide and important contribution to environmental protection. Pipe is typically called out by inner diameter size and tube is typically measured by outer diameter size, so be sure to verify the OD of your pipe or tube prior to ordering. The Outside Diameter is the the size of the hole in the insert that your clamp will come with. The Nominal pipe/tube size is the size of pipe or tube that will fit that particular clamp. If you're not sure which size you need, please give us a call and we will be happy to help.
Product SKU Clamp Type Outside Diameter Nominal Pipe Size Clamp Group Size Hardware Material Insert Texture Lead Time Price
6100093991 Pipe Clamp 0.394" (10mm) 1/8 inch Pipe Stauff Group 1A (DIN 1) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $5.99
SM-110A-PP-DP-AS-U-W5 Pipe Clamp 0.394" (10mm) 1/8 inch Pipe Stauff Group 1A (DIN 1) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $13.99
6100094001 Pipe Clamp 0.53" (13.5mm) 1/4 inch Pipe Stauff Group 2 (DIN 2) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $5.99
SM-213.5-PP-DP-AS-U-W5 Pipe Clamp 0.53" (13.5mm) 1/4 inch Pipe Stauff Group 2 (DIN 2) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $14.99
6100114298 Pipe Clamp 0.53" (13.5mm) 1/4 inch Pipe Stauff Group 2 (DIN 2) Carbon Steel Same Day $5.99
6100080819 Pipe Clamp 0.677" (17.2mm) 3/8 inch Pipe Stauff Group 2 (DIN 2) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $5.99
SM-217.2-PP-DP-AS-U-W5 Pipe Clamp 0.677" (17.2mm) 3/8 inch Pipe Stauff Group 2 (DIN 2) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $23.99
6100080867 Pipe Clamp 0.84" (21.3mm) 1/2 inch Pipe Stauff Group 3 (DIN 3) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $5.99
SM-321.3-PP-DP-AS-U-W5 Pipe Clamp 0.84" (21.3mm) 1/2 inch Pipe Stauff Group 3 (DIN 3) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $24.99
SM-321.3-PP-H-DP-AS-U-W3 Pipe Clamp 0.84" (21.3mm) 1/2 inch Pipe Stauff Group 3 (DIN 3) Carbon Steel 4-6 Weeks $5.99
6100080904 Pipe Clamp 1.06" (26.9mm) 3/4 inch Pipe Stauff Group 4 (DIN 4) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $5.99
SM-426.9-PP-DP-AS-U-W5 Pipe Clamp 1.06" (26.9mm) 3/4 inch Pipe Stauff Group 4 (DIN 4) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $26.99
6100062458 Pipe Clamp 1.327" (33.7mm) 1 inch Pipe Stauff Group 5 (DIN 5) Carbon Steel Profiled Interior with Tension Clearance Same Day $5.99
6100080976 Pipe Clamp 1.65" (42mm) 1.25 inch Pipe Stauff Group 5 (DIN 5) Carbon Steel Profiled Interior with Tension Clearance Same Day $5.99
6100080992 Pipe Clamp 1.9" (48.3mm) 1.5 inch Pipe Stauff Group 6 (DIN 6) Carbon Steel Profiled Interior with Tension Clearance Same Day $7.99
SM-648.3-PP-DP-AS-U-W5 Pipe Clamp 1.9" (48.3mm) 1.5 inch Pipe Stauff Group 6 (DIN 6) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $34.99
6100081015 Pipe Clamp 2.37" (60.3mm) 2 inch Pipe Stauff Group 7 (DIN 7) Carbon Steel Profiled Interior with Tension Clearance Same Day $12.99
SM-760.3-PP-DP-AS-U-W5 Pipe Clamp 2.37" (60.3mm) 2 inch Pipe Stauff Group 7 (DIN 7) 316 Stainless Steel Profiled Interior with Tension Clearance Same Day $37.99
6100081022 Pipe Clamp 2.874" (73mm) 2.5 inch Pipe Stauff Group 7 (DIN 7) Carbon Steel Profiled Interior with Tension Clearance Same Day $12.99
SM-773-PP-DP-AS-U-W5 Pipe Clamp 2.874" (73mm) 2.5 inch Pipe Stauff Group 7 (DIN 7) 316 Stainless Steel Profiled Interior with Tension Clearance Same Day $57.99
6100081032 Pipe Clamp 3.5" (88.9mm) 3 inch Pipe Stauff Group 8 (DIN 8) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $18.99
SM-888.9-PP-DP-AS-U-W5 Pipe Clamp 3.5" (88.9mm) 3 inch Pipe Stauff Group 8 (DIN 8) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $51.99
