Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | Same Day |
| Factory Stock | 14 |
| Factory Location | Louisville, Kentucky |
| Solid Model | |
| Service Manual | Click here to download |
| Port Size | 1/8" NPT |
| Pressure Rating | 400 |
| Operating Temp Range | 35 to 150 F |
| Gauge Connection | No Gauge |
| Body Material | Aluminum |
| Seal Material | Nitrile rubber |
| Relief Option | Relieving |
| Outlet Pressure Range | 5 to 100psi |
| Bonnet | Plastic |
| Flow Scfm | 12 |
| Materials Of Construction | Aluminum Body, Acetal Resin Bonnet, Brass and Nitrile Valve, Acetal Resin Valve Seat, Nitrile Elastomers |
| Service Parts | 3407-18 Relieving Service Kit, 3407-17 Non-Relieving Service Kit |
| Regulator Series | R06 |
| Regulator Type | Dual Water/Air |
| Country of Manufacture | United Kingdom |
| Height | 2.75 |
| Length | 3.41 |
| Width | 1.57 |
| Weight | 0.2 |
Description

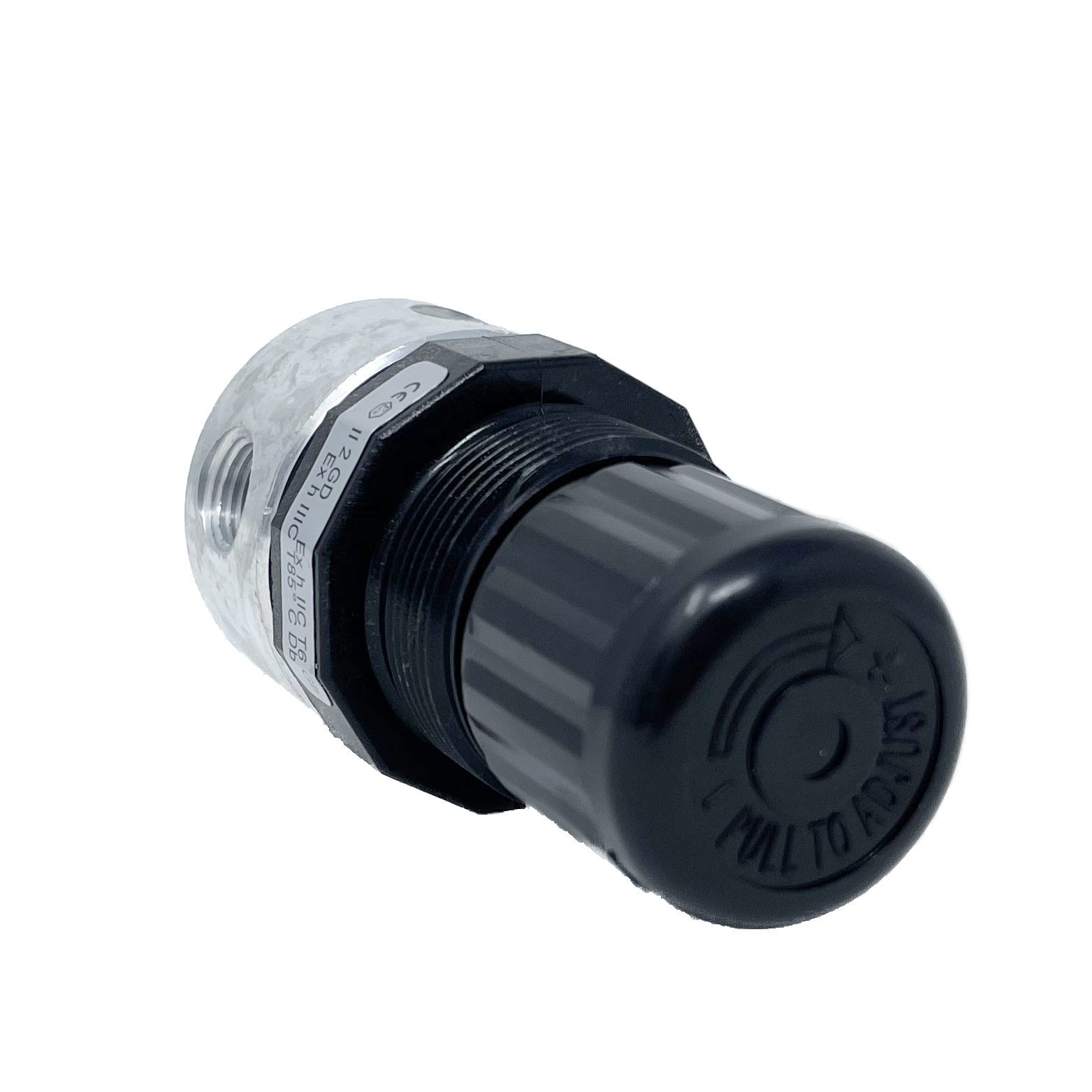

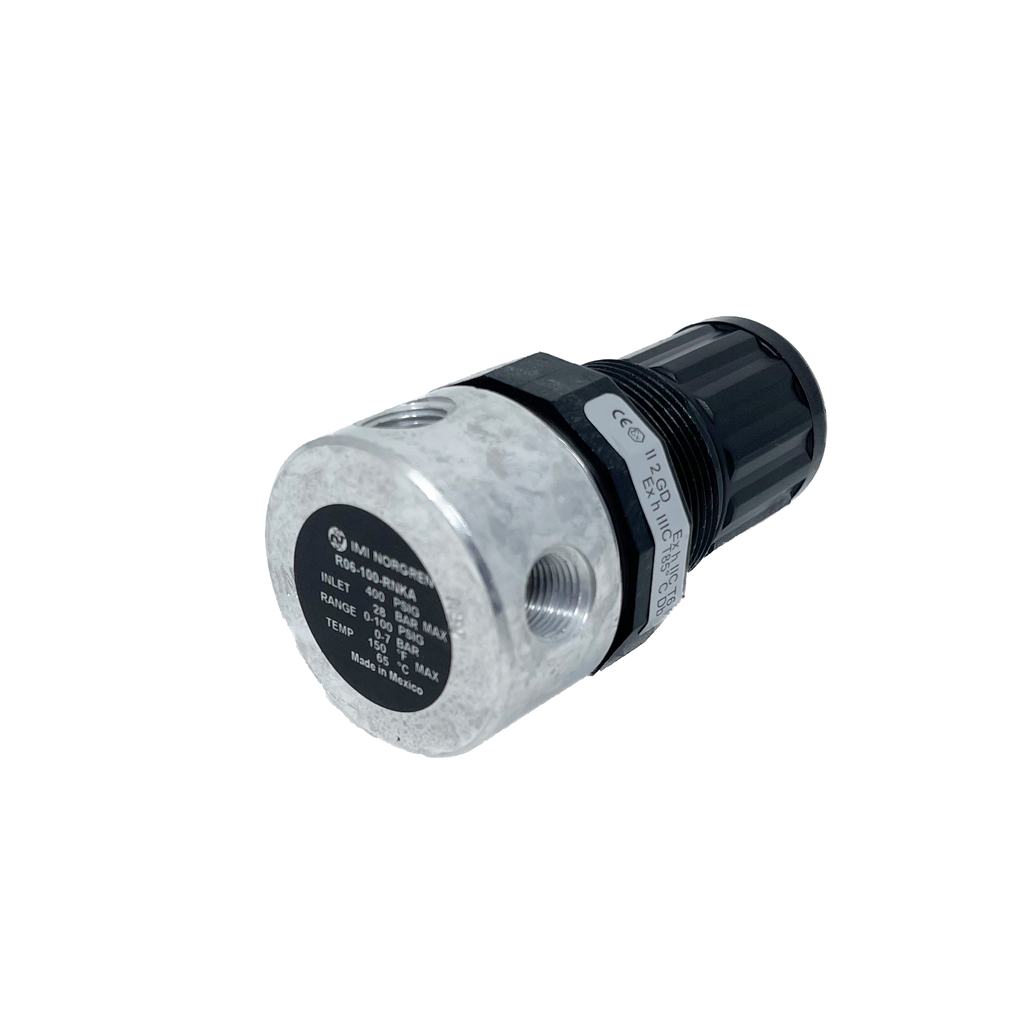

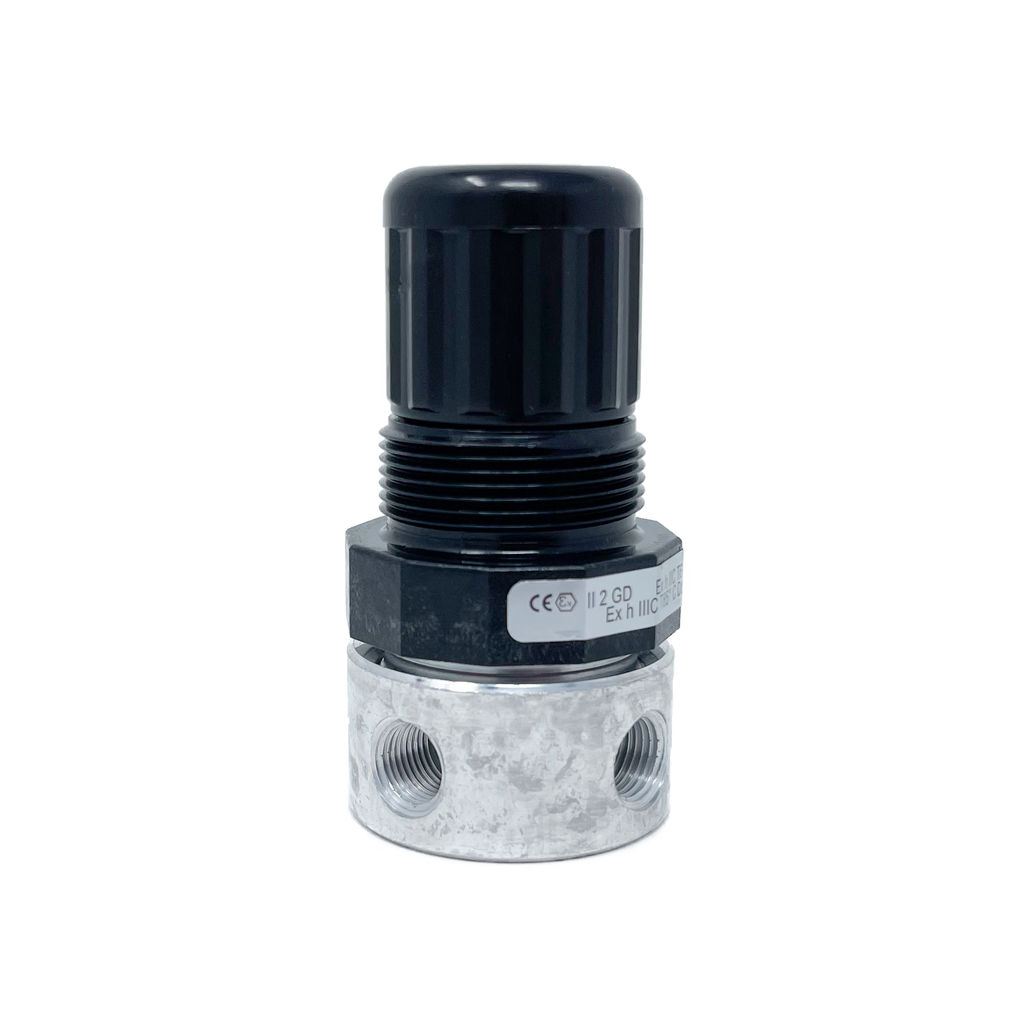

Norgren's R06 Miniature Brass Water/Air Regular is available for use with either media, with a compact design and corrosion resistant construction. Brass body with choice of plastic bonnet, or brass bonnet or optional brass bonnet available with adjusting screw. Brass bonnet equipped with pressure adjusting screw. Non-relieving models for water and air service. Not designed for use with deionized or potable water. For industrial applications only.
| Product SKU | Port Size & Type | Flow SCFM | Relief Option | Gauge Option | Outlet Pressure Range | Lead Time | Price |
|---|---|---|---|---|---|---|---|
| R06-100-RNKA | 1/8" NPT | 12 | Relieving | No Gauge | 5 to 100psi | Same Day | $52.99 |
| R06-121-NNKA | 1/8" NPT | 12 | Non-Relieving | No Gauge | 5 to 100psi | Same Day | $62.99 |
| R06-121-NNLA | 1/8" NPT | 12 | Non-Relieving | No Gauge | 5 to 125psi | 25 Days | $62.99 |
| R06-122-NNKA | 1/8" NPT | 12 | Non-Relieving | No Gauge | 5 to 100psi | 5-7 Days | $70.99 |
| R06-200-RGKA | 1/4" NPT | 12 | Relieving | With Gauge | 5 to 100psi | 5-7 Days | $112.99 |
| R06-200-RNKA | 1/4" NPT | 12 | Relieving | No Gauge | 5 to 100psi | 5-7 Days | $87.99 |
| R06-221-NGEA | 1/4" NPT | 12 | Non-Relieving | With Gauge | 5 to 50psi | 5-7 Days | $85.99 |
| R06-221-NGKA | 1/4" NPT | 12 | Non-Relieving | With Gauge | 5 to 100psi | 5-7 Days | $85.99 |
| R06-221-NNEA | 1/4" NPT | 12 | Non-Relieving | No Gauge | 5 to 50psi | 5-7 Days | $56.99 |
| R06-221-NNKA | 1/4" NPT | 12 | Non-Relieving | No Gauge | 5 to 100psi | 5-7 Days | $56.99 |
| R06-221-RNKA | 1/4" NPT | 12 | Reliving | No Gauge | 5 to 100psi | Same Day | $56.99 |
| R06-222-NNKA | 1/4" NPT | 12 | Non-Relieving | No Gauge | 5 to 100psi | 25 Days | $64.99 |
