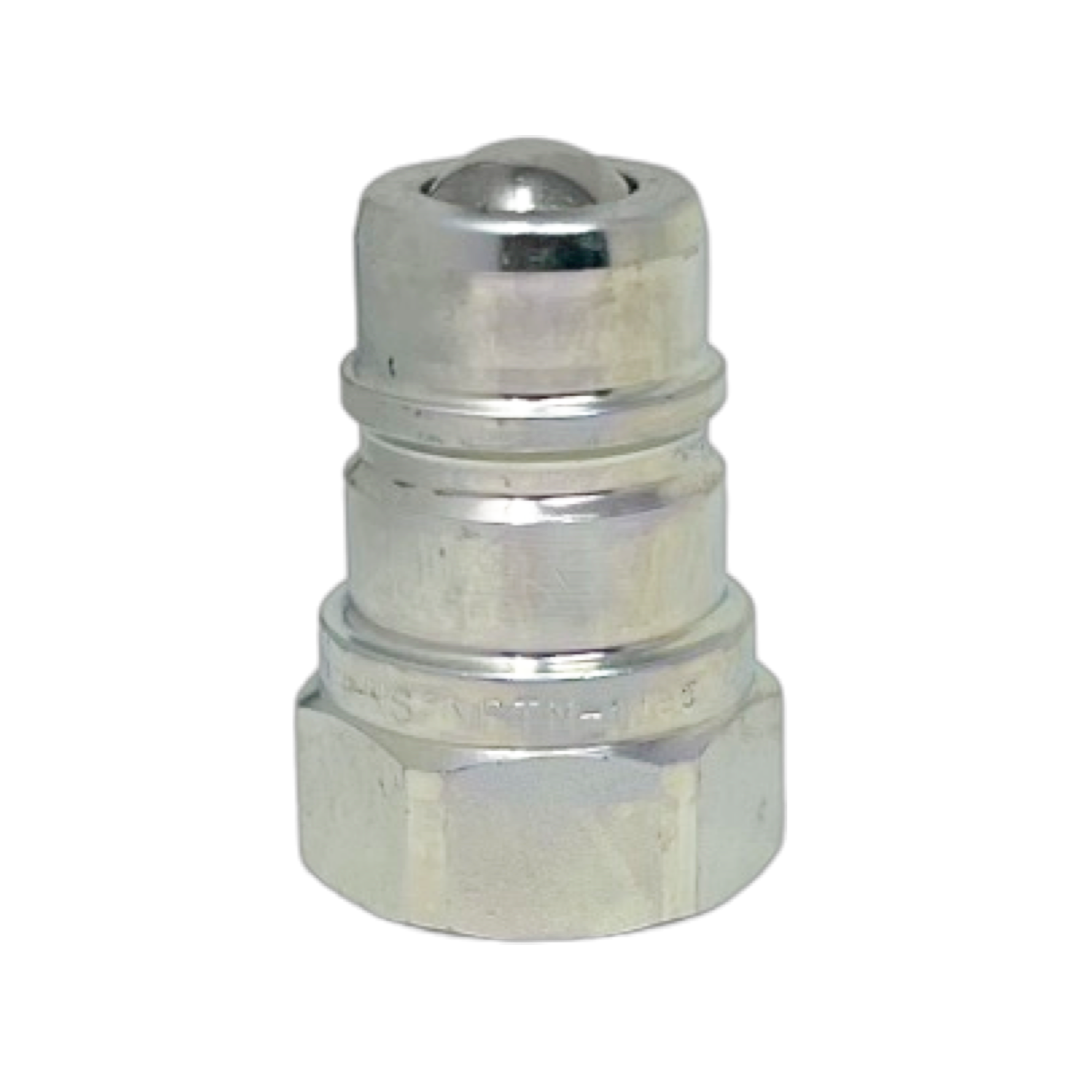

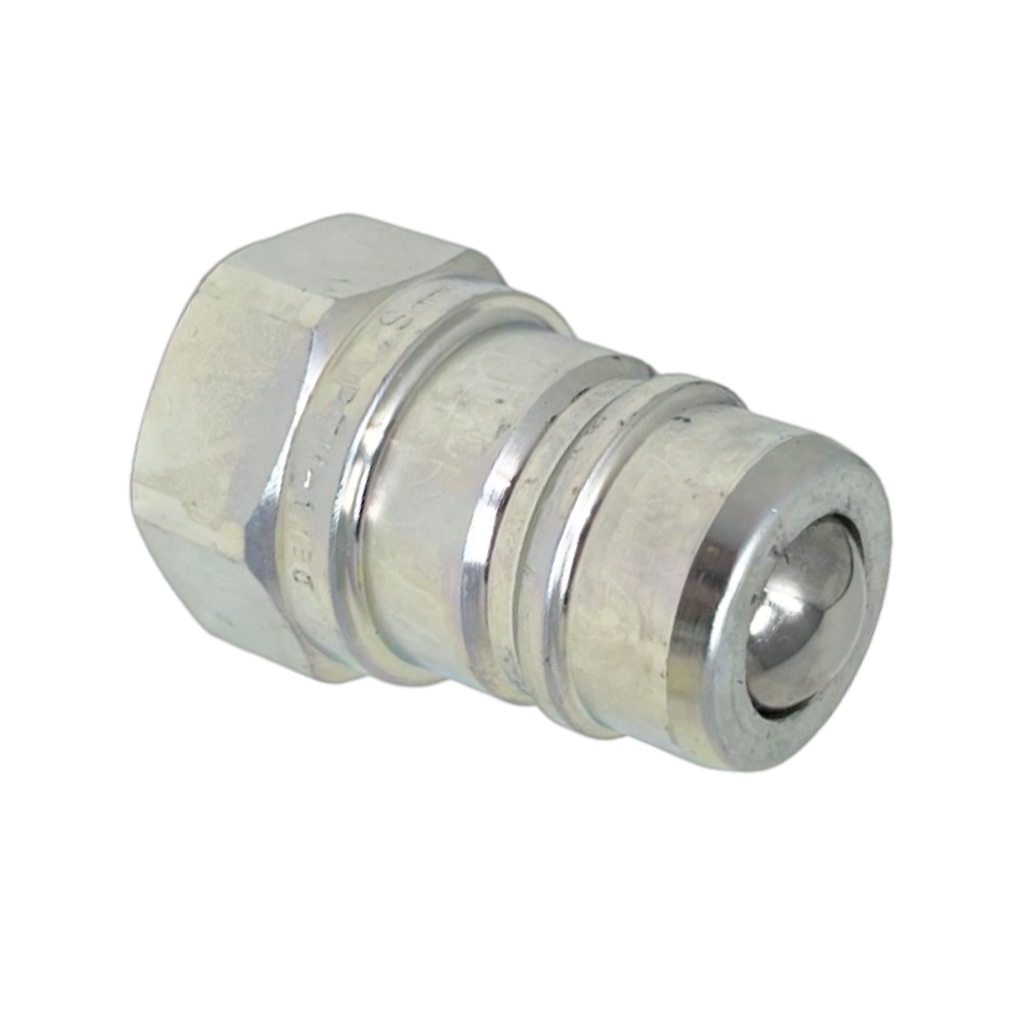

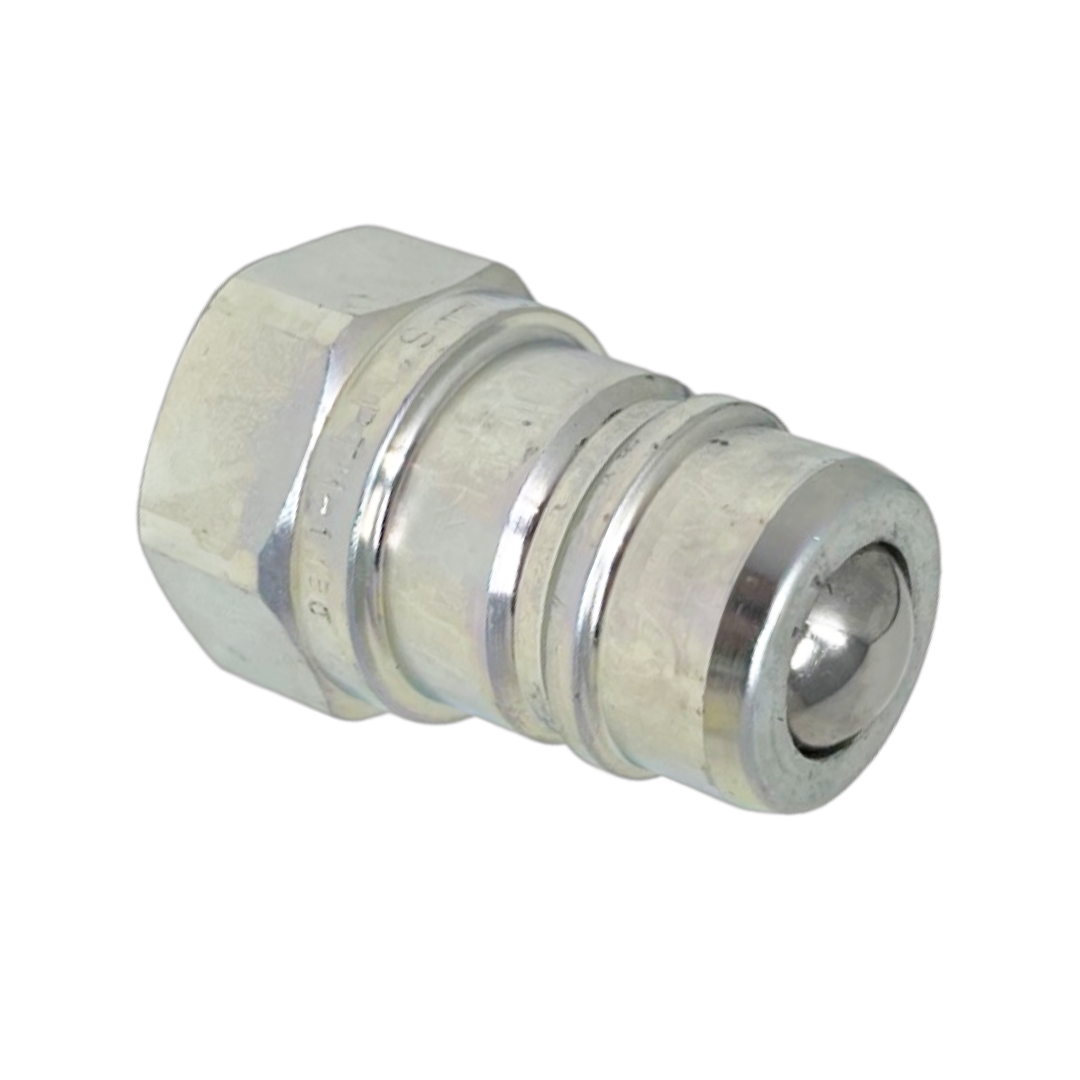

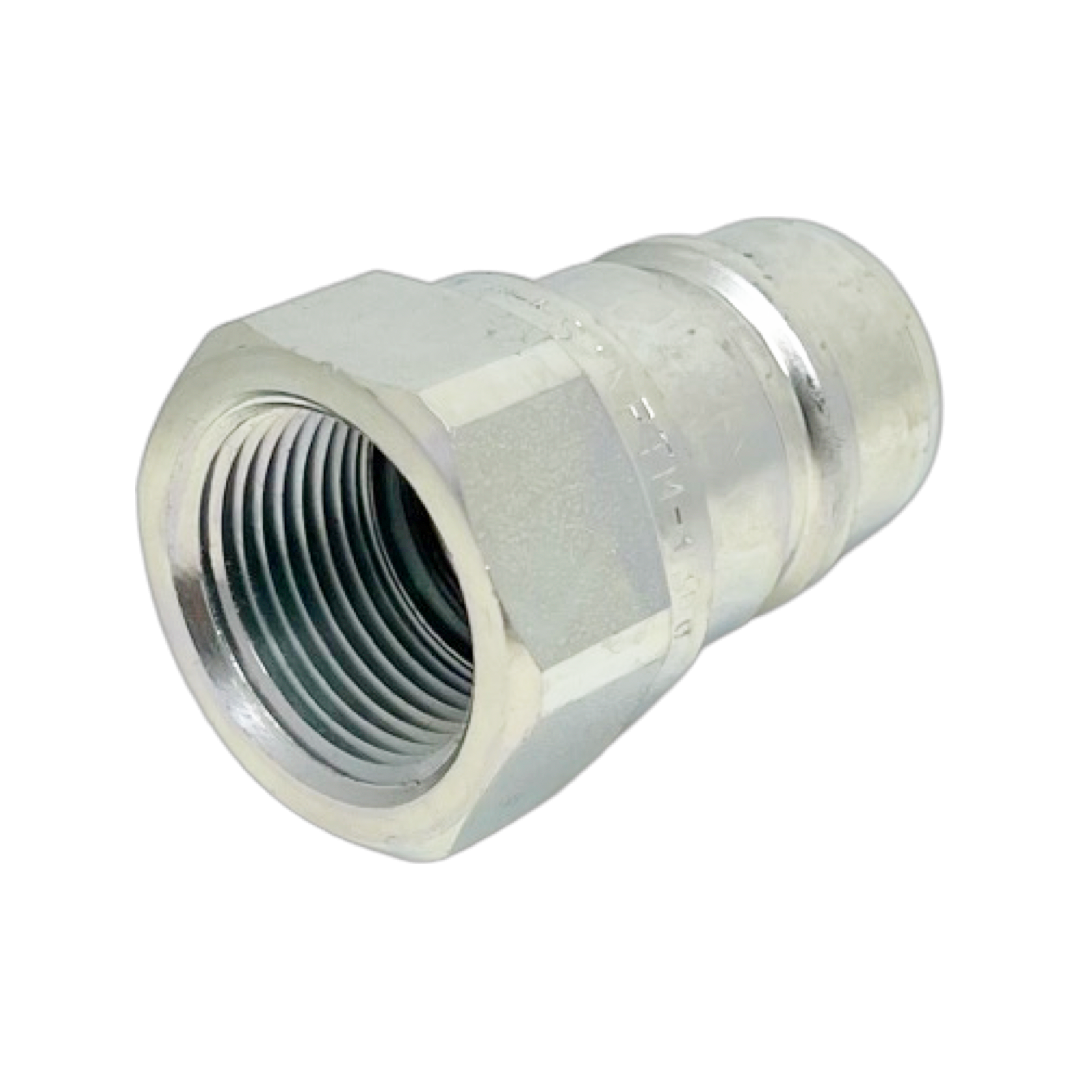

NS 1 NPT M : Faster Quick Disconnect, Male 1" Coupler, 1" NPT Connection, 3190psi MAWP, 36.98 GPM, Sleeve Retraction Style, Connection Under Pressure Not Allowed
NS 1 NPT M : Faster Quick Disconnect, Male 1" Coupler, 1" NPT Connection, 3190psi MAWP, 36.98 GPM, Sleeve Retraction Style, Connection Under Pressure Not Allowed
NS 1 NPT M : Faster Quick Disconnect, Male 1" Coupler, 1" NPT Connection, 3190psi MAWP, 36.98 GPM, Sleeve Retraction Style, Connection Under Pressure Not Allowed
NS 1 NPT M : Faster Quick Disconnect, Male 1" Coupler, 1" NPT Connection, 3190psi MAWP, 36.98 GPM, Sleeve Retraction Style, Connection Under Pressure Not Allowed
Roll over image to zoom in Click on image to zoom
NS 1 NPT M : Faster Quick Disconnect, Male 1" Coupler, 1" NPT Connection, 3190psi MAWP, 36.98 GPM, Sleeve Retraction Style, Connection Under Pressure Not AllowedNS 1 NPT M : Faster Quick Disconnect, Male 1" Coupler, 1" NPT Connection, 3190psi MAWP, 36.98 GPM, Sleeve Retraction Style, Connection Under Pressure Not AllowedNS 1 NPT M : Faster Quick Disconnect, Male 1" Coupler, 1" NPT Connection, 3190psi MAWP, 36.98 GPM, Sleeve Retraction Style, Connection Under Pressure Not AllowedNS 1 NPT M : Faster Quick Disconnect, Male 1" Coupler, 1" NPT Connection, 3190psi MAWP, 36.98 GPM, Sleeve Retraction Style, Connection Under Pressure Not Allowed

NS 1 NPT M : Faster Quick Disconnect, Male 1" Coupler, 1" NPT Connection, 3190psi MAWP, 36.98 GPM, Sleeve Retraction Style, Connection Under Pressure Not Allowed

FasterSKU: NS 1 NPT M
Same Day
2
Price:
$29.99

Product Details

Data Sheet Click here to download
Usually Ships Within Same Day
Factory Location Maumee, Ohio
Port Size 1" NPT
Type Sleeve Retraction
End Connections Connect Under Pressure Not Allowed
Pressure Rating 3190
Series Series: NS
Operating Force 32 lb
Country of Manufacture Country of Manufacture: Italy
Height 1.77
Length 2.48
Width 1.77
Weight 0.48

Description

Standard couplings for general purpose applications with ball valve shut-off system. Faster proprietary profile ( 1/2" size only is interchangeable according to ISO 7241 part A).
