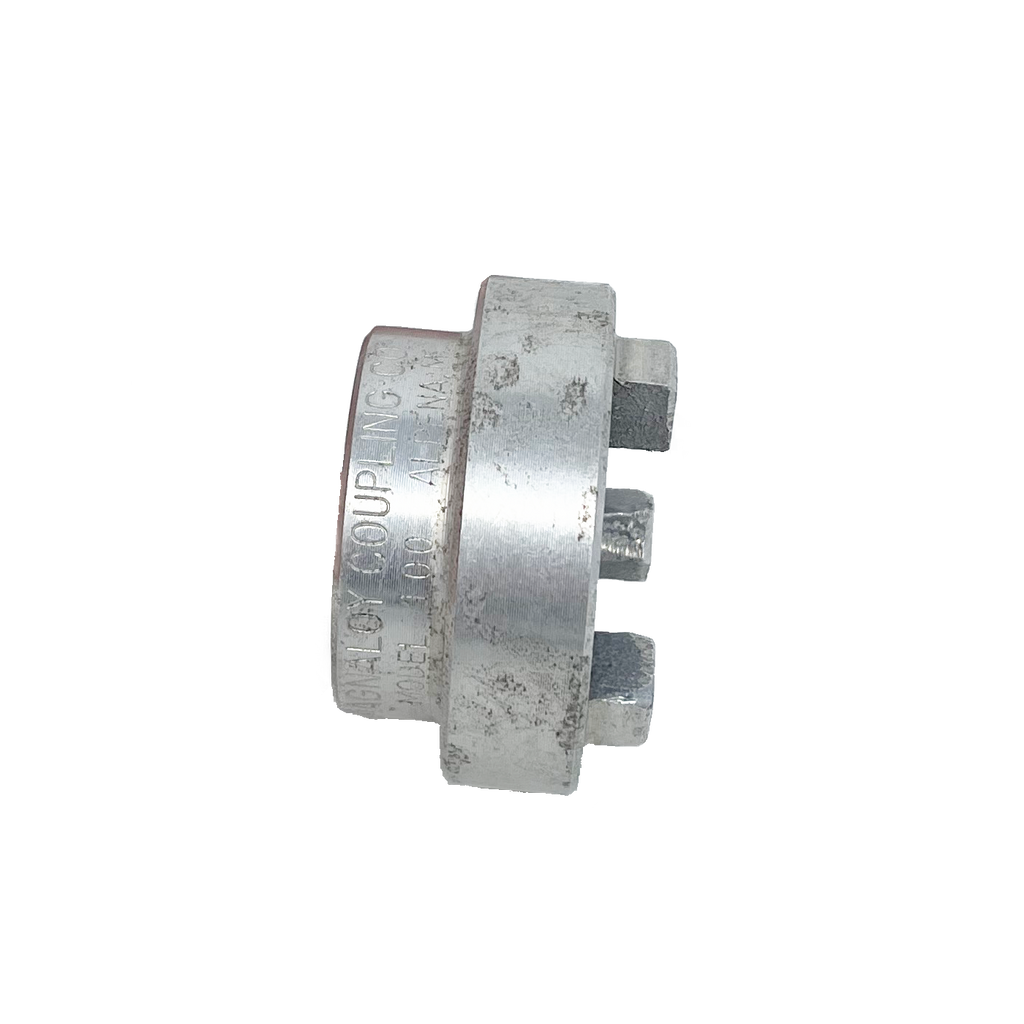

700 27T 16/32 : Magnaloy 700 HUB 27 TOOTH 16/32 SPLINE, M700A2716

Save $32.01
MagnaloySKU: M700A2716
1-3 Days

Price:
Sale price$182.99 Regular price$215.00

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Alpena, Michigan
Material Magnesium
Bore Size 27T 16/32
Country of Manufacture United States
Height 6.9
Length 3.4
Width 6.9
Weight 12

Description

Magnaloy is the original lightweight, heavy-duty flexible drive coupling. Light weight magnesium construction makes Magnaloy couplings 76 percent lighter than cast iron and 36 percent lighter than aluminum units... and theyÕre stronger than either. The benefits are many... Reduced loads on bearings, shafts and pumps, for longer component life. Easier handling and installation. Rust proof and corrosion resistant. Magnaloys close machining tolerances (TIR of .002Ó) assures vibration-free operation and easy, accurate alignment without need for special tools. Solid magnesium alloy permanent mold castings are heat treated and offer the highest strength-to-weight ratio available. The Premium Line of Magnaloy Couplings comes standard with a single set-screw over the keyway. Optional Double Set-Screws are available at either 45 degree or 90 degree to the keyway. Double set-screws help improve shaft gripping forces by increasing the hoop-stresses generated from tightening a single set-screw. Double set-screws at 45 degrees will produce greater forces than double set-screws at 90 degrees. Either are available upon request by specifying DSS45 or DSS90 following the hub part number, for example M30011210DSS45. Magnaloys Clamp feature is also availble with bored and keyed hubs, specify C following the hub part number, for example M30011210C.

Product SKU Model Coupling Series Coupling Type Bore Size Lead Time Price
M700B1316C 700 13T 16/32 : Magnaloy 700 HUB 13-TOOTH 16/32 STL BUSH W/CLAMP 700 Splined 13T 16/32 1-3 Days $464.99
M700B1308C 700 13T 8/16 : Magnaloy 700 HUB 13-TOOTH 8/16 W/STEEL BUSHING & CLAMP 700 Splined 13T 8/16 1-3 Days $310.99
M700A1308C 700 13T 8/16 : Magnaloy 700 HUB 13-TOOTH 8/16 SPLINE W/CLAMP 700 Splined 13T 8/16 1-3 Days $221.99
M700A1308 700 13T 8/16 : Magnaloy 700 HUB 13-TOOTH 8/16 SPLINE 700 Splined 13T 8/16 1-3 Days $182.99
M700B1308CDSS 700 13T 8/16 : Magnaloy 700 HUB 13-TOOTH 8/16 STL BUSH W/CLAMP & DBL SET SCREW 700 Splined 13T 8/16 7-10 Days $316.99
M700B1308 700 13T 8/16 : Magnaloy 700 HUB 13-TOOTH 8/16 STLBUSH 700 Splined 13T 8/16 1-3 Days $260.99
M700B1412C 700 14T 12/24 : Magnaloy 700 HUB 14-TOOTH 12/24 W/STEEL BUSHING & CLAMP 700 Splined 14T 12/24 1-3 Days $310.99
M700A1412C 700 14T 12/24 : Magnaloy 700 HUB 14-TOOTH 12/24 SPLINE W/CLAMP 700 Splined 14T 12/24 1-3 Days $221.99
M700A1412 700 14T 12/24 : Magnaloy 700 HUB 14-TOOTH 12/24 SPLINE 700 Splined 14T 12/24 1-3 Days $182.99
M700B1412 700 14T 12/24 : Magnaloy 700 HUB 14-TOOTH 12/24 STLBUSH 700 Splined 14T 12/24 1-3 Days $260.99
M700A1508C 700 15T 8/16 : Magnaloy 700 HUB 15-TOOTH 8/16 SPLINE W/CLAMP 700 Splined 15T 8/16 1-3 Days $221.99
M700A1508 700 15T 8/16 : Magnaloy 700 HUB 15-TOOTH 8/16 SPLINE 700 Splined 15T 8/16 1-3 Days $182.99
M700B1712C 700 17T 12/24 : Magnaloy 700 HUB 17-TOOTH 12/24 STL BUSH W/CLAMP 700 Splined 17T 12/24 1-3 Days $310.99
M700B1712 700 17T 12/24 : Magnaloy 700 HUB 17-TOOTH 12/24 STL BUSH 700 Splined 17T 12/24 1-3 Days $260.99
M700A1712 700 17T 12/24 : Magnaloy 700 HUB 17-TOOTH 12/24 SPLINE 700 Splined 17T 12/24 1-3 Days $182.99
M700A1712C 700 17T 12/24 : Magnaloy 700 HUB 17-TOOTH 12/24SP W/CLAMP 700 Splined 17T 12/24 1-3 Days $221.99
M700B2116 700 21T 16/32 : Magnaloy 700 HUB 21-TOOTH 16/32 STL BUSH 700 Splined 21T 16/32 1-3 Days $483.99
M700A2116C 700 21T 16/32 : Magnaloy 700 HUB 21-TOOTH 16/32 SP W/CLMP 700 Splined 21T 16/32 1-3 Days $362.99
M700B2116C 700 21T 16/32 : Magnaloy 700 HUB 21-TOOTH 16/32 STL BUSH/CLAMP 700 Splined 21T 16/32 1-3 Days $536.99
M700B2316C 700 23T 16/32 : Magnaloy 700 HUB 23-TOOTH 16/32 STL BUSH W/CLAMP 700 Splined 23T 16/32 1-3 Days $310.99
M700B2316 700 23T 16/32 : Magnaloy 700 HUB 23-TOOTH 16/32 STL BUSH 700 Splined 23T 16/32 1-3 Days $260.99
M700A2716 700 27T 16/32 : Magnaloy 700 HUB 27 TOOTH 16/32 SPLINE 700 Splined 27T 16/32 1-3 Days $182.99
M700A2716C 701 27T 16/32 : Magnaloy 700 HUB 27 T OOTH 16/32 CLAMP 700 Splined 27T 16/32 1-3 Days $221.99
