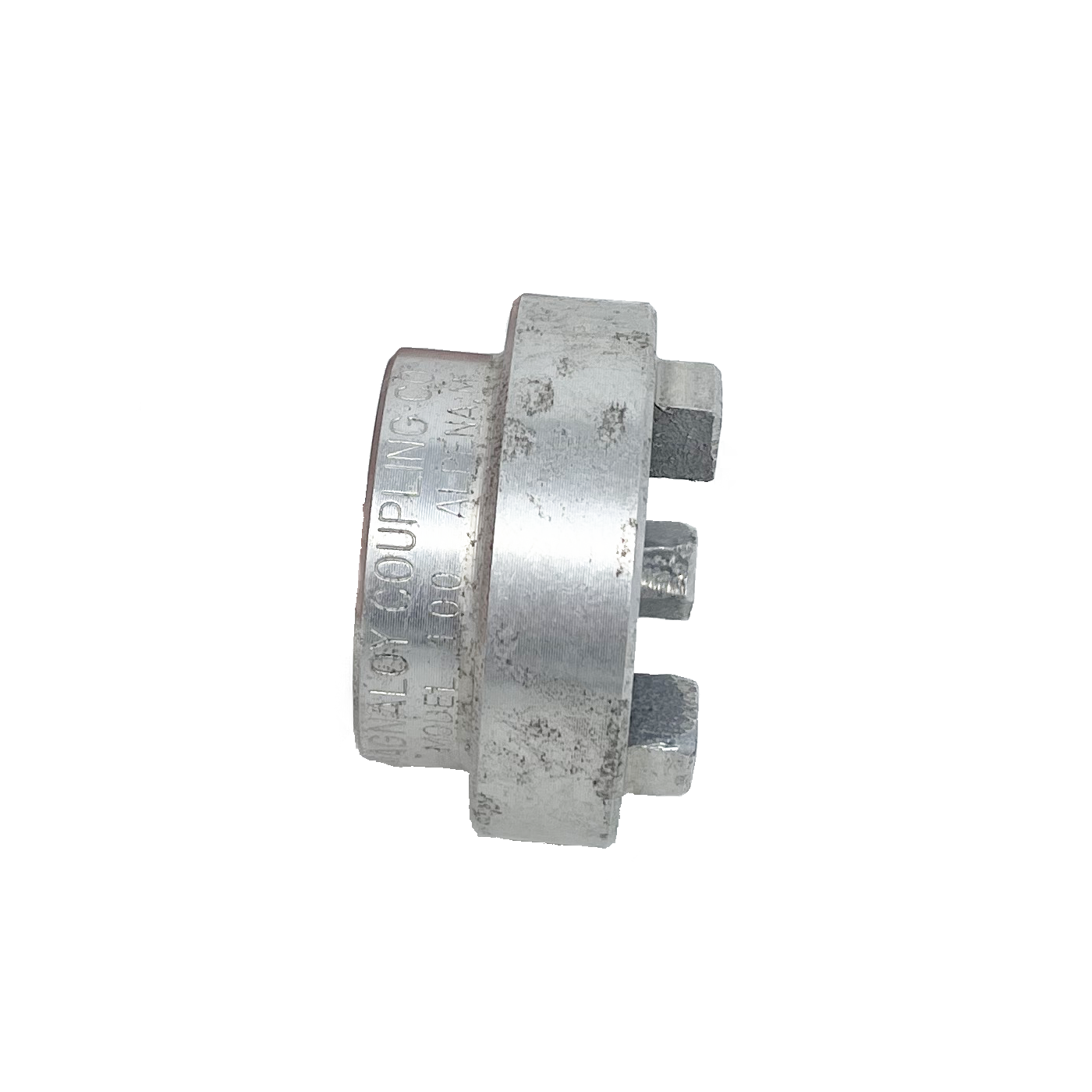

400 1-1/2BX5/16K : Magnaloy 400 HUB 1-1/2 BORE X 5/16 KEY, M40011610

Save $7.01
MagnaloySKU: M40011610
1-3 Days

Price:
Sale price$44.99 Regular price$52.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Location Alpena, Michigan
Material Magnesium
Bore Size 1.5 (1-1/2")
Country of Manufacture United States
Height 4.24
Length 2.06
Width 4.24
Weight 3

Description

Magnaloy is the original lightweight, heavy-duty flexible drive coupling. Light weight magnesium construction makes Magnaloy couplings 76 percent lighter than cast iron and 36 percent lighter than aluminum units... and theyÕre stronger than either. The benefits are many... Reduced loads on bearings, shafts and pumps, for longer component life. Easier handling and installation. Rust proof and corrosion resistant. Magnaloys close machining tolerances (TIR of .002Ó) assures vibration-free operation and easy, accurate alignment without need for special tools. Solid magnesium alloy permanent mold castings are heat treated and offer the highest strength-to-weight ratio available. The Premium Line of Magnaloy Couplings comes standard with a single set-screw over the keyway. Optional Double Set-Screws are available at either 45 degree or 90 degree to the keyway. Double set-screws help improve shaft gripping forces by increasing the hoop-stresses generated from tightening a single set-screw. Double set-screws at 45 degrees will produce greater forces than double set-screws at 90 degrees. Either are available upon request by specifying DSS45 or DSS90 following the hub part number, for example M30011210DSS45. Magnaloys Clamp feature is also availble with bored and keyed hubs, specify C following the hub part number, for example M30011210C.

Product SKU Model Coupling Series Coupling Type Bore Size Key Size Lead Time Price
M40010208S 400 1-1/16BX1/4K : Magnaloy 400 HUB 1-1/16" BORE X 1/4" KEY SPECIAL 400 Keyed 1.0625 (1-1/16") 0.25 (1/4") 1-3 Days $59.99
M40010206S 400 1-1/16BX3/16K : Magnaloy 400 HUB 1-1/16" BORE X 3/16" KEY SPECIAL 400 Keyed 1.0625 (1-1/16") 0.1875 (3/16") 1-3 Days $59.99
M40010210S 400 1-1/16MMBX5/16K : Magnaloy 400 HUB 1-1/16MM BORE X 5/16" KEY SPECIAL 400 Keyed 1.0625 (1-1/16") 0.3125 (5/16") 1-3 Days $76.99
M40011616S 400 1-1/2BX1/2K : Magnaloy 400 HUB 1-1/2" BORE X 1/2" KEY SPECIAL 400 Keyed 1.5 (1-1/2") 0.5 (1/2") 1-3 Days $59.99
M40011608SC 400 1-1/2BX1/4K : Magnaloy 400 HUB 1-1/2" BORE X 1/4" KEY SPECIAL W/CLAMP 400 Keyed 1.5 (1-1/2") 0.25 (1/4") 1-3 Days $90.99
M40011608S 400 1-1/2BX1/4K : Magnaloy 400 HUB 1-1/2" BORE X 1/4" KEY SPECIAL 400 Keyed 1.5 (1-1/2") 0.25 (1/4") 1-3 Days $59.99
M40011606S 400 1-1/2BX3/16K : Magnaloy 400 HUB 1-1/2" BORE X 3/16" KEY SPECIAL 400 Keyed 1.5 (1-1/2") 0.1875 (3/16") 1-3 Days $76.99
M40011612DSS 400 1-1/2BX3/8 : Magnaloy 400 HUB 1-1/2" BORE X 3/8" DBL SET SCREW 400 Keyed 1.5 (1-1/2") 0.375 (3/8") 7-10 Days $47.99
M40011612DSS45 400 1-1/2BX3/8K : Magnaloy 400 HUB 1-1/2" BORE X 3/8" KEY DBL SET SCREW AT 45DEG 400 Keyed 1.5 (1-1/2") 0.375 (3/8") 7-10 Days $47.99
M40011612 400 1-1/2BX3/8K : Magnaloy 400 HUB 1-1/2" BORE X 3/8" KEY 400 Keyed 1.5 (1-1/2") 0.375 (3/8") Same Day $44.99
M40011610DSS 400 1-1/2BX5/16K : Magnaloy 400 HUB 1-1/2" BORE X 5/16" KEY DBL SET SCREW 400 Keyed 1.5 (1-1/2") 0.3125 (5/16") 7-10 Days $47.99
M40011610C 400 1-1/2BX5/16K : Magnaloy 400 HUB 1-1/2" BORE X 5/16" KEY W/CLAMP 400 Keyed 1.5 (1-1/2") 0.3125 (5/16") 1-3 Days $75.99
M40011610 400 1-1/2BX5/16K : Magnaloy 400 HUB 1-1/2" BORE X 5/16" KEY 400 Keyed 1.5 (1-1/2") 0.3125 (5/16") 1-3 Days $44.99
M40011614S 400 1-1/2BX7/16K : Magnaloy 400 HUB 1-1/2" BORE X 7/16" KEY SPECIAL 400 Keyed 1.5 (1-1/2") 0.4375 (7/16") 1-3 Days $59.99
M400116N 400 1-1/2BXNOK : Magnaloy 400 HUB 1-1/2" BORE X NO KEY 400 Keyed 1.5 (1-1/2") NONE 1-3 Days $59.99
M40010816S 400 1-1/4BX1/2K : Magnaloy 400 HUB 1-1/4" BORE X 1/2" KEY SPECIAL 400 Keyed 1.25 (1-1/4") 0.5 (1/2") 1-3 Days $59.99
M40010808DSS 400 1-1/4BX1/4 : Magnaloy 400 HUB 1-1/4" BORE X 1/4" W/DBL SET SCREW 400 Keyed 1.25 (1-1/4") 0.25 (1/4") 7-10 Days $47.99
M40010808DSS45 400 1-1/4BX1/4K : Magnaloy 400 HUB 1-1/4" BORE X 1/4" KEY W/DBL SET SCREW AT 45DEG 400 Keyed 1.25 (1-1/4") 0.25 (1/4") 7-10 Days $47.99
M40010808C 400 1-1/4BX1/4K : Magnaloy 400 HUB 1-1/4" BORE X 1/4" KEY W/CLAMP 400 Keyed 1.25 (1-1/4") 0.25 (1/4") 1-3 Days $75.99
M40010808 400 1-1/4BX1/4K : Magnaloy 400 HUB 1-1/4" BORE X 1/4" KEY 400 Keyed 1.25 (1-1/4") 0.25 (1/4") Same Day $44.99
M40010804S 400 1-1/4BX1/8K : Magnaloy 400 HUB 1-1/4" BORE X 1/8" KEY SPECIAL 400 Keyed 1.25 (1-1/4") 0.125 (1/8") 1-3 Days $59.99
M40010806S 400 1-1/4BX3/16K : Magnaloy 400 HUB 1-1/4" BORE X 3/16" KEY SPECIAL 400 Keyed 1.25 (1-1/4") 0.1875 (3/16") 1-3 Days $59.99
M40010812SDSS 400 1-1/4BX3/8K : Magnaloy 400 HUB 1-1/4" BORE X 3/8" KEY SPECIAL W/DBL SET SCREW 400 Keyed 1.25 (1-1/4") 0.375 (3/8") 7-10 Days $63.99
M40010812S 400 1-1/4BX3/8K : Magnaloy 400 HUB 1-1/4" BORE X 3/8" KEY SPECIAL 400 Keyed 1.25 (1-1/4") 0.375 (3/8") 1-3 Days $59.99
M40010810DSS45 400 1-1/4BX5/16K : Magnaloy 400 HUB 1-1/4" BORE X 5/16" KEY W/DBL SET SCREW AT 45DEG 400 Keyed 1.25 (1-1/4") 0.3125 (5/16") 7-10 Days $47.99
M40010810DSS 400 1-1/4BX5/16K : Magnaloy 400 HUB 1-1/4" BORE X 5/16" KEY W/DBL SET SCREW 400 Keyed 1.25 (1-1/4") 0.3125 (5/16") 7-10 Days $47.99
M40010810C 400 1-1/4BX5/16K : Magnaloy 400 HUB 1-1/4" BORE X 5/16" KEY W/CLAMP 400 Keyed 1.25 (1-1/4") 0.3125 (5/16") 1-3 Days $75.99
M40010810 400 1-1/4BX5/16K : Magnaloy 400 HUB 1-1/4" BORE X 5/16" KEY 400 Keyed 1.25 (1-1/4") 0.3125 (5/16") Same Day $44.99
M400108N 400 1-1/4BXNOK : Magnaloy 400 HUB 1-1/4" BORE X NO KEY 400 Keyed 1.25 (1-1/4") NONE 1-3 Days $59.99
M40010408DSS45 400 1-1/8BX1/4K : Magnaloy 400 HUB 1-1/8" BORE X 1/4" KEY W/DBL SET SCREW AT 45DEG 400 Keyed 1.125 (1-1/8") 0.25 (1/4") 7-10 Days $47.99
M40010408DSS 400 1-1/8BX1/4K : Magnaloy 400 HUB 1-1/8" BORE X 1/4" KEY DBL SET SCREW 400 Keyed 1.125 (1-1/8") 0.25 (1/4") 7-10 Days $47.99
M40010408C 400 1-1/8BX1/4K : Magnaloy 400 HUB 1-1/8" BORE X 1/4" KEY W/CLAMP 400 Keyed 1.125 (1-1/8") 0.25 (1/4") 1-3 Days $75.99
M40010408 400 1-1/8BX1/4K : Magnaloy 400 HUB 1-1/8" BORE X 1/4" KEY 400 Keyed 1.125 (1-1/8") 0.25 (1/4") Same Day $44.99
M40010406S 400 1-1/8BX3/16K : Magnaloy 400 HUB 1-1/8" BORE X 3/16" KEY SPECIAL 400 Keyed 1.125 (1-1/8") 0.1875 (3/16") 1-3 Days $59.99
M40010412S 400 1-1/8BX3/8K : Magnaloy 400 HUB 1-1/8" BORE X 3/8" KEY SPECIAL 400 Keyed 1.125 (1-1/8") 0.375 (3/8") 1-3 Days $59.99
M40010410S 400 1-1/8BX5/16K : Magnaloy 400 HUB 1-1/8" BORE X 5/16" KEY SPECIAL 400 Keyed 1.125 (1-1/8") 0.3125 (5/16") 1-3 Days $59.99
M400104N 400 1-1/8BXNOK : Magnaloy 400 HUB 1-1/8" BORE X NO KEY 400 Keyed 1.125 (1-1/8") NONE 1-3 Days $59.99
M40012212S 400 1-11/16BX3/8K : Magnaloy 400 HUB 1-11/16" BORE X 3/8" KEY SPECIAL 400 Keyed 1.6875 (1-11/16") 0.375 (3/8") 1-3 Days $59.99
M40012210S 400 1-11/16BX5/16K : Magnaloy 400 HUB 1-11/16" BORE X 5/16" KEY SPECIAL 400 Keyed 1.6875 (1-11/16") 0.3125 (5/16") 1-3 Days $59.99
M40011310S 400 1-13/32BX5/16K : Magnaloy 400 HUB 1-13/32 BORE X 5/16" KEY SPECIAL 400 Keyed 1.40625 (1-13/32") 0.3125 (5/16") 1-3 Days $59.99
M40010606S 400 1-3/16 X 3/16K : Magnaloy 400 HUB 1-3/16" X 3/16" KEY SPECIAL 400 Keyed 1.1875 (1-3/16") 0.1875 (3/16") 1-3 Days $59.99
M40010608S 400 1-3/16BX1/4K : Magnaloy 400 HUB 1-3/16" BORE X 1/4" KEY SPECIAL 400 Keyed 1.1875 (1-3/16") 0.25 (1/4") 1-3 Days $59.99
M40010610S 400 1-3/16BX5/16K : Magnaloy 400 HUB 1-3/16" BORE X 5/16" KEY SPECIAL 400 Keyed 1.1875 (1-3/16") 0.3125 (5/16") 1-3 Days $59.99
M40012416S 400 1-3/4BX1/2K : Magnaloy 400 HUB 1-3/4" BORE X 1/2" KEY SPECIAL 400 Keyed 1.75 (1-3/4") 0.5 (1/2") 1-3 Days $59.99
M400124M14S 400 1-3/4BX14MMK : Magnaloy 400 HUB 1-3/4" BORE X 14MM KEY SPECIAL 400 Keyed 1.75 (1-3/4") 14mm 1-3 Days $76.99
M40012412DSS45 400 1-3/4BX3/8K : Magnaloy 400 HUB 1-3/4" BORE X 3/8" KEY W/DBL SET SCREW AT 45DEG 400 Keyed 1.75 (1-3/4") 0.375 (3/8") 7-10 Days $47.99
M40012412C 400 1-3/4BX3/8K : Magnaloy 400 HUB 1-3/4" BORE X 3/8" KEY W/CLAMP 400 Keyed 1.75 (1-3/4") 0.375 (3/8") 1-3 Days $75.99
M40012412 400 1-3/4BX3/8K : Magnaloy 400 HUB 1-3/4" BORE X 3/8" KEY 400 Keyed 1.75 (1-3/4") 0.375 (3/8") 1-3 Days $44.99
M40012414DSS45 400 1-3/4BX7/16K : Magnaloy 400 HUB 1-3/4" BORE X 7/16" KEY W/DBL SET SCREW AT 45DEG 400 Keyed 1.75 (1-3/4") 0.5 (1/2") 7-10 Days $47.99
M40012414DSS 400 1-3/4BX7/16K : Magnaloy 400 HUB 1-3/4" BORE X 7/16" KEY W/DBL SET SCREW 400 Keyed 1.75 (1-3/4") 0.4375 (7/16") 7-10 Days $47.99
