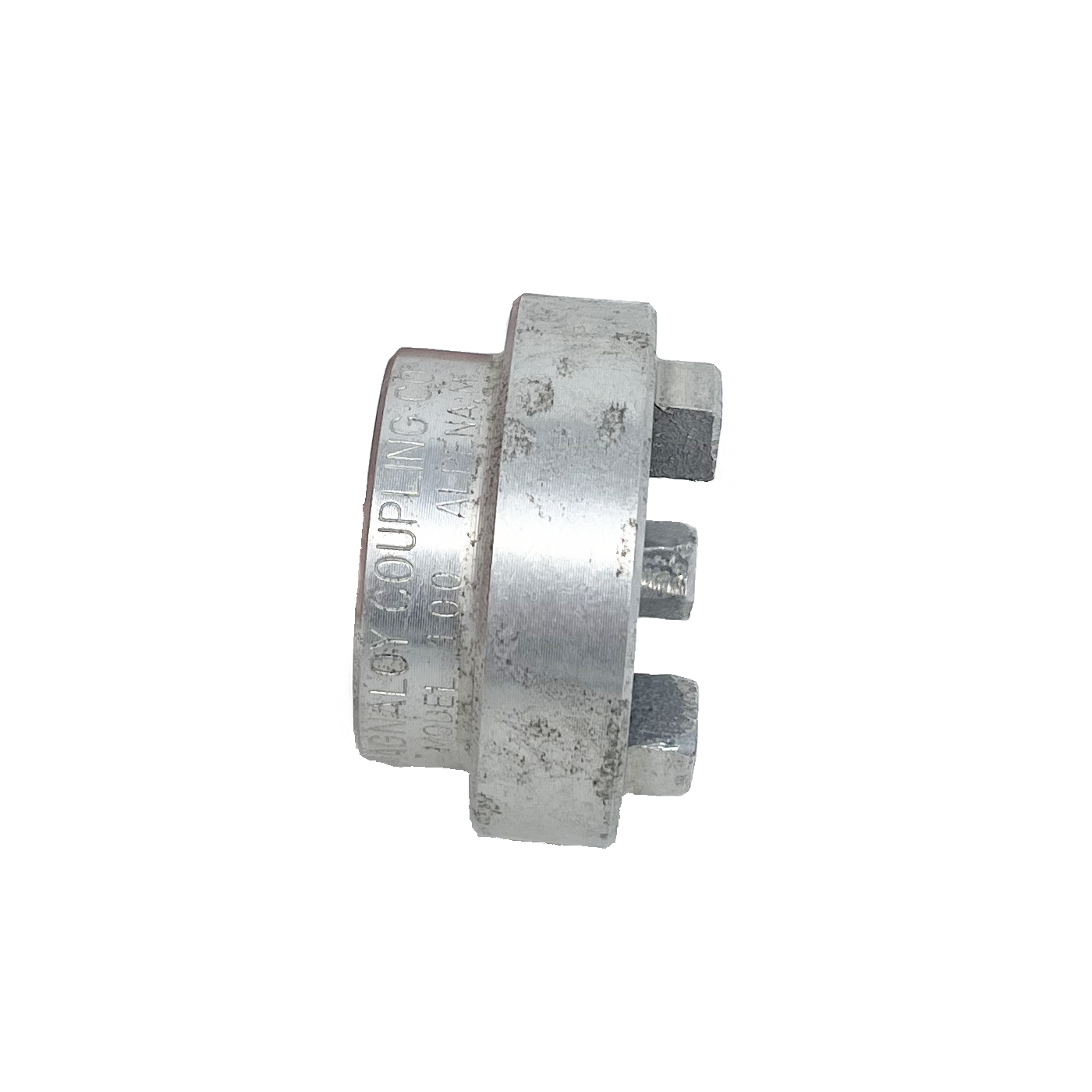

300 21T 16/32 : Magnaloy 300 HUB 21-TOOTH 16/32 SP/CLAMP, M300A2116C

Save $15.01
MagnaloySKU: M300A2116C
1-3 Days

Price:
Sale price$88.99 Regular price$104.00

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Alpena, Michigan
Material Magnesium
Bore Size 21T 16/32
Country of Manufacture United States
Height 3.45
Length 1.74
Width 3.45
Weight 2

Description

Magnaloy is the original lightweight, heavy-duty flexible drive coupling. Light weight magnesium construction makes Magnaloy couplings 76 percent lighter than cast iron and 36 percent lighter than aluminum units... and theyÕre stronger than either. The benefits are many... Reduced loads on bearings, shafts and pumps, for longer component life. Easier handling and installation. Rust proof and corrosion resistant. Magnaloys close machining tolerances (TIR of .002Ó) assures vibration-free operation and easy, accurate alignment without need for special tools. Solid magnesium alloy permanent mold castings are heat treated and offer the highest strength-to-weight ratio available. The Premium Line of Magnaloy Couplings comes standard with a single set-screw over the keyway. Optional Double Set-Screws are available at either 45 degree or 90 degree to the keyway. Double set-screws help improve shaft gripping forces by increasing the hoop-stresses generated from tightening a single set-screw. Double set-screws at 45 degrees will produce greater forces than double set-screws at 90 degrees. Either are available upon request by specifying DSS45 or DSS90 following the hub part number, for example M30011210DSS45. Magnaloys Clamp feature is also availble with bored and keyed hubs, specify C following the hub part number, for example M30011210C.

Product SKU Model Coupling Series Coupling Type Bore Size Lead Time Price
M300A1116C 300 11T 16/32 : Magnaloy 300 HUB 11-TOOTH 16/32 SPL .750 MAJ/CLAMP 300 Splined 11T 16/32 Same Day $239.99
M300B1316C 300 13T 16/32 : Magnaloy 300 HUB 13-TOOTH 16/32 W/STEEL BUSHING & CLAMP 300 Splined 13T 16/32 1-3 Days $159.99
M300B1316 300 13T16/32 : Magnaloy 300 HUB 13T16/32 STL BUSH 300 Splined 13T 16/32 1-3 Days $117.99
M300A1316C 300 13T 16/32 : Magnaloy 300 HUB 13-TOOTH 16/32 SPLINE W/CLAMP 300 Splined 13T 16/32 1-3 Days $88.99
M300A1316 300 13T 16/32 : Magnaloy 300 HUB 13-TOOTH 16/32 SPLINE 300 Splined 13T 16/32 1-3 Days $56.99
M300B1316DSS45 300 13T 16/32 : Magnaloy 300 HUB 13-TOOTH 16/32 STL BUSH W/DBL SET SCREW@45D 300 Splined 13T 16/32 7-10 Days $120.99
M300A1412DSS 300 14T 12/24 : Magnaloy 300 HUB 14-TOOTH 12/24 SPLINE W/DBL SET SCREW 300 Splined 14T 12/24 7-10 Days $59.99
M300A1412 300 14T 12/24 : Magnaloy 300 HUB 14-TOOTH 12/24 SPLINE 300 Splined 14T 12/24 1-3 Days $56.99
M300A1412C 300 14T 12/24 : Magnaloy 300 HUB 14-TOOTH 12/24SP/CLAMP 300 Splined 14T 12/24 1-3 Days $88.99
M300A1516N 300 15T 16/32 : Magnaloy 300 HUB 15-TOOTH 16/32 SPL - NO SET SCREW 300 Splined 15T 16/32 1-3 Days $59.99
M300A1516C 300 15T 16/32 : Magnaloy 300 HUB 15-TOOTH 16/32 SPLINE W/CLAMP 300 Splined 15T 16/32 1-3 Days $88.99
M300A1516 300 15T 16/32 : Magnaloy 300 HUB 15-TOOTH 16/32 SPLINE 300 Splined 15T 16/32 1-3 Days $56.99
M300A2116C 300 21T 16/32 : Magnaloy 300 HUB 21-TOOTH 16/32 SP/CLAMP 300 Splined 21T 16/32 1-3 Days $88.99
M300A2116 300 21T 16/32 : Magnaloy 300 HUB 21-TOOTH 16/32 SPLINE 300 Splined 21T 16/32 1-3 Days $56.99
M300A2316N 300 23T 16/32 : Magnaloy 300 HUB 23-TOOTH 16/32 NO S.S. OR CLAMP 300 Splined 23T 16/32 1-3 Days $67.99
M300A2316C 300 23T 16/32 : Magnaloy 300 HUB 23-TOOTH 16/32 SP/CLAMP 300 Splined 23T 16/32 1-3 Days $99.99
M300A2316 300 23T 16/32 : Magnaloy 300 HUB 23-TOOTH 16/32 SPLINE 300 Splined 23T 16/32 1-3 Days $67.99
M300B0916C 300 9T 16/32 : Magnaloy 300 HUB 9 TOOTH 16/32 W/STEEL BUSHING & CLAMP 300 Splined 9T 16/32 1-3 Days $159.99
M300B0916 300 9T 16/32 : Magnaloy 300 HUB 9-TOOTH 16/32 STL BUSH 300 Splined 9T 16/32 1-3 Days $117.99
M300A0916C 300 9T 16/32 : Magnaloy 300 HUB 9-TOOTH 16/32 SP/CLAMP 300 Splined 9T 16/32 Same Day $88.99
M300A0916 300 9T 16/32 : Magnaloy 300 HUB 9-TOOTH 16/32 SPLINE 300 Splined 9T 16/32 1-3 Days $56.99
