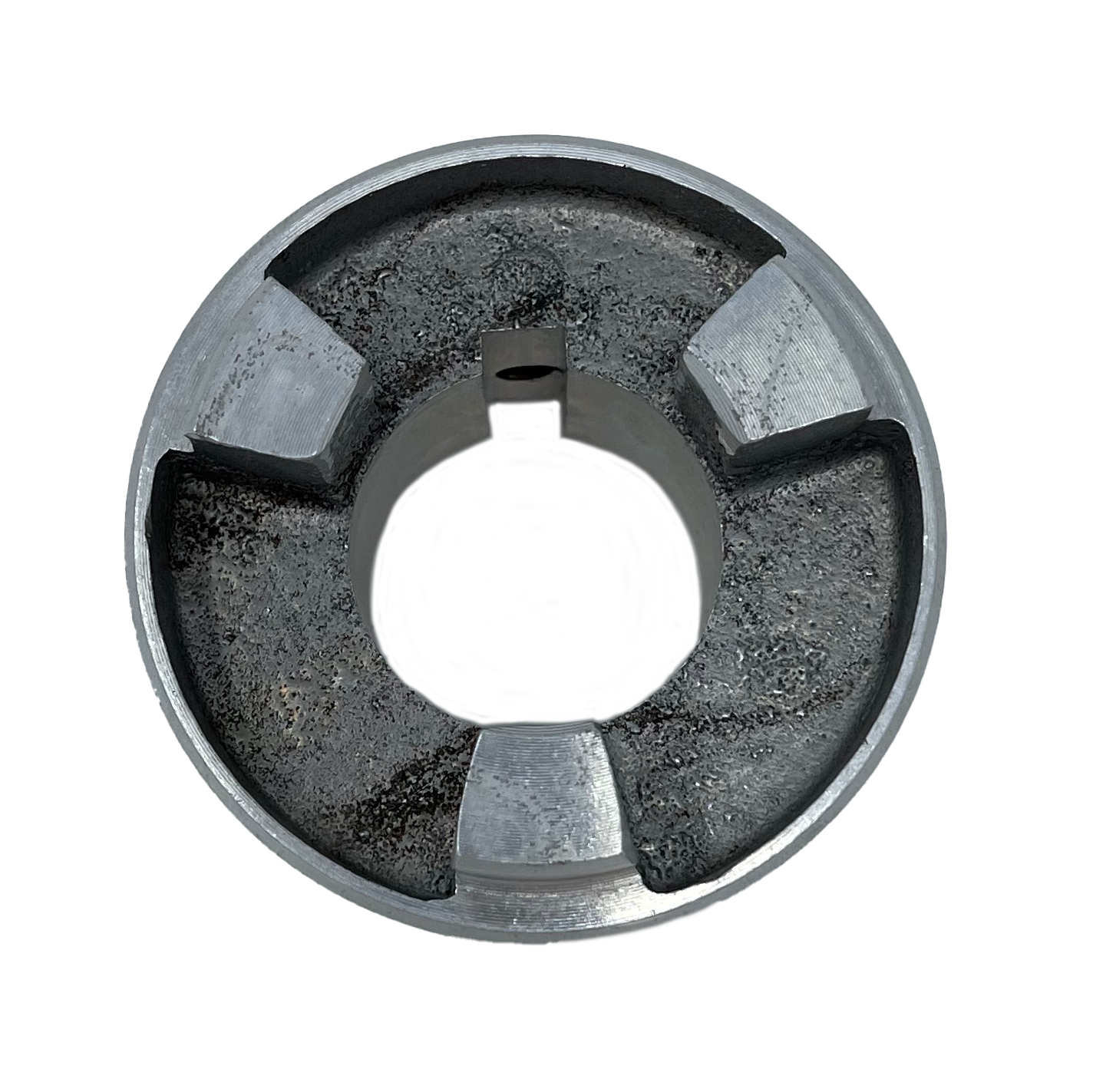

200 1-3/8BX5/16K : Magnaloy 200 HUB 1-3/8 BORE X 5/16 KEY, M20011210

Save $4.01
MagnaloySKU: M20011210
Same Day
2

Price:
Sale price$24.99 Regular price$29.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Location Alpena, Michigan
Material Magnesium
Bore Size 1.375 (1-3/8")
Country of Manufacture United States
Height 2.9
Length 1.52
Width 2.9
Weight 1

Description

Magnaloy is the original lightweight, heavy-duty flexible drive coupling. Light weight magnesium construction makes Magnaloy couplings 76 percent lighter than cast iron and 36 percent lighter than aluminum units... and theyÕre stronger than either. The benefits are many... Reduced loads on bearings, shafts and pumps, for longer component life. Easier handling and installation. Rust proof and corrosion resistant. Magnaloys close machining tolerances (TIR of .002Ó) assures vibration-free operation and easy, accurate alignment without need for special tools. Solid magnesium alloy permanent mold castings are heat treated and offer the highest strength-to-weight ratio available. The Premium Line of Magnaloy Couplings comes standard with a single set-screw over the keyway. Optional Double Set-Screws are available at either 45 degree or 90 degree to the keyway. Double set-screws help improve shaft gripping forces by increasing the hoop-stresses generated from tightening a single set-screw. Double set-screws at 45 degrees will produce greater forces than double set-screws at 90 degrees. Either are available upon request by specifying DSS45 or DSS90 following the hub part number, for example M30011210DSS45. Magnaloys Clamp feature is also availble with bored and keyed hubs, specify C following the hub part number, for example M30011210C.

Product SKU Model Coupling Series Coupling Type Bore Size Key Size Lead Time Price
M20010808DSS45 200 1-1/4BX1/4 : Magnaloy 200 HUB 1-1/4" BORE X 1/4" W/DBL SET SCREW AT 45DEG 200 Keyed 1.25 (1-1/4") 0.25 (1/4") 7-10 Days $25.99
M20010808DSS 200 1-1/4BX1/4 : Magnaloy 200 HUB 1-1/4" BORE X 1/4" W/DBL SET SCREW 200 Keyed 1.25 (1-1/4") 0.25 (1/4") 7-10 Days $25.99
M20010808S 200 1-1/4BX1/4K : Magnaloy 200 HUB 1-1/4" BORE X 1/4" KEY X 1.368/1.373 D 200 Keyed 1.25 (1-1/4") 0.25 (1/4") 1-3 Days $33.99
M20010808 200 1-1/4BX1/4K : Magnaloy 200 HUB 1-1/4" BORE X 1/4" KEY 200 Keyed 1.25 (1-1/4") 0.25 (1/4") 1-3 Days $24.99
M20010810DSS45 200 1-1/4BX5/16 : Magnaloy 200 HUB 1-1/4" BORE X 5/16" W/DBL SET SCREW AT 45DEG 200 Keyed 1.25 (1-1/4") 0.3125 (5/16") 7-10 Days $25.99
M20010810DSS 200 1-1/4BX5/16 : Magnaloy 200 HUB 1-1/4" BORE X 5/16" W/DBL SET SCREW 200 Keyed 1.25 (1-1/4") 0.3125 (5/16") 7-10 Days $25.99
M20010810 200 1-1/4BX5/16K : Magnaloy 200 HUB 1-1/4" BORE X 5/16" KEY 200 Keyed 1.25 (1-1/4") 0.3125 (5/16") 1-3 Days $24.99
M200108NC 200 1-1/4BXNOK : Magnaloy 200 HUB 1-1/4" BORE X NO KEY W/CLAMP 200 Keyed 1.25 (1-1/4") NONE 1-3 Days $65.99
M200108N 200 1-1/4BXNOK : Magnaloy 200 HUB 1-1/4" BORE X NO KEY 200 Keyed 1.25 (1-1/4") NONE 1-3 Days $33.99
M20010408DSS45 200 1-1/8BX1/4K : Magnaloy 200 HUB 1-1/8" BORE X 1/4" KEY DBL SET SCREW @45 200 Keyed 1.125 (1-1/8") 0.25 (1/4") 7-10 Days $25.99
M20010408DSS 200 1-1/8BX1/4K : Magnaloy 200 HUB 1-1/8" BORE X 1/4" KEY DBL SET SCREW 200 Keyed 1.125 (1-1/8") 0.25 (1/4") 7-10 Days $25.99
M20010408C 200 1-1/8BX1/4K : Magnaloy 200 HUB 1-1/8" BORE X 1/4" KEY W/CLAMP 200 Keyed 1.125 (1-1/8") 0.25 (1/4") 1-3 Days $54.99
M20010408 200 1-1/8BX1/4K : Magnaloy 200 HUB 1-1/8" BORE X 1/4" KEY 200 Keyed 1.125 (1-1/8") 0.25 (1/4") Same Day $24.99
M200104N 200 1-1/8BXNOK : Magnaloy 200 HUB 1-1/8" BORE X NO KEY 200 Keyed 1.125 (1-1/8") NONE 1-3 Days $33.99
M20011210-NYLOC 200 1-3/8BX5/16 : Magnaloy 200 HUB 1-3/8" BORE X 5/16" W/LIQUID NYLOC SS 200 Keyed 1.375 (1-3/8") 0.3125 (5/16") 1-3 Days $25.99
M20011210DSS 200 1-3/8BX5/16K : Magnaloy 200 HUB 1-3/8" BORE X 5/16" KEY W/DBL SET SCREW 200 Keyed 1.375 (1-3/8") 0.3125 (5/16") 7-10 Days $25.99
M20011210DSS45 200 1-3/8BX5/16K : Magnaloy 200 HUB 1-3/8" BORE X 5/16" KEY DBL SET SCREW @ 45 200 Keyed 1.375 (1-3/8") 0.3125 (5/16") 7-10 Days $25.99
M20011210 200 1-3/8BX5/16K : Magnaloy 200 HUB 1-3/8" BORE X 5/16" KEY 200 Keyed 1.375 (1-3/8") 0.3125 (5/16") Same Day $24.99
M200112N 200 1-3/8BXNOK : Magnaloy 200 HUB 1-3/8" BORE X NO KEY 200 Keyed 1.375 (1-3/8") NONE 1-3 Days $33.99
M200110N 200 1-5/16BXNOK : Magnaloy 200 HUB 1-5/16" BORE X NO KEY 200 Keyed 1.3125 (1-5/16") NONE 1-3 Days $33.99
M20001604DSS 200 1/2BX1/8 : Magnaloy 200 HUB 1/2" BORE X 1/8" W/DBL SET SCREW 200 Keyed 0.5 (1/2") 0.125 (1/8") 7-10 Days $25.99
M20001604DSS45 200 1/2BX1/8K : Magnaloy 200 HUB 1/2" BORE X 1/8" KEY W/DBL SET SCREW AT 45DEG 200 Keyed 0.5 (1/2") 0.125 (1/8") 7-10 Days $25.99
M20001604 200 1/2BX1/8K : Magnaloy 200 HUB 1/2" BORE X 1/8" KEY 200 Keyed 0.5 (1/2") 0.125 (1/8") Same Day $24.99
M200016N 200 1/2BXNOK : Magnaloy 200 HUB 1/2" BORE X NO KEY 200 Keyed 0.5 (1/2") NONE 1-3 Days $33.99
M200M1003 200 10MMBX3MMK : Magnaloy 200 HUB 10MM BORE X 3MM KEY 200 Keyed 10mm 3mm 1-3 Days $33.99
M200M10NC 200 10MMBXNOK : Magnaloy 200 HUB 10MM BORE X NO KEY W/CLAMP 200 Keyed 10mm NONE 1-3 Days $65.99
M20002206 200 11/16BX3/16K : Magnaloy 200 HUB 11/16" BORE X 3/16" KEY 200 Keyed 0.6875 (11/16") 0.1875 (3/16") 1-3 Days $24.99
M200M1104 200 11MMBX4MMK : Magnaloy 200 HUB 11MM BORE X 4MM KEY 200 Keyed 11mm 4mm 1-3 Days $33.99
M200M1204 200 12BX4 : Magnaloy 200 HUB 12" BORE X4 METRIC 200 Keyed 12mm 4mm 1-3 Days $33.99
M200M1204DSS 200 12MMBX4MMK : Magnaloy 200 HUB 12MM BORE X 4MM KEY W/DBL SET SCREW 200 Keyed 12mm 4mm 7-10 Days $36.99
M200M1305 200 13MMBX5MMK : Magnaloy 200 HUB 13MM BORE X 5MM KEY 200 Keyed 13mm 5mm 1-3 Days $33.99
M200M14N 200 14 MMBXNOK : Magnaloy 200 HUB 14 MM BORE X NO KEY 200 Keyed 14mm NONE 1-3 Days $33.99
M200M1403 200 14MMBX3MMK : Magnaloy 200 HUB 14MM BORE X 3MM KEY 200 Keyed 14mm 3mm 1-3 Days $33.99
M200M1405 200 14X 5MMK : Magnaloy 200 HUB 14X 5MM KEY METRIC 200 Keyed 14mm 5mm 1-3 Days $33.99
M200M1404 200 14X4 : Magnaloy 200 HUB 14X4 METRIC 200 Keyed 14mm 4mm 1-3 Days $33.99
M20003008DSS45 200 15/16BX1/4K : Magnaloy 200 HUB 15/16" BORE X 1/4" KEY W/DBL SET SCREW AT 45DEG 200 Keyed 0.9375 (15/16") 0.25 (1/4") 7-10 Days $25.99
M20003008 200 15/16BX1/4K : Magnaloy 200 HUB 15/16" BORE X 1/4" KEY 200 Keyed 0.9375 (15/16") 0.25 (1/4") 1-3 Days $24.99
M20003010S 200 15/16BX5/16K : Magnaloy 200 HUB 15/16" BORE X 5/16" KEY 200 Keyed 0.9375 (15/16") 0.3125 (5/16") 1-3 Days $33.99
M200M1504 200 15MMBX4MMK : Magnaloy 200 HUB 15MM BORE X 4MM KEY 200 Keyed 15mm 4mm 1-3 Days $45.99
M200M1505 200 15MMBX5MMK : Magnaloy 200 HUB 15MM BORE X 5MM KEY 200 Keyed 15mm 5mm 1-3 Days $33.99
M200M1605DSS45 200 16MMBX5MMK : Magnaloy 200 HUB 16MM BORE X 5MM KEY W/DBL SET SCREW AT 45DEG 200 Keyed 16mm 5mm 7-10 Days $36.99
M200M1605 200 16X 5MMK : Magnaloy 200 HUB 16X 5MM KEY METRIC 200 Keyed 16mm 5mm 1-3 Days $33.99
M200M1604 200 16X4 : Magnaloy 200 HUB 16X4 METRIC 200 Keyed 16mm 4mm 1-3 Days $33.99
M200M1703 200 17MMBX3MMK : Magnaloy 200 HUB 17MM BORE X 3MM KEY 200 Keyed 17mm 3mm 1-3 Days $33.99
M200M17NC 200 17MMBXNOK : Magnaloy 200 HUB 17MM BORE X NO KEY W/CLAMP 200 Keyed 17mm NONE 1-3 Days $65.99
M200M1705 200 17X 5MMK : Magnaloy 200 HUB 17X 5MM KEY METRIC 200 Keyed 17mm 5mm 1-3 Days $33.99
M200M1806 200 18MMBX6MMK : Magnaloy 200 HUB 18MM BORE X 6MM KEY METRIC 200 Keyed 18mm 6mm 1-3 Days $33.99
M200M1904 200 19MMBX4MMK : Magnaloy 200 HUB 19MM BORE X 4MM KEY 200 Keyed 19mm 4mm 1-3 Days $33.99
M200M1905 200 19MMBX5MMK : Magnaloy 200 HUB 19MM BORE X 5MM KEY 200 Keyed 19mm 5mm 1-3 Days $45.99
M200M1906DSS 200 19MMBX6MMK : Magnaloy 200 HUB 19MM BORE X 6MM KEY W/DBL SET SCREW 200 Keyed 19mm 6mm 7-10 Days $36.99
