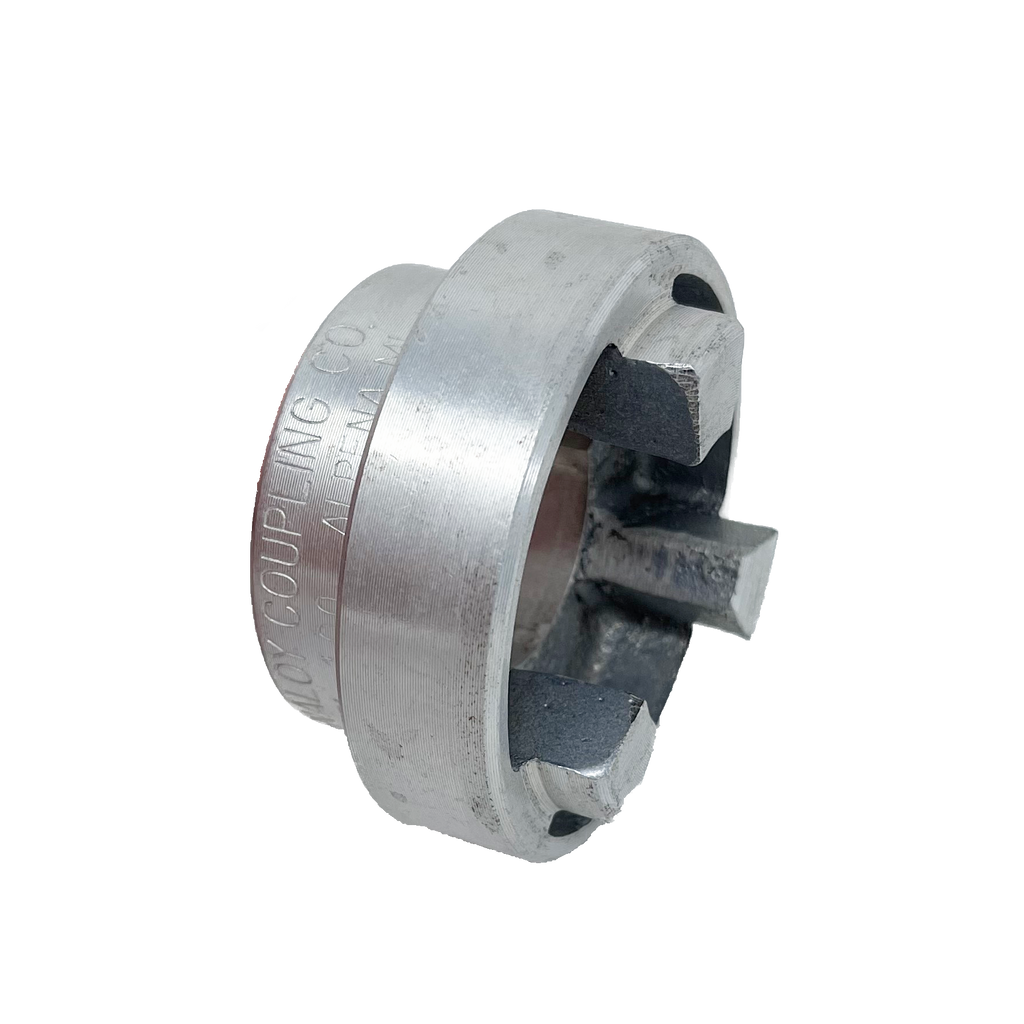

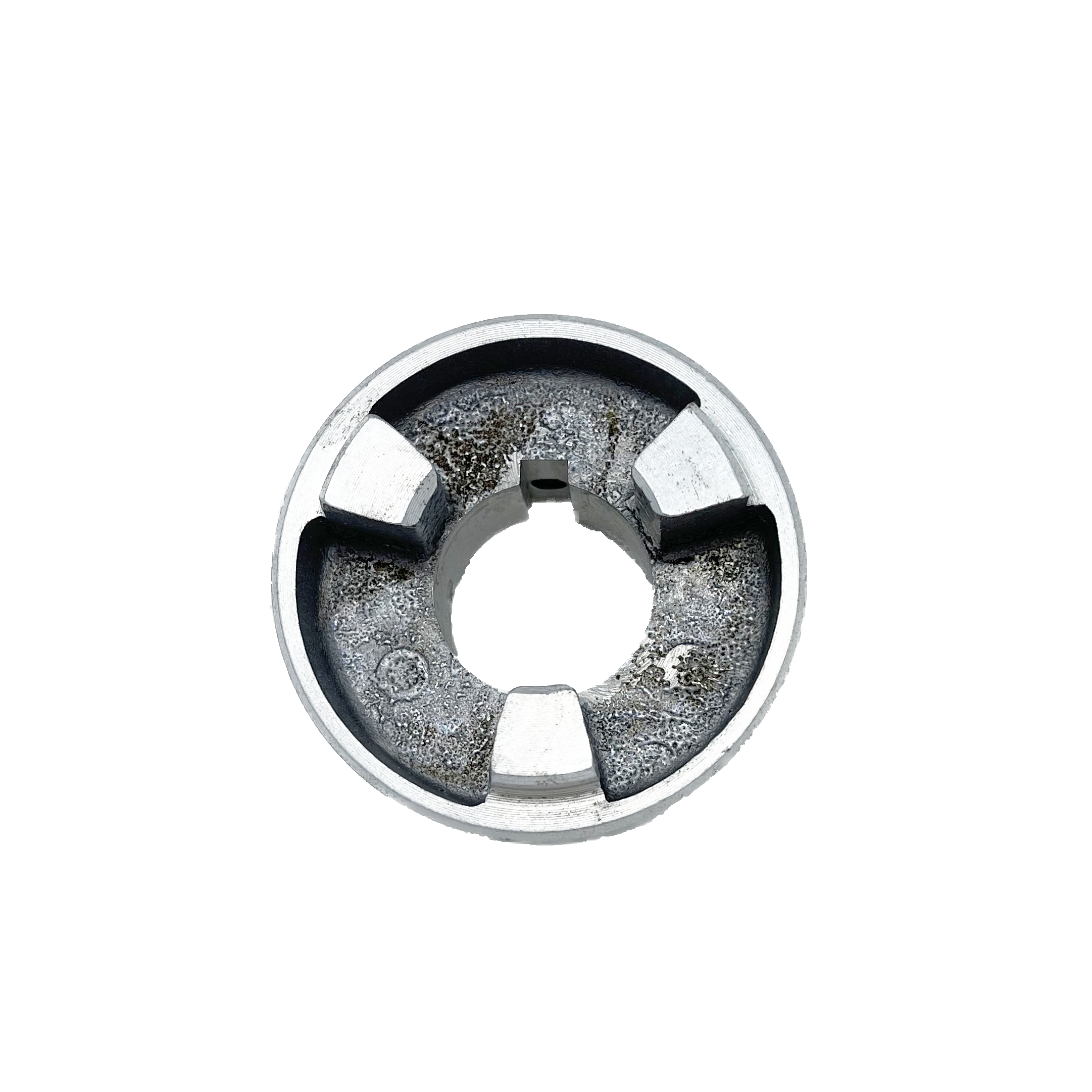

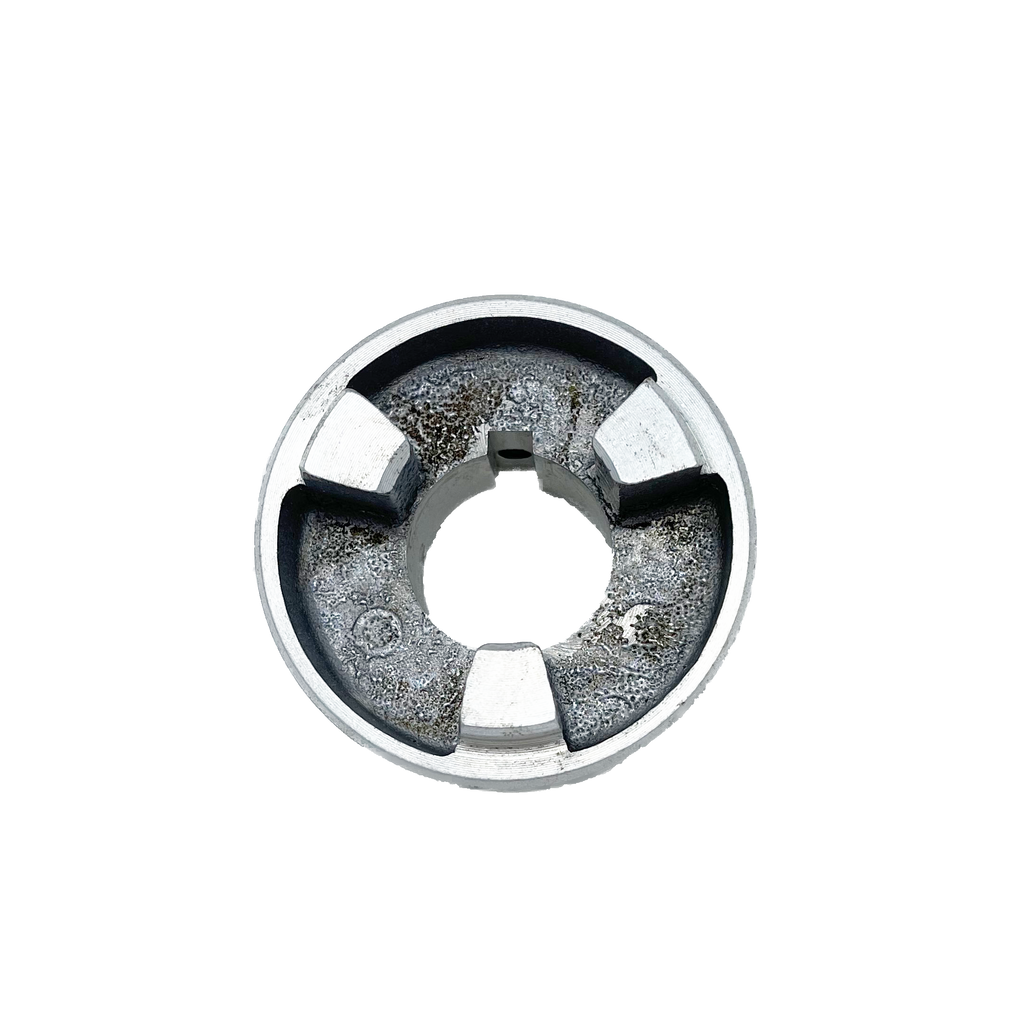

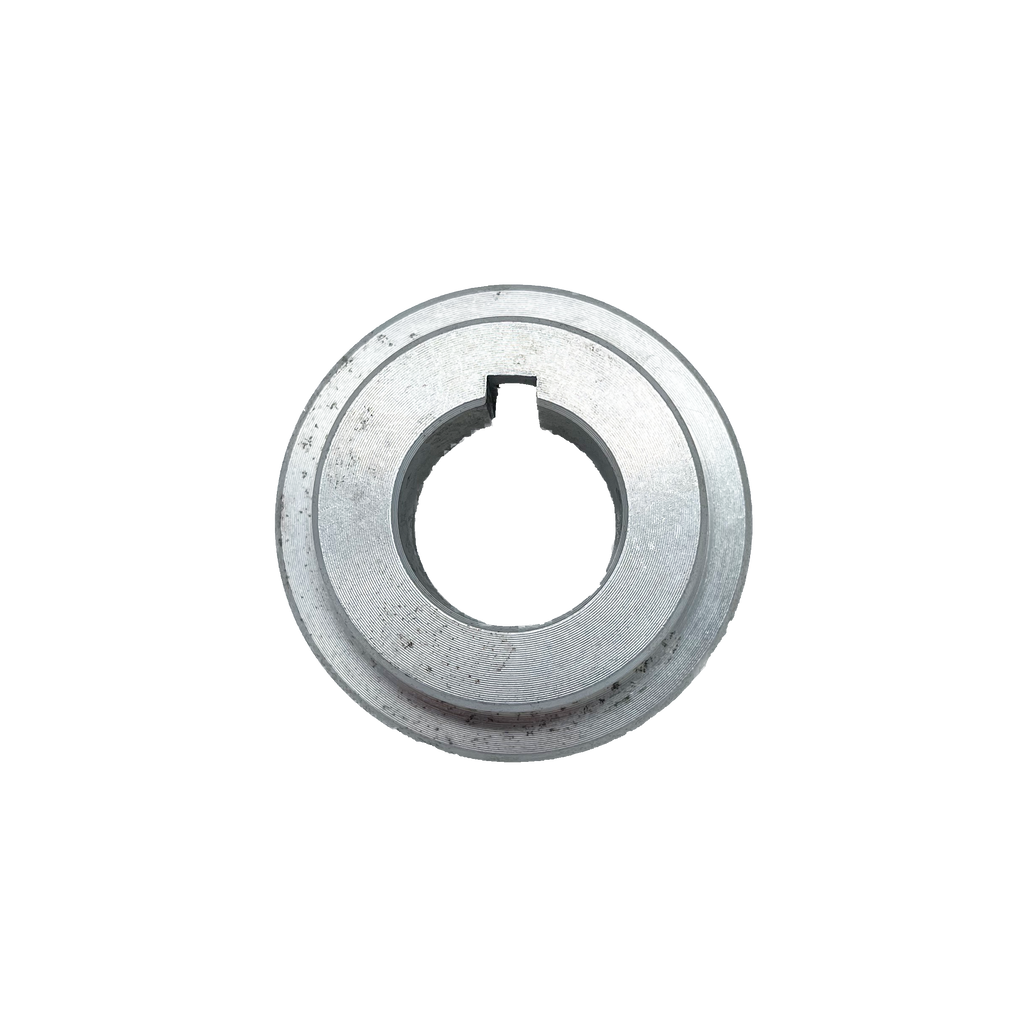

100 1-1/8BX1/4K : Magnaloy 100 HUB 1-1/8 BORE X 1/4 KEY, M10010408

Save $3.01
MagnaloySKU: M10010408
Same Day
3

Price:
Sale price$22.99 Regular price$26.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Location Alpena, Michigan
Material Magnesium
Bore Size 1.125 (1-1/8")
Country of Manufacture United States
Height 2.6
Length 1.24
Width 2.6
Weight 0.75

Description

Magnaloy is the original lightweight, heavy-duty flexible drive coupling. Light weight magnesium construction makes Magnaloy couplings 76 percent lighter than cast iron and 36 percent lighter than aluminum units... and theyÕre stronger than either. The benefits are many... Reduced loads on bearings, shafts and pumps, for longer component life. Easier handling and installation. Rust proof and corrosion resistant. Magnaloys close machining tolerances (TIR of .002Ó) assures vibration-free operation and easy, accurate alignment without need for special tools. Solid magnesium alloy permanent mold castings are heat treated and offer the highest strength-to-weight ratio available. The Premium Line of Magnaloy Couplings comes standard with a single set-screw over the keyway. Optional Double Set-Screws are available at either 45 degree or 90 degree to the keyway. Double set-screws help improve shaft gripping forces by increasing the hoop-stresses generated from tightening a single set-screw. Double set-screws at 45 degrees will produce greater forces than double set-screws at 90 degrees. Either are available upon request by specifying DSS45 or DSS90 following the hub part number, for example M30011210DSS45. Magnaloys Clamp feature is also availble with bored and keyed hubs, specify C following the hub part number, for example M30011210C.

Product SKU Model Coupling Series Coupling Type Bore Size Key Size Lead Time Price
M10010408DSS45 100 1-1/8BX1/4K : Magnaloy 100 HUB 1-1/8" BORE X 1/4" KEY W/DBL SET SCREW AT 45DEG 100 Keyed 1.125 (1-1/8") 0.25 (1/4") Same Day $23.99
M10010408DSS 100 1-1/8BX1/4K : Magnaloy 100 HUB 1-1/8" BORE X 1/4" KEY DBL SET SCREW 100 Keyed 1.125 (1-1/8") 0.25 (1/4") 7-10 Days $23.99
M10010408C 100 1-1/8BX1/4K : Magnaloy 100 HUB 1-1/8" BORE X 1/4" KEY W/CLAMP 100 Keyed 1.125 (1-1/8") 0.25 (1/4") 1-3 Days $56.99
M10010408 100 1-1/8BX1/4K : Magnaloy 100 HUB 1-1/8" BORE X 1/4" KEY 100 Keyed 1.125 (1-1/8") 0.25 (1/4") Same Day $22.99
M100104N 100 1-1/8BXNOK : Magnaloy 100 HUB 1-1/8" BORE X NO KEY 100 Keyed 1.125 (1-1/8") NONE 1-3 Days $33.99
M10001604DSS45 100 1/2BX1/8K : Magnaloy 100 HUB 1/2" BORE X 1/8" KEY W/DBL SET SCREW AT 45DEG 100 Keyed 0.5 (1/2") 0.125 (1/8") 7-10 Days $23.99
M10001604DSS 100 1/2BX1/8K : Magnaloy 100 HUB 1/2" BORE X 1/8" KEY W/DBL SET SCREW 100 Keyed 0.5 (1/2") 0.125 (1/8") 7-10 Days $23.99
M10001604C 100 1/2BX1/8K : Magnaloy 100 HUB 1/2" BORE X 1/8" KEY W/CLAMP 100 Keyed 0.5 (1/2") 0.125 (1/8") 1-3 Days $56.99
M10001604 100 1/2BX1/8K : Magnaloy 100 HUB 1/2" BORE X 1/8" KEY 100 Keyed 0.5 (1/2") 0.125 (1/8") 1-3 Days $22.99
M100016N 100 1/2BXNOK : Magnaloy 100 HUB 1/2" BORE X NO KEY 100 Keyed 0.5 (1/2") NONE 1-3 Days $33.99
M100M10NC 100 10MMBW/NOK : Magnaloy 100 HUB 10MM BORE W/NO KEY W/CLAMP 100 Keyed 10mm NONE 1-3 Days $56.99
M100M10N 100 10MMBW/NOK : Magnaloy 100 HUB 10MM BORE W/NO KEY 100 Keyed 10mm NONE 1-3 Days $33.99
M100M1003 100 10MMBX3MMK : Magnaloy 100 HUB 10MM BORE X 3MM KEY 100 Keyed 10mm 3mm 1-3 Days $33.99
M10002206DSS 100 11/16BX3/16K : Magnaloy 100 HUB 11/16" BORE X 3/16" KEY W/DBL SET SCREW 100 Keyed 0.6875 (11/16") 0.1875 (3/16") 7-10 Days $23.99
M10002206 100 11/16BX3/16K : Magnaloy 100 HUB 11/16" BORE X 3/16" KEY 100 Keyed 0.6875 (11/16") 0.1875 (3/16") 1-3 Days $22.99
M100022N 100 11/16BXNOK : Magnaloy 100 HUB 11/16" BORE X NO KEY 100 Keyed 0.6875 (11/16") NONE 1-3 Days $33.99
M100M1104 100 11MMBX4MMK : Magnaloy 100 HUB 11MM BORE X 4MM KEY 100 Keyed 11mm 4mm 1-3 Days $33.99
M100M1204 100 12MMBX4MMK : Magnaloy 100 HUB 12MM BORE X 4 MM KEY 100 Keyed 12mm 4mm 1-3 Days $33.99
M100M1205 100 12MMBX5MMK : Magnaloy 100 HUB 12MM BORE X 5MM KEY 100 Keyed 12mm 5mm 1-3 Days $33.99
M100M12NDSS 100 12MMBXNOK : Magnaloy 100 HUB 12MM BORE X NO KEY W/2 S.S. 100 Keyed 12mm NONE 7-10 Days $35.99
M100M1305 100 13MMBX5MMK : Magnaloy 100 HUB 13MM BORE X 5MM KEY 100 Keyed 13mm 5mm 1-3 Days $33.99
M100M14N 100 14MMBW/NOK : Magnaloy 100 HUB 14MM BORE W/NO KEY 100 Keyed 14mm NONE 1-3 Days $33.99
M100M1403 100 14MMBX3MMK : Magnaloy 100 HUB 14MM BORE X 3MM KEY 100 Keyed 14mm 3mm 1-3 Days $43.99
M100M1404 100 14MMBX4MMK : Magnaloy 100 HUB 14MM BORE X 4MM KEY 100 Keyed 14mm 4mm 1-3 Days $33.99
M100M1405DSS 100 14MMBX5 MMK : Magnaloy 100 HUB 14MM BORE X 5 MM KEY W/DBL SET SCREW 100 Keyed 14mm 5mm 7-10 Days $35.99
M100M1405 100 14MMBX5MMK : Magnaloy 100 HUB 14MM BORE X 5MM KEY 100 Keyed 14mm 5mm 1-3 Days $33.99
M100M1503 100 15MMBX3MMK : Magnaloy 100 HUB 15MM BORE X 3MM KEY 100 Keyed 15mm 3mm 1-3 Days $33.99
M100M1504 100 15MMBX4MMK : Magnaloy 100 HUB 15MM BORE X 4MM KEY 100 Keyed 15mm 4mm 1-3 Days $33.99
M100M1505DSS 100 15MMBX5MMK : Magnaloy 100 HUB 15MM BORE X 5MM KEY W/DBL SET SCREW 100 Keyed 15mm 5mm 7-10 Days $35.99
M100M1505 100 15MMBX5MMK : Magnaloy 100 HUB 15MM BORE X 5MM KEY 100 Keyed 15mm 5mm 1-3 Days $33.99
M100M1604 100 16MMBX4MMK : Magnaloy 100 HUB 16MM BORE X 4MM KEY 100 Keyed 16mm 4mm 1-3 Days $33.99
M100M1605C 100 16MMBX5MMK : Magnaloy 100 HUB 16MM BORE X 5MM KEY CLAMP 100 Keyed 16mm 5mm 1-3 Days $66.99
M100M1605DSS 100 16MMBX5MMK : Magnaloy 100 HUB 16MM BORE X 5MM KEY W/DBL SET SCREW 100 Keyed 16mm 5mm 7-10 Days $35.99
M100M1605 100 16MMBX5MMK : Magnaloy 100 HUB 16MM BORE X 5MM KEY 100 Keyed 16mm 5mm 1-3 Days $33.99
M100M16NC 100 16MMBXNOK : Magnaloy 100 HUB 16MM BORE X NO KEY CLAMP 100 Keyed 16mm NONE 1-3 Days $66.99
M100M1703 100 17MMBX3MMK : Magnaloy 100 HUB 17MM BORE X 3MM KEY 100 Keyed 17mm 3mm 1-3 Days $33.99
M100M1705DSS 100 17MMBX5MMK : Magnaloy 100 HUB 17MM BORE X 5MM KEY W/DBL SET SCREW 100 Keyed 17mm 5mm 7-10 Days $35.99
M100M1705 100 17MMBX5MMK : Magnaloy 100 HUB 17MM BORE X 5MM KEY 100 Keyed 17mm 5mm 1-3 Days $33.99
M100M17N 100 17MMBXNOK : Magnaloy 100 HUB 17MM BORE X NO KEY 100 Keyed 17mm NONE 1-3 Days $33.99
M100M1806DSS45 100 18MMBX6MMK : Magnaloy 100 HUB 18MM BORE X 6MM KEY DBL SET SCREW AT 45DEG 100 Keyed 18mm 6mm 7-10 Days $35.99
M100M1806DSS 100 18MMBX6MMK : Magnaloy 100 HUB 18MM BORE X 6MM KEY DBL SET SCREW 100 Keyed 18mm 6mm 7-10 Days $35.99
M100M1806 100 18MMBX6MMK : Magnaloy 100 HUB 18MM BORE X 6MM KEY 100 Keyed 18mm 6mm 1-3 Days $33.99
M100M1905 100 19MMBX5MMK : Magnaloy 100 HUB 19MM BORE X 5MM KEY 100 Keyed 19mm 5mm Same Day $33.99
M100M1906DSS45 100 19MMBX6MMK : Magnaloy 100 HUB 19MM BORE X 6MM KEY W/DBL SET SCREW 45¡ 100 Keyed 19mm 6mm 7-10 Days $35.99
M100M1906DSS 100 19MMBX6MMK : Magnaloy 100 HUB 19MM BORE X 6MM KEY DBL SET SCREW 100 Keyed 19mm 6mm 7-10 Days $35.99
M100M1906 100 19MMBX6MMK : Magnaloy 100 HUB 19MM BORE X 6MM KEY 100 Keyed 19mm 6mm 1-3 Days $33.99
M10010008DSS45 100 1BX1/4K : Magnaloy 100 HUB 1" BORE X 1/4" KEY W/DBL SET SCREW AT 45DEG 100 Keyed 1" 0.25 (1/4") 7-10 Days $23.99
M10010008DSS 100 1BX1/4K : Magnaloy 100 HUB 1" BORE X 1/4" KEY W/DBL SET SCREW 100 Keyed 1" 0.25 (1/4") 7-10 Days $23.99
M10010008C 100 1BX1/4K : Magnaloy 100 HUB 1" BORE X 1/4" KEY W/CLAMP 100 Keyed 1" 0.25 (1/4") 1-3 Days $56.99
M10010008 100 1BX1/4K : Magnaloy 100 HUB 1" BORE X 1/4" KEY 100 Keyed 1" 0.25 (1/4") Same Day $22.99
