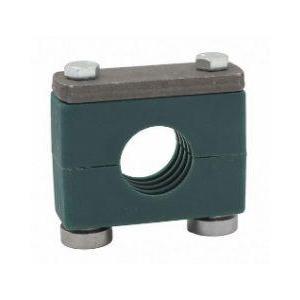

GMV-5038-PP-DPAL-AS-U-W13 : Stauff Clamp, Rail Mount, Heavy, 1.5 inch (38mm) OD, for 1.5" Tube, Green PP Insert, Profiled Interior, Carbon Steel
Roll over image to zoom in Click on image to zoom
GMV-5038-PP-DPAL-AS-U-W13 : Stauff Clamp, Rail Mount, Heavy, 1.5 inch (38mm) OD, for 1.5" Tube, Green PP Insert, Profiled Interior, Carbon Steel

GMV-5038-PP-DPAL-AS-U-W13 : Stauff Clamp, Rail Mount, Heavy, 1.5 inch (38mm) OD, for 1.5" Tube, Green PP Insert, Profiled Interior, Carbon Steel

Save $1.74
StauffSKU: 6100079288
4-6 Weeks
Price:
$14.99 $16.73

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Waldwick, New Jersey
Outside Diameter 1.5 inch (38mm)
Hardware Material Carbon Steel
Clamp Type Tube Clamp
Clamp Group Size Stauff Group 5 (DIN 5)
Nominal Tube Size 1.5 inch Tube

Description

Globally, Stauff clamps represent quick and easy pipe and hose installations, as well as a clean system layout. The vibration and noise reducing features provide and important contribution to environmental protection. Pipe is typically called out by inner diameter size and tube is typically measured by outer diameter size, so be sure to verify the OD of your pipe or tube prior to ordering. The Outside Diameter is the the size of the hole in the insert that your clamp will come with. The Nominal pipe/tube size is the size of pipe or tube that will fit that particular clamp. If you're not sure which size you need, please give us a call and we will be happy to help.
Product SKU Clamp Type Outside Diameter Nominal Tube Size Clamp Group Size Hardware Material Insert Texture Lead Time Price
6100079199 Tube Clamp 0.25 inch (6.4mm) 1/4 inch Tube Stauff Group 1A (DIN 1) Carbon Steel Profiled Interior with Tension Clearance Same Day $12.99
6100079201 Tube Clamp 0.375 inch (9.5mm) 3/8 inch Tube Stauff Group 3 (DIN 3) Carbon Steel Profiled Interior with Tension Clearance Same Day $12.99
6100079205 Tube Clamp 0.5 inch (12.7mm) 1/2 inch Tube Stauff Group 3 (DIN 3) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $12.99
GMV-3012.7-PP-H-DPAL-AS-U-W16 Tube Clamp 0.5 inch (12.7mm) 1/2 inch Tube Stauff Group 3 (DIN 3) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $8.99
6100079214 Tube Clamp 0.625 inch (16mm) 5/8 inch Tube Stauff Group 3 (DIN 3) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $12.99
6100079225 Tube Clamp 0.75 inch (19mm) 3/4 inch Tube Stauff Group 4 (DIN 4) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $13.99
GMV-4019-PP-H-DPAL-AS-U-W16 Tube Clamp 0.75 inch (19mm) 3/4 inch Tube Stauff Group 4 (DIN 4) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $8.99
6100079237 Tube Clamp 0.875 inch (22mm) 7/8 inch Tube Stauff Group 4 (DIN 4) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $13.99
GMV-4022-PP-H-DPAL-AS-U-W16 Tube Clamp 0.875 inch (22mm) 7/8 inch Tube Stauff Group 4 (DIN 4) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $4.99
6100079243 Tube Clamp 1 inch (25.4mm) 1" Tube Stauff Group 4 (DIN 4) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $13.99
6100079269 Tube Clamp 1.25 inch (32mm) 1.25 inch Tube Stauff Group 5 (DIN 5) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $14.99
6100079273 Tube Clamp 1.25 inch (32mm) 1.25 inch Tube Stauff Group 5 (DIN 5) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $15.99
6100079288 Tube Clamp 1.5 inch (38mm) 1.5 inch Tube Stauff Group 5 (DIN 5) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $14.99
6100079292 Tube Clamp 1.5 inch (38mm) 1.5 inch Tube Stauff Group 5 (DIN 5) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $15.99
6100079316 Tube Clamp 1.75 inch (45.5mm) 1.75 inch Tube Stauff Group 6 (DIN 6) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $26.99
GMV-6044.5-PP-H-DPAL-AS-U-W16 Tube Clamp 1.75 inch (45.5mm) 1.75 inch Tube Stauff Group 6 (DIN 6) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $19.99
6100079329 Tube Clamp 2 inch (50.8mm) 2 inch Tube Stauff Group 6 (DIN 6) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $26.99
GMV-6050.8-PP-H-DPAL-AS-U-W16 Tube Clamp 2 inch (50.8mm) 2 inch Tube Stauff Group 6 (DIN 6) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $11.99
6100093975 Tube Clamp 2.5 inch (63.5mm) 2.5 inch Tube Stauff Group 6 (DIN 6) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $26.99
GMV-6063.5-PP-H-DPAL-AS-U-W16 Tube Clamp 2.5 inch (63.5mm) 2.5 inch Tube Stauff Group 6 (DIN 6) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $19.99
6100093976 Tube Clamp 2.75 inch (70mm) 2.75 inch Tube Stauff Group 6 (DIN 6) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $26.99
GMV-6070-PP-H-DPAL-AS-U-W16 Tube Clamp 2.75 inch (70mm) 2.75 inch Tube Stauff Group 6 (DIN 6) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $19.99
