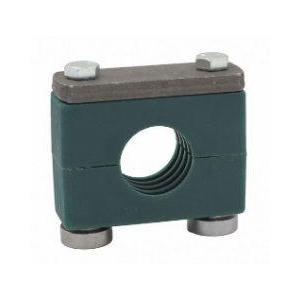

GMV-3017.2-PP-DPAL-AS-U-W13 : Stauff Heavy Series Clamp, Heavy Rail Mount, 0.677" (17.2mm) OD, for 3/8" Pipe, Green PP Insert, Profiled Interior, Carbon Steel

StauffSKU: 6100271728
4-6 Weeks

Price:
Sale price$11.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Waldwick, New Jersey
Nominal Pipe Size 3/8 inch Pipe
Outside Diameter 0.677" (17.2mm)
Hardware Material Carbon Steel
Clamp Type Pipe Clamp
Clamp Group Size Stauff Group 3 (DIN 3)

Description

Globally, Stauff clamps represent quick and easy pipe and hose installations, as well as a clean system layout. The vibration and noise reducing features provide and important contribution to environmental protection. Pipe is typically called out by inner diameter size and tube is typically measured by outer diameter size, so be sure to verify the OD of your pipe or tube prior to ordering. The Outside Diameter is the the size of the hole in the insert that your clamp will come with. The Nominal pipe/tube size is the size of pipe or tube that will fit that particular clamp. If you're not sure which size you need, please give us a call and we will be happy to help.
Product SKU Clamp Type Outside Diameter Nominal Pipe Size Clamp Group Size Hardware Material Insert Texture Lead Time Price
6100100354 Pipe Clamp 0.394" (10mm) 1/8 inch Pipe Stauff Group 3 (DIN 3) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $11.99
6100079211 Pipe Clamp 0.53" (13.5mm) OD 1/4 inch Pipe Stauff Group 3 (DIN 3) Carbon Steel Profiled Interior with Tension Clearance Same Day $11.99
GMV-3013.5-PP-H-DPAL-AS-U-W16 Pipe Clamp 0.53" (13.5mm) 1/4 inch Pipe Stauff Group 3 (DIN 3) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $6.99
6100271728 Pipe Clamp 0.677" (17.2mm) 3/8 inch Pipe Stauff Group 3 (DIN 3) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $11.99
6100079233 Pipe Clamp 0.84" (21.3mm) 1/2 inch Pipe Stauff Group 4 (DIN 4) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $11.99
6100097299 Pipe Clamp 0.84" (21.3mm) 1/2 inch Pipe Stauff Group 4 (DIN 4) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $13.99
6100079251 Pipe Clamp 1.06" (26.9mm) 3/4 inch Pipe Stauff Group 4 (DIN 4) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $11.99
GMV-4026.9-PP-H-DPAL-AS-U-W16 Pipe Clamp 1.06" (26.9mm) 3/4 inch Pipe Stauff Group 4 (DIN 4) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $6.99
6100079277 Pipe Clamp 1.327" (33.7mm) 1 inch Pipe Stauff Group 5 (DIN 5) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $12.99
GMV-5033.7-PP-H-DPAL-AS-U-W16 Pipe Clamp 1.327" (33.7mm) 1 inch Pipe Stauff Group 5 (DIN 5) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $7.99
6100079298 Pipe Clamp 1.65" (42mm) 1.25 inch Pipe Stauff Group 5 (DIN 5) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $12.99
GMV-5042-PP-H-DPAL-AS-U-W16 Pipe Clamp 1.65" (42mm) 1.25 inch Pipe Stauff Group 5 (DIN 5) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $3.99
6100079324 Pipe Clamp 1.9" (48.3mm) 1.5 inch Pipe Stauff Group 6 (DIN 6) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $23.99
GMV-6048.3-PP-H-DPAL-AS-U-W16 Pipe Clamp 1.9" (48.3mm) 1.5 inch Pipe Stauff Group 6 (DIN 6) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $9.99
6100079345 Pipe Clamp 2.37" (60.3mm) 2 inch Pipe Stauff Group 6 (DIN 6) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $23.99
GMV-6060.3-PP-H-DPAL-AS-U-W16 Pipe Clamp 2.37" (60.3mm) 2 inch Pipe Stauff Group 6 (DIN 6) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $16.99
