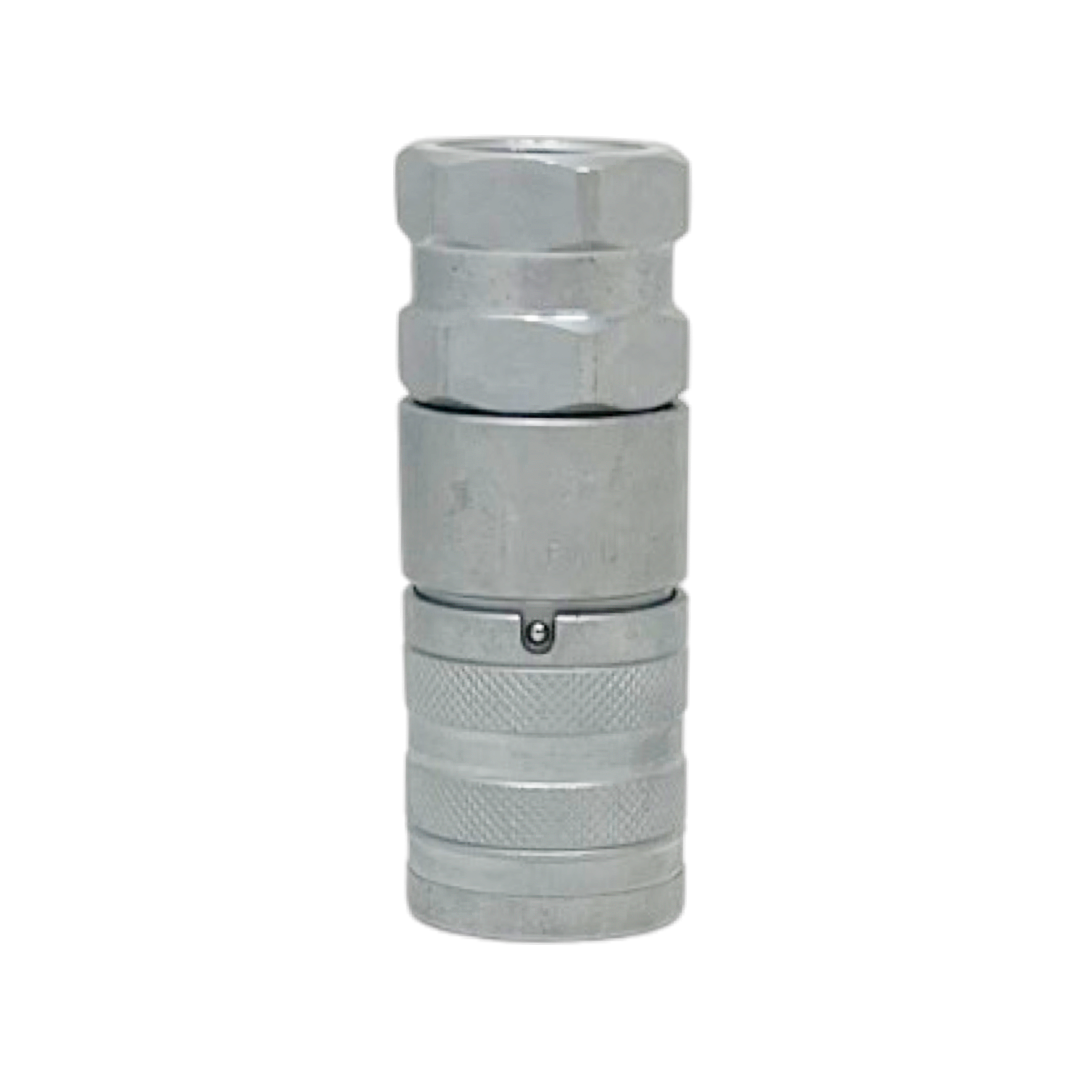

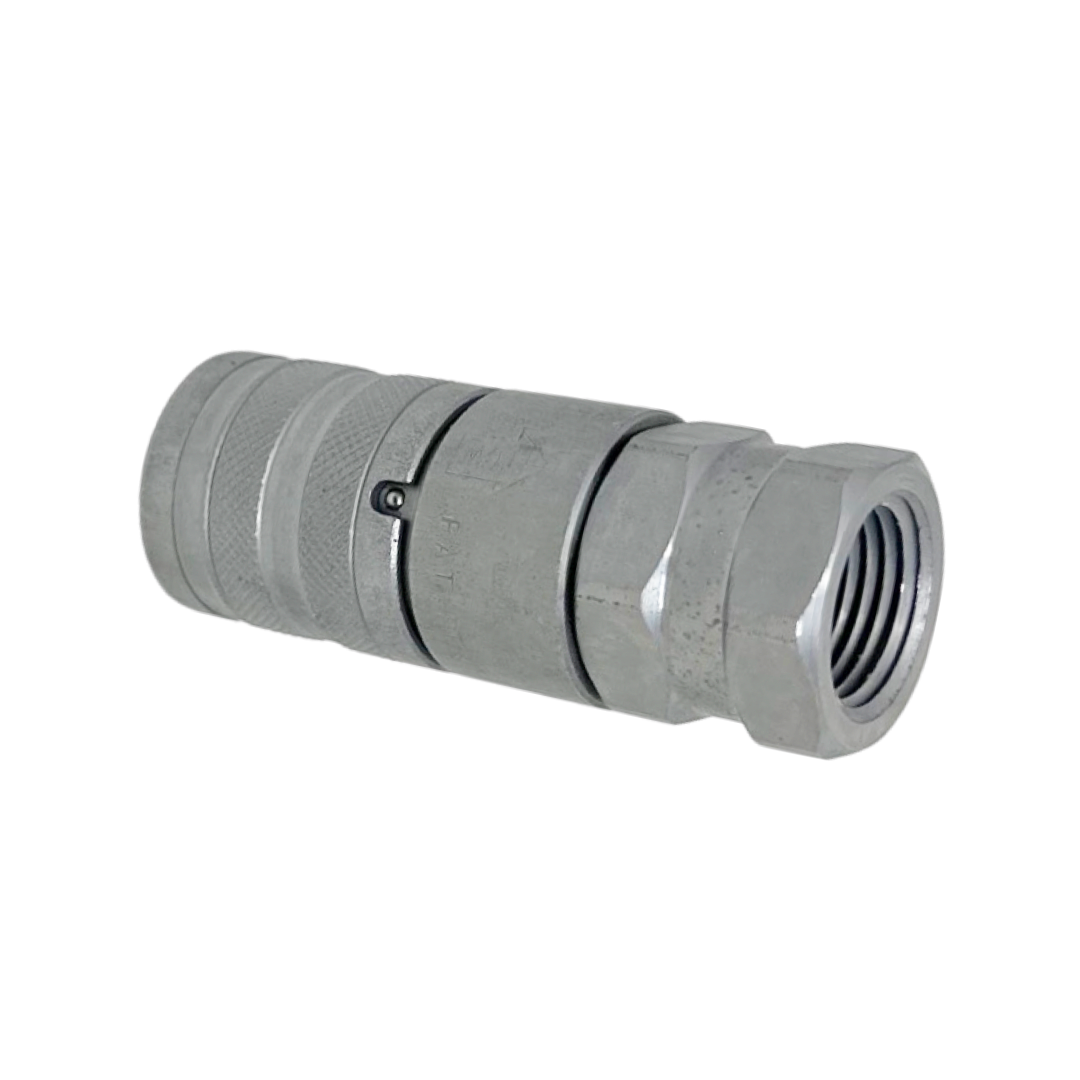

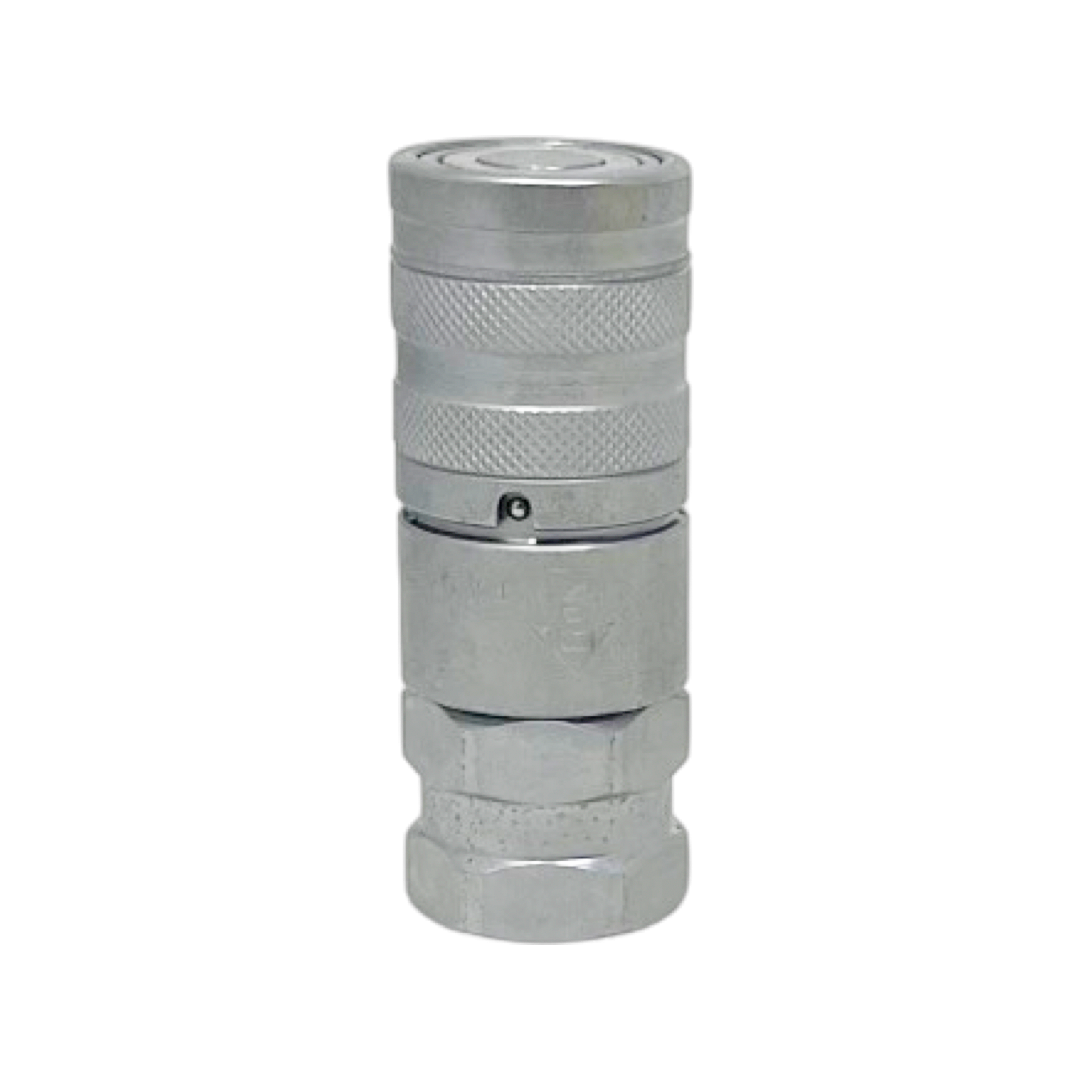

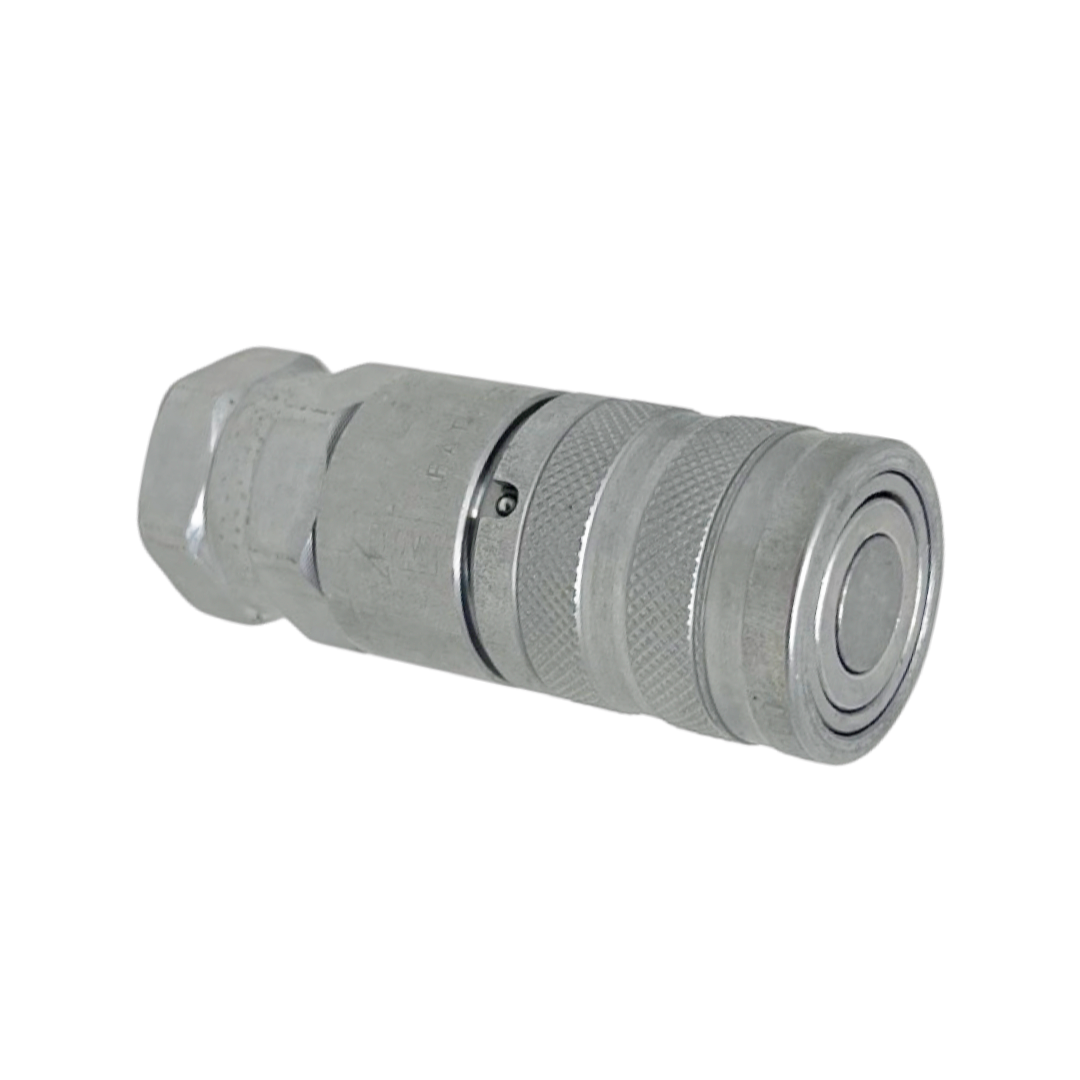

FFH06 12SAE F : Faster Quick Disconnect, Female 3/8" Coupler, 0.5 (1/2") ORB Connection, 5076psi MAWP, 13.2 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Not Allowed
Roll over image to zoom in Click on image to zoom
FFH06 12SAE F : Faster Quick Disconnect, Female 3/8" Coupler, 0.5 (1/2") ORB Connection, 5076psi MAWP, 13.2 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Not AllowedFFH06 12SAE F : Faster Quick Disconnect, Female 3/8" Coupler, 0.5 (1/2") ORB Connection, 5076psi MAWP, 13.2 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Not AllowedFFH06 12SAE F : Faster Quick Disconnect, Female 3/8" Coupler, 0.5 (1/2") ORB Connection, 5076psi MAWP, 13.2 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Not AllowedFFH06 12SAE F : Faster Quick Disconnect, Female 3/8" Coupler, 0.5 (1/2") ORB Connection, 5076psi MAWP, 13.2 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Not AllowedFFH06 12SAE F : Faster Quick Disconnect, Female 3/8" Coupler, 0.5 (1/2") ORB Connection, 5076psi MAWP, 13.2 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Not Allowed

FFH06 12SAE F : Faster Quick Disconnect, Female 3/8" Coupler, 0.5 (1/2") ORB Connection, 5076psi MAWP, 13.2 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Not Allowed

Save $2.62
FasterSKU: FFH06 12SAE F
1-2 Weeks
Price:
$31.48 $34.10

Product Details

Data Sheet Click here to download
Usually Ships Within 1-2 Weeks
Factory Location Maumee, Ohio
Port Size 0.5 (1/2") ORB
Type Push to Connect
End Connections Connect Under Pressure Not Allowed
Pressure Rating 5076
Series Series: FFH
Operating Force 34 lb
Country of Manufacture Country of Manufacture: Italy
Height 1.18
Length 3.03
Width 1.18
Weight 0.58
Side 1 Gender Female
Side 1 Size 0.375 (3/8")

Description

Flat-Face couplings with real maximum working pressure of 35 MPa and Zinc-Nickel plating. Flat valve shut-off system contributes to prevent contamination and spillage. ISO 16028 interchange.
