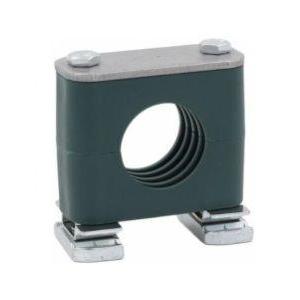

CRA-217.2-PP-DP-AS-U-W5 : Stauff Clamp, Unistrut Mount, 0.677" (17.2mm) OD, for 3/8" Pipe, Green PP Insert, Profiled Interior, 316SS

StauffSKU: 6100152521
4-6 Weeks

Price:
Sale price$52.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Waldwick, New Jersey
Nominal Pipe Size 3/8 inch Pipe
Outside Diameter 0.677" (17.2mm)
Hardware Material 316 Stainless Steel
Clamp Style Standard Unistrut Mount
Clamp Type Pipe Clamp
Clamp Group Size Stauff Group 2 (DIN 2)
Country of Manufacture Germany
Height 1.3
Length 1.65
Width 1.18
Weight 0.5

Description

Globally, Stauff clamps represent quick and easy pipe and hose installations, as well as a clean system layout. The vibration and noise reducing features provide and important contribution to environmental protection. Pipe is typically called out by inner diameter size and tube is typically measured by outer diameter size, so be sure to verify the OD of your pipe or tube prior to ordering. The Outside Diameter is the the size of the hole in the insert that your clamp will come with. The Nominal pipe/tube size is the size of pipe or tube that will fit that particular clamp. If you're not sure which size you need, please give us a call and we will be happy to help.
Product SKU Clamp Type Outside Diameter Nominal Pipe Size Clamp Group Size Hardware Material Insert Texture Lead Time Price
CRA-110A-PP-DP-AS-U-W3 Pipe Clamp 0.394" (10mm) 1/8 inch Pipe Stauff Group 1A (DIN 1) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $3.99
CRA-110A-PP-DP-AS-U-W5 Pipe Clamp 0.394" (10mm) 1/8 inch Pipe Stauff Group 1A (DIN 1) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $31.99
CRA-110A-PP-H-DP-AS-U-W3 Pipe Clamp 0.394" (10mm) 1/8 inch Pipe Stauff Group 1A (DIN 1) Carbon Steel Smooth Interior without Tension Clearance 4-6 Weeks $5.99
6100078805 Pipe Clamp 0.53" (13.5mm) 1/4 inch Pipe Stauff Group 2 (DIN 2) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $8.99
6100147567 Pipe Clamp 0.53" (13.5mm) 1/4 inch Pipe Stauff Group 2 (DIN 2) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $52.99
6100093904 Pipe Clamp 0.677" (17.2mm) 3/8 inch Pipe Stauff Group 2 (DIN 2) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $8.99
6100152521 Pipe Clamp 0.677" (17.2mm) 3/8 inch Pipe Stauff Group 2 (DIN 2) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $52.99
6100078832 Pipe Clamp 0.84" (21.3mm) 1/2 inch Pipe Stauff Group 3 (DIN 3) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $8.99
6100078834 Pipe Clamp 0.84" (21.3mm) 1/2 inch Pipe Stauff Group 3 (DIN 3) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $53.99
6100078870 Pipe Clamp 1.06" (26.9mm) 3/4 inch Pipe Stauff Group 4 (DIN 4) Carbon Steel Profiled Interior with Tension Clearance 4-6 Weeks $8.99
6100078892 Pipe Clamp 1.327" (33.7mm) 1 inch Pipe Stauff Group 5 (DIN 5) Carbon Steel Profiled Interior with Tension Clearance Same Day $9.99
6100078895 Pipe Clamp 1.327" (33.7mm) 1 inch Pipe Stauff Group 5 (DIN 5) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $56.99
6100078905 Pipe Clamp 1.65" (42mm) 1.25 inch Pipe Stauff Group 5 (DIN 5) Carbon Steel Profiled Interior with Tension Clearance Same Day $9.99
6100100323 Pipe Clamp 1.65" (42mm) 1.25 inch Pipe Stauff Group 5 (DIN 5) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $56.99
6100078919 Pipe Clamp 1.9" (48.3mm) 1.5 inch Pipe Stauff Group 6 (DIN 6) Carbon Steel Profiled Interior with Tension Clearance Same Day $12.99
6100093923 Pipe Clamp 1.9" (48.3mm) 1.5 inch Pipe Stauff Group 6 (DIN 6) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $63.99
6100078930 Pipe Clamp 2.37" (60.3mm) 2 inch Pipe Stauff Group 7 (DIN 7) Carbon Steel Profiled Interior with Tension Clearance Same Day $16.99
6100078933 Pipe Clamp 2.37" (60.3mm) 2 inch Pipe Stauff Group 7 (DIN 7) 316 Stainless Steel Profiled Interior with Tension Clearance Same Day $87.99
6100078939 Pipe Clamp 2.874" (73mm) 2.5 inch Pipe Stauff Group 7 (DIN 7) Carbon Steel Profiled Interior with Tension Clearance Same Day $16.99
CRA-773-PP-DP-AS-U-W5 Pipe Clamp 2.874" (73mm) 2.5 inch Pipe Stauff Group 7 (DIN 7) 316 Stainless Steel Profiled Interior with Tension Clearance Same Day $57.99
6100100342 Pipe Clamp 3.5" (88.9mm) 3 inch Pipe Stauff Group 8 (DIN 8) 316 Stainless Steel Profiled Interior with Tension Clearance 4-6 Weeks $107.99
