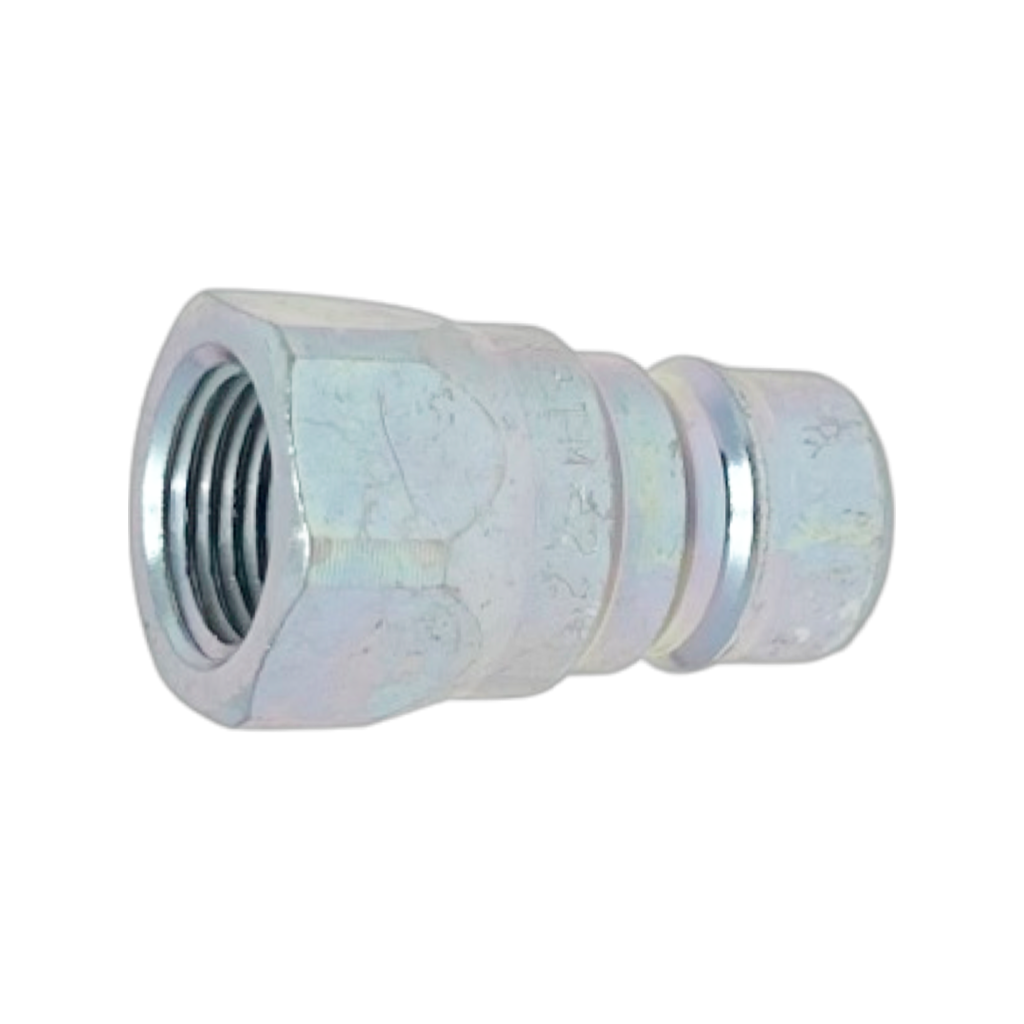

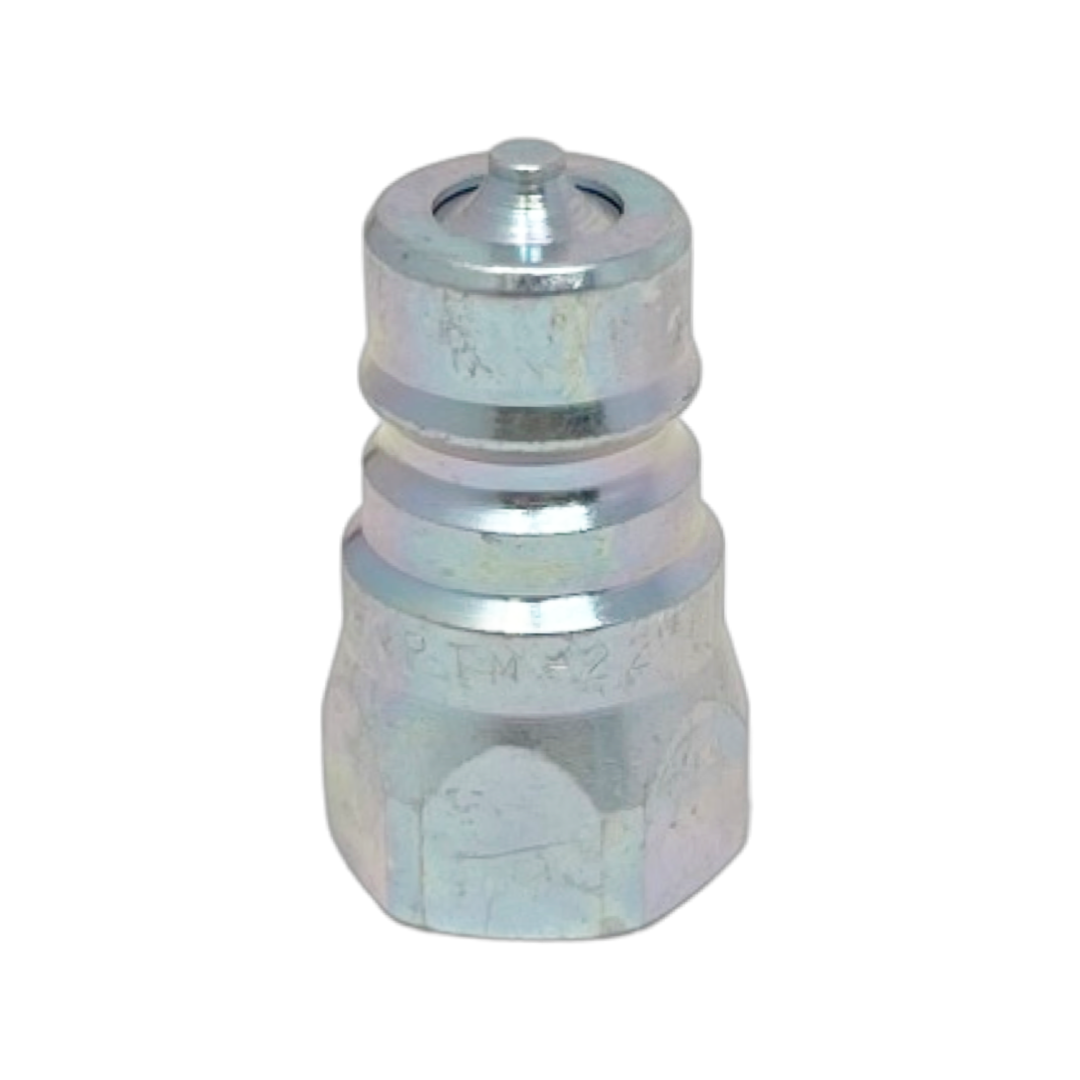

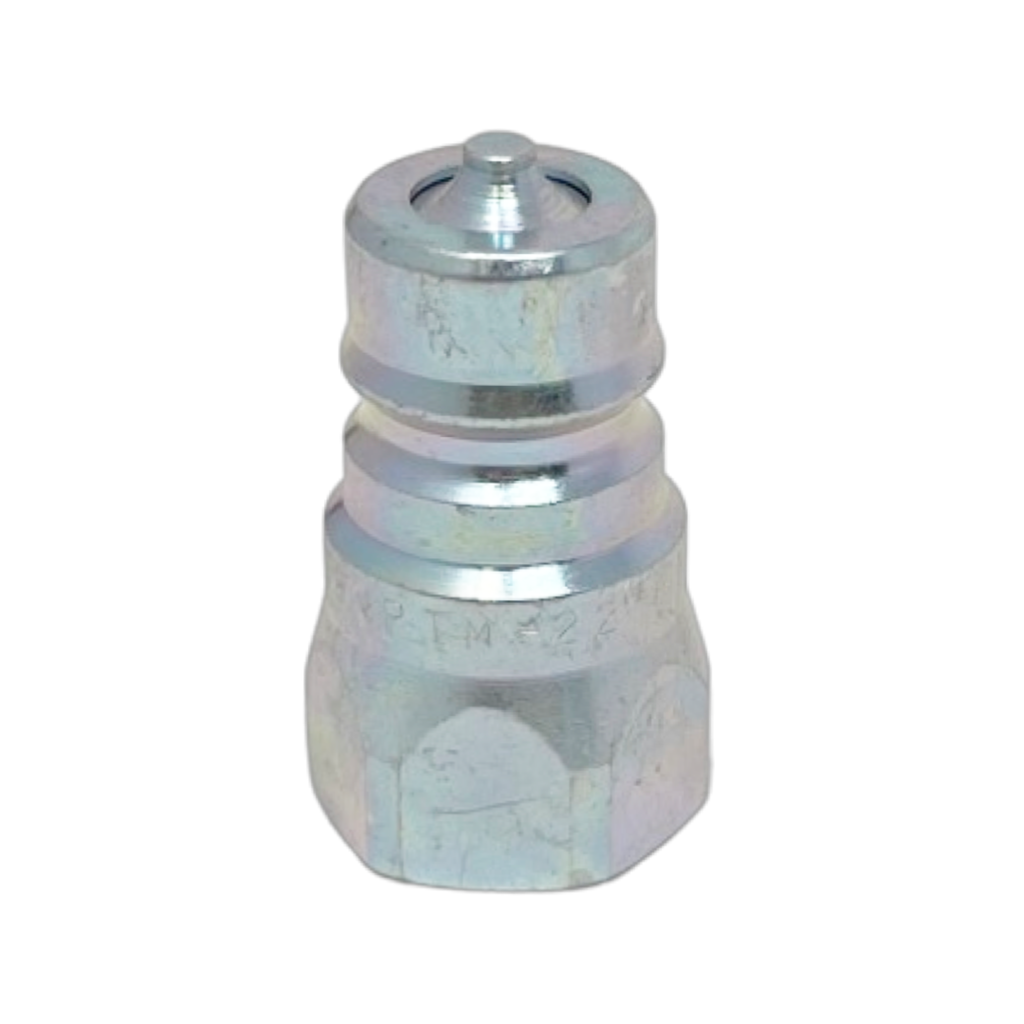

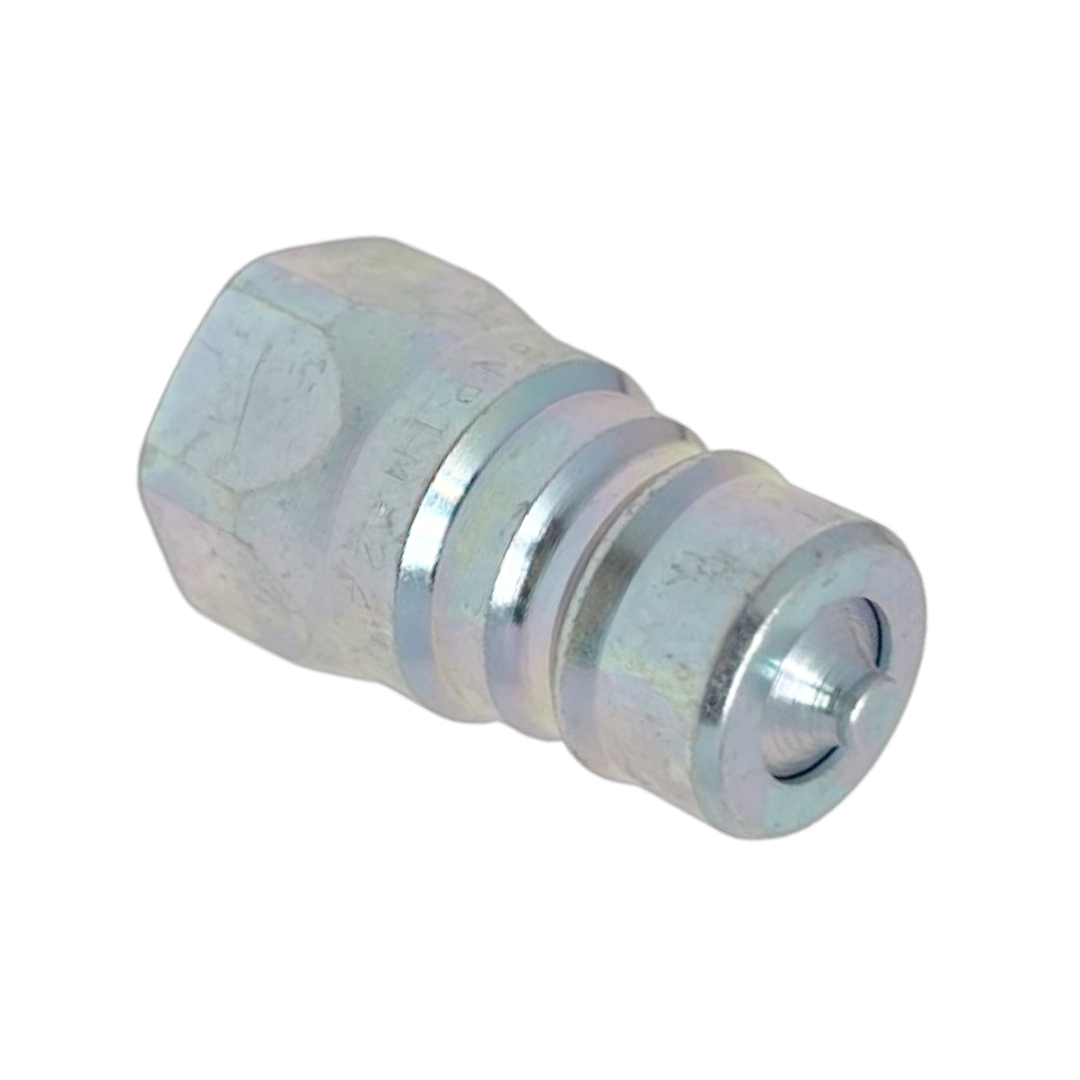

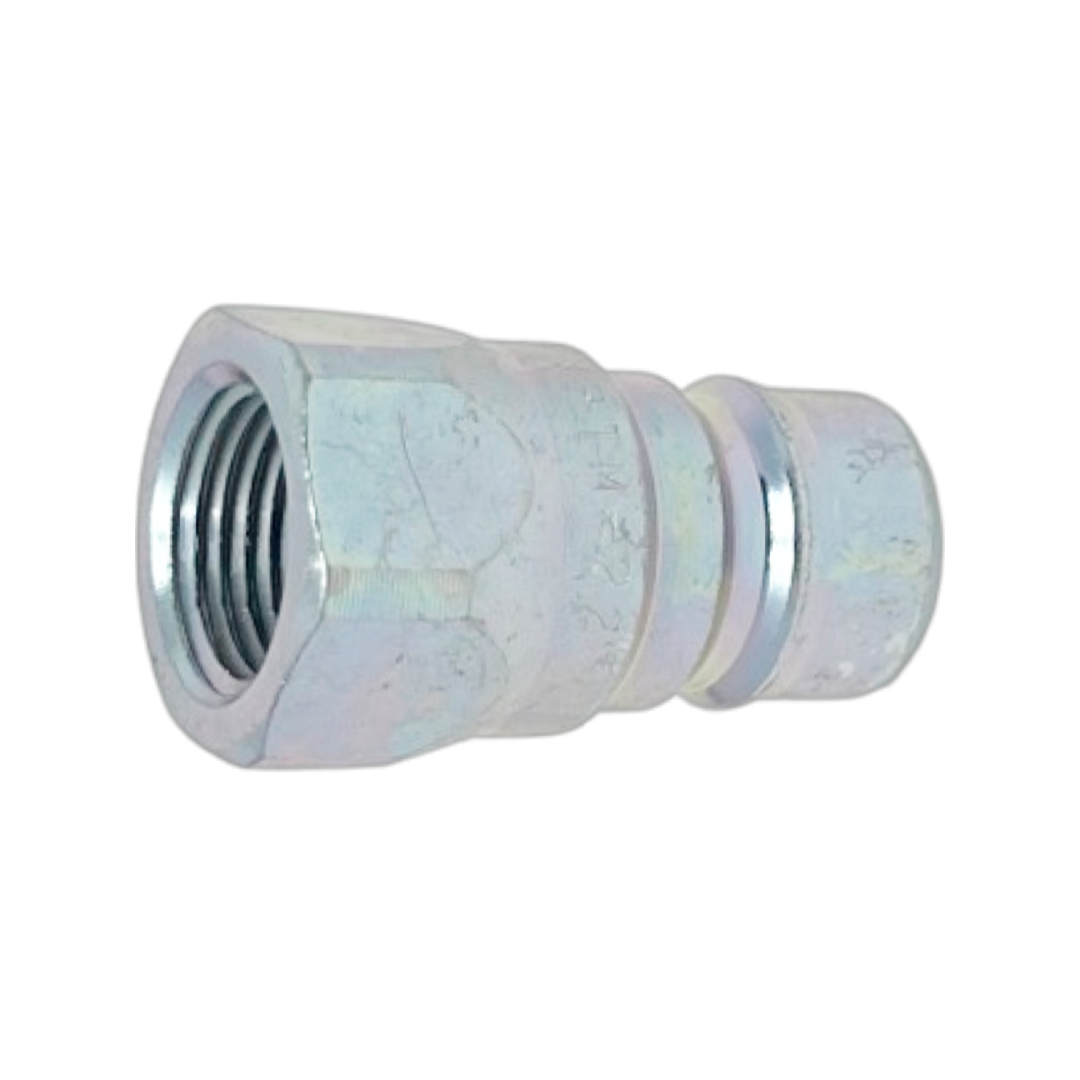

ANV 34 NPT M : Faster Quick Disconnect, Male 3/4" Coupler, 0.75 (3/4") NPT Connection, 4351psi MAWP, 47.55 GPM, Sleeve Retraction Style, Connection Under Pressure Not Allowed
Roll over image to zoom in Click on image to zoom
ANV 34 NPT M : Faster Quick Disconnect, Male 3/4" Coupler, 0.75 (3/4") NPT Connection, 4351psi MAWP, 47.55 GPM, Sleeve Retraction Style, Connection Under Pressure Not AllowedANV 34 NPT M : Faster Quick Disconnect, Male 3/4" Coupler, 0.75 (3/4") NPT Connection, 4351psi MAWP, 47.55 GPM, Sleeve Retraction Style, Connection Under Pressure Not AllowedANV 34 NPT M : Faster Quick Disconnect, Male 3/4" Coupler, 0.75 (3/4") NPT Connection, 4351psi MAWP, 47.55 GPM, Sleeve Retraction Style, Connection Under Pressure Not AllowedANV 34 NPT M : Faster Quick Disconnect, Male 3/4" Coupler, 0.75 (3/4") NPT Connection, 4351psi MAWP, 47.55 GPM, Sleeve Retraction Style, Connection Under Pressure Not Allowed

ANV 34 NPT M : Faster Quick Disconnect, Male 3/4" Coupler, 0.75 (3/4") NPT Connection, 4351psi MAWP, 47.55 GPM, Sleeve Retraction Style, Connection Under Pressure Not Allowed

Save $1.13
FasterSKU: ANV 34 NPT M
Same Day
7
03.30.C.103B
Price:
$13.65 $14.78

Product Details

Data Sheet Click here to download
Usually Ships Within Same Day
Factory Location Maumee, Ohio
Port Size 0.75 (3/4") NPT
Type Sleeve Retraction
End Connections Connect Under Pressure Not Allowed
Pressure Rating 4351
Series Series: ANV
Operating Force 34 lb
Country of Manufacture Country of Manufacture: Italy
Height 1.5
Length 2.17
Width 1.5
Weight 0.4
Side 1 Gender Male
Side 1 Size 0.75 (3/4")

Description

Standard couplings for agriculture applications. Complete range of sizes from 1/4" to 2" (with BSP, NPT or SAE female threads available). ISO 7241 part A interchange.
