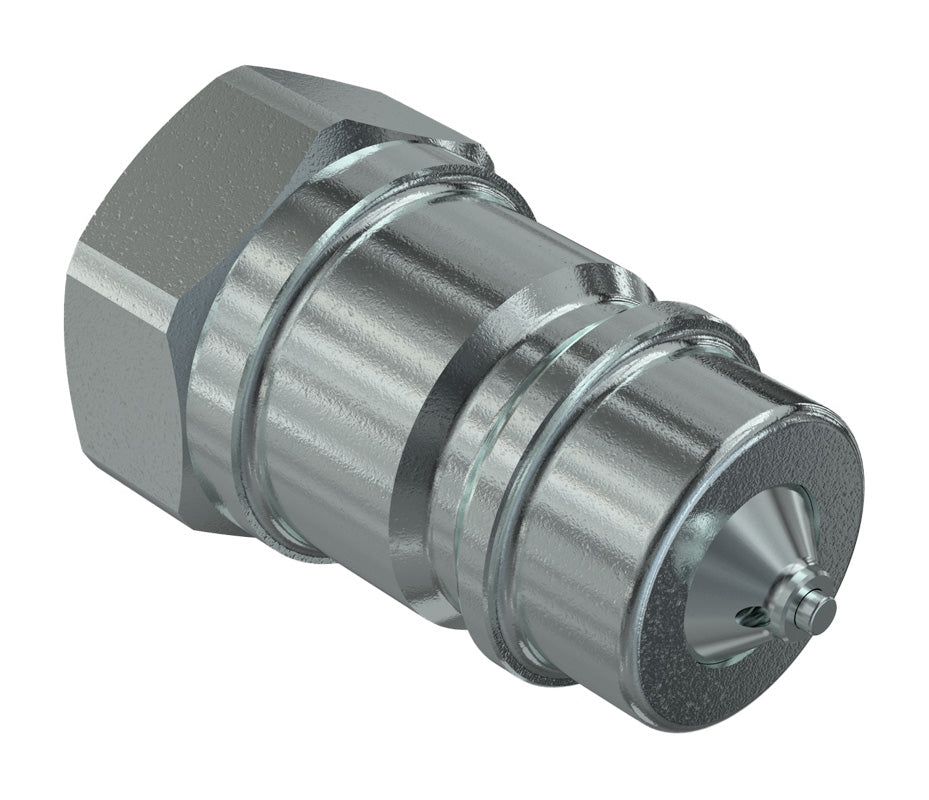

4NV 12-12SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.5 (1/2") ORB Connection, 3625psi MAWP, 19.81 GPM, ISO 7241 Part A Interchange, Sleeve Retraction Style, Connection Under Pressure Allowed Residual
4NV 12-12SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.5 (1/2") ORB Connection, 3625psi MAWP, 19.81 GPM, ISO 7241 Part A Interchange, Sleeve Retraction Style, Connection Under Pressure Allowed Residual
Roll over image to zoom in Click on image to zoom
4NV 12-12SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.5 (1/2") ORB Connection, 3625psi MAWP, 19.81 GPM, ISO 7241 Part A Interchange, Sleeve Retraction Style, Connection Under Pressure Allowed Residual4NV 12-12SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.5 (1/2") ORB Connection, 3625psi MAWP, 19.81 GPM, ISO 7241 Part A Interchange, Sleeve Retraction Style, Connection Under Pressure Allowed Residual

4NV 12-12SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.5 (1/2") ORB Connection, 3625psi MAWP, 19.81 GPM, ISO 7241 Part A Interchange, Sleeve Retraction Style, Connection Under Pressure Allowed Residual

FasterSKU: 4NV 12-12SAE M
1-2 Weeks
Price:
$10.30

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet Click here to download
Usually Ships Within 1-2 Weeks
Factory Location Maumee, Ohio
Port Size 0.5 (1/2") ORB
Type Sleeve Retraction
End Connections Allowed Residual
Pressure Rating 3625
Series Series: 4NV
Operating Force 25 lb
Country of Manufacture Country of Manufacture: Italy
Height 1.18
Length 1.73
Width 1.18
Weight 0.19
Side 1 Gender Male
Side 1 Size 0.5 (1/2")

Description

Standard 1/2" couplings for agriculture allowing an easy relief of residual pressure thanks to a microvalve. ISO 7241 part A interchange.
