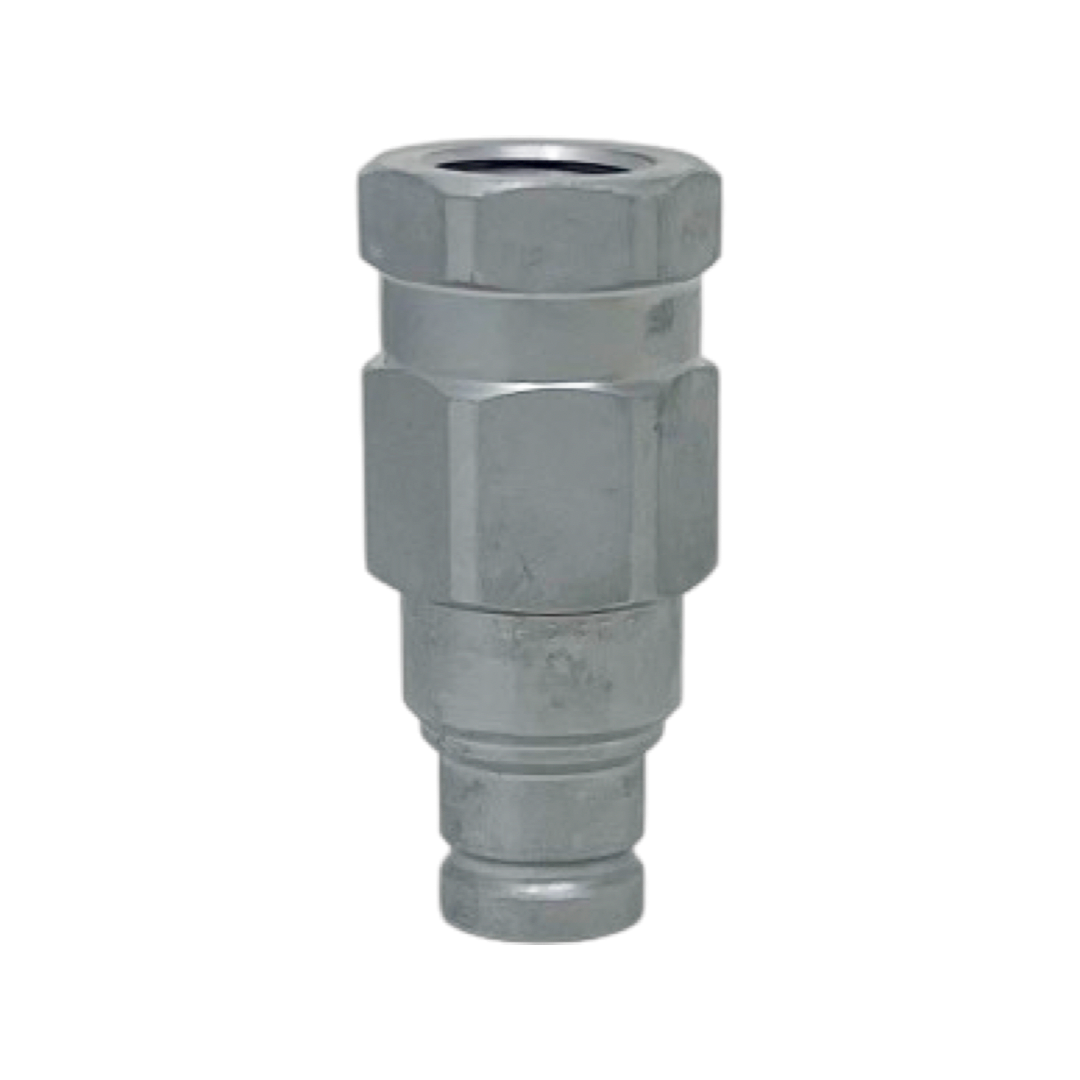

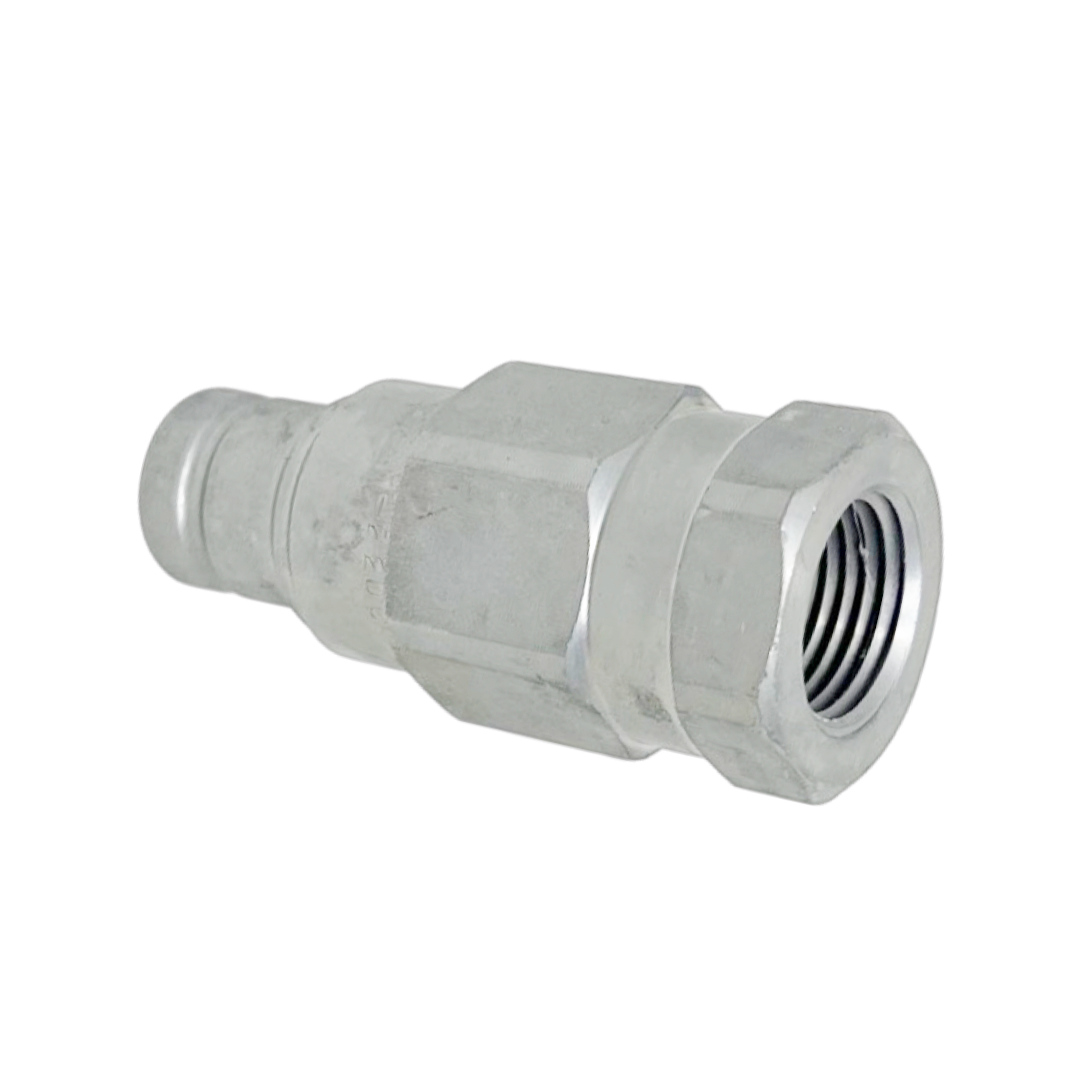

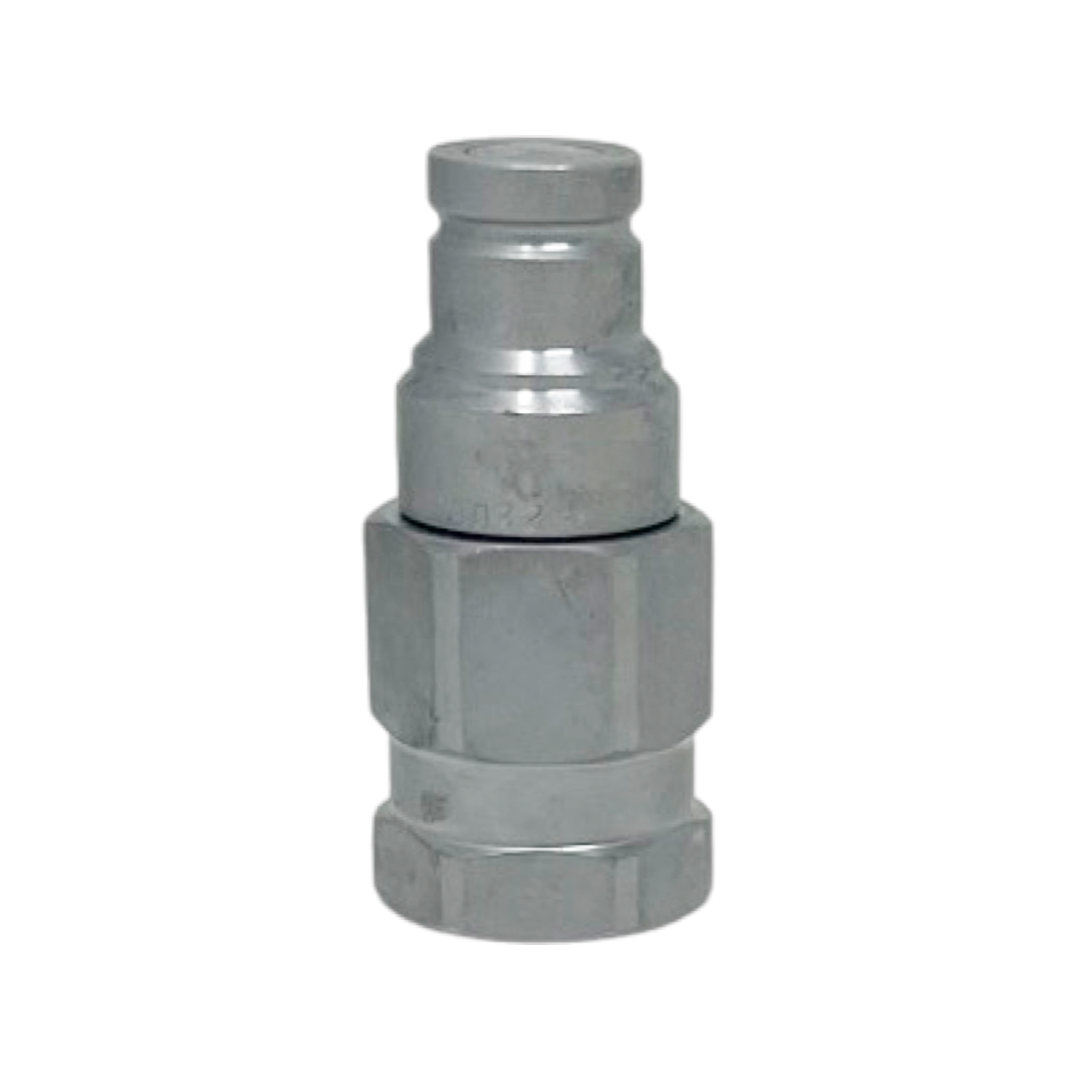

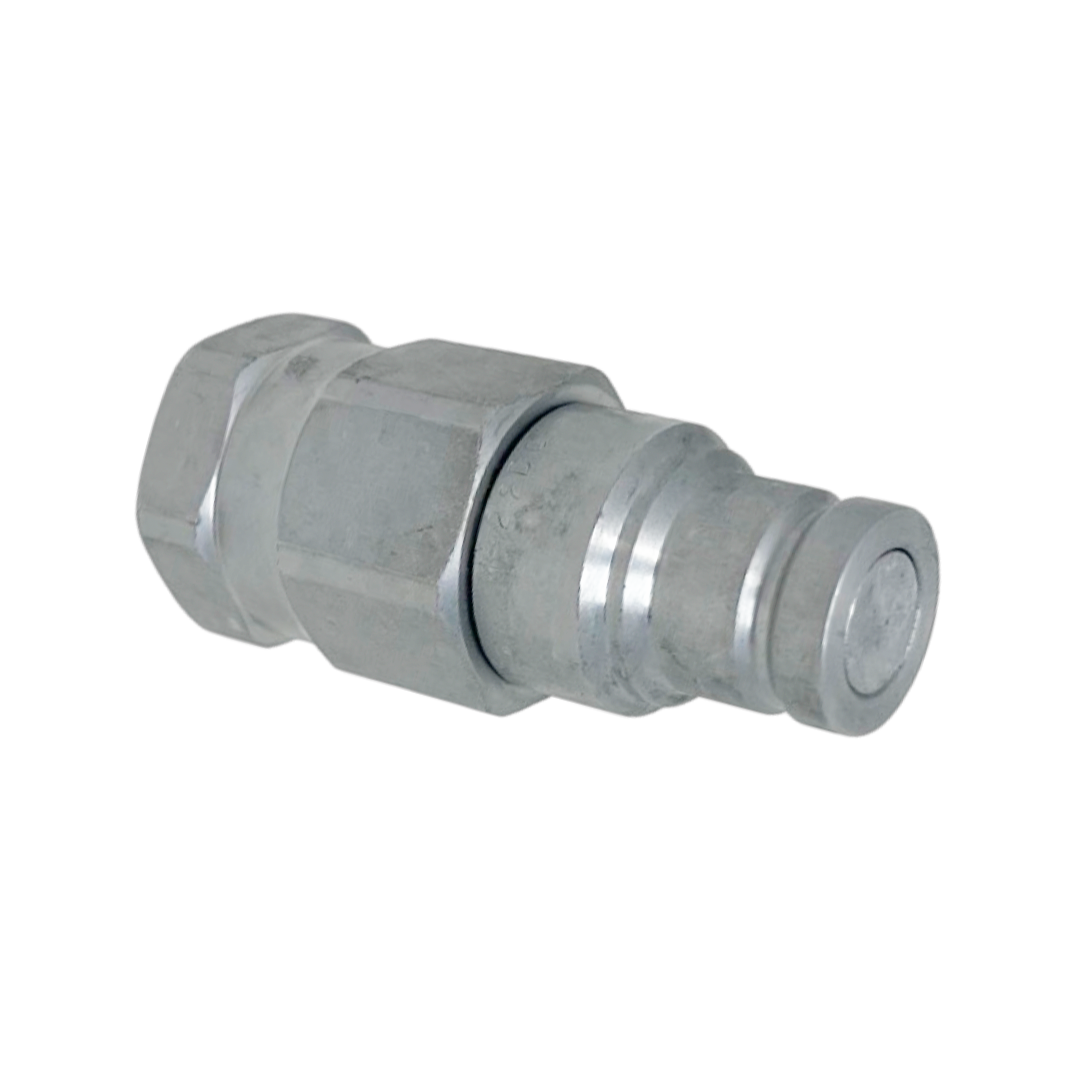

3FFH08 34SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.75 (3/4") ORB Connection, 5076psi MAWP, 17.17 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Allowed at Working Pressure Male Side Only
3FFH08 34SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.75 (3/4") ORB Connection, 5076psi MAWP, 17.17 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Allowed at Working Pressure Male Side Only
3FFH08 34SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.75 (3/4") ORB Connection, 5076psi MAWP, 17.17 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Allowed at Working Pressure Male Side Only
3FFH08 34SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.75 (3/4") ORB Connection, 5076psi MAWP, 17.17 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Allowed at Working Pressure Male Side Only
3FFH08 34SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.75 (3/4") ORB Connection, 5076psi MAWP, 17.17 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Allowed at Working Pressure Male Side Only
Roll over image to zoom in Click on image to zoom
3FFH08 34SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.75 (3/4") ORB Connection, 5076psi MAWP, 17.17 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Allowed at Working Pressure Male Side Only3FFH08 34SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.75 (3/4") ORB Connection, 5076psi MAWP, 17.17 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Allowed at Working Pressure Male Side Only3FFH08 34SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.75 (3/4") ORB Connection, 5076psi MAWP, 17.17 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Allowed at Working Pressure Male Side Only3FFH08 34SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.75 (3/4") ORB Connection, 5076psi MAWP, 17.17 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Allowed at Working Pressure Male Side Only3FFH08 34SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.75 (3/4") ORB Connection, 5076psi MAWP, 17.17 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Allowed at Working Pressure Male Side Only

3FFH08 34SAE M : Faster Quick Disconnect, Male 1/2" Coupler, 0.75 (3/4") ORB Connection, 5076psi MAWP, 17.17 GPM, ISO 16028 Interchange, Push to Connect Style, Connection Under Pressure Allowed at Working Pressure Male Side Only

Save $2.46
FasterSKU: 3FFH08 34SAE M
1-2 Weeks
Price:
$30.99 $33.45

Product Details

Data Sheet Click here to download
Usually Ships Within 1-2 Weeks
Factory Location Maumee, Ohio
Port Size 0.75 (3/4") ORB
Type Push to Connect
End Connections Allowed at Working Pressure Male Side Only
Pressure Rating 5076
Series Series: 3FFH
Operating Force 45 lb
Country of Manufacture Country of Manufacture: Italy
Height 1.46
Length 4.79
Width 1.46
Weight 0.98
Side 1 Gender Male
Side 1 Size 0.5 (1/2")

Description

Flat face couplings, connectable under residual pressure. Real 35 MPa (5076 psi) max working pressure. ISO 16028 interchange. Zinc-Nickel plating. It is possible to couple either a 3FFH female half under pressure with a FFH male half, or a 3FFH male half under pressure with a FFH female half. The 1/2" size, one of the most popular diameters used for compact excavators and tracked/wheeled loaders equipment, is now available in a compact version (3FFK) with a 25 mm shorter body, to suit applications characterized by longitudinal space constraints. 3FFK offers same technical performances as 1/2" male couplings belonging to 3FFH series.
