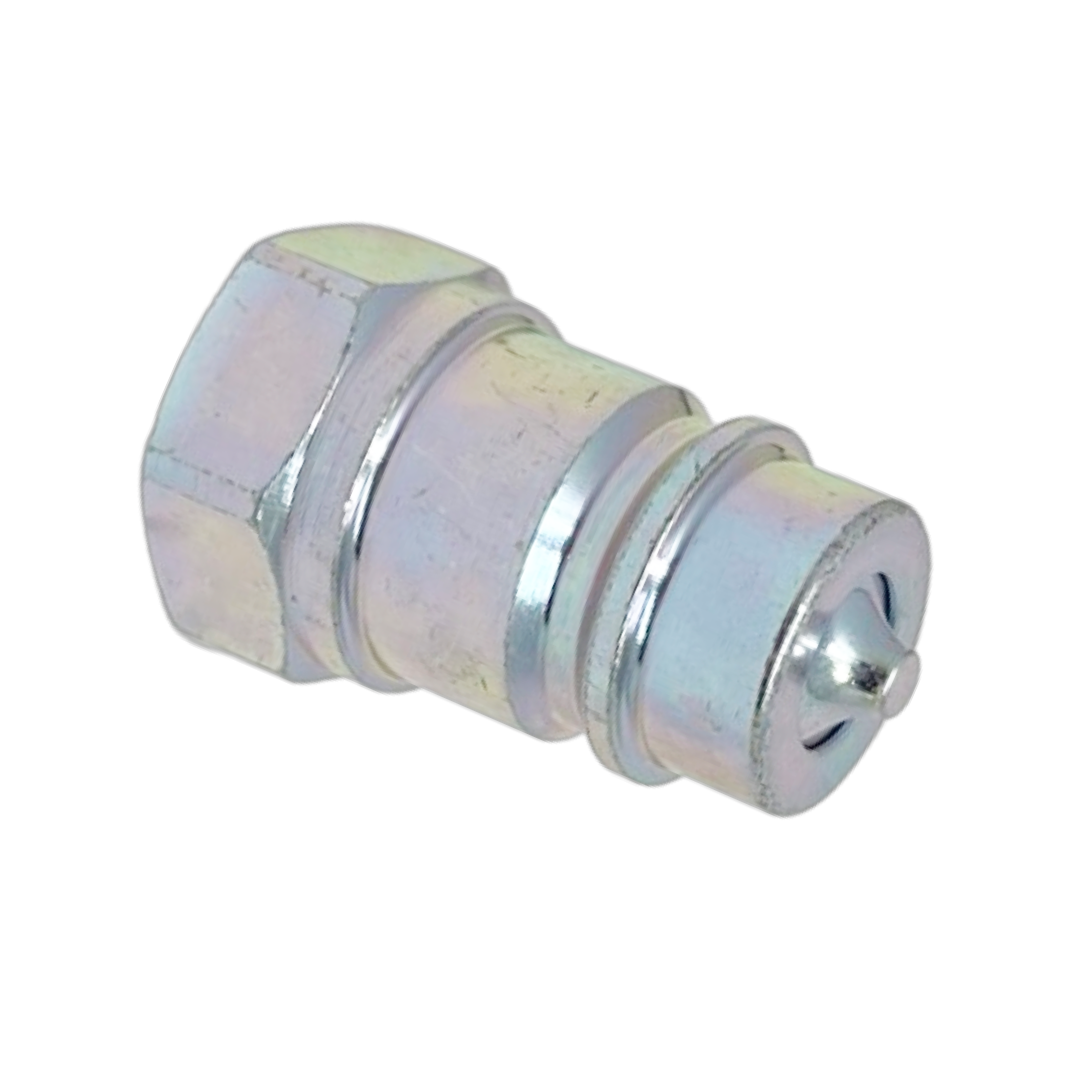

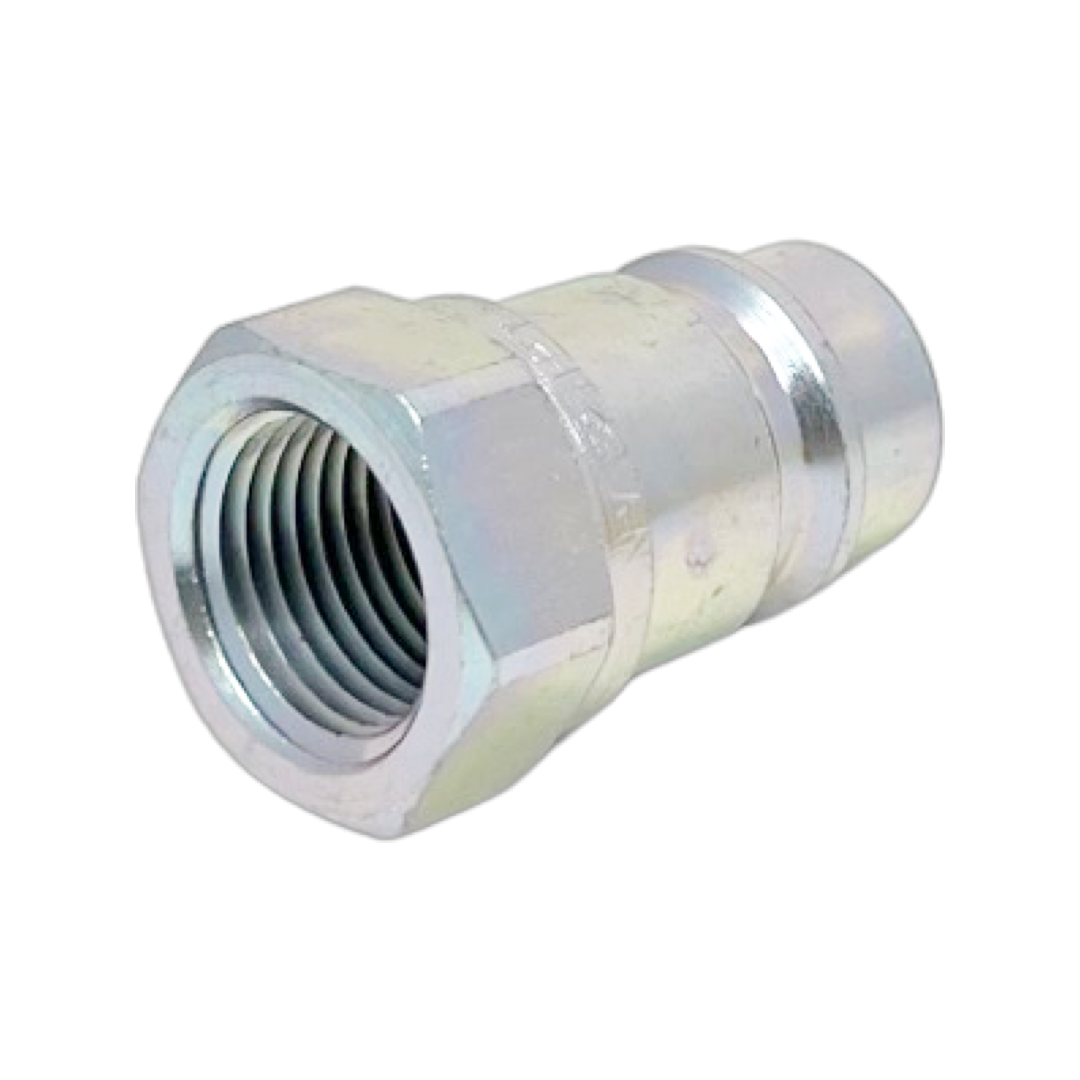

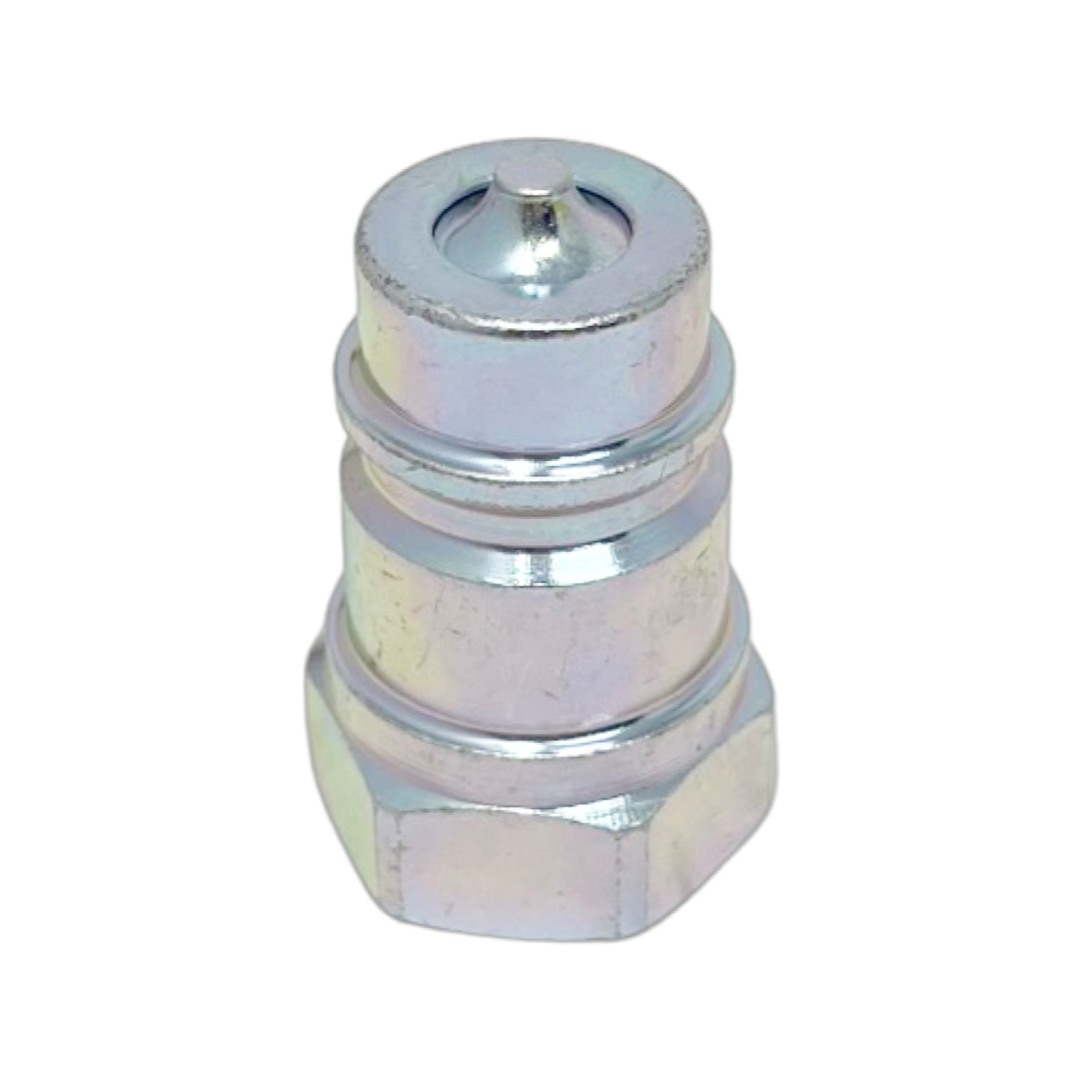

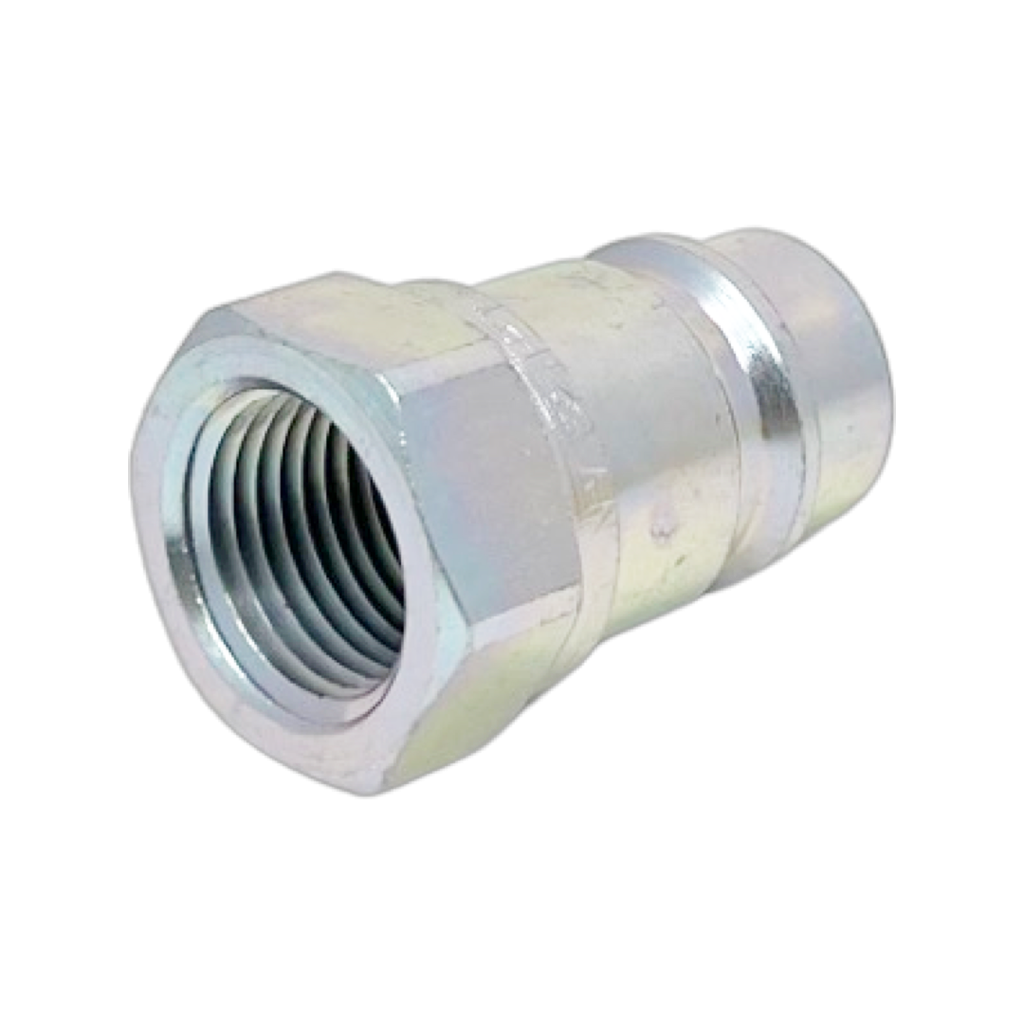

FasterSKU: NV 12 NPT M
Price:
$5.99

Product Details

Data Sheet Click here to download
Factory Location Maumee, Ohio
Port Size 0.5 (1/2") NPT
Type Sleeve Retraction
End Connections Connect Under Pressure Not Allowed
Pressure Rating 4351
Series Series: NV
Operating Force 18 lb
Country of Manufacture Country of Manufacture: Italy
Height 1.18
Length 1.73
Width 1.18
Weight 0.56

Description

Standard couplings for general purpose applications with poppet valve shut-off system. Faster proprietary profile ( 1/2" size only is interchangeable according to ISO 7241 part A).
