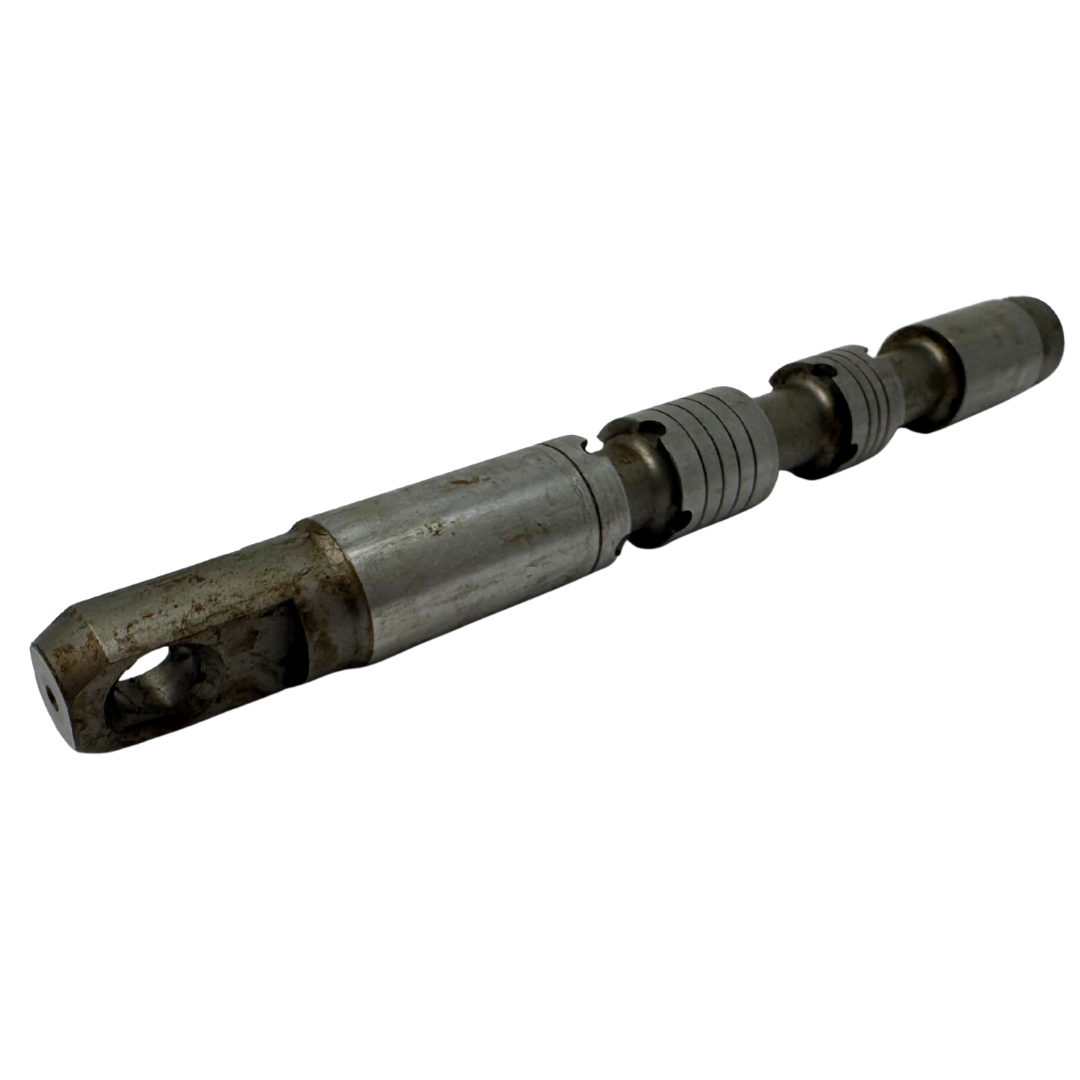

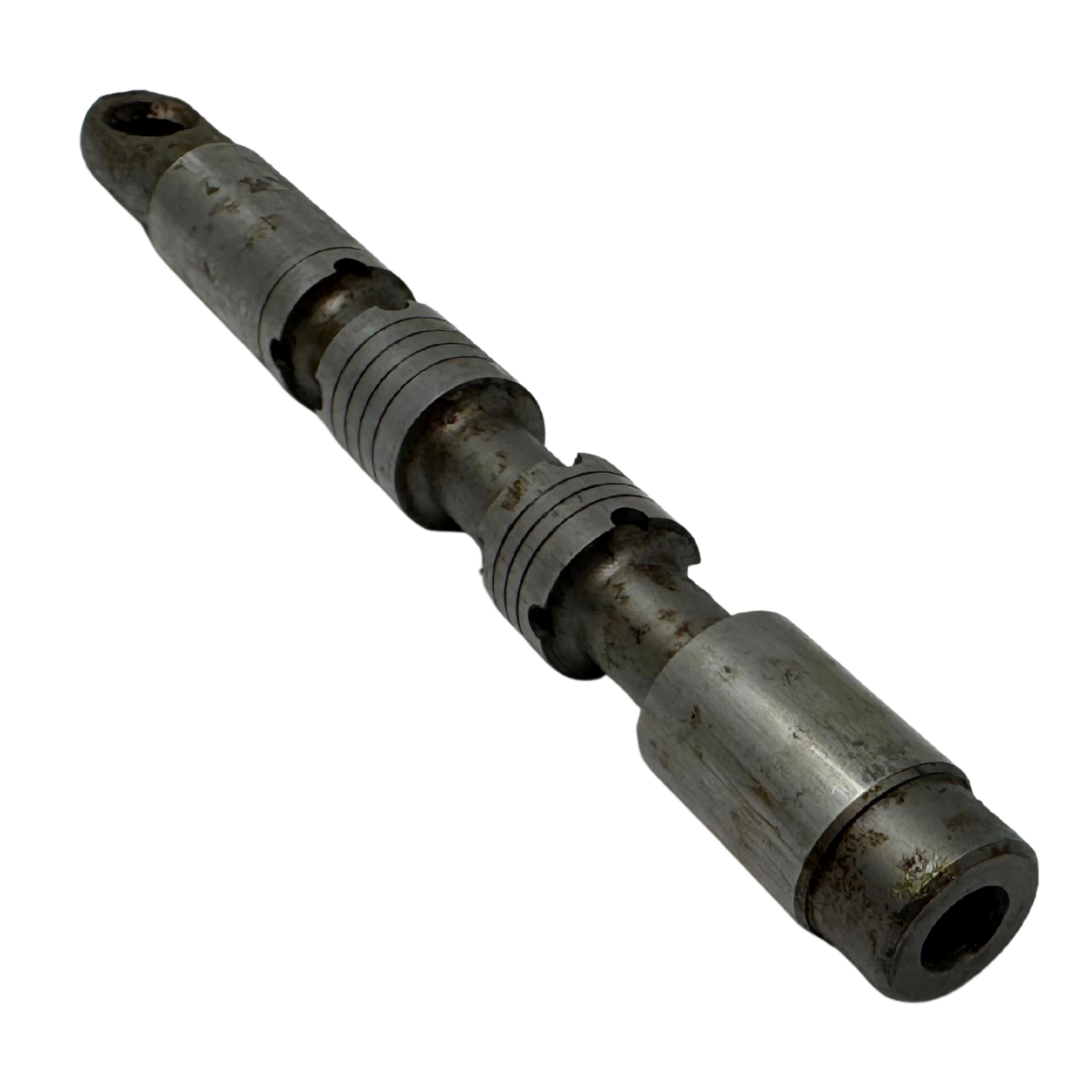

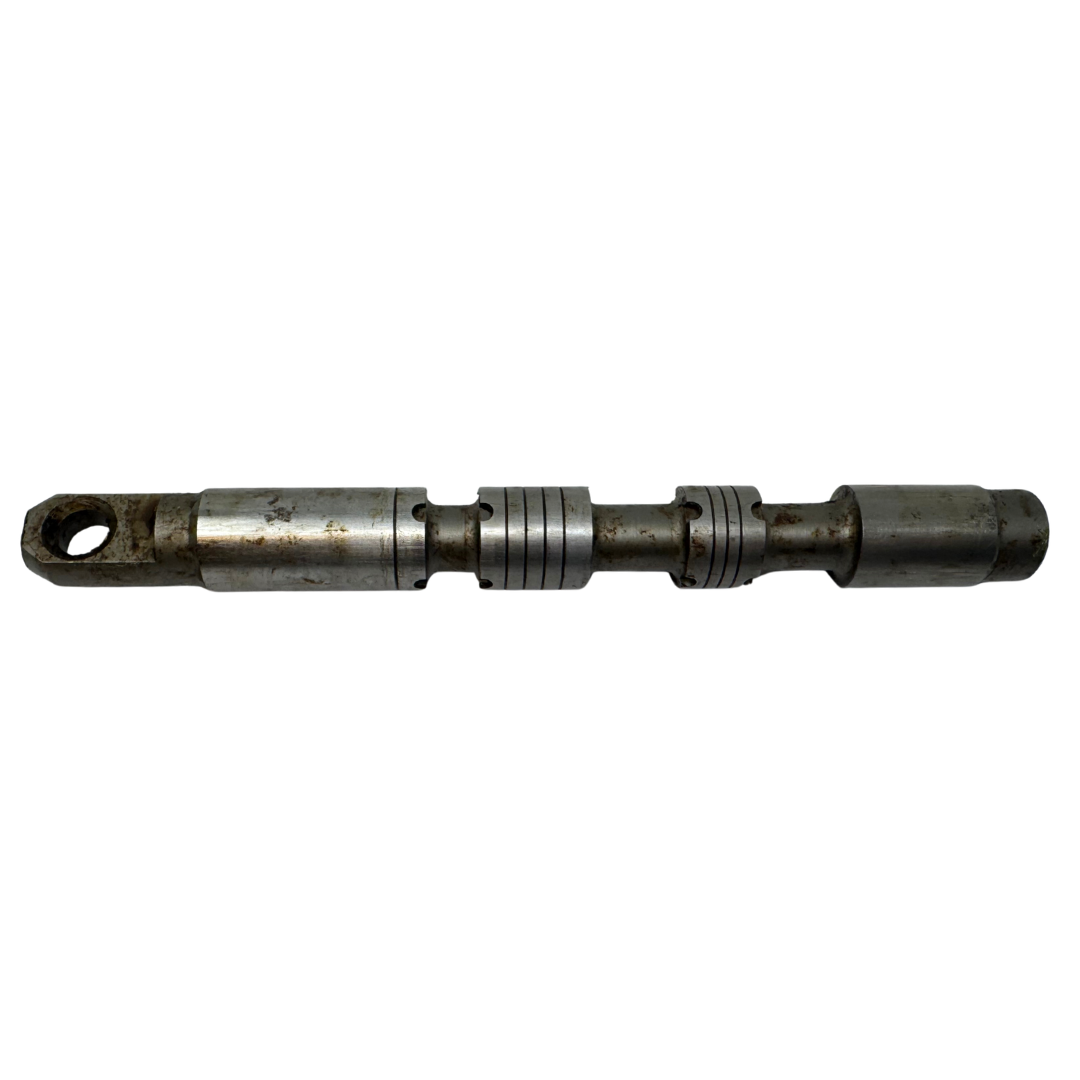

YLMB53002 : Youli MB-5 Spool, Double Acting, 3 Position, A&B to Tank, Code 2
YLMB53002 : Youli MB-5 Spool, Double Acting, 3 Position, A&B to Tank, Code 2
YLMB53002 : Youli MB-5 Spool, Double Acting, 3 Position, A&B to Tank, Code 2
Roll over image to zoom in Click on image to zoom
YLMB53002 : Youli MB-5 Spool, Double Acting, 3 Position, A&B to Tank, Code 2YLMB53002 : Youli MB-5 Spool, Double Acting, 3 Position, A&B to Tank, Code 2YLMB53002 : Youli MB-5 Spool, Double Acting, 3 Position, A&B to Tank, Code 2

YLMB53002 : Youli MB-5 Spool, Double Acting, 3 Position, A&B to Tank, Code 2

Save $35.01
Youli-AmericasSKU: YLMB53002
Same Day
1
Price:
$91.99 $127.00

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Location Corpus Christi, TX
Valve Type Monoblock
Valve Series MB-3
Country of Manufacture Taiwan
Height 2
Length 4
Width 2
Weight 1

Description

The Youli YLMB53002 MB-5 Spool, Code 2 is a double-acting, 3-position hydraulic spool designed for use with Youli MB-5 Monoblock Directional Control Valves. In the neutral or center position, both A and B work ports are open to tank, allowing hydraulic fluid from both sides of the connected actuator circuit to return to tank. When shifted to either operating position, the spool directs hydraulic flow to operate a double-acting cylinder, hydraulic motor, or other bidirectional hydraulic function. This spool configuration is ideal for compatible MB-5 hydraulic circuits that require both work ports to be unloaded to tank when the control is in neutral.

Warning: Because A and B are open to tank in neutral, this spool does not hydraulically lock the actuator in position when centered; depending on the application and other components in the circuit, a load may move, drift, or lower. Always verify spool function, load-holding requirements, pressure and flow ratings, and complete hydraulic circuit compatibility before installation. Secure all loads and fully depressurize the hydraulic system before installing, removing, or servicing the spool.
