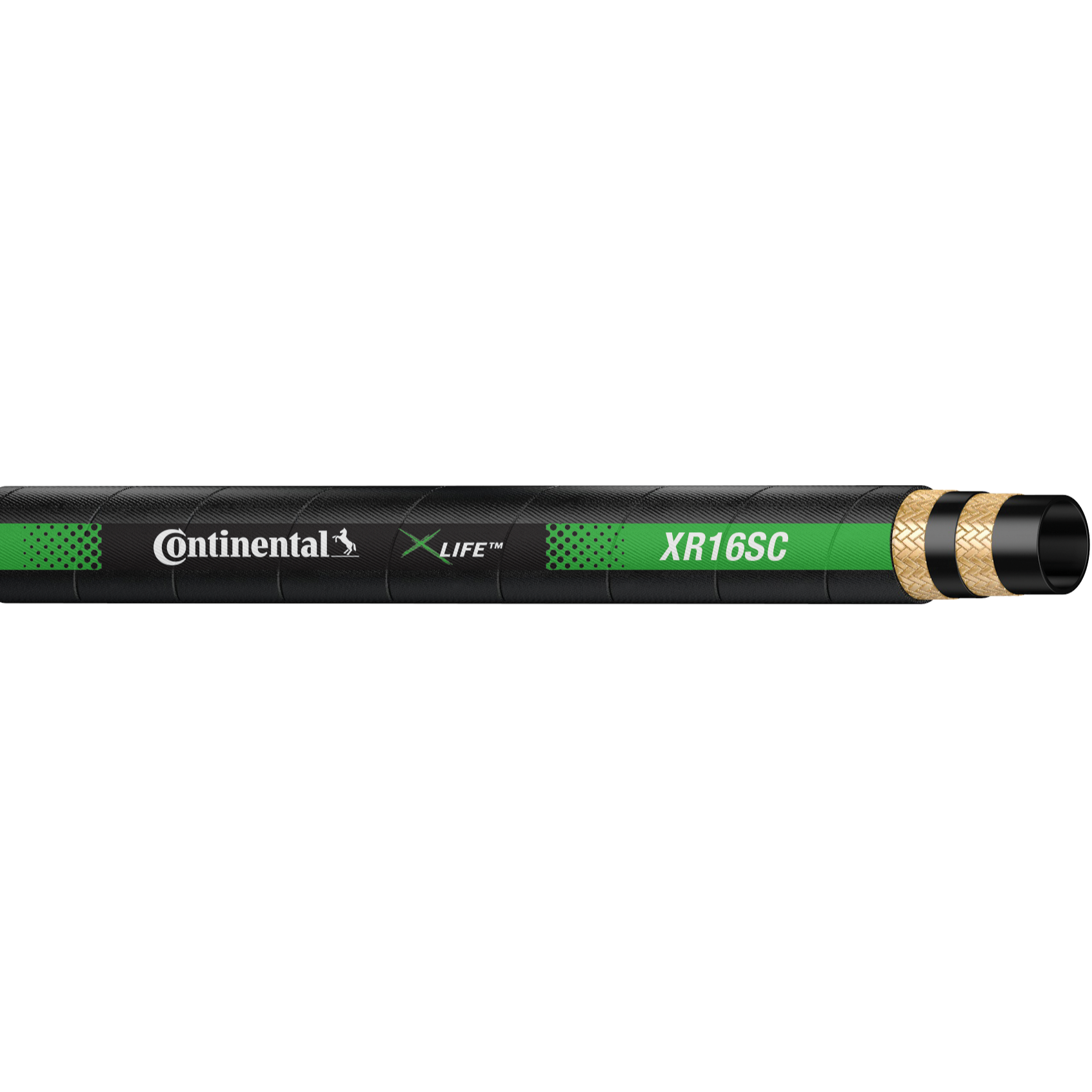

XR16SC-10 : Continental Hose, XR16SC Series, 100R16/2SC, Extended Life, 0.625 (5/8") ID, 4350 Rated, BY THE INCH
Roll over image to zoom in Click on image to zoom
XR16SC-10 : Continental Hose, XR16SC Series, 100R16/2SC, Extended Life, 0.625 (5/8") ID, 4350 Rated, BY THE INCH

XR16SC-10 : Continental Hose, XR16SC Series, 100R16/2SC, Extended Life, 0.625 (5/8") ID, 4350 Rated, BY THE INCH

ContiTech Continental HoseSKU: XR16SC-10
Same Day
1252
Price:
$0.73

Product Details

Data Sheet Click here to download
Usually Ships Within Same Day
Factory Location Moberly, Missouri
Pressure Rating 4350
Inside Diameter 0.625 (5/8")
Burst Rating 17400
Bend Radius 4.0
Hose Style 2-Braid High Tensile Steel Wire
Series XR16SC
Outside Diameter 0.95
Operating Temp -40F to +212F
Approvals SAE 100R16, EN 857 2SC, SAE J1942 US Coast Guard
Country of Manufacture United States
Safety Note 4:1
