Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Ferrule |
| Series | XF1 |
| Country of Manufacture | Italy |
| Height | 2.74 |
| Length | 3.9 |
| Width | 2.74 |
| Weight | 1.9 |
| Side 1 Size | 1 1/2 (-24) |
| Side 1 Type | Hose |
Description

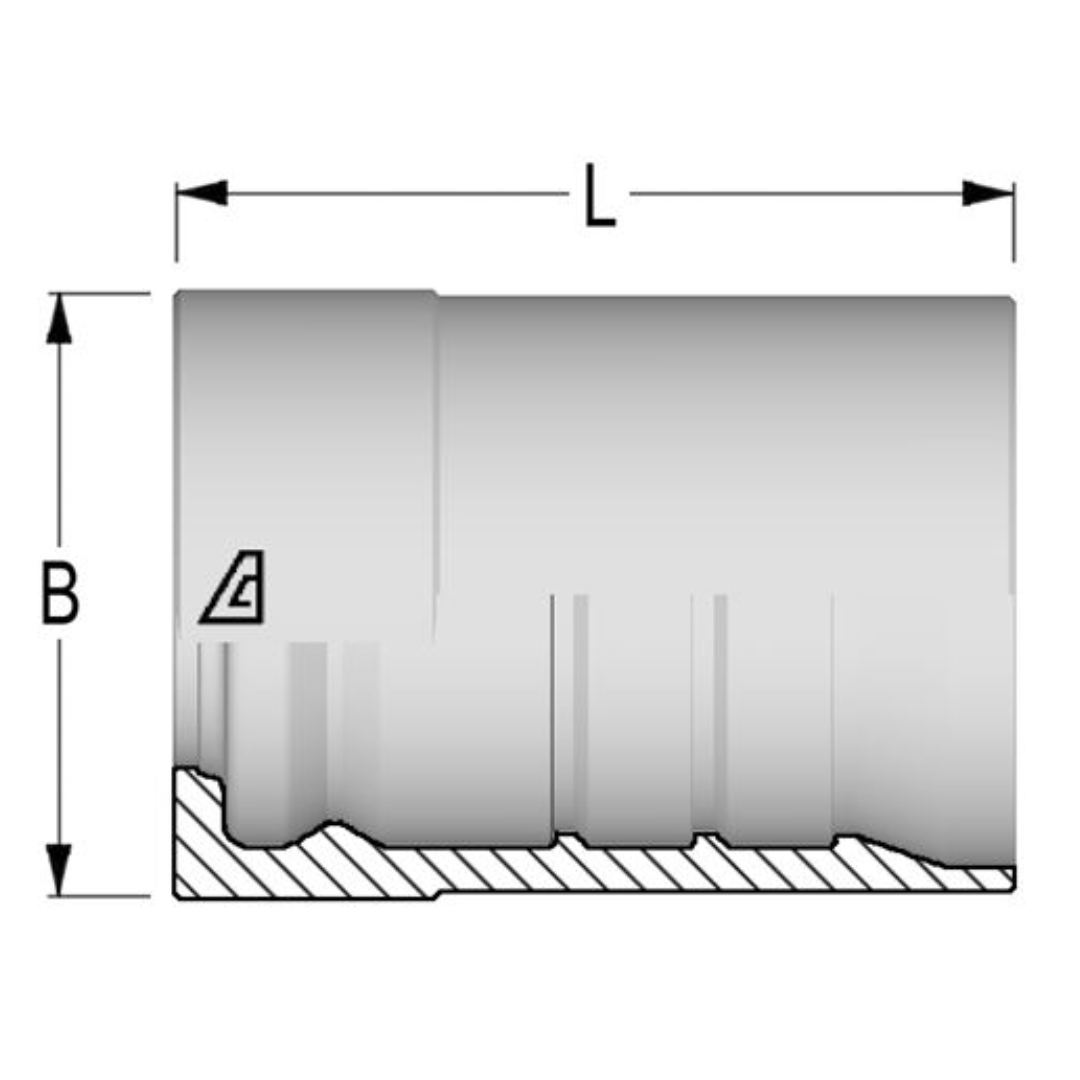

The Alfagomma XF1 Interlock Skive Ferrules are high-strength, straight, carbon steel fittings specifically designed for spiral wire reinforced hoses in the X Series. A ferrule is a metal sleeve that helps secure the hose to a fitting, ensuring a secure and leak-proof connection. The "skive" process refers to removing the outer layer of the hose to expose the reinforcing fibers, creating a surface that allows the ferrule to lock tightly. These ferrules require both internal and external skiving, which ensures a perfect fit for the hose and ferrule. The difference between two-piece and one-piece fittings is that two-piece fittings, like the XF1 ferrule, consist of separate components that can be replaced individually, offering flexibility and ease of maintenance, while one-piece fittings are integrated and require full replacement if damaged. The XF1 Interlock Skive Ferrules are designed to meet the high-pressure demands of industrial applications, offering reliability and performance in tough environments.
