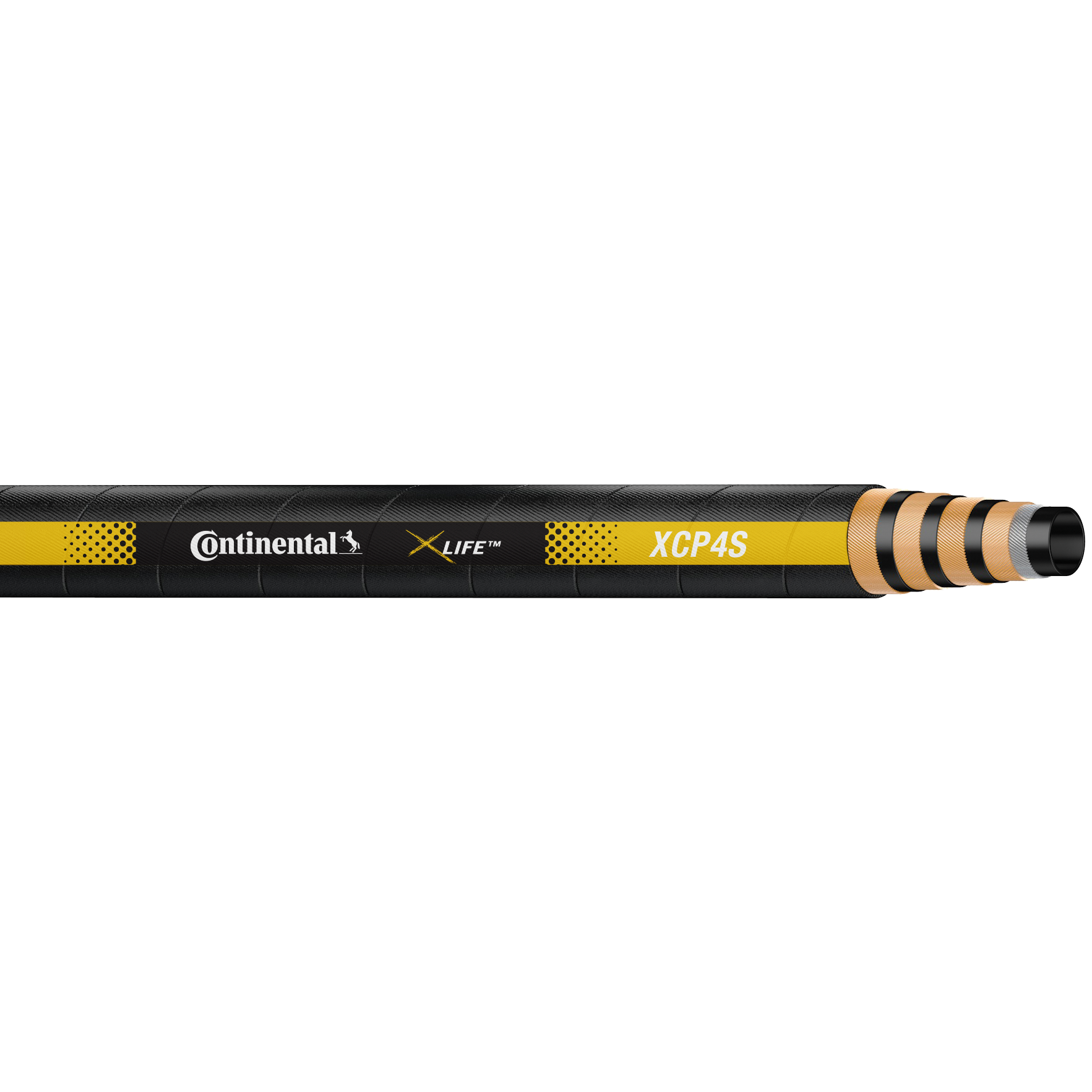

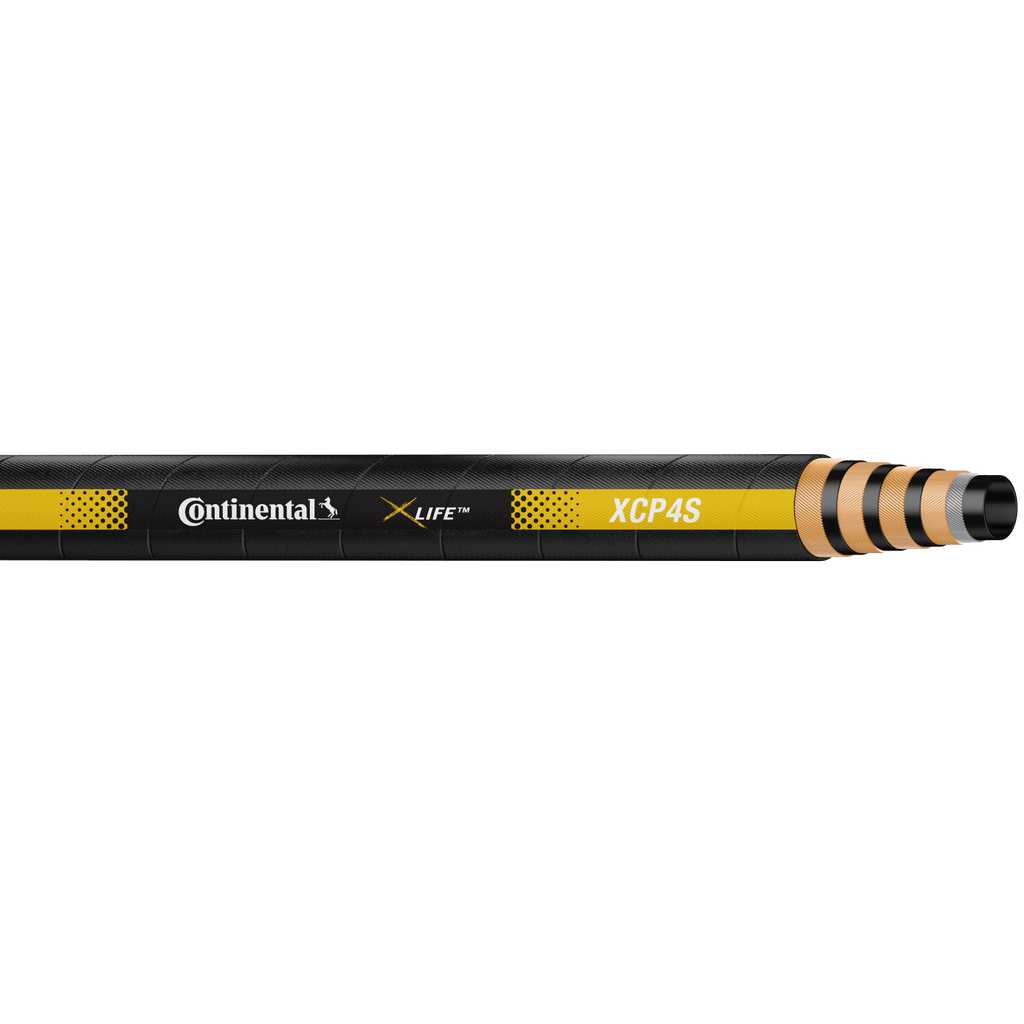

XCP4S-08X200 : Continental Hose, XCP4S Series, Constant Pressure Spiral, 0.5 (1/2") ID, 4100 Rated, 200ft Reel
Roll over image to zoom in Click on image to zoom
XCP4S-08X200 : Continental Hose, XCP4S Series, Constant Pressure Spiral, 0.5 (1/2") ID, 4100 Rated, 200ft Reel

XCP4S-08X200 : Continental Hose, XCP4S Series, Constant Pressure Spiral, 0.5 (1/2") ID, 4100 Rated, 200ft Reel

Save $2,237.01
ContiTech Continental HoseSKU: XCP4S-08X200
2-3 Weeks
Price:
$2,200.99 $4,438.00

Product Details

Data Sheet Click here to download
Usually Ships Within 2-3 Weeks
Factory Location Moberly, Missouri
Pressure Rating 4100
Inside Diameter 0.5 (1/2")
Burst Rating 16400
Bend Radius 3.5
Hose Style 4 or 6 layers of spiraled high-tensile wire
Series XCP4S
Outside Diameter 0.94
Operating Temp -40F to +250F
Approvals SAE 100R12,EN 856 4SH, MSHA Compliant Cover, US Coast Guard except -24 and -32, ABS Approved
Country of Manufacture United States
Safety Note 4:1
