X9M09H20 : OneXtreme Adapter, 0.5625 (9/16") Male MP x 0.5625 (9/16") Male HP, 20,000psi

Save $17.44
OneXtremeSKU: X9M09H20
4-6 Weeks
Price:
$58.12 $75.56

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Houston, TX
Material 316SS
Pressure Rating 20000
Series OX-MPM-HPM
Country of Manufacture United States

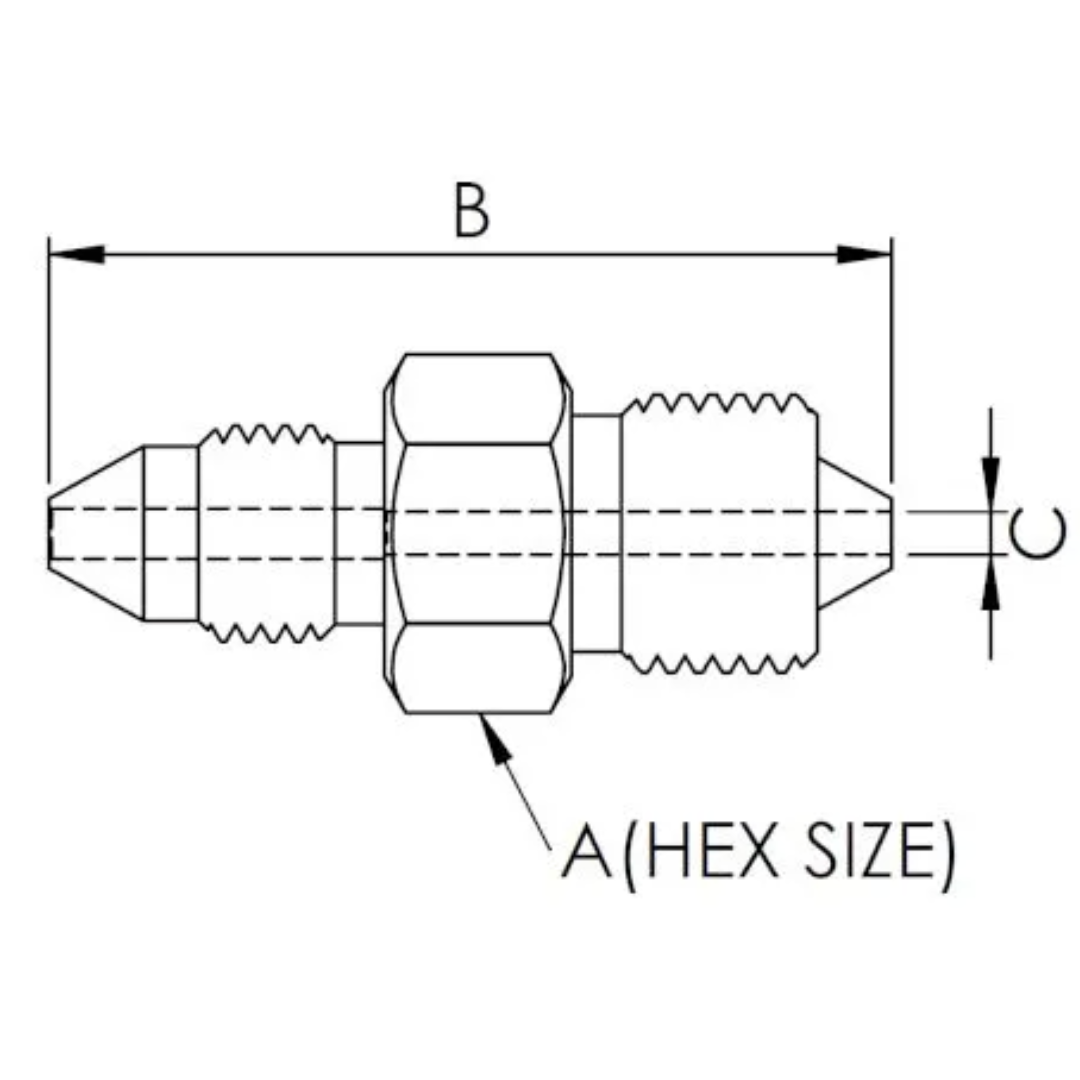

Height 1.125
Length 2.5
Width 1.125
Weight 0.44
Side 1 Gender MALE
Side 1 Size 0.5625 (9/16")
Side 1 Type MP
Side 2 Gender MALE
Side 2 Size 0.5625 (9/16")
Side 2 Type HP

Description

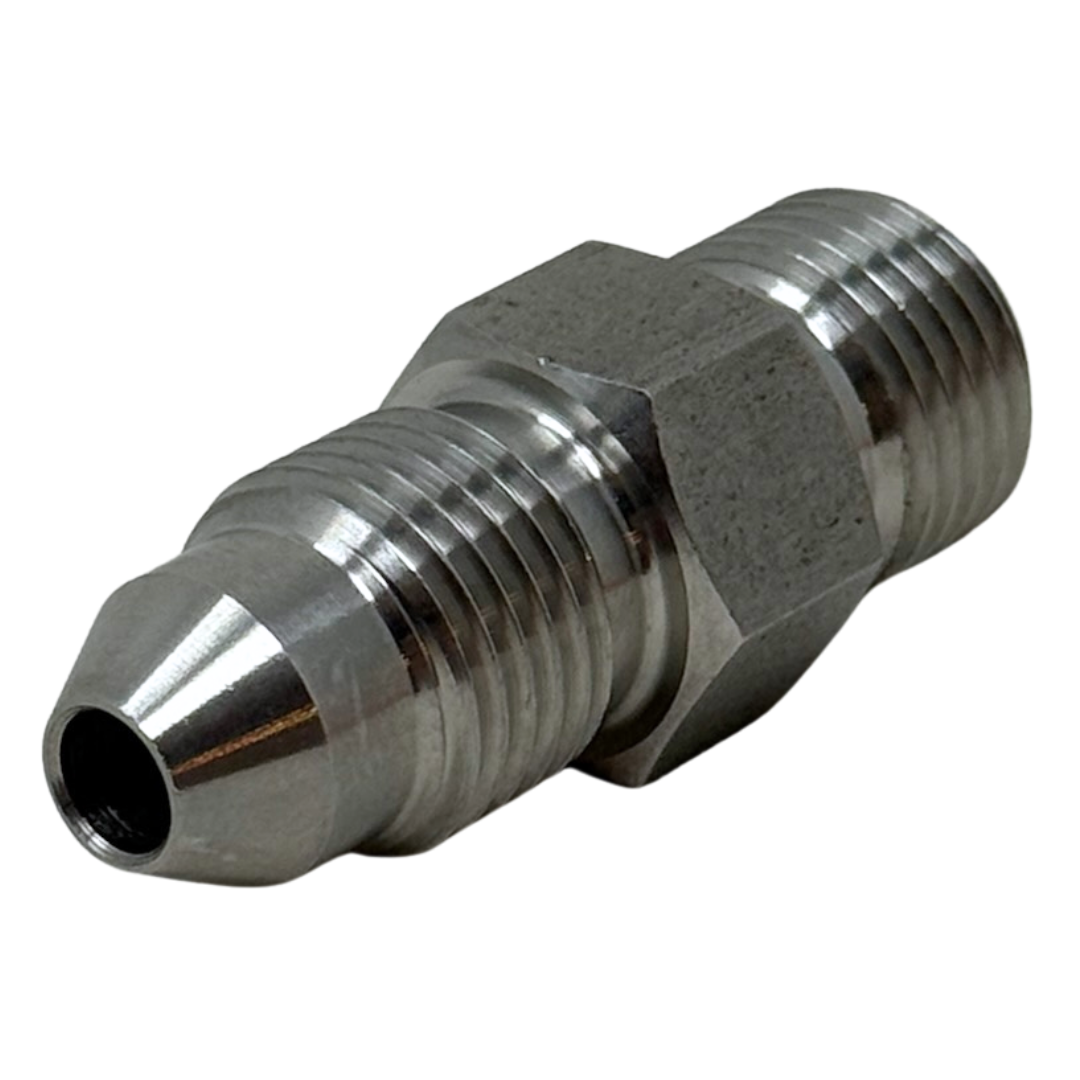

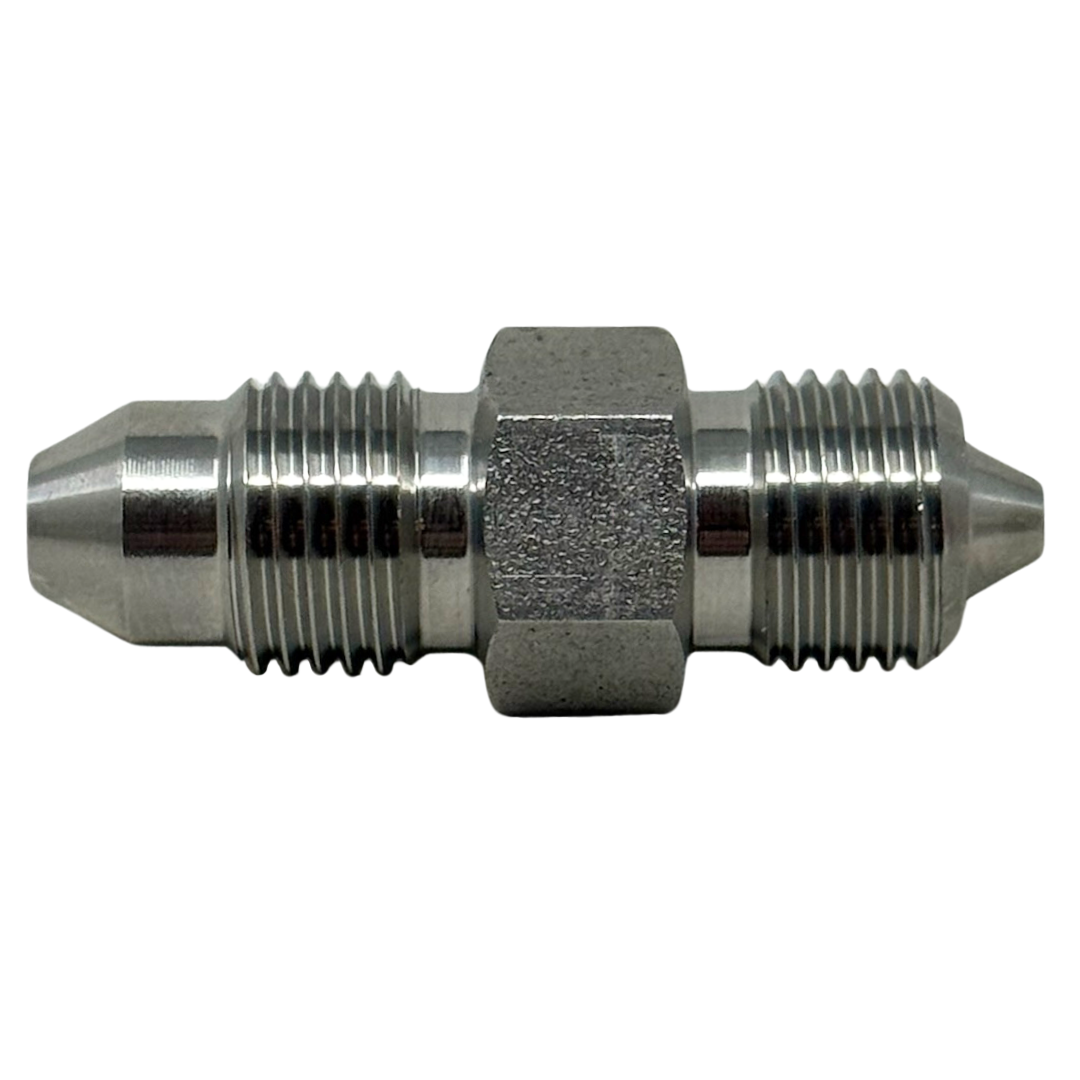

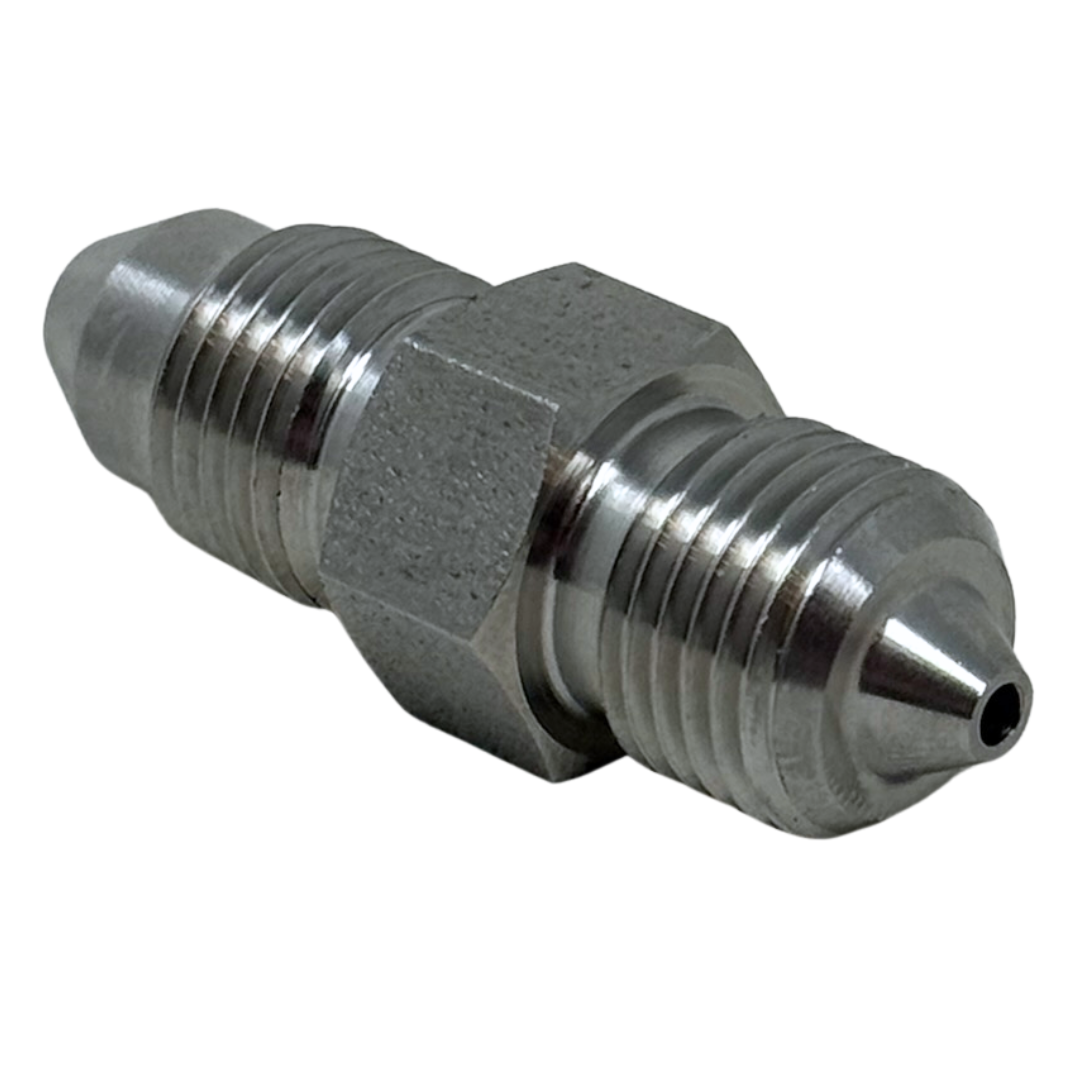

The Medium Pressure Male to High Pressure Male OneXtreme Adapters are precision-engineered conversion fittings designed to connect medium pressure and high pressure coned-and-threaded components in demanding hydraulic, chemical injection, and high-pressure test systems. Both connection types utilize a 60-degree cone and thread design to create a reliable metal-to-metal seal, with the medium pressure side typically used in systems up to 20,000 psi (1379 bar) and the high pressure side engineered for applications up to 60,000 psi (4136 bar).

Manufactured from cold worked 316 stainless steel, these adapters provide exceptional strength, corrosion resistance, and durability in harsh and high-cycle environments, with special materials available upon request to meet specific application requirements. Because this adapter bridges two pressure classes, the overall assembly must always be designed around the lower-rated side and all associated system components.

NOTE: Proper installation, thread compatibility, and torque are critical. Mismatched components, damaged sealing surfaces, or exceeding system limits can result in leaks or catastrophic failure. Always verify compatibility with mating components and follow recommended assembly practices before use.
