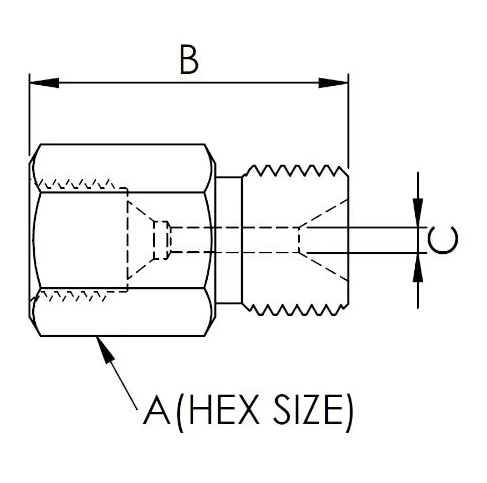

X4JF09TM15 : OneXtreme Adapter, 0.25 (1/4") Female JIC x 0.5625 (9/16") Male Type-M, 15,000psi
X4JF09TM15 : OneXtreme Adapter, 0.25 (1/4") Female JIC x 0.5625 (9/16") Male Type-M, 15,000psi
Roll over image to zoom in Click on image to zoom
X4JF09TM15 : OneXtreme Adapter, 0.25 (1/4") Female JIC x 0.5625 (9/16") Male Type-M, 15,000psiX4JF09TM15 : OneXtreme Adapter, 0.25 (1/4") Female JIC x 0.5625 (9/16") Male Type-M, 15,000psi

X4JF09TM15 : OneXtreme Adapter, 0.25 (1/4") Female JIC x 0.5625 (9/16") Male Type-M, 15,000psi

Save $15.53
OneXtremeSKU: X4JF09TM15
4-6 Weeks
Price:
$51.75 $67.28

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Houston, TX
Material 316SS
Pressure Rating 15000
Series OX-JICF-TMM
Country of Manufacture United States
Height 0.625
Length 1.2
Width 0.625
Weight 0.08
Side 1 Gender FEMALE
Side 1 Size 0.25 (1/4")
Side 1 Type JIC
Side 2 Gender MALE
Side 2 Size 0.5625 (9/16")
Side 2 Type TM

Description

The JIC Female to Type M Male OneXtreme Adapters are high-performance conversion fittings designed to connect JIC 37-degree flare systems to Type M (Reverse High Pressure) connections in demanding hydraulic and fluid power applications. The JIC side utilizes a 37-degree cone seat to create a reliable metal-to-metal seal commonly used in industrial and mobile equipment, while the Type M side is engineered for use with Type M swivel hose end fittings and seals via a 58-degree cone for secure performance in ultra-high-pressure environments.

Manufactured from cold worked 316 stainless steel, these adapters provide exceptional strength, corrosion resistance, and durability in harsh conditions such as oil and gas, chemical processing, and high-pressure test systems, with special materials available upon request to meet specific application requirements. Because this adapter bridges two different connection types, overall pressure capability is limited by the lower-rated side of the assembly, and system design should always account for this.

NOTE: Proper thread identification, cone angle compatibility, and installation practices are critical. Mismatched connections, over-tightening, or damaged sealing surfaces can lead to leaks or catastrophic failure. Always verify component compatibility and system requirements before use.
