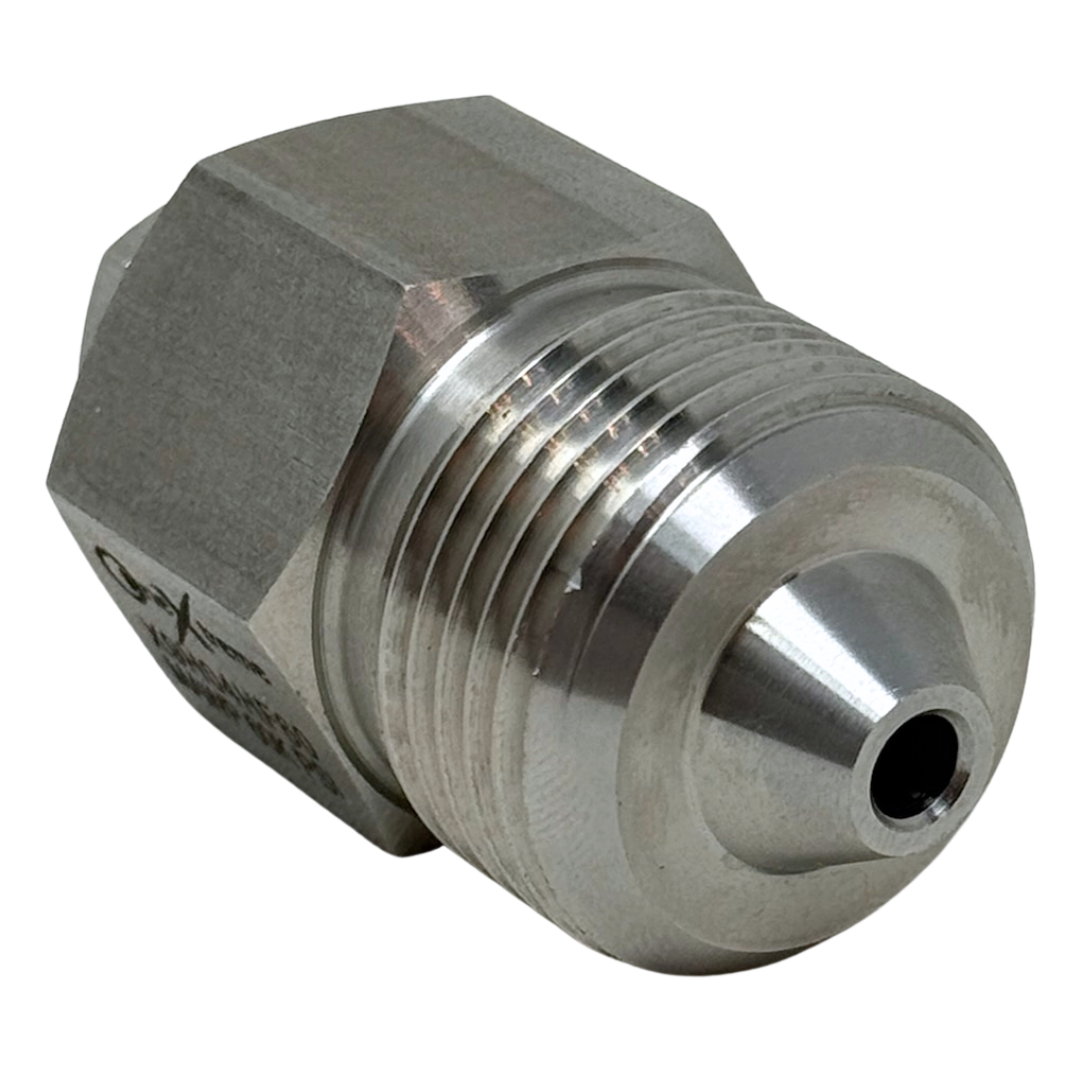

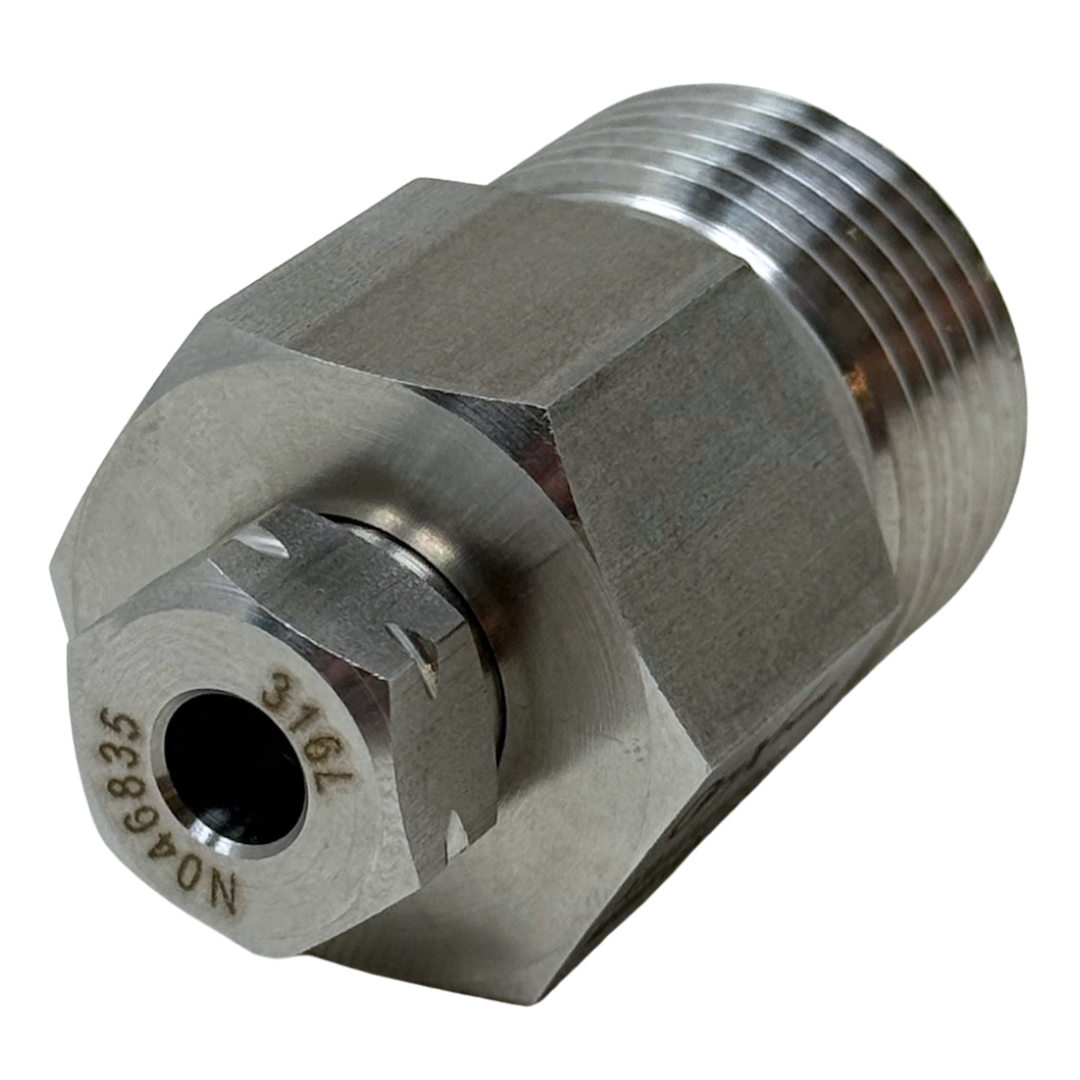

X4H09HF60-K : OneXtreme Adapter, 0.25 (1/4") Male HP x 0.5625 (9/16") Female HP, 60,000psi
X4H09HF60-K : OneXtreme Adapter, 0.25 (1/4") Male HP x 0.5625 (9/16") Female HP, 60,000psi
X4H09HF60-K : OneXtreme Adapter, 0.25 (1/4") Male HP x 0.5625 (9/16") Female HP, 60,000psi
X4H09HF60-K : OneXtreme Adapter, 0.25 (1/4") Male HP x 0.5625 (9/16") Female HP, 60,000psi
Roll over image to zoom in Click on image to zoom
X4H09HF60-K : OneXtreme Adapter, 0.25 (1/4") Male HP x 0.5625 (9/16") Female HP, 60,000psiX4H09HF60-K : OneXtreme Adapter, 0.25 (1/4") Male HP x 0.5625 (9/16") Female HP, 60,000psiX4H09HF60-K : OneXtreme Adapter, 0.25 (1/4") Male HP x 0.5625 (9/16") Female HP, 60,000psiX4H09HF60-K : OneXtreme Adapter, 0.25 (1/4") Male HP x 0.5625 (9/16") Female HP, 60,000psi

X4H09HF60-K : OneXtreme Adapter, 0.25 (1/4") Male HP x 0.5625 (9/16") Female HP, 60,000psi

Save $22.02
OneXtremeSKU: X4H09HF60-K
4-6 Weeks
Price:
$73.38 $95.40

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Houston, TX
Material 316SS
Pressure Rating 60000
Series OX-HPM-HPF
Country of Manufacture United States

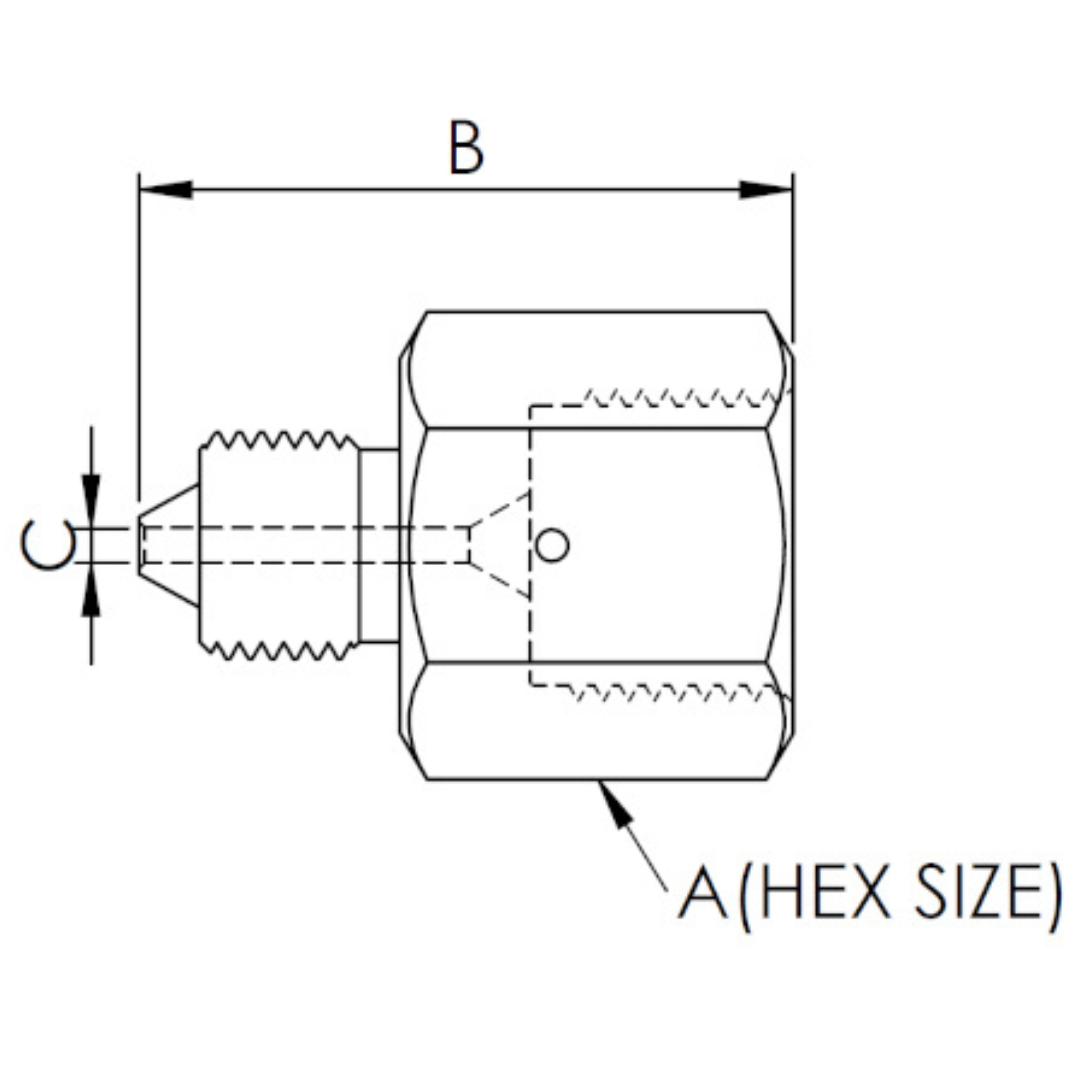

Height 1.375
Length 1.97
Width 1.375
Weight 0.44
Side 1 Gender MALE
Side 1 Size 0.25 (1/4")
Side 1 Type HP
Side 2 Gender FEMALE
Side 2 Size 0.5625 (9/16")
Side 2 Type HP

Description

The High Pressure Male to High Pressure Female OneXtreme Adapters are precision-engineered fittings designed to connect male and female coned-and-threaded high pressure components in demanding fluid power, chemical injection, and test system applications. These adapters utilize a 60-degree cone and thread connection to create a dependable metal-to-metal seal, delivering reliable performance at working pressures up to 60,000 psi (4136 bar).

Manufactured from cold worked 316 stainless steel, they provide exceptional strength, fatigue resistance, and corrosion protection for use in harsh and high-cycle environments. OneXtreme high pressure adapters are machined for consistent sealing integrity and dimensional accuracy, with special materials available upon request to meet specific application or environmental requirements.

NOTE: Proper assembly, torque, and cone/thread compatibility are critical. Using mismatched components, damaged sealing surfaces, or exceeding rated pressure limits can result in leaks or catastrophic failure. Always verify system compatibility and follow recommended installation practices before use.
