Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Flange |
| Series | X-C629 |
| Country of Manufacture | Italy |
| Height | 3.13 |
| Length | 11.73 |
| Width | 3.13 |
| Weight | 6.17 |
| Side 1 Size | 2 (-32) |
| Side 1 Type | Hose |
| Side 2 Gender | Flange |
| Side 2 Size | 2 (-32) |
| Side 2 Type | Code 62 |
Description

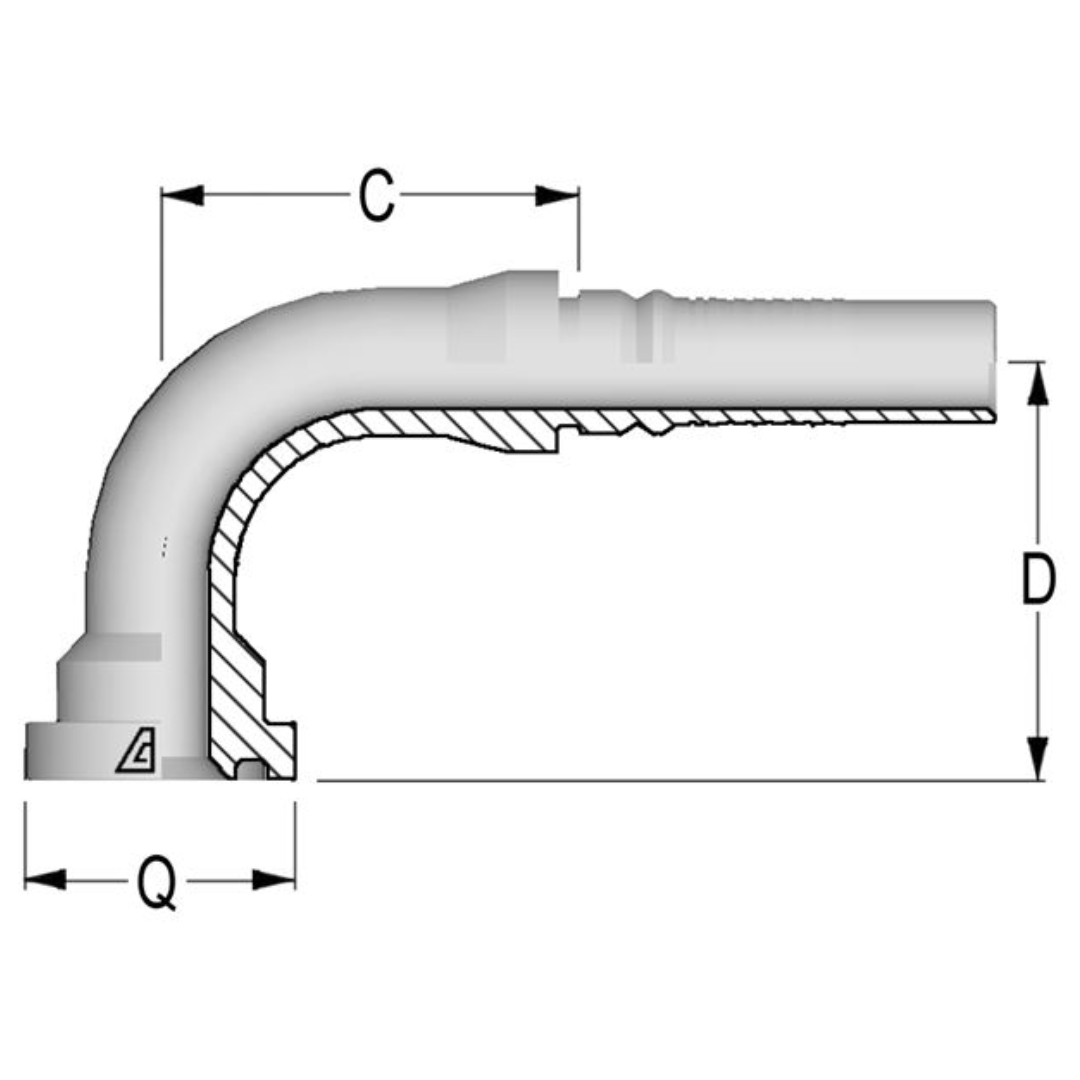

The Alfagomma X-C629 Two-Piece Fittings are 90-degree, carbon steel hose fittings designed to connect hoses to an O-ring flange with SAE J518 Code 62 standards, offering a strong and reliable connection for high-pressure applications. These fittings are part of the X Series, which features a two-piece Interlock insert designed specifically for spiral wire reinforced hoses. Ferrules are metal rings that are used to create a secure, leak-proof connection between the hose and the fitting. The main difference between two-piece and one-piece fittings is that two-piece fittings allow for easier assembly and disassembly, offering more flexibility during installation, while one-piece fittings are permanent and cannot be adjusted. For optimal performance, the X-C629 fittings require both internal and external skiving (trimming the hose ends) and the use of XF1 or XF2 Interlock ferrules to ensure a tight, secure fit and durability in demanding conditions.
