Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Flange |
| Series | X-C61S |
| Country of Manufacture | Italy |
| Height | 2.38 |
| Length | 4.41 |
| Width | 2.38 |
| Weight | 1.81 |
| Side 1 Size | 1 1/2 (-24) |
| Side 1 Type | Hose |
| Side 2 Gender | Flange |
| Side 2 Size | 1.5 (-24) |
| Side 2 Type | Code 61 |
Description

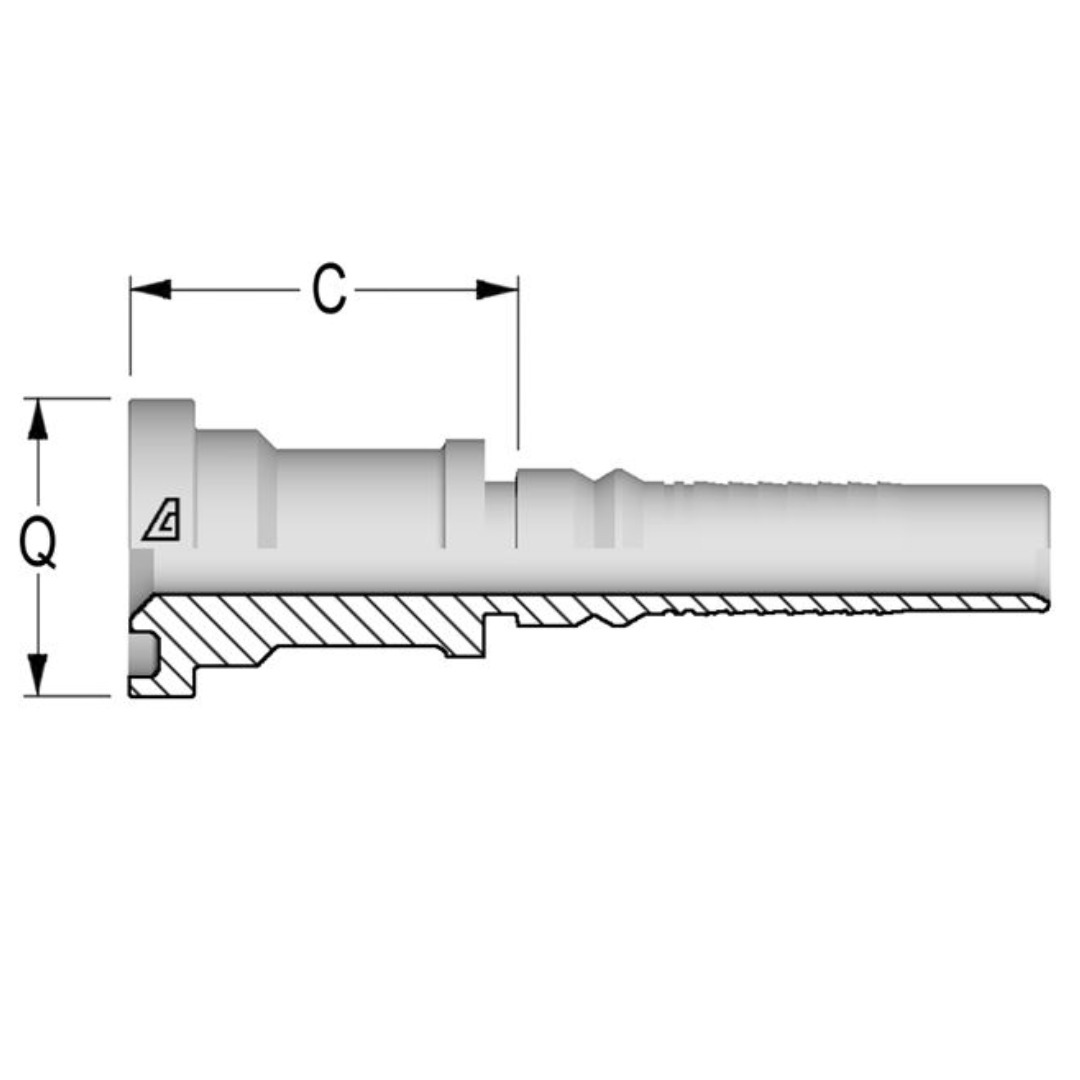

The Alfagomma X-C61S Two-Piece Fittings are straight, carbon steel hose fittings designed for use with spiral wire reinforced hoses. They feature an O-Ring flange connection, specifically SAE J518 Code 61, providing a secure and leak-resistant seal. Ferrules are metal rings that help secure the hose to the fitting, ensuring a tight and reliable connection. The key difference between two-piece and one-piece fittings is that two-piece fittings are made up of separate components that can be assembled and disassembled, offering greater flexibility, while one-piece fittings are fixed and cannot be separated. The X Series fittings require both internal and external skiving, a process where the hose ends are trimmed to fit properly, and they use XF1 or XF2 Interlock ferrules to ensure a secure, high-pressure connection. This combination of skiving and ferrules ensures optimal performance and reliability in demanding applications.
