Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Male |
| Series | X-MNPT |
| Country of Manufacture | Italy |
| Height | 0.87 |
| Length | 2.52 |
| Width | 0.87 |
| Weight | 0.21 |
| Side 1 Size | 1/2 (-08) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 1/2-14 (-08) |
| Side 2 Type | NPT |
Description

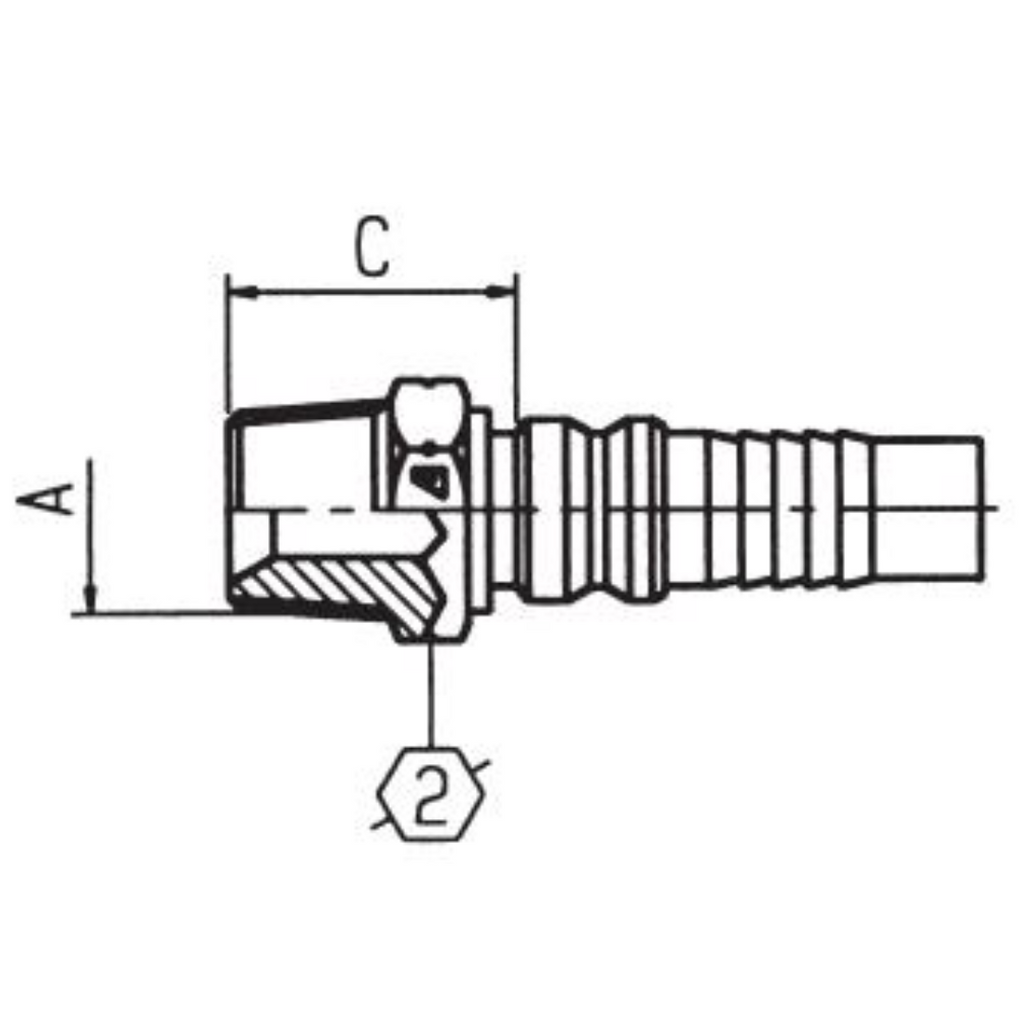

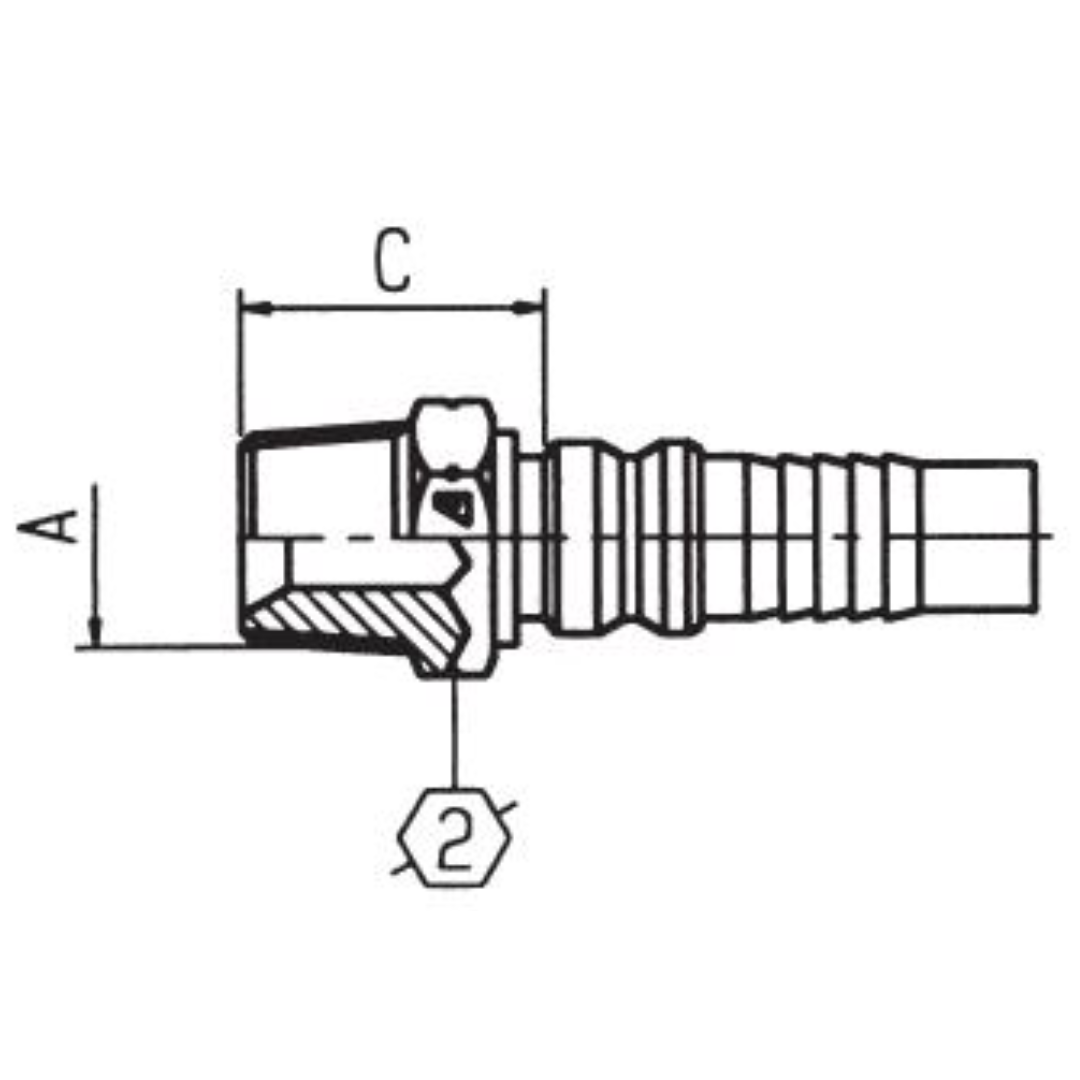

The Alfagomma X-MNPT Interlock Inserts are straight, carbon steel fittings designed for two-piece applications, featuring an NPTF male 60° seat with interlock functionality for spiral wire reinforced hoses. These inserts are part of the X Series, specifically engineered to provide a secure connection in high-pressure environments. Ferrules are critical components used to secure the hose to the fitting, offering a leak-proof seal. In this case, the ferrules are interlock-style, which require both internal and external skiving of the hose to allow the ferrule to grip firmly. The key difference between two-piece and one-piece fittings is that two-piece fittings consist of a separate hose end and fitting, offering easier installation, maintenance, and replacement, while one-piece fittings are solid, non-separable components. The X-MNPT Interlock Inserts are designed to work with interlock ferrules, such as the XF1 or XF2, to ensure optimal performance and reliability for spiral wire reinforced hoses in demanding applications.
